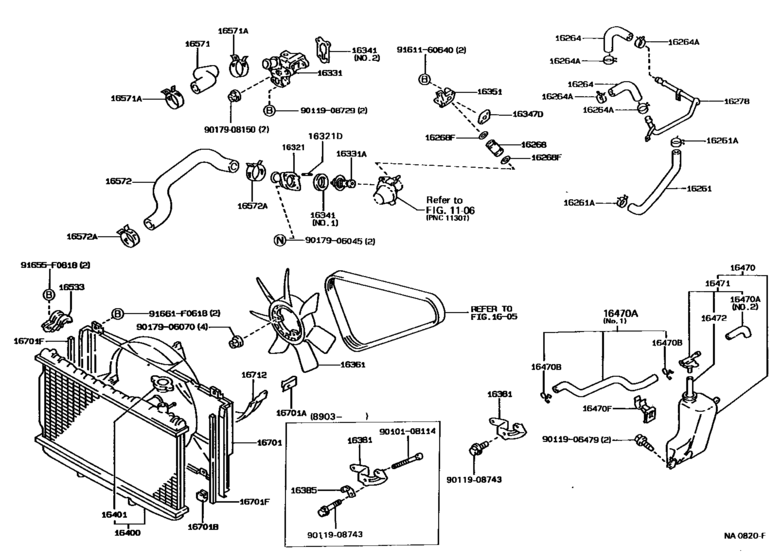

Radiator & Water Outlet ([08.1988 - ] (8808- )1GFE) Diagram Toyota CHASER
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- GX81
- grade
- AVT
- body
- HT
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-70050 Hose, Water By-Pass[08.1988 - 08.1990] 1GFE..GX81 |
16261-70050 |
US $9.90 |
||
| replacement | |||||
|
16261
|
16261
16261-70051 Hose, Water By-Pass[08.1988 - 08.1990] 1GFE..GX81 |
16261-70051 |
US $9.09 |
||
|
16261
|
16261
16261-70051 Hose, Water By-Pass[08.1990 - 10.1992] 1GFE..GX81 |
16261-70051 |
US $9.09 |
||
|
16261A
|
16261A
90467-13051 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1988 - 10.1992] 1GFE..GX81 |
90467-13051 |
US $3.49 |
||
| replacement | |||||
|
16261A
|
16261A
96135-51300 Clamp, Hose[08.1988 - 10.1992] 1GFE..GX81 |
96135-51300 |
from US $2.13 |
||
|
16264
|
16264
16264-70060 Hose, Water By-Pass, No.2[08.1988 - 10.1992] 1GFE..GX81 |
16264-70060 |
US $7.88 |
||
|
16264A
|
16264A
90467-13051 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1988 - 10.1992] 1GFE..GX81 |
90467-13051 |
US $3.49 |
||
| replacement | |||||
|
16264A
|
16264A
96135-51300 Clamp, Hose[08.1988 - 10.1992] 1GFE..GX81 |
96135-51300 |
from US $2.13 |
||
|
16268
|
16268
16268-70030 Pipe, Water By-Pass, No.1[08.1988 - 04.1991] 1GFE..GX81 |
16268-70030 |
US $12.52 |
||
| replacement | |||||
|
16268
|
16268
16268-70031 Pipe, Water By-Pass, No.1[08.1988 - 04.1991] 1GFE..GX81 |
16268-70031 |
US $16.31 |
||
|
16268
|
16268
16268-70031 Pipe, Water By-Pass, No.1[04.1991 - 10.1992] 1GFE..GX81 |
16268-70031 |
US $16.31 |
||
|
16268F
|
16268F
96761-24018 Ring, O(For Water By-Pass Pipe)[08.1988 - 10.1992] 1GFE,1GGE,1GGTE..GX81 |
96761-24018 |
from US $4.49 |
||
|
16278
|
16278
16278-70060 Pipe, Water By-Pass, No.2[08.1988 - 09.1990] 1GFE..GX81 |
16278-70060 |
US $46.88 |
||
|
16278
|
16278
16278-70061 Pipe, Water By-Pass, No.2[09.1990 - 10.1992] 1GFE..GX81 |
16278-70061 |
US $38.88 |
||
|
16321
|
16321
16321-70030 Inlet, Water[08.1988 - 10.1992] 1GFE..GX81 |
16321-70030 |
US $46.70 |
||
|
16321D
|
16321D
16193-63010 Bolt, Stud(For Water Outlet Setting)[08.1988 - 10.1992] 1GFE..GX81 |
16193-63010 |
US $6.27 |
||
|
16331
|
16331
16331-70060 Outlet, Water[08.1988 - 08.1990] 1GFE..GX81 |
16331-70060 |
US $115.02 |
||
|
16331
|
16331
16331-70070 Outlet, Water[08.1990 - 10.1992] 1GFE..GX81 |
16331-70070 |
US $152.88 |
||
|
16331A
|
16331A
90916-03081 Thermostat[08.1988 - 10.1992] 1GFE..GX81 ＊ＷＡＸ ８２−９５ |
90916-03081 |
from US $25.41 |
||
|
16341
|
16341
16341-35010 Gasket, Water Outlet[08.1988 - 09.1990] 1GFE..GX81 ＮＯ．１; 7MGE..MX83 |
16341-35010 |
from US $1.89 |
||
|
16341
|
16341
16341-70030 Gasket, Water Outlet[08.1988 - 09.1990] 1GFE..GX81 ＮＯ．２ |
16341-70030 |
US $4.51 |
||
| replacement | |||||
|
16341
|
16341
16341-70040 Gasket, Water Outlet[08.1988 - 09.1990] 1GFE..GX81 ＮＯ．２ |
16341-70040 |
US $5.56 |
||
|
16341
|
16341
16341-70031
Gasket, Water Outlet
[09.1990 - 10.1992] 1GFE..GX81 NO.2 |
16341-70031 |
— | ||
| replacement | |||||
|
16341
|
16341
16341-70040 Gasket, Water Outlet[09.1990 - 10.1992] 1GFE..GX81 NO.2 |
16341-70040 |
US $5.56 |
||
|
16347D
|
16347D
16347-70020 Gasket, Water By-Pass[08.1988 - 08.1991] 1GFE..GX81 |
16347-70020 |
US $6.70 |
||
| replacement | |||||
|
16347D
|
16347D
16347-70021 Gasket, Water By-Pass[08.1988 - 08.1991] 1GFE..GX81 |
16347-70021 |
from US $2.71 |
||
|
16347D
|
16347D
16347-70021 Gasket, Water By-Pass[08.1991 - 10.1992] 1GFE..GX81 |
16347-70021 |
from US $2.71 |
||
|
16351
|
16351
16351-70010
Outlet, Water By-Pass
[08.1988 - 10.1992] 1GFE..GX81 |
16351-70010 |
— | ||
| replacement | |||||
|
16351
|
16351
16351-70011 Outlet, Water By-Pass[08.1988 - 10.1992] 1GFE..GX81 |
16351-70011 |
US $42.34 |
||
|
16361
|
16361
16361-70040 Fan[08.1988 - 10.1992] 1GFE..GX81 |
16361-70040 |
US $112.43 |
||
|
16381
|
16381
16381-70050 Bar, Fan Belt Adjusting[08.1988 - 10.1992] 1GFE..GX81 |
16381-70050 |
US $24.02 |
||
|
16385
|
16385
16385-70020 Slider, Fan Belt Adjusting[03.1989 - 10.1992] 1GFE..GX81 |
16385-70020 |
US $12.23 |
||
|
16400
|
16400
16400-70360
Radiator Assy
[08.1988 - 11.1991] 1GFE,1GGE..GX81..4FC |
16400-70360 |
— | ||
|
16401
|
16401
16401-63010 Cap Sub-Assy,[08.1988 - 10.1992] 2L#..LX80; 4SF#..SX80; 3YP..YX80; 1GFE,1GG#..GX81 |
16401-63010 |
from US $19.66 |
||
|
16470
|
16470
16470-46010
Tank Assy, Radiator Reserve
[08.1990 - 10.1992] 2L#..LX80; 7MGE..MX83; 4SFE..SX80; 1JZ#..JZX81; 1G#..GX81 |
16470-46010 |
— | ||
|
16470
|
16470
16470-70110 Tank Assy, Radiator Reserve[08.1988 - 08.1990] 2L#..LX80; 7MGE..MX83; 4SFI..SX80; 1GFE,1GG#..GX81 |
16470-70110 |
US $60.72 |
||
| replacement | |||||
|
16470
|
16470
16470-54320 Tank Assy, Radiator Reserve[08.1988 - 08.1990] 2L#..LX80; 7MGE..MX83; 4SFI..SX80; 1GFE,1GG#..GX81 |
16470-54320 |
US $61.66 |
||
|
16470A
|
16470A
16567-46010 Hose Or Pipe(For Radiator Reserve Tank)[08.1990 - 10.1992] 1G#..GX81 ＮＯ．１ |
16567-46010 |
US $16.45 |
||
|
16470A
|
16470A
16567-70020 Hose Or Pipe(For Radiator Reserve Tank)[08.1988 - 08.1990] 1GFE,1GG#..GX81 ＮＯ．１ |
16567-70020 |
US $13.40 |
||
|
16470A
|
16470A
85338-46010
Hose Or Pipe(For Radiator Reserve Tank)
[08.1990 - 10.1992] 1G#..GX81 ＮＯ．２ |
85338-46010 |
— | ||
|
16470A
|
16470A
85338-95A01
Hose Or Pipe(For Radiator Reserve Tank)
[08.1988 - 08.1990] 1GFE,1GG#..GX81 ＮＯ．２ |
85338-95A01 |
— | ||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[08.1988 - 10.1992] 7MGE..MX83; 4SF#..SX80; 3YP..YX80; 1GFE,1GG#..GX81 |
90467-11085 |
from US $0.72 |
||
|
16470F
|
16470F
90929-01233 Clamp, Radiator Reserve Tank Hose[08.1988 - 10.1992] 7MGE..MX83; 1GFE,1GG#..GX81 |
90929-01233 |
US $2.77 |
||
|
16471
|
16471
16405-46010 Cap Sub-Assy, Reserve Tank[08.1990 - 10.1992] 2L#..LX80; 7MGE..MX83; 4SFE..SX80; 1JZ#..JZX81; 1G#..GX81 |
16405-46010 |
US $9.90 |
||
|
16471
|
16471
16405-70080
Cap Sub-Assy, Reserve Tank
[08.1988 - 08.1990] 2L#..LX80; 7MGE..MX83; 4SFI..SX80; 1GFE,1GG#..GX81 |
16405-70080 |
— | ||
|
16472
|
16472
90445-12078 Hose(For Radiator Breather)[08.1988 - 10.1992] 1GFE,1GG#..GX81 長さ＝６００ |
90445-12078 |
from US $6.75 |
||
|
16533
|
16533
16505-70020
Support, Radiator, Upper
[08.1988 - 10.1992] 2L#..LX80; 7MGE..MX83; 4SF#..SX80; 3YP..YX80; 1GFE,1GG#..GX81 |
16505-70020 |
— | ||
|
16571
|
16571
16571-70190 Hose, Radiator, Inlet[08.1988 - 10.1992] 1GFE..GX81 |
16571-70190 |
US $27.05 |
||
|
16571A
|
16571A
90467-37002
Clip(For Water Inlet Hose)
[08.1988 - 07.1991] 2L#..LX80; 7MGE..MX83; 1GFE,1GG#..GX81 |
90467-37002 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-37005 Clip(For Water Inlet Hose)[08.1988 - 07.1991] 2L#..LX80; 7MGE..MX83; 1GFE,1GG#..GX81 |
90467-37005 |
from US $3.98 |
||
|
16572
|
16572
16572-70160 Hose, Radiator, Outlet[08.1988 - 10.1992] 1GFE..GX81 |
16572-70160 |
US $36.46 |
||
|
16572A
|
16572A
90467-37002
Clip(For Water Inlet Hose)
[08.1988 - 07.1991] 7MGE..MX83; 1GFE,1GGE,1GGTE..GX81 |
90467-37002 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-37005 Clip(For Water Inlet Hose)[08.1988 - 07.1991] 7MGE..MX83; 1GFE,1GGE,1GGTE..GX81 |
90467-37005 |
from US $3.98 |
||
|
16701
|
16701
16711-70110 Shroud Sub-Assy, Fan[08.1988 - 10.1992] 1GFE,1GGE,1GGZE..GX81..4FC |
16711-70110 |
US $96.10 |
||
|
16701A
|
16701A
90468-06070 Clip(For Fan Shroud)[08.1988 - 10.1992] 1GFE,1GGE,1GGZE..GX81..4FC |
90468-06070 |
US $4.12 |
||
|
16701B
|
16701B
90541-11002 Cushion, Fan Shroud[08.1988 - 10.1992] 1JZGE..JZX81; 2L#..LX80 ＮＯ．１; 7MGE..MX83; 3YP..YX80; 1GFE,1GG#..GX81 |
90541-11002 |
US $4.12 |
||
|
16712
|
16712
16712-70080 Shroud, Fan, No.2[08.1988 - 10.1992] 1GFE,1GGE,1GGZE..GX81..4FC |
16712-70080 |
US $27.69 |
||
|
91655F0818
|
91655F0818
91655-F0818 New Genuine Part |
91655-F0818 |
US $2.18 |
||
| replacement | |||||
|
91655F0818
|
91655F0818
91651-G0814 New Genuine Part |
91651-G0814 |
US $2.87 |
||
|
91661F0618
|
91661F0618
91661-F0618 New Genuine Part |
91661-F0618 |
US $1.60 |
||
| replacement | |||||
|
91661F0618
|
91661F0618
91661-40618 New Genuine Part |
91661-40618 |
US $1.14 |
||
|
9010108114
|
9010108114
90101-08114 New Genuine Part |
90101-08114 |
US $3.20 |
||
| replacement | |||||
|
9010108114
|
9010108114
90105-08369 New Genuine Part |
90105-08369 |
US $4.66 |
||
|
9011906479
|
9011906479
90119-06479
New Genuine Part
|
90119-06479 |
— | ||
| replacement | |||||
|
9011906479
|
9011906479
90119-06341 BOLT |
90119-06341 |
US $2.15 |
||
|
9011908729
|
9011908729
90119-08729
Bolt (for Transaxle Housing & Transaxle Case Setting)
|
90119-08729 |
— | ||
| replacement | |||||
|
9011908729
|
9011908729
90105-08233 Bolt (For Transaxle Housing & Transaxle Case Setting) |
90105-08233 |
US $0.87 |
||
|
9011908743
|
9011908743
90119-08743 New Genuine Part |
90119-08743 |
US $1.61 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $2.15 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9161160640
|
9161160640
91611-60640 New Genuine Part |
91611-60640 |
US $1.05 |
||
