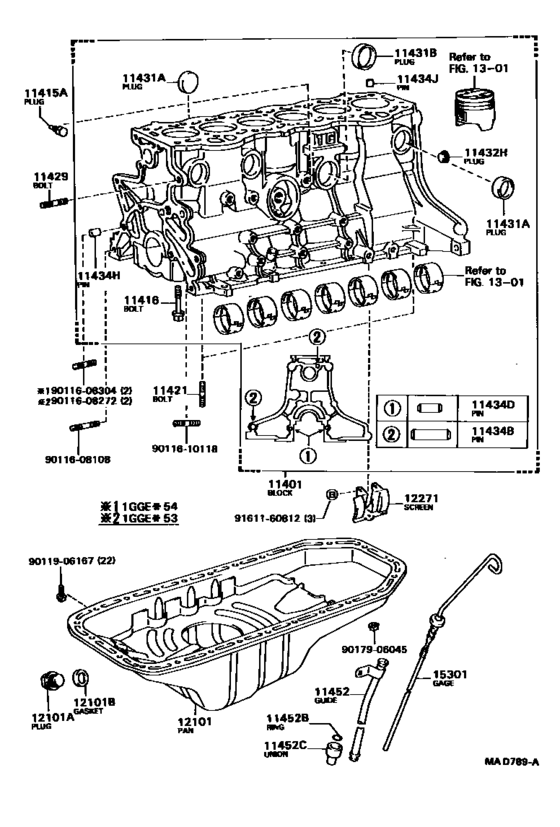

Cylinder Block ([08.1988 - ] (8808- )1GGE,1GGZE) Diagram Toyota CHASER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- GX81
- grade
- AVTG
- body
- HT
- ENGINE
- 1GGZE
- TRANSMISSION
- ATM
- From
- 08.1988
- To
- 08.1990
- Gear Shift Type
- 4FC
- Fuel Induction
- SPC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-79258 Block Sub-Assy, Cylinder[08.1988 - 08.1990] 1GGZE..GX81 |
11401-79258 |
US $3,203.20 |
||
| replacement | |||||
|
11401
|
11401
11401-80022 Block Sub-Assy, Cylinder[08.1988 - 08.1990] 1GGZE..GX81 |
11401-80022 |
US $3,188.64 |
||
|
11415A
|
11415A
96431-23814 Plug, Water Drain Cock(For Cylinder Block)[08.1988 - 10.1991] 1GFE,1GG#..GX81; 1JZ#..JZX81 |
96431-23814 |
from US $6.94 |
||
|
11416
|
11416
90105-10028 Bolt(For Crankshaft Bearing Cap Set)[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
90105-10028 |
US $4.30 |
||
|
11421
|
11421
90116-06014 Bolt, Stud(For Oil Pan)[08.1988 - 10.1992] 1GFE,1GGE,1GGZE..GX81 *53 & (8808-8911)*54 |
90116-06014 |
US $1.05 |
||
|
11431A
|
11431A
96411-43500 Plug, Tight, No.1[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
96411-43500 |
from US $3.59 |
||
|
11431B
|
11431B
96411-44000 Plug, Tight, No.1[08.1988 - 10.1992] 4SF#..SX80; 1GFE,1GG#..GX81 |
96411-44000 |
from US $4.02 |
||
|
11432H
|
11432H
90344-53015 Plug, W/head Taper Screw, No.1[08.1988 - 07.1990] 1GFE,1GG#..GX81 |
90344-53015 |
US $5.38 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[08.1988 - 10.1992] 4SF#..SX80 長さ＝２２，外径＝１０; 3YP..YX80 長さ＝２２，外径＝１０; 1GFE,1GG#..GX81 長さ＝２２，外径＝１０ |
90250-10113 |
from US $1.17 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[08.1988 - 04.1989] 1GFE,1GG#..GX81 長さ＝１４，外径＝６ |
90250-06003 |
US $1.61 |
||
|
11434D
|
11434D
90250-06015 Pin, Straight(For Clutch Housing Set)[04.1989 - 05.1989] 1GFE,1GGE,1GGZE..GX81 長さ＝１１，外径＝６ |
90250-06015 |
US $2.15 |
||
|
11434H
|
11434H
90253-11021 Pin, Ring[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
90253-11021 |
from US $1.44 |
||
|
11434J
|
11434J
90253-13017 Pin, Ring W/head[08.1988 - 10.1992] 4SF#..SX80; 1GFE,1GG#..GX81 |
90253-13017 |
from US $1.35 |
||
|
11452
|
11452
11452-70010 Guide, Oil Level Gage[08.1988 - 08.1990] 1GGZE..GX81 |
11452-70010 |
US $68.72 |
||
|
11452B
|
11452B
96721-19010 Ring, O(For Oil Level Gage Guide)[08.1988 - 10.1992] 4SFE..SX80; 1GFE,1GG#..GX81 |
96721-19010 |
from US $1.60 |
||
|
11452C
|
11452C
90405-10016 Union(For Oil Level Gage Guide)[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
90405-10016 |
US $5.42 |
||
|
12101
|
12101
12101-70070 Pan Sub-Assy, Oil[08.1988 - 10.1992] 1GFE,1GGE,1GGZE..GX81 |
12101-70070 |
US $270.82 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[08.1988 - 05.1990] 3YP..YX80; 1GFE,1GG#..GX81 |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[08.1988 - 05.1990] 3YP..YX80; 1GFE,1GG#..GX81 |
90341-T0004 |
US $3.59 |
||
|
12101B
|
12101B
90430-12019
Gasket(For Oil Pan Drain Plug)
[08.1988 - 05.1990] 3YP..YX80; 1GFE,1GG#..GX81 |
90430-12019 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[08.1988 - 05.1990] 3YP..YX80; 1GFE,1GG#..GX81 |
90430-12028 |
from US $1.11 |
||
|
12271
|
12271
12271-88300 Screen, Oil Separator[08.1988 - 10.1992] 1GG#..GX81 |
12271-88300 |
US $27.96 |
||
|
15301
|
15301
15301-70060 Gage Sub-Assy, Oil Level[08.1988 - 08.1990] 1GGZE..GX81 |
15301-70060 |
US $16.45 |
||
|
9011608108
|
9011608108
90116-08108
New Genuine Part
|
90116-08108 |
— | ||
|
9011608272
|
9011608272
90116-08272 Bolt, Stud(For Water Outlet) |
90116-08272 |
US $3.06 |
||
|
9011608304
|
9011608304
90116-08304 Bolt, Stud(For Water Outlet) |
90116-08304 |
US $2.48 |
||
|
9011610118
|
9011610118
90116-10118
Bolt, Stud(For Alternator Bracket)
|
90116-10118 |
— | ||
|
9011906167
|
9011906167
90119-06167 New Genuine Part |
90119-06167 |
US $1.51 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $2.15 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
