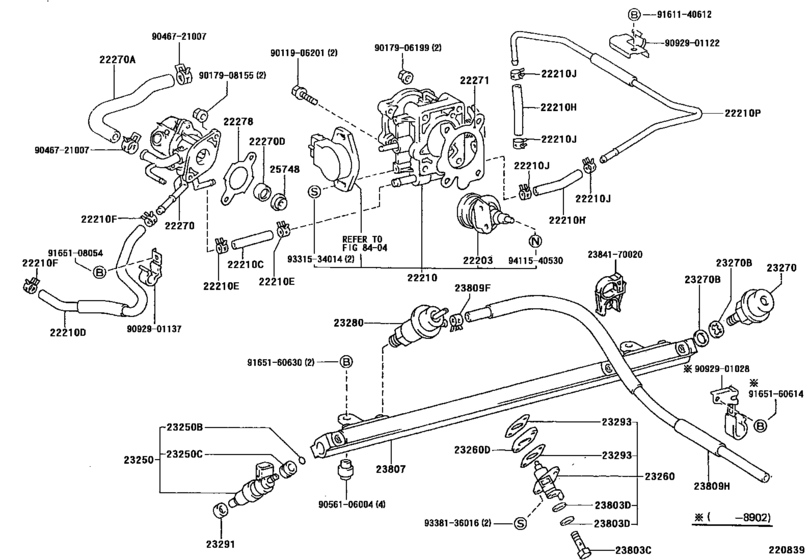

Fuel Injection System ([08.1988 - 08.1990] ﾅｼ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) (8808-9008)1GGZE) Diagram Toyota CHASER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- GX81
- grade
- AVTG
- body
- HT
- ENGINE
- 1GGZE
- TRANSMISSION
- ATM
- From
- 08.1988
- To
- 08.1990
- Gear Shift Type
- 4FC
- Fuel Induction
- SPC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22203
|
22203
22203-70060 Dash Pot Sub-Assy(For Throttle Body)[08.1988 - 08.1990] 1GGZE..GX81 |
22203-70060 |
US $123.76 |
||
|
22210
|
22210
22210-70280 Body Assy, Throttle[08.1988 - 08.1990] 1GGZE..GX81 |
22210-70280 |
US $685.78 |
||
|
22210C
|
22210C
16267-70040 Hose, Water By-Pass, No.1[08.1989 - 08.1990] 1GGZE..GX81 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
16267-70040 |
US $8.74 |
||
|
22210C
|
22210C
90445-15041 Hose, Water By-Pass, No.1[08.1988 - 08.1989] 1GGZE..GX81 長さ＝６０ |
90445-15041 |
US $4.95 |
||
|
22210D
|
22210D
16264-70040 Hose, Water By-Pass, No.2[08.1988 - 08.1990] 1GGZE..GX81 |
16264-70040 |
US $15.14 |
||
|
22210E
|
22210E
90467-13051 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1988 - 10.1992] 1GGZE..GX81 *53 |
90467-13051 |
US $3.49 |
||
| replacement | |||||
|
22210E
|
22210E
96135-51300 Clamp, Hose[08.1988 - 10.1992] 1GGZE..GX81 *53 |
96135-51300 |
from US $2.13 |
||
|
22210F
|
22210F
90467-13051 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1988 - 10.1992] 1GGZE..GX81 *53 |
90467-13051 |
US $3.49 |
||
| replacement | |||||
|
22210F
|
22210F
96135-51300 Clamp, Hose[08.1988 - 10.1992] 1GGZE..GX81 *53 |
96135-51300 |
from US $2.13 |
||
|
22210H
|
22210H
16283-70020 Hose, Water By-Pass, No.6[08.1988 - 08.1990] 1GGZE..GX81 |
16283-70020 |
US $7.72 |
||
|
22210J
|
22210J
90467-13051 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1988 - 10.1992] 1GGZE..GX81 *53 |
90467-13051 |
US $3.49 |
||
| replacement | |||||
|
22210J
|
22210J
96135-51300 Clamp, Hose[08.1988 - 10.1992] 1GGZE..GX81 *53 |
96135-51300 |
from US $2.13 |
||
|
22210P
|
22210P
16279-70050 Pipe, Water By-Pass[08.1988 - 12.1989] 1GGZE..GX81 |
16279-70050 |
US $46.88 |
||
| replacement | |||||
|
22210P
|
22210P
16279-70051 Pipe, Water By-Pass[08.1988 - 12.1989] 1GGZE..GX81 |
16279-70051 |
US $46.59 |
||
|
22210P
|
22210P
16279-70051 Pipe, Water By-Pass[12.1989 - 08.1990] 1GGZE..GX81 |
16279-70051 |
US $46.59 |
||
|
22270
|
22270
22270-70101 Valve Assy, Idle Speed Control(For Thlottle Body)[08.1988 - 08.1989] 1GGZE..GX81 |
22270-70101 |
US $1,135.68 |
||
|
22270
|
22270
22270-70110 Valve Assy, Idle Speed Control(For Thlottle Body)[08.1989 - 08.1990] 1GGZE..GX81 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
22270-70110 |
US $1,135.68 |
||
|
22270A
|
22270A
17344-70050 Hose, Air, No.1(For Idle Speed Control Valve)[08.1988 - 08.1989] 1GGZE..GX81 |
17344-70050 |
US $17.04 |
||
|
22270A
|
22270A
17344-70060 Hose, Air, No.1(For Idle Speed Control Valve)[08.1989 - 08.1990] 1GGZE..GX81 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
17344-70060 |
US $14.27 |
||
|
22270D
|
22270D
90210-25001 Washer, Seal(For Idle Speed Control Valve)[08.1988 - 08.1990] 1GGTE,1GGZE..GX81 |
90210-25001 |
US $4.30 |
||
|
22271
|
22271
22271-88301 Gasket, Throttle Body[08.1988 - 10.1992] 1GGE,1GGZE..GX81 |
22271-88301 |
US $6.27 |
||
|
22278
|
22278
22278-88340
Gasket, Idle Speed Control Valve
[08.1988 - 10.1992] 1GG#..GX81 |
22278-88340 |
— | ||
|
23250
|
23250
23209-70080
Injector Assy, Fuel
[08.1988 - 10.1992] 1GGTE,1GGZE..GX81; 7MGE..MX83 |
23209-70080 |
— | ||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[08.1988 - 10.1992] 1JZGE..JZX81; 7MGE..MX83; 1GFE,1GG#..GX81 |
90301-07001 |
from US $2.81 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.1988 - 10.1992] 1JZGE..JZX81; 7MGE..MX83; 1GFE,1GG#..GX81 |
90480-13005 |
from US $2.34 |
||
|
23260
|
23260
23260-79155 Injector Assy, Cold Start Fuel[08.1988 - 07.1990] 1GGZE..GX81 |
23260-79155 |
US $141.23 |
||
| replacement | |||||
|
23260
|
23260
23260-79156 Injector Assy, Cold Start Fuel[08.1988 - 07.1990] 1GGZE..GX81 |
23260-79156 |
US $141.23 |
||
|
23260
|
23260
23260-79156 Injector Assy, Cold Start Fuel[07.1990 - 08.1990] 1GGZE..GX81 |
23260-79156 |
US $141.23 |
||
|
23260D
|
23260D
23281-70010 Insulator, Cold Start Fuel Injector[08.1988 - 08.1990] 1GGZE..GX81 |
23281-70010 |
US $4.08 |
||
|
23270
|
23270
23270-70020 Damper Assy, Fuel Pressure Pulsation[08.1988 - 08.1990] 1GGZE..GX81 |
23270-70020 |
US $85.90 |
||
| replacement | |||||
|
23270
|
23270
23270-74031 Damper Assy, Fuel Pressure Pulsation[08.1988 - 08.1990] 1GGZE..GX81 |
23270-74031 |
US $92.43 |
||
|
23270B
|
23270B
23232-28010
Gasket(For Fuel Pump Hose)
[08.1988 - 02.1990] 1GFE,1GG#..GX81 DAMPER SIDE |
23232-28010 |
— | ||
| replacement | |||||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[08.1988 - 02.1990] 1GFE,1GG#..GX81 DAMPER SIDE |
23232-41081 |
from US $1.40 |
||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[02.1990 - 10.1992] 1JZGTE..JZX81 DAMPER SIDE,*53 & (9008-9210)*54; 1GFE,1GGE,1GGZE..GX81 DAMPER SIDE,*53 & (9008-9210)*54 |
23232-41081 |
from US $1.40 |
||
|
23270B
|
23270B
90430-12005 Gasket(For Water Hole)[08.1988 - 11.1988] 1GGE..GX81 DELIVERY PIPE SIDE; 1GFE,1GG#..GX81 DERIVERY PIPE SIDE |
90430-12005 |
from US $0.68 |
||
|
23270B
|
23270B
90430-12026 Gasket[02.1990 - 10.1992] 1JZGE..JZX81 DELIVERY PIPE SIDE; 1JZGTE..JZX81 FILTER SIDE; 1GFE,1GGE,1GGZE..GX81 DELIVERY PIPE SIDE |
90430-12026 |
from US $0.82 |
||
|
23280
|
23280
23280-70040
Regulator Assy, Fuel Pressure
[08.1988 - 08.1989] 1GGTE,1GGZE..GX81 |
23280-70040 |
— | ||
| replacement | |||||
|
23280
|
23280
23280-70090
Regulator Assy, Fuel Pressure
[08.1988 - 08.1989] 1GGTE,1GGZE..GX81 |
23280-70090 |
— | ||
|
23280
|
23280
23280-70090
Regulator Assy, Fuel Pressure
[08.1989 - 08.1990] 1GGZE..GX81 |
23280-70090 |
— | ||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.1988 - 10.1992] 1JZGE..JZX81; 7MGE..MX83; 1GFE,1GG#..GX81 |
23291-41010 |
from US $2.65 |
||
|
23293
|
23293
23293-70020 Gasket, Cold Start Injector[08.1988 - 08.1990] 1GGZE..GX81 |
23293-70020 |
US $5.39 |
||
| replacement | |||||
|
23293
|
23293
23293-70021 Gasket, Cold Start Injector[08.1988 - 08.1990] 1GGZE..GX81 |
23293-70021 |
US $4.66 |
||
|
23803C
|
23803C
90401-08003 Bolt, Union[04.1989 - 08.1990] 1GFE,1GG#..GX81 |
90401-08003 |
US $2.51 |
||
|
23803C
|
23803C
90401-08006 Bolt, Union[08.1988 - 04.1989] 1GFE,1GG#..GX81 |
90401-08006 |
US $2.18 |
||
| replacement | |||||
|
23803C
|
23803C
90401-08003 Bolt, Union[08.1988 - 04.1989] 1GFE,1GG#..GX81 |
90401-08003 |
US $2.51 |
||
|
23803D
|
23803D
90430-08005 Gasket[08.1988 - 02.1990] 1GFE,1GG#..GX81 |
90430-08005 |
US $2.51 |
||
|
23803D
|
23803D
90430-08012 Gasket[02.1990 - 08.1990] 1GFE,1GGE,1GGZE..GX81 *53 |
90430-08012 |
US $2.15 |
||
|
23807
|
23807
23807-88301 Pipe Sub-Assy, Fuel Delivery[08.1988 - 10.1992] 1GGE,1GGZE..GX81 |
23807-88301 |
US $270.82 |
||
|
23809F
|
23809F
90467-13051 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
90467-13051 |
US $3.49 |
||
| replacement | |||||
|
23809F
|
23809F
96135-51300 Clamp, Hose[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
96135-51300 |
from US $2.13 |
||
|
23809H
|
23809H
90447-15024 Hose, Fuel Pipe Support To Regulator[08.1988 - 04.1989] 1GGZE..GX81 |
90447-15024 |
US $34.07 |
||
| replacement | |||||
|
23809H
|
23809H
90447-15028 Hose, Fuel Pipe Support To Regulator[08.1988 - 04.1989] 1GGZE..GX81 |
90447-15028 |
US $33.78 |
||
|
23809H
|
23809H
90447-15028 Hose, Fuel Pipe Support To Regulator[04.1989 - 10.1992] 1GGE,1GGZE..GX81 *53 |
90447-15028 |
US $33.78 |
||
|
25748
|
25748
25748-70010 Valve, Check(For Idle Speed Control)[08.1988 - 08.1990] 1GGZE..GX81 |
25748-70010 |
US $24.61 |
||
|
2384170020
|
2384170020
23841-70020 Clamp, Fuel Pipe(hose), No.1 |
23841-70020 |
US $4.95 |
||
|
9011906201
|
9011906201
90119-06201 New Genuine Part |
90119-06201 |
US $1.89 |
||
|
9017906199
|
9017906199
90179-06199 NUT |
90179-06199 |
US $1.25 |
||
|
9017908155
|
9017908155
90179-08155 New Genuine Part |
90179-08155 |
US $1.16 |
||
|
9046721007
|
9046721007
90467-21007 Clip(For Air Hose) |
90467-21007 |
US $3.64 |
||
| replacement | |||||
|
9046721007
|
9046721007
90467-21006 Clip(For Ventilation Hose No.2) |
90467-21006 |
US $2.87 |
||
|
9056106004
|
9056106004
90561-06004 New Genuine Part |
90561-06004 |
US $6.99 |
||
|
9092901028
|
9092901028
90929-01028 New Genuine Part |
90929-01028 |
US $12.52 |
||
|
9092901122
|
9092901122
90929-01122 New Genuine Part |
90929-01122 |
US $3.35 |
||
|
9092901137
|
9092901137
90929-01137 New Genuine Part |
90929-01137 |
US $3.64 |
||
|
9161140612
|
9161140612
91611-40612
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91611-40612 |
— | ||
| replacement | |||||
|
9161140612
|
9161140612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9165108054
|
9165108054
91651-08054
New Genuine Part
|
91651-08054 |
— | ||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9165160630
|
9165160630
91651-60630 New Genuine Part |
91651-60630 |
US $1.89 |
||
| replacement | |||||
|
9165160630
|
9165160630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9331534014
|
9331534014
93315-34014
New Genuine Part
|
93315-34014 |
— | ||
|
9338136016
|
9338136016
93381-36016 New Genuine Part |
93381-36016 |
US $0.87 |
||
|
9411540530
|
9411540530
94115-40530 New Genuine Part |
94115-40530 |
US $1.46 |
||
