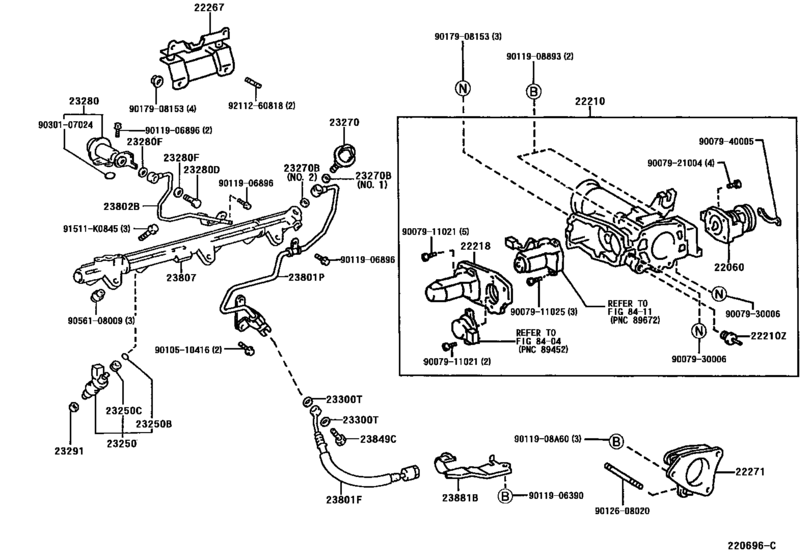

Fuel Injection System ([08.1998 - ] (9808- )2JZGE) Diagram Toyota CHASER
- Year
- 1996 - 2001
- Sales region
- Japan
- Frame
- JZX101
- grade
- AVTG
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- From
- 09.1996
- To
- 06.2001
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22060
|
22060
22060-46010 Lever Assy, Throttle W/sensor[08.1998 -] 2JZGE..JZX101 |
22060-46010 |
from US $270.45 |
||
|
22210
|
22210
22030-46110
Body Assy, Throttle
[08.1998 -] 2JZGE..JZX101 |
22030-46110 |
— | ||
|
22210
|
22210
22210-46270 Body Assy, Throttle[09.1996 - 08.1998] 2JZGE..JZX101 |
22210-46270 |
US $1,016.29 |
||
|
22210Z
|
22210Z
90916-03104 Thermostat, Manifold[09.1996 -] 2JZGE..JZX101 |
90916-03104 |
US $43.42 |
||
|
22218
|
22218
22218-46120 Cover(For Throttle Body)[08.1998 -] 2JZGE..JZX101 |
22218-46120 |
US $9.90 |
||
|
22267
|
22267
22267-46030 Bracket, Throttle Body[09.1996 -] 2JZGE..JZX101 |
22267-46030 |
US $19.74 |
||
|
22271
|
22271
22271-46040 Gasket, Throttle Body[09.1996 - 08.1998] 2JZGE..JZX101 |
22271-46040 |
US $51.98 |
||
|
22271
|
22271
22271-46070 Gasket, Throttle Body[08.1998 -] 2JZGE..JZX101 |
22271-46070 |
from US $42.41 |
||
|
23250
|
23250
23209-46031 Injector Assy, Fuel[09.1996 -] 2JZGE..JZX101 |
23209-46031 |
US $276.06 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[09.1996 - 12.1998] 1JZ#,2JZGE..JZX10# |
90301-07001 |
from US $2.81 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[12.1998 -] 1JZ#,2JZGE..JZX10# |
90301-07024 |
from US $2.65 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[09.1996 -] 2JZGE..JZX101 |
90480-13005 |
from US $2.34 |
||
|
23270
|
23270
23207-46021 Damper Assy, Fuel Pressure Pulsation[09.1996 -] 1JZGE,2JZGE..JZX10# |
23207-46021 |
US $89.76 |
||
|
23270B
|
23270B
90430-12026 Gasket[09.1996 -] 1JZ#,2JZGE..JZX10# ＮＯ．２ |
90430-12026 |
from US $0.82 |
||
|
23270B
|
23270B
90430-14008 Gasket(For Water Hole)[09.1996 -] 1JZGE,2JZGE..JZX10# ＮＯ．１ |
90430-14008 |
from US $0.98 |
||
|
23280
|
23280
23280-46010 Regulator Assy, Fuel Pressure[09.1996 -] 1JZGE,2JZGE..JZX10# |
23280-46010 |
US $131.04 |
||
|
23280D
|
23280D
90401-10038 Bolt, Union(For Fuel Pipe Or Hose Set)[09.1996 -] 1JZGE,2JZGE..JZX10# |
90401-10038 |
US $3.06 |
||
|
23280F
|
23280F
90430-10012 Gasket(For Turbo Oil Inlet Pipe)[09.1996 -] 1JZGE,2JZGE..JZX10# |
90430-10012 |
US $2.69 |
||
|
23291
|
23291
23291-46010 Insulator, Injector Vibration[09.1996 -] 1JZGE,2JZGE..JZX10# |
23291-46010 |
from US $2.15 |
||
|
23300T
|
23300T
90430-12026 Gasket[09.1996 -] 1GFE..GX10#; 1JZ#,2JZGE..JZX10# |
90430-12026 |
from US $0.82 |
||
|
23801F
|
23801F
90923-01410 Hose, Fuel(For Fuel Inlet)[09.1996 -] 1JZGE,2JZGE..JZX100,101 |
90923-01410 |
US $174.72 |
||
|
23801P
|
23801P
23801-46030 Pipe Sub-Assy, Fuel, No.1[09.1996 - 08.1997] 2JZGE..JZX101 |
23801-46030 |
US $115.02 |
||
| replacement | |||||
|
23801P
|
23801P
23801-46031 Pipe Sub-Assy, Fuel, No.1[09.1996 - 08.1997] 2JZGE..JZX101 |
23801-46031 |
US $116.48 |
||
|
23801P
|
23801P
23801-46031 Pipe Sub-Assy, Fuel, No.1[08.1997 -] 2JZGE..JZX101 |
23801-46031 |
US $116.48 |
||
|
23802B
|
23802B
23802-46060 Pipe Sub-Assy, Fuel, No.2[09.1996 -] 2JZGE..JZX101 |
23802-46060 |
US $58.68 |
||
|
23807
|
23807
23807-46040 Pipe Sub-Assy, Fuel Delivery[09.1996 -] 1JZGE,2JZGE..JZX10# |
23807-46040 |
US $219.86 |
||
| replacement | |||||
|
23807
|
23807
23807-46041 Pipe Sub-Assy, Fuel Delivery[09.1996 -] 1JZGE,2JZGE..JZX10# |
23807-46041 |
US $221.31 |
||
|
23849C
|
23849C
90401-12029 Bolt, Union(For Fuel Pipe Or Hose Set)[09.1996 -] 1JZ#,2JZGE..JZX10# |
90401-12029 |
US $6.60 |
||
|
23881B
|
23881B
23881-46030 Bracket, Fuel Hose[09.1996 -] 1GFE..GX100; 1JZ#,2JZGE..JZX100,101 |
23881-46030 |
US $9.32 |
||
|
91511K0845
|
91511K0845
91511-K0845 New Genuine Part |
91511-K0845 |
US $3.05 |
||
|
9011908A60
|
9011908A60
90119-08A60 New Genuine Part |
90119-08A60 |
US $0.87 |
||
|
9007911021
|
9007911021
90079-11021 New Genuine Part |
90079-11021 |
US $2.15 |
||
|
9007911025
|
9007911025
90079-11025 New Genuine Part |
90079-11025 |
US $1.05 |
||
|
9007921004
|
9007921004
90079-21004 New Genuine Part |
90079-21004 |
US $1.46 |
||
|
9007930006
|
9007930006
90079-30006 New Genuine Part |
90079-30006 |
US $1.05 |
||
|
9007940005
|
9007940005
90079-40005 New Genuine Part |
90079-40005 |
US $1.75 |
||
|
9010510416
|
9010510416
90105-10416 New Genuine Part |
90105-10416 |
US $2.51 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9011906896
|
9011906896
90119-06896
New Genuine Part
|
90119-06896 |
— | ||
| replacement | |||||
|
9011906896
|
9011906896
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $2.15 |
||
|
9011908893
|
9011908893
90119-08893 New Genuine Part |
90119-08893 |
US $3.32 |
||
|
9012608020
|
9012608020
90126-08020 New Genuine Part |
90126-08020 |
US $20.53 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.78 |
||
|
9030107024
|
9030107024
90301-07024 Ring, O(For Fuel Injector) |
90301-07024 |
from US $2.65 |
||
|
9056108009
|
9056108009
90561-08009 Spacer, No.1(For Delivery Pipe) |
90561-08009 |
US $3.58 |
||
|
9211260818
|
9211260818
92112-60818 Bolt, Stud(For Water Pump Coupling) |
92112-60818 |
US $3.58 |
||
