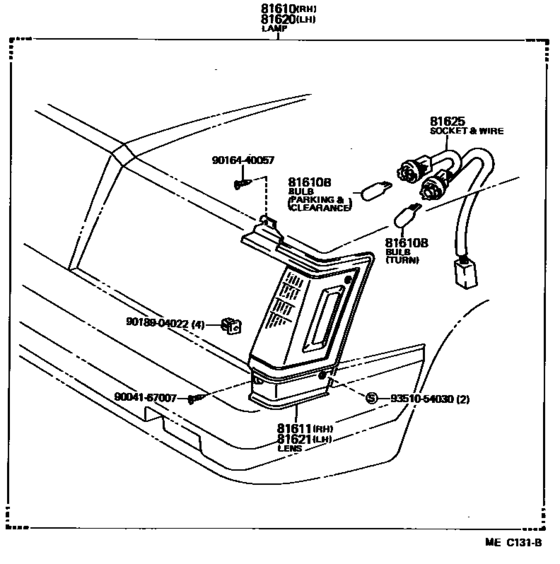

Front Clearance Lamp ([08.1982 - ] (8208- )SED) Diagram Toyota CHASER
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- LX60
- grade
- DLX
- body
- SED
- ENGINE
- L
- TRANSMISSION
- MTM
- From
- 08.1982
- To
- 07.1984
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81610
|
81610
81610-29305 Lamp Assy, Parking & Clearance, RhPARKING & CLEARANCE, RH [08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81610-29305 |
US $155.79 |
||
|
81610B
|
81610B
99132-12050 Bulb (12V 5W)[08.1982 - 07.1984] GX61,LX6#,MX61,SX60 １２Ｖ ５Ｗ,12V 5W(PARKING & CLEARANCE);12V 5W(TURN) |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610B
|
81610B
90080-81053 Bulb(For Clearance Lamp)[08.1982 - 07.1984] GX61,LX6#,MX61,SX60 １２Ｖ ５Ｗ,12V 5W(PARKING & CLEARANCE);12V 5W(TURN) |
90080-81053 |
US $1.01 |
||
|
81611
|
81611
81611-22090 Lens, Parking & Clearance Lamp, RhPARKING & CLEARANCE LAMP, RH [08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81611-22090 |
US $132.50 |
||
|
81620
|
81620
81620-29295 Lamp Assy, Parking & Clearance, LhPARKING & CLEARANCE, LH [08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81620-29295 |
US $155.79 |
||
|
81621
|
81621
81621-22090 Lens, Parking & Clearance Lamp, LhPARKING & CLEARANCE LAMP, LH [08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81621-22090 |
US $132.50 |
||
|
81625
|
81625
81615-22090
Socket And Wire, Parking And Clearance Lamp
[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81615-22090 |
— | ||
|
9004167007
|
9004167007
90041-67007
Bracket, Back Up Lamp Body
|
90041-67007 |
— | ||
| replacement | |||||
|
9004167007
|
9004167007
81679-13010
Bracket, Back Up Lamp Body
|
81679-13010 |
— | ||
|
9016440057
|
9016440057
90164-40057 New Genuine Part |
90164-40057 |
US $1.16 |
||
|
9018904022
|
9018904022
90189-04022 CLIP |
90189-04022 |
from US $1.25 |
||
|
9351054030
|
9351054030
93510-54030 New Genuine Part |
93510-54030 |
US $0.87 |
||
