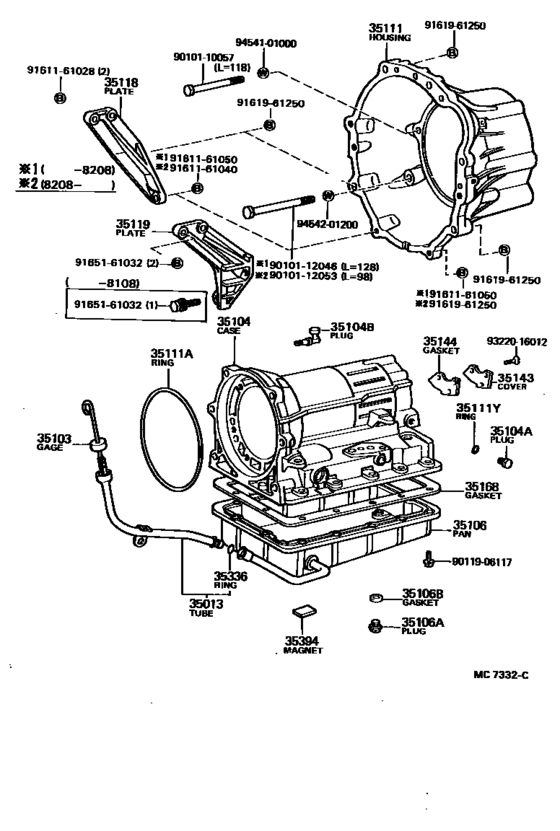

Transmission Case & Oil Pan (Atm) ([09.1980 - ] (8009- )LX6#..4FC) Diagram Toyota CHASER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- LX60
- grade
- XL
- body
- SED
- ENGINE
- L
- TRANSMISSION
- ATM
- From
- 09.1980
- To
- 08.1982
- Gear Shift Type
- 4FC
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35013
|
35013
35013-30080 Tube Sub-Assy, Transmission Oil Filler[09.1980 - 07.1984] LX6#..4FC |
35013-30080 |
US $22.57 |
||
|
35103
|
35103
35103-30100 Gage Sub-Assy, Transmission Oil Level[09.1980 - 08.1983] LX6#..4FC |
35103-30100 |
US $19.22 |
||
|
35104
|
35104
35104-26010 Case Sub-Assy, Automatic TransmissionAUTOMATIC TRANSMISSION [09.1980 - 05.1981] LX60..4FC |
35104-26010 |
US $979.89 |
||
| replacement | |||||
|
35104
|
35104
35104-26030
Case Sub-Assy, Automatic Transmission
[09.1980 - 05.1981] LX60..4FC |
35104-26030 |
— | ||
|
35104
|
35104
35104-26011 Case Sub-Assy, Automatic Transmission[06.1981 - 07.1984] GX61,LX6#,MX61..4FC..(DSL,EFI,TBO,TDE) A42D,A42DL,A43D |
35104-26011 |
US $978.43 |
||
| replacement | |||||
|
35104
|
35104
35104-26030
Case Sub-Assy, Automatic Transmission
[06.1981 - 07.1984] GX61,LX6#,MX61..4FC..(DSL,EFI,TBO,TDE) A42D,A42DL,A43D |
35104-26030 |
— | ||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[06.1981 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
90341-08001 |
from US $1.52 |
||
|
35104A
|
35104A
90341-08079
Plug, Automatic Transmission Case
[09.1980 - 06.1981] GX6#,LX60,RX60,TX60..ATM |
90341-08079 |
— | ||
|
35104B
|
35104B
90930-03069 Plug, Breather, No.1 (Atm)[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
90930-03069 |
US $7.28 |
||
|
35106
|
35106
35106-30040
Pan Sub-Assy, Automatic Transmission Oil
[09.1980 - 07.1984] LX6#..4FC |
35106-30040 |
— | ||
| replacement | |||||
|
35106
|
35106
35106-30041
Pan Sub-Assy, Automatic Transmission Oil
[09.1980 - 07.1984] LX6#..4FC |
35106-30041 |
— | ||
|
35106A
|
35106A
90341-10003 Plug Sub-Assy, Drain (Atm)[09.1980 - 07.1983] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
90341-10003 |
US $3.49 |
||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[09.1980 - 07.1983] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
35178-30010 |
from US $1.77 |
||
|
35111
|
35111
35111-22060
Housing, Automatic Transmission
[08.1982 - 07.1984] LX6#..4FC |
35111-22060 |
— | ||
| replacement | |||||
|
35111
|
35111
35111-26030 Housing, Automatic Transmission[08.1982 - 07.1984] LX6#..4FC |
35111-26030 |
US $818.27 |
||
|
35111
|
35111
35111-30093
Housing, Automatic Transmission
[09.1980 - 08.1981] LX60..4FC |
35111-30093 |
— | ||
| replacements | |||||
|
35111
|
35111
91612-61050 Bolt(For Transaxle & Engine Setting)[09.1980 - 08.1981] LX60..4FC |
91612-61050 |
from US $1.27 |
||
|
35111
|
35111
33119-25020 Plate, Stiffener, Lh(Mtm)[09.1980 - 08.1981] LX60..4FC |
33119-25020 |
US $31.62 |
||
|
35111
|
35111
35111-30094
Housing, Automatic Transmission
[09.1980 - 08.1981] LX60..4FC |
35111-30094 |
— | ||
|
35111
|
35111
35111-30094
Housing, Automatic Transmission
[08.1981 - 08.1982] LX60..4FC |
35111-30094 |
— | ||
|
35111A
|
35111A
90301-99006
Ring, O (For Automatic Transmission Housing)
[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60..4FC |
90301-99006 |
— | ||
| replacement | |||||
|
35111A
|
35111A
90301-99054 Ring, O (For Automatic Transmission Housing)[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60..4FC |
90301-99054 |
US $13.63 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
90301-06196 |
from US $2.24 |
||
|
35118
|
35118
33118-25020 Plate, Stiffener, Rh(Mtm)[09.1980 - 07.1984] LX6#..4FC |
33118-25020 |
US $22.01 |
||
|
35119
|
35119
33119-25020 Plate, Stiffener, Lh(Mtm)[08.1981 - 07.1984] LX6#..4FC |
33119-25020 |
US $31.62 |
||
|
35119
|
35119
33119-30040 Plate, Stiffener, Lh(Mtm)STIFFENER, LH(MTM) [09.1980 - 08.1981] LX60..4FC |
33119-30040 |
US $32.18 |
||
|
35143
|
35143
35143-22010 Cover, Transmission Case, Rear[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
35143-22010 |
US $6.26 |
||
|
35144
|
35144
35144-22010
Gasket, Transmission Case Rear Cover
[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
35144-22010 |
— | ||
| replacement | |||||
|
35144
|
35144
35144-28010 Gasket, Transmission Case Rear Cover[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
35144-28010 |
US $2.62 |
||
|
35168
|
35168
35168-22011 Gasket, Automatic Transmission Oil Pan[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
35168-22011 |
from US $9.79 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
90301-09173 |
from US $2.01 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[09.1980 - 08.1982] GX6#,LX60,RX60,TX60..ATM |
35394-30011 |
from US $5.62 |
||
|
9010110057
|
9010110057
90101-10057 New Genuine Part |
90101-10057 |
US $5.53 |
||
| replacement | |||||
|
9010110057
|
9010110057
90105-10190 New Genuine Part |
90105-10190 |
US $3.20 |
||
|
9010112046
|
9010112046
90101-12046
New Genuine Part
|
90101-12046 |
— | ||
|
9010112053
|
9010112053
90101-12053 New Genuine Part |
90101-12053 |
US $5.53 |
||
| replacement | |||||
|
9010112053
|
9010112053
90105-12144 New Genuine Part |
90105-12144 |
US $3.20 |
||
|
9011906117
|
9011906117
90119-06117
Bolt (For Automatic Transmission Oil Pan)
|
90119-06117 |
— | ||
| replacement | |||||
|
9011906117
|
9011906117
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting) |
90119-06173 |
from US $0.76 |
||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $3.05 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161161050
|
9161161050
91611-61050
Bolt(For Transaxle & Engine Setting)
|
91611-61050 |
— | ||
| replacement | |||||
|
9161161050
|
9161161050
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.27 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.95 |
||
|
9165161032
|
9165161032
91651-61032 BOLT |
91651-61032 |
US $2.06 |
||
|
9322016012
|
9322016012
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
|
9454101000
|
9454101000
94541-01000 New Genuine Part |
94541-01000 |
US $3.05 |
||
|
9454201200
|
9454201200
94542-01200 New Genuine Part |
94542-01200 |
US $0.87 |
||
