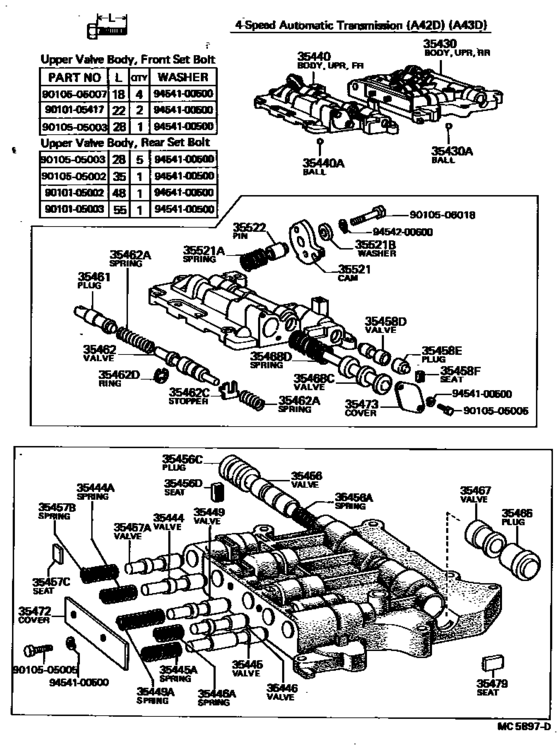

Valve Body & Oil Strainer (Atm) ([09.1980 - ] (8009- )LX6#,MX61..4FC) Diagram Toyota CHASER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- LX60
- grade
- XL
- body
- SED
- ENGINE
- L
- TRANSMISSION
- ATM
- From
- 09.1980
- To
- 08.1982
- Gear Shift Type
- 4FC
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35430
|
35430
35430-20010 Body Assy, Rear Upper Valve[08.1982 - 07.1984] LX60..4FC |
35430-20010 |
US $410.59 |
||
|
35430
|
35430
35430-30060
Body Assy, Rear Upper Valve
[09.1980 - 08.1982] LX60..4FC |
35430-30060 |
— | ||
|
35430A
|
35430A
35495-22010 Ball (For Transfer Upper Valve Body)[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径＝５．５３５，ラバー,OD=5.56,GUM |
35495-22010 |
US $4.51 |
||
| replacement | |||||
|
35430A
|
35430A
35495-22020 Ball (For Transfer Upper Valve Body)[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径＝５．５３５，ラバー,OD=5.56,GUM |
35495-22020 |
US $4.66 |
||
|
35430A
|
35430A
90360-06023 Ball (For Rear Upper Valve Body)[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径＝５．５６，ＳＴＥＥＬ,OD=5.56,STEEL |
90360-06023 |
US $2.18 |
||
|
35440
|
35440
35440-22080 Body Assy, Front Upper ValveFRONT UPPER VALVE [09.1980 - 08.1982] LX60..4FC |
35440-22080 |
US $283.92 |
||
| replacement | |||||
|
35440
|
35440
35440-22081
Body Assy, Front Upper Valve
[09.1980 - 08.1982] LX60..4FC |
35440-22081 |
— | ||
|
35440
|
35440
35440-30080 Body Assy, Front Upper Valve[08.1982 - 07.1984] LX6#..4FC |
35440-30080 |
US $257.71 |
||
| replacement | |||||
|
35440
|
35440
35440-30081 Body Assy, Front Upper Valve[08.1982 - 07.1984] LX6#..4FC |
35440-30081 |
US $260.62 |
||
|
35440A
|
35440A
35495-22010 Ball (For Transfer Upper Valve Body)[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径＝５．５３５，ラバー |
35495-22010 |
US $4.51 |
||
| replacement | |||||
|
35440A
|
35440A
35495-22020 Ball (For Transfer Upper Valve Body)[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径＝５．５３５，ラバー |
35495-22020 |
US $4.66 |
||
|
35444
|
35444
35444-22010 Valve, Intermediate Modulator[09.1980 - 05.1981] LX60,TX60..ATM |
35444-22010 |
US $11.36 |
||
|
35444A
|
35444A
90501-11001 Spring, Compression (For Intermediate Modulator Valve)[09.1980 - 08.1982] LX60,TX60..ATM |
90501-11001 |
US $3.06 |
||
| replacement | |||||
|
35444A
|
35444A
90501-11009 Spring, Compression (For Intermediate Modulator Valve)[09.1980 - 08.1982] LX60,TX60..ATM |
90501-11009 |
US $2.91 |
||
|
35444A
|
35444A
90501-11009 Spring, Compression (For Intermediate Modulator Valve)[08.1982 - 07.1984] GX61,LX6#,MX61..4FC..(DSL,EFI,TBO,TDE) |
90501-11009 |
US $2.91 |
||
|
35445
|
35445
35445-22010 Valve, Low Modulator[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
35445-22010 |
US $12.67 |
||
|
35445A
|
35445A
90501-08725
Spring, Compression (For Intermediate Modulator Valve)
[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
90501-08725 |
— | ||
|
35446
|
35446
35446-20010 Valve, Governor Modulator[08.1982 - 07.1984] LX6#..4FC |
35446-20010 |
US $9.46 |
||
|
35446
|
35446
35446-22010 Valve, Governor Modulator[09.1980 - 08.1982] GX6#,LX60,MX61,RX60,TX60..ATM |
35446-22010 |
US $9.61 |
||
|
35446A
|
35446A
90501-07688 Spring, Compression (For Governor Modulator Valve)[09.1980 - 08.1982] GX6#,LX60,MX61,RX60,TX60..ATM |
90501-07688 |
US $2.62 |
||
|
35449
|
35449
35447-22010 Valve, Reverse Clutch Sequence[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) UPR VALVE |
35447-22010 |
US $9.61 |
||
|
35449A
|
35449A
90501-12726
Spring, Compression (For Reverse Clutch Sequence Valve)
[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
90501-12726 |
— | ||
|
35456
|
35456
35456-22010
Valve, 2-3 Shift
[09.1980 - 05.1981] LX60,TX60..ATM |
35456-22010 |
— | ||
|
35456A
|
35456A
90501-08724
Spring, Compression (For 2-3 Shift Valve)
[09.1980 - 05.1981] LX60,TX60..ATM |
90501-08724 |
— | ||
|
35456C
|
35456C
35452-22010
Plug (For 2-3 Shift Valve)
[09.1980 - 05.1981] LX60,TX60..ATM |
35452-22010 |
— | ||
|
35456D
|
35456D
35493-22020 Seat, Plug (For Lock Up Relay Valve)[09.1980 - 05.1981] LX60,TX60..ATM |
35493-22020 |
US $2.48 |
||
|
35457A
|
35457A
35457-22010 Valve, Detent Regulator[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
35457-22010 |
US $12.67 |
||
|
35457B
|
35457B
90501-09014
Spring, Compression (For Detent Regulator Valve)
[09.1980 - 08.1982] LX60..4FC |
90501-09014 |
— | ||
|
35457B
|
35457B
90501-09025 Spring, Compression (For Detent Regulator Valve)[08.1982 - 07.1984] LX6#..4FC |
90501-09025 |
US $2.62 |
||
|
35457C
|
35457C
35438-22020 Seat (For Direct Clutch Modulator Valve Plug)[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
35438-22020 |
US $2.48 |
||
|
35458D
|
35458D
35458-22010 Valve, Cut Back[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
35458-22010 |
US $13.54 |
||
|
35458E
|
35458E
35459-22010 Plug (For Cut Back Valve)[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
35459-22010 |
US $6.41 |
||
|
35458F
|
35458F
35493-22010 Seat (For Cut Back Valve)[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
35493-22010 |
US $3.49 |
||
|
35461
|
35461
35408-30010 Plug Sub-Assy, Primary Down Shift[09.1980 - 05.1981] LX60..4FC A42DL |
35408-30010 |
US $26.50 |
||
|
35461
|
35461
35408-30030
Plug, Down Shift
[05.1981 - 08.1982] LX60..4FC A42D |
35408-30030 |
— | ||
|
35462
|
35462
35462-22011 Valve, Throttle[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
35462-22011 |
US $34.80 |
||
|
35462A
|
35462A
90501-07680
Spring, Compression (For Throttle Valve)
[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM 長さ＝１９．２４,SECONDARY |
90501-07680 |
— | ||
|
35462A
|
35462A
90501-12045 Spring, Compression (For Throttle Valve)[09.1980 - 07.1984] LX6#..4FC 長さ＝４０．４６,PRIMARY |
90501-12045 |
US $3.93 |
||
|
35462C
|
35462C
35422-22010 Stopper, Valve Vibrating[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
35422-22010 |
US $3.49 |
||
|
35462D
|
35462D
90523-06023 Ring, E (For Throttle Valve)[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
90523-06023 |
US $1.46 |
||
|
35465
|
35465
35465-22010 Plug, Intermediate Shift Valve[09.1980 - 05.1981] LX60,TX60..ATM |
35465-22010 |
US $21.99 |
||
|
35467
|
35467
35467-22010 Valve, Intermediate Shift[09.1980 - 05.1981] LX60,TX60..ATM |
35467-22010 |
US $12.96 |
||
|
35468C
|
35468C
35468-22010 Valve, Secondary Regulator[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM A40,A40D,A42D,A43D |
35468-22010 |
US $39.60 |
||
|
35468D
|
35468D
90501-19001 Spring, Compression (For Secondary Regulator Valve)[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60..4FC |
90501-19001 |
US $6.87 |
||
|
35472
|
35472
35472-22010 Cover, Valve Body, No.2[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
35472-22010 |
US $4.80 |
||
|
35473
|
35473
35473-22010 Cover, Transmission Valve Body[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
35473-22010 |
US $9.61 |
||
|
35479
|
35479
35479-22010 Seat, Intermediate Shift Valve[09.1980 - 08.1982] LX60,MX61,TX60..ATM |
35479-22010 |
US $3.49 |
||
|
35521
|
35521
35521-20010 Cam, Throttle Valve[08.1982 - 07.1984] LX6#..4FC |
35521-20010 |
US $30.87 |
||
|
35521
|
35521
35521-30020
Cam, Throttle Valve
[09.1980 - 08.1982] LX60..4FC |
35521-30020 |
— | ||
|
35521A
|
35521A
90508-12331
Spring (For Throttle Valve Cam Return)
[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
90508-12331 |
— | ||
|
35521B
|
35521B
90201-06472 Washer (For Throttle Valve Cam Set)[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
90201-06472 |
US $1.46 |
||
|
35522
|
35522
35522-22010 Pin, Throttle Valve Cam[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
35522-22010 |
US $10.34 |
||
|
9010105002
|
9010105002
90101-05002 New Genuine Part |
90101-05002 |
US $1.75 |
||
| replacement | |||||
|
9010105002
|
9010105002
90105-05012 New Genuine Part |
90105-05012 |
US $1.60 |
||
|
9010105003
|
9010105003
90101-05003 New Genuine Part |
90101-05003 |
US $2.04 |
||
| replacement | |||||
|
9010105003
|
9010105003
90105-05013 New Genuine Part |
90105-05013 |
US $1.60 |
||
|
9010105417
|
9010105417
90101-05417 Bolt (For Pressure Regulator Valve No.2) |
90101-05417 |
US $1.75 |
||
| replacement | |||||
|
9010105417
|
9010105417
90105-05014 Bolt (For Pressure Regulator Valve No.2) |
90105-05014 |
US $1.60 |
||
|
9010505002
|
9010505002
90105-05002 New Genuine Part |
90105-05002 |
US $1.31 |
||
|
9010505003
|
9010505003
90105-05003 Bolt (For Pressure Regulator Valve No.2) |
90105-05003 |
US $1.75 |
||
| replacement | |||||
|
9010505003
|
9010505003
90119-05035
Bolt (For Pressure Regulator Valve No.2)
|
90119-05035 |
— | ||
|
9010505005
|
9010505005
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
||
|
9010505007
|
9010505007
90105-05007 New Genuine Part |
90105-05007 |
US $1.60 |
||
|
9010506018
|
9010506018
90105-06018 Bolt (For Throttle Valve Cam Set) |
90105-06018 |
US $0.96 |
||
|
9454100500
|
9454100500
94541-00500 New Genuine Part |
94541-00500 |
US $2.18 |
||
|
9454200600
|
9454200600
94542-00600 New Genuine Part |
94542-00600 |
US $3.20 |
||
