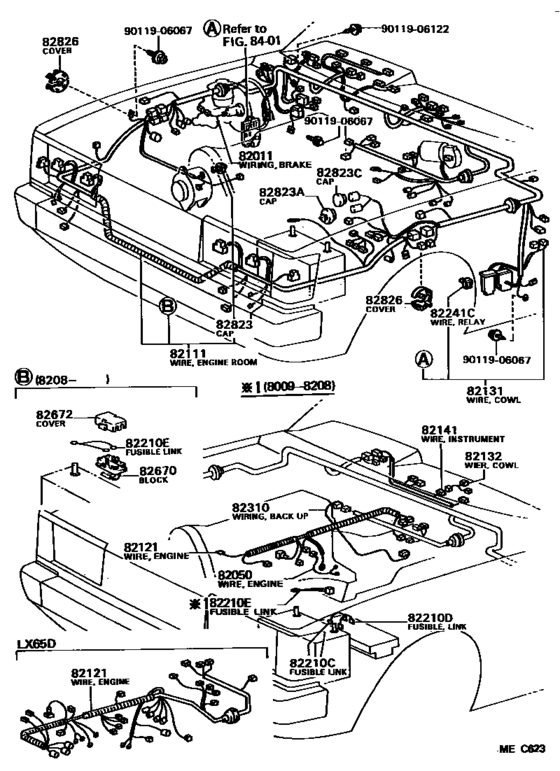

Wiring & Clamp ([09.1980 - ] (8009- )LX6#) Diagram Toyota CHASER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- LX60
- grade
- XL
- body
- SED
- ENGINE
- L
- TRANSMISSION
- ATM
- From
- 09.1980
- To
- 08.1982
- Gear Shift Type
- 4FC
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82011
|
82011
82011-20040 Wiring Assy, Brake Warning System[08.1982 - 07.1984] LX6# |
82011-20040 |
US $14.56 |
||
|
82050
|
82050
82121-22010
Wire Assy, Engine
[09.1980 - 08.1982] LX60 |
82121-22010 |
— | ||
|
82111
|
82111
82111-22030
Wire, Engine Room Main
[08.1982 - 07.1984] LX60 |
82111-22030 |
— | ||
|
82111
|
82111
82111-22040
Wire, Engine Room Main
[08.1982 - 07.1984] LX65; LX60 COLD SPEC |
82111-22040 |
— | ||
|
82111
|
82111
82270-22540
Wire, Engine Room Main
[09.1980 - 08.1982] LX60 |
82270-22540 |
— | ||
|
82111
|
82111
82270-22670
Wire, Engine Room Main
[09.1980 - 08.1982] LX60 COLD SPEC |
82270-22670 |
— | ||
|
82121
|
82121
82021-22250
Wire, Engine
[09.1980 - 08.1982] LX60 |
82021-22250 |
— | ||
|
82121
|
82121
82121-22040
Wire, Engine
[08.1982 - 07.1984] LX60 |
82121-22040 |
— | ||
|
82131
|
82131
82131-22040
Wire, Cowl
[08.1982 - 07.1984] LX60 |
82131-22040 |
— | ||
|
82131
|
82131
82131-22060
Wire, Cowl
[08.1982 - 08.1983] LX60..XL EXTRA INTERIOR |
82131-22060 |
— | ||
|
82131
|
82131
82230-22580
Wire, Cowl
[09.1980 - 08.1982] LX60 |
82230-22580 |
— | ||
|
82131
|
82131
82230-2A120
Wire, Cowl
[09.1980 - 08.1982] LX60..XL EXTRA INTERIOR |
82230-2A120 |
— | ||
|
82132
|
82132
82132-22010
Wire, Cowl, No.2
[08.1982 - 07.1984] GX61..SED..EFI; LX6#,MX61,SX60..SED |
82132-22010 |
— | ||
|
82141
|
82141
82201-22320
Wire, Instrument Panel
[09.1980 - 08.1982] LX60,RX60..SED..4FC..XL |
82201-22320 |
— | ||
|
82141
|
82141
82201-22330
Wire, Instrument Panel
[09.1980 - 07.1984] LX60..XL EXTRA INTERIOR |
82201-22330 |
— | ||
|
82210C
|
82210C
90982-08157
Fusible Link
[09.1980 - 07.1984] GX6#,LX6#,MX61,RX6#,SX60,TX60 |
90982-08157 |
— | ||
|
82210D
|
82210D
90982-08125
Fusible Link
[09.1980 - 07.1984] GX6#,LX6#,MX61,RX6#,SX60,TX60 １．０イエロー，長さ＝１１０ |
90982-08125 |
— | ||
|
82210E
|
82210E
90982-08021
Fusible Link
[09.1980 - 08.1982] LX60 |
90982-08021 |
— | ||
|
82210E
|
82210E
90982-08173
Fusible Link
[08.1982 - 07.1984] LX6# |
90982-08173 |
— | ||
|
82241C
|
82241C
82241-22020 Wire, Relay[09.1980 - 07.1984] GX6#,LX6#,RX6#,SX60,TX60..DLX,GT,SGT,STD,SXL,XG,XL W/O COOLER RELAY |
82241-22020 |
US $9.46 |
||
|
82241C
|
82241C
82241-22110
Wire, Relay
[09.1980 - 07.1984] LX6# W/O CHARGE LAMP RELAY |
82241-22110 |
— | ||
|
82670
|
82670
82671-22020
Block Assy, Junction, No.1
[08.1982 - 07.1984] LX6# SUMITOMO |
82671-22020 |
— | ||
|
82670
|
82670
82671-30030
Block Assy, Junction, No.1
[08.1982 - 07.1984] LX6# YAZAKI |
82671-30030 |
— | ||
|
82672
|
82672
82672-22020 Cover, Junktion Block[08.1982 - 07.1984] LX6# YAZAKI |
82672-22020 |
US $5.68 |
||
|
82672
|
82672
82672-22030
Cover, Junktion Block
[08.1982 - 07.1984] LX6# SUMITOMO |
82672-22030 |
— | ||
|
82823
|
82823
82823-12020
Cap, Terminal, No.1
[09.1980 - 07.1984] GX6#,LX6#,MX61,RX6#,SX60,TX60 |
82823-12020 |
— | ||
|
82826
|
82826
82817-22280 Protector, Wiring Harness, No.1[09.1980 - 07.1984] GX6#,LX6#,MX61,RX6#,SX60,TX60 |
82817-22280 |
US $4.08 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.97 |
||
|
9011906122
|
9011906122
90119-06122 New Genuine Part |
90119-06122 |
US $0.61 |
