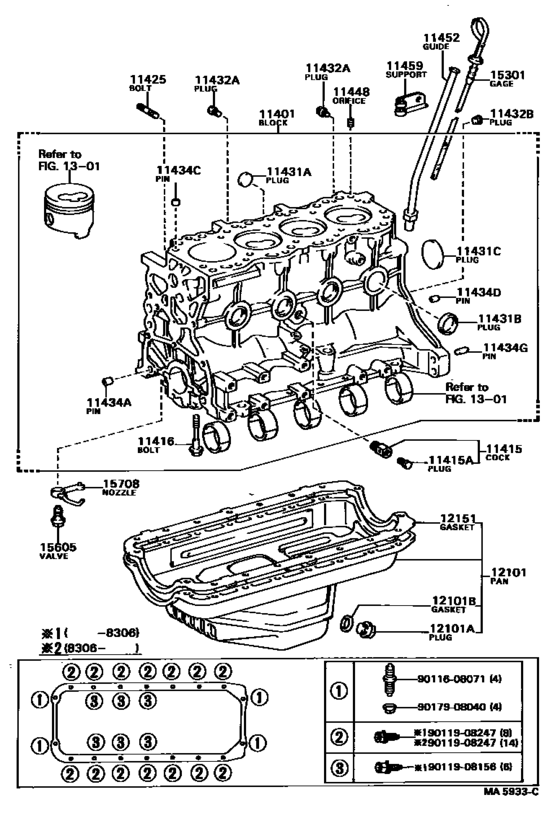

Cylinder Block ([08.1982 - ] (8208- )2LTE) Diagram Toyota CHASER
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- LX65
- grade
- SXL
- body
- SED
- ENGINE
- 2LTE
- TRANSMISSION
- ATM
- From
- 08.1982
- To
- 07.1984
- Gear Shift Type
- 4FC
- Fuel Induction
- TDE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-59165 Block Sub-Assy, Cylinder[08.1982 - 04.1983] 2LTE..LX65 |
11401-59165 |
US $4,105.92 |
||
| replacements | |||||
|
11401
|
11401
11401-59168 Block Sub-Assy, Cylinder[08.1982 - 04.1983] 2LTE..LX65 |
11401-59168 |
US $3,814.72 |
||
|
11401
|
11401
16027-54021 Pipe Sub-Assy, Turbo Water, No.1[08.1982 - 04.1983] 2LTE..LX65 |
16027-54021 |
US $90.27 |
||
|
11401
|
11401
16268-54011 Pipe, Water By-pass, No.1[08.1982 - 04.1983] 2LTE..LX65 |
16268-54011 |
US $57.51 |
||
|
11401
|
11401
16269-54011 Support, Water By-Pass Pipe[08.1982 - 04.1983] 2LTE..LX65 |
16269-54011 |
US $10.48 |
||
|
11401
|
11401
11401-59166 Block Sub-Assy, Cylinder[04.1983 - 07.1984] 2LTE..LX65 |
11401-59166 |
US $3,771.04 |
||
| replacements | |||||
|
11401
|
11401
11401-59168 Block Sub-Assy, Cylinder[04.1983 - 07.1984] 2LTE..LX65 |
11401-59168 |
US $3,814.72 |
||
|
11401
|
11401
16027-54021 Pipe Sub-Assy, Turbo Water, No.1[04.1983 - 07.1984] 2LTE..LX65 |
16027-54021 |
US $90.27 |
||
|
11401
|
11401
16268-54011 Pipe, Water By-pass, No.1[04.1983 - 07.1984] 2LTE..LX65 |
16268-54011 |
US $57.51 |
||
|
11401
|
11401
16269-54011 Support, Water By-Pass Pipe[04.1983 - 07.1984] 2LTE..LX65 |
16269-54011 |
US $10.48 |
||
|
11401
|
11401
11401-59167 Block Sub-Assy, Cylinder[07.1984 - 07.1984] 2LTE..LX65 |
11401-59167 |
US $3,800.16 |
||
| replacements | |||||
|
11401
|
11401
11401-59168 Block Sub-Assy, Cylinder[07.1984 - 07.1984] 2LTE..LX65 |
11401-59168 |
US $3,814.72 |
||
|
11401
|
11401
16027-54021 Pipe Sub-Assy, Turbo Water, No.1[07.1984 - 07.1984] 2LTE..LX65 |
16027-54021 |
US $90.27 |
||
|
11401
|
11401
16268-54011 Pipe, Water By-pass, No.1[07.1984 - 07.1984] 2LTE..LX65 |
16268-54011 |
US $57.51 |
||
|
11401
|
11401
16269-54011 Support, Water By-Pass Pipe[07.1984 - 07.1984] 2LTE..LX65 |
16269-54011 |
US $10.48 |
||
|
11415
|
11415
96431-03833
Cock Sub-Assy, Water Drain(For Cylinder Block)
[05.1982 - 06.1984] L,2LTE..LX6#; 18RGEU..RX63; 2YPU..SX60; 13TU..TX60 |
96431-03833 |
— | ||
| replacement | |||||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[05.1982 - 06.1984] L,2LTE..LX6#; 18RGEU..RX63; 2YPU..SX60; 13TU..TX60 |
96431-53828 |
US $8.12 |
||
|
11415A
|
11415A
96431-23814 Plug, Water Drain Cock(For Cylinder Block)[05.1982 - 06.1984] 1G#..GX6#; L,2LTE..LX6#; 18RGEU..RX63; 2YPU..SX60; 13TU..TX60 |
96431-23814 |
from US $6.94 |
||
|
11416
|
11416
90910-02061 Bolt(For Cylinder Head Set)[09.1980 - 07.1984] L,2LTE..LX6# *12-1,25PX80-24 |
90910-02061 |
US $4.12 |
||
|
11425
|
11425
90116-08157 Bolt, Stud(For Oil Filter)[02.1982 - 07.1984] L,2LTE..LX6# L=36,S=11&14 |
90116-08157 |
US $1.75 |
||
|
11431A
|
11431A
96411-42500 Plug, Tight, No.1[09.1980 - 07.1984] L,2LTE..LX6# OD=25 |
96411-42500 |
from US $2.95 |
||
|
11431B
|
11431B
96411-43500 Plug, Tight, No.1[09.1980 - 07.1984] L,2LTE..LX6# OD=35; 2YPU..SX60 OD=35 |
96411-43500 |
from US $3.59 |
||
|
11431C
|
11431C
96411-45000 Plug, Tight, No.1(For Cam Housing)[09.1980 - 07.1984] L,2LTE..LX6# OD=50; 2YPU..SX60 OD=50 |
96411-45000 |
from US $3.84 |
||
|
11432A
|
11432A
90345-51006 Plug, W/head Taper Screw, No.2[10.1982 - 07.1984] L,2LTE..LX6# |
90345-51006 |
from US $0.87 |
||
|
11432A
|
11432A
90345-51025 Plug, W/head Taper Screw, No.2[09.1980 - 10.1982] L,2LTE..LX6# |
90345-51025 |
US $3.76 |
||
|
11432B
|
11432B
90344-53011 Plug, W/head Taper Screw, No.1[08.1982 - 07.1984] 2LTE..LX65 |
90344-53011 |
US $4.30 |
||
|
11434A
|
11434A
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[09.1980 - 07.1984] L,2LTE..LX6# 長さ＝１１，外径＝１１,L=11,OD=11; 18RGEU..RX63 長さ＝１１，外径＝１１,L=11,OD=11 |
90253-11001 |
US $2.15 |
||
|
11434C
|
11434C
90253-15005 Pin, Ring(For Crankshaft Bearing Cap Set)[09.1980 - 07.1984] L,2LTE..LX6# 長さ＝７，外径＝１４．５ |
90253-15005 |
from US $1.56 |
||
|
11434D
|
11434D
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[09.1980 - 07.1984] L,2LTE..LX6# 長さ＝１１，外径＝１１ |
90253-11001 |
US $2.15 |
||
|
11434G
|
11434G
90250-10192 Pin, Straight(For Timing Gear Cover Set)[09.1980 - 07.1984] L,2LTE..LX6# |
90250-10192 |
from US $0.99 |
||
|
11448
|
11448
11448-54010 Orifice, Cylinder Block Oil[09.1980 - 12.1982] L,2LTE..LX6# |
11448-54010 |
US $6.12 |
||
| replacement | |||||
|
11448
|
11448
11448-54020 Orifice, Cylinder Block Oil[09.1980 - 12.1982] L,2LTE..LX6# |
11448-54020 |
US $3.32 |
||
|
11448
|
11448
11448-54020 Orifice, Cylinder Block Oil[12.1982 - 07.1984] L,2LTE..LX6# |
11448-54020 |
US $3.32 |
||
|
11452
|
11452
11452-54030
Guide, Oil Level Gage
[08.1982 - 07.1984] 2LTE..LX65 |
11452-54030 |
— | ||
|
11459
|
11459
90461-10415 Support, Oil Level Gage Guide[08.1982 - 07.1984] 2LTE..LX65 |
90461-10415 |
US $7.13 |
||
| replacement | |||||
|
11459
|
11459
90461-10658 Support, Oil Level Gage Guide[08.1982 - 07.1984] 2LTE..LX65 |
90461-10658 |
US $7.86 |
||
|
11459
|
11459
90461-10658 Support, Oil Level Gage Guide[07.1984 - 07.1984] 2LTE..LX65 |
90461-10658 |
US $7.86 |
||
|
12101
|
12101
12101-59115 Pan Sub-Assy, Oil[09.1980 - 07.1984] L,2LTE..LX6# |
12101-59115 |
US $611.52 |
||
| replacements | |||||
|
12101
|
12101
12101-54033 Pan Sub-assy, Oil[09.1980 - 07.1984] L,2LTE..LX6# |
12101-54033 |
US $610.06 |
||
|
12101
|
12101
90033-41020 Plug(For Oil Pan Drain)[09.1980 - 07.1984] L,2LTE..LX6# |
90033-41020 |
from US $2.18 |
||
|
12101
|
12101
12151-54020 Gasket, Oil Pan[09.1980 - 07.1984] L,2LTE..LX6# |
12151-54020 |
from US $28.86 |
||
|
12101
|
12101
90430-18023 Gasket(For Oil Pan)[09.1980 - 07.1984] L,2LTE..LX6# |
90430-18023 |
from US $1.03 |
||
|
12101
|
12101
90430-12031 Gasket (For Oil Pan Drain Plug)[09.1980 - 07.1984] L,2LTE..LX6# |
90430-12031 |
from US $0.84 |
||
|
12101
|
12101
90341-12012 Plug(For Oil Pan Drain)[09.1980 - 07.1984] L,2LTE..LX6# |
90341-12012 |
from US $2.87 |
||
|
12101A
|
12101A
90341-18089
Plug(For Oil Pan Drain)
[09.1980 - 07.1984] 1G#..GX6#; L,2LTE..LX6#; MTEU..MX61; 21RU,18RGEU..RX6#; 1SU,2YPU..SX60; 13TU..TX60 |
90341-18089 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90033-41020 Plug(For Oil Pan Drain)[09.1980 - 07.1984] 1G#..GX6#; L,2LTE..LX6#; MTEU..MX61; 21RU,18RGEU..RX6#; 1SU,2YPU..SX60; 13TU..TX60 |
90033-41020 |
from US $2.18 |
||
|
12101B
|
12101B
90430-18244
Gasket(For Oil Pan Drain Plug)
[09.1980 - 07.1984] 1G#..GX6#; L,2LTE..LX6#; MTEU..MX61; 21RU,18RGEU..RX6#; 1SU,2YPU..SX60; 13TU..TX60 |
90430-18244 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[09.1980 - 07.1984] 1G#..GX6#; L,2LTE..LX6#; MTEU..MX61; 21RU,18RGEU..RX6#; 1SU,2YPU..SX60; 13TU..TX60 |
90430-18023 |
from US $1.03 |
||
|
12151
|
12151
12151-54020 Gasket, Oil Pan[09.1980 - 07.1984] L,2LTE..LX6# |
12151-54020 |
from US $28.86 |
||
|
15301
|
15301
15301-54040
Gage Sub-Assy, Oil Level
[08.1982 - 07.1984] 2LTE..LX65 |
15301-54040 |
— | ||
|
15605
|
15605
15605-54010 Valve Sub-Assy, Oil Check[02.1982 - 07.1984] L,2LTE..LX6# |
15605-54010 |
from US $9.36 |
||
|
15708
|
15708
15708-54010 Nozzle Sub-Assy, Oil, No.1[02.1982 - 07.1984] L,2LTE..LX6# |
15708-54010 |
from US $18.51 |
||
|
9011608071
|
9011608071
90116-08071 New Genuine Part |
90116-08071 |
US $2.77 |
||
| replacement | |||||
|
9011608071
|
9011608071
90116-08279 BOLT STUD |
90116-08279 |
from US $1.29 |
||
|
9011908156
|
9011908156
90119-08156 New Genuine Part |
90119-08156 |
US $3.20 |
||
|
9011908247
|
9011908247
90119-08247 Bolt(For Manual Transmission Oil Pan Setting) |
90119-08247 |
US $1.75 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
