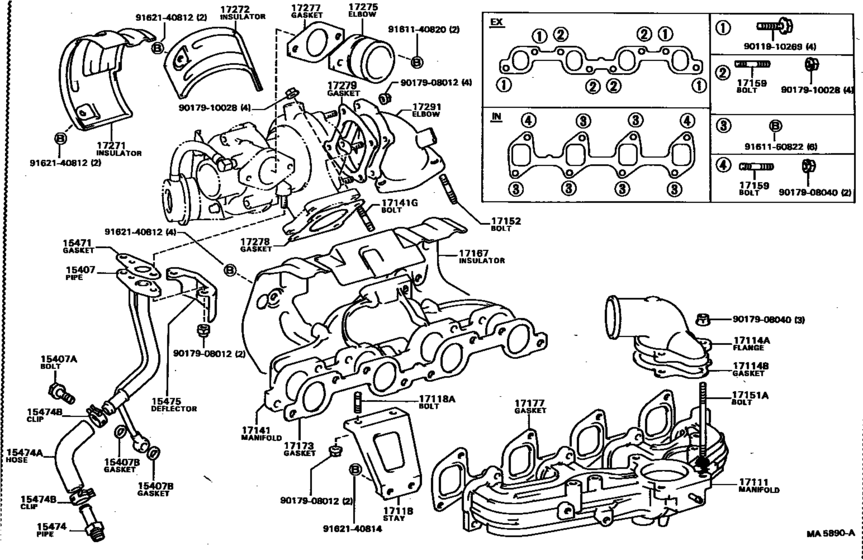

Manifold ([08.1982 - ] (8208- )2LTE) Diagram Toyota CHASER
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- LX65
- grade
- SXL
- body
- SED
- ENGINE
- 2LTE
- TRANSMISSION
- ATM
- From
- 08.1982
- To
- 07.1984
- Gear Shift Type
- 4FC
- Fuel Induction
- TDE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15407
|
15407
15407-54010
Pipe Sub-Assy, Turbo Oil Inlet
[08.1982 - 07.1984] 2LTE..LX65 |
15407-54010 |
— | ||
| replacement | |||||
|
15407
|
15407
15407-54011
Pipe Sub-Assy, Turbo Oil Inlet
[08.1982 - 07.1984] 2LTE..LX65 |
15407-54011 |
— | ||
|
15407
|
15407
15407-54011
Pipe Sub-Assy, Turbo Oil Inlet
[07.1984 - 07.1984] 2LTE..LX65 |
15407-54011 |
— | ||
|
15407A
|
15407A
90401-10006 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1982 - 07.1984] 2LTE..LX65 |
90401-10006 |
from US $2.81 |
||
|
15407B
|
15407B
90430-10035 Gasket(For Water Hole)[08.1982 - 07.1984] 2LTE..LX65 |
90430-10035 |
from US $0.88 |
||
| replacement | |||||
|
15407B
|
15407B
9008943009
Gasket V P Oil Inlet
[08.1982 - 07.1984] 2LTE..LX65 |
9008943009 |
— | ||
|
15471
|
15471
15471-54010
Gasket, Turbo Oil Inlet
[08.1982 - 07.1984] 2LTE..LX65 |
15471-54010 |
— | ||
| replacement | |||||
|
15471
|
15471
15471-58010 Gasket, Turbo Oil Inlet[08.1982 - 07.1984] 2LTE..LX65 |
15471-58010 |
from US $2.48 |
||
|
15474
|
15474
15476-54010
Pipe, Turbo Oil Outlet
[08.1982 - 07.1984] 2LTE..LX65 |
15476-54010 |
— | ||
|
15474A
|
15474A
90923-02080
Hose, Turbo Oil Outlet
[08.1982 - 07.1984] 2LTE..LX65 |
90923-02080 |
— | ||
|
15474B
|
15474B
90467-26002
Clip(For Ventilation Hose)
[08.1982 - 07.1984] 2LTE..LX65 |
90467-26002 |
— | ||
| replacement | |||||
|
15474B
|
15474B
96134-52600 Clip Or Clamp(For Ventilation Hose)[08.1982 - 07.1984] 2LTE..LX65 |
96134-52600 |
from US $2.87 |
||
|
15475
|
15475
15475-54010 Deflector, Oil[08.1982 - 07.1984] 2LTE..LX65 |
15475-54010 |
US $38 |
||
|
17111
|
17111
17101-54050 Manifold, Intake[08.1982 - 07.1984] 2LTE..LX65 |
17101-54050 |
US $313.04 |
||
| replacements | |||||
|
17111
|
17111
96132-51100 Clip (For Hose)[08.1982 - 07.1984] 2LTE..LX65 |
96132-51100 |
from US $1.42 |
||
|
17111
|
17111
17101-54051 Manifold, Intake[08.1982 - 07.1984] 2LTE..LX65 |
17101-54051 |
US $315.95 |
||
|
17111
|
17111
90445-11080 Hose(For Egr Vacuum Modulator)[08.1982 - 07.1984] 2LTE..LX65 |
90445-11080 |
US $22.42 |
||
|
17111
|
17111
90445-11101
New Genuine Part
[08.1982 - 07.1984] 2LTE..LX65 |
90445-11101 |
— | ||
|
17111
|
17111
90464-00576 Clamp, No.1 (For Transfer Vacuum)[08.1982 - 07.1984] 2LTE..LX65 |
90464-00576 |
US $1.14 |
||
|
17111
|
17111
90917-11033
Filter, Gas, No.1
[08.1982 - 07.1984] 2LTE..LX65 |
90917-11033 |
— | ||
|
17114A
|
17114A
17114-54010 Flange, Intake[08.1982 - 07.1984] 2LTE..LX65 |
17114-54010 |
US $116.48 |
||
| replacement | |||||
|
17114A
|
17114A
17114-54030 Flange, Intake[08.1982 - 07.1984] 2LTE..LX65 |
17114-54030 |
US $116.48 |
||
|
17114B
|
17114B
17116-54010 Gasket, Intake Flange[08.1982 - 07.1984] 2LTE..LX65 |
17116-54010 |
US $6.70 |
||
| replacement | |||||
|
17114B
|
17114B
17116-54011 Gasket, Intake Flange[08.1982 - 07.1984] 2LTE..LX65 |
17116-54011 |
from US $2.94 |
||
|
17118
|
17118
17118-54010
Stay, Manifold
[08.1982 - 07.1984] 2LTE..LX65 |
17118-54010 |
— | ||
|
17118
|
17118
17118-54011 Stay, Manifold[07.1984 - 07.1984] 2LTE..LX65 |
17118-54011 |
US $52.12 |
||
|
17118A
|
17118A
90116-08056 Bolt, Stud(For Manifold Stay)[08.1982 - 07.1984] 2LTE..LX65 |
90116-08056 |
US $3.32 |
||
|
17141
|
17141
17141-54020 Manifold, Exhaust[08.1982 - 07.1984] 2LTE..LX65 |
17141-54020 |
US $257.71 |
||
| replacement | |||||
|
17141
|
17141
17141-54022
Manifold, Exhaust
[08.1982 - 07.1984] 2LTE..LX65 |
17141-54022 |
— | ||
|
17141
|
17141
17141-54022
Manifold, Exhaust
[07.1984 - 07.1984] 2LTE..LX65 |
17141-54022 |
— | ||
|
17141G
|
17141G
90116-10054 Bolt, Stud(For Turbocharger)[08.1982 - 06.1983] 2LTE..LX65 |
90116-10054 |
US $5.39 |
||
| replacement | |||||
|
17141G
|
17141G
90116-10094 Bolt, Stud(For Turbine Housing)[08.1982 - 06.1983] 2LTE..LX65 |
90116-10094 |
US $2.51 |
||
|
17141G
|
17141G
90116-10094 Bolt, Stud(For Turbine Housing)[06.1983 - 07.1984] 2LTE..LX65 |
90116-10094 |
US $2.51 |
||
|
17151A
|
17151A
90116-08123
Bolt, Stud(For Rocker Support)
[08.1982 - 07.1984] 2LTE..LX65 |
90116-08123 |
— | ||
|
17152
|
17152
90116-10071 Bolt, Stud(For Manifold To Exhaust Pipe)[07.1982 - 02.1983] L,2LTE..LX6# L=47.4,S=14&22 |
90116-10071 |
US $3.06 |
||
| replacement | |||||
|
17152
|
17152
90116-10088 Bolt, Stud(For Manifold To Exhaust Pipe)[07.1982 - 02.1983] L,2LTE..LX6# L=47.4,S=14&22 |
90116-10088 |
from US $1.01 |
||
|
17152
|
17152
90116-10088 Bolt, Stud(For Manifold To Exhaust Pipe)[02.1983 - 07.1984] L,2LTE..LX6# L=47.4,S=14&22 |
90116-10088 |
from US $1.01 |
||
|
17159
|
17159
90116-08053 Bolt, Stud(For Oil Filter)[04.1982 - 07.1984] L,2LTE..LX6# INTAKE MANIFOLD SIDE |
90116-08053 |
US $2.04 |
||
|
17159
|
17159
90116-10061 Bolt, Stud(For Manifold To Cylinder Head)[08.1982 - 07.1984] 2LTE..LX65 EXHAUST MANIFOLD SIDE |
90116-10061 |
US $4.95 |
||
| replacement | |||||
|
17159
|
17159
90116-10140 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[08.1982 - 07.1984] 2LTE..LX65 EXHAUST MANIFOLD SIDE |
90116-10140 |
US $4.12 |
||
|
17167
|
17167
17107-54010 Insulator, Exhaust Manifold Heat, No.1[08.1982 - 07.1984] 2LTE..LX65 |
17107-54010 |
US $90.27 |
||
| replacement | |||||
|
17167
|
17167
17107-54012 Insulator, Exhaust Manifold Heat, No.1[08.1982 - 07.1984] 2LTE..LX65 |
17107-54012 |
US $88.82 |
||
|
17167
|
17167
17107-54011
Insulator, Exhaust Manifold Heat, No.1
[07.1984 - 07.1984] 2LTE..LX65 |
17107-54011 |
— | ||
| replacement | |||||
|
17167
|
17167
17107-54012 Insulator, Exhaust Manifold Heat, No.1[07.1984 - 07.1984] 2LTE..LX65 |
17107-54012 |
US $88.82 |
||
|
17173
|
17173
17173-54020 Gasket, Exhaust Manifold To Head[08.1982 - 07.1984] 2LTE..LX65 |
17173-54020 |
US $35.29 |
||
|
17177
|
17177
17177-54011
Gasket, Intake Manifold To Head, No.1
[07.1981 - 07.1984] L,2LTE..LX6# |
17177-54011 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-54012 Gasket, Intake Manifold To Head, No.1[07.1981 - 07.1984] L,2LTE..LX6# |
17177-54012 |
from US $14.15 |
||
|
17271
|
17271
17271-54010 Insulator, Turbo, No.1[08.1982 - 07.1984] 2LTE..LX65 |
17271-54010 |
US $77.17 |
||
| replacement | |||||
|
17271
|
17271
17271-54040
Insulator, Turbo, No.1
[08.1982 - 07.1984] 2LTE..LX65 |
17271-54040 |
— | ||
|
17272
|
17272
17272-54010 Insulator, Turbo, No.2[08.1982 - 07.1984] 2LTE..LX65 |
17272-54010 |
US $77.17 |
||
|
17275
|
17275
17275-54010
Elbow, Compressor Outlet
[08.1982 - 07.1984] 2LTE..LX65 |
17275-54010 |
— | ||
|
17277
|
17277
17277-54010
Gasket, Compressor Outlet
[08.1982 - 07.1984] 2LTE..LX65 |
17277-54010 |
— | ||
| replacement | |||||
|
17277
|
17277
17277-54011
Gasket, Compressor Outlet
[08.1982 - 07.1984] 2LTE..LX65 |
17277-54011 |
— | ||
|
17278
|
17278
17278-54010 Gasket, Turbo To Exhaust Manifold[08.1982 - 07.1984] 2LTE..LX65 |
17278-54010 |
US $27.96 |
||
|
17279
|
17279
17279-54010 Gasket, Turbine Outlet Elbow[08.1982 - 11.1983] 2LTE..LX65 |
17279-54010 |
US $21.40 |
||
| replacement | |||||
|
17279
|
17279
17279-64010 Gasket, Turbine Outlet Elbow[08.1982 - 11.1983] 2LTE..LX65 |
17279-64010 |
US $27.38 |
||
|
17279
|
17279
17279-64010 Gasket, Turbine Outlet Elbow[11.1983 - 07.1984] 2LTE..LX65 |
17279-64010 |
US $27.38 |
||
|
17291
|
17291
17291-54010 Elbow, Turbine Outlet[08.1982 - 07.1984] 2LTE..LX65 |
17291-54010 |
US $138.32 |
||
|
9011910269
|
9011910269
90119-10269 Bolt |
90119-10269 |
US $9.50 |
||
|
9017908012
|
9017908012
90179-08012 NUT |
90179-08012 |
from US $2.03 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9017910028
|
9017910028
90179-10028 Nut, Exhaust Pipe Set Stud Bolt |
90179-10028 |
from US $2.63 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9162140814
|
9162140814
91621-40814 New Genuine Part |
91621-40814 |
US $1.61 |
||
