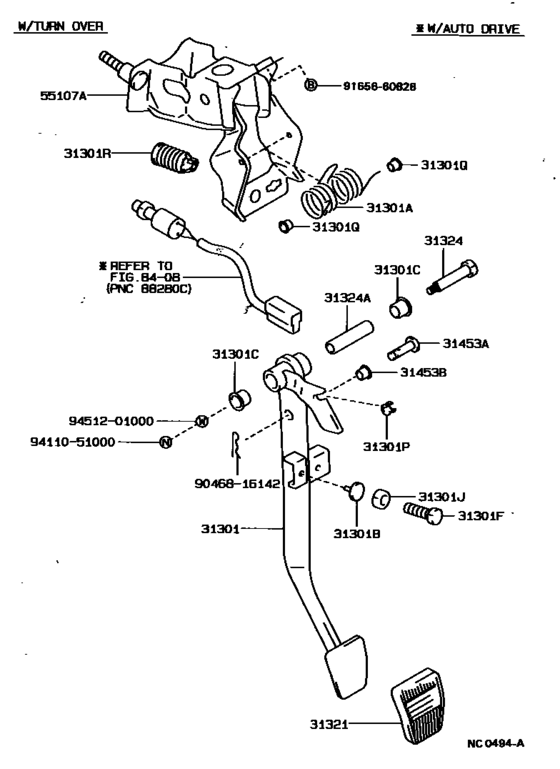

Clutch Pedal & Flexible Hose ([08.1988 - ] (8808- )5F..TD,TWT) Diagram Toyota CHASER
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- LX80
- grade
- XG
- body
- HT
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 5F
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31310-22070
Pedal Sub-Assy, Clutch
[08.1988 - 10.1992] GX81,LX80..5F..(TD,TWT) |
31310-22070 |
— | ||
|
31301A
|
31301A
90508-45001
Spring(For Clutch Pedal)
[08.1988 - 10.1992] GX81,LX80..5F..(TD,TWT) |
90508-45001 |
— | ||
|
31301B
|
31301B
90541-06008 Cushion, No.1(For Clutch Pedal)[08.1988 - 10.1992] GX81,LX80,SX80,YX80..5F |
90541-06008 |
from US $1.54 |
||
|
31301C
|
31301C
90386-13192 Bush(For Over Center Plate)[08.1988 - 10.1992] GX81,LX80..5F..(TD,TWT) |
90386-13192 |
from US $1.64 |
||
|
31301F
|
31301F
90101-10369 Bolt(For Clutch Pedal Stopper)[08.1988 - 10.1992] GX81,LX80,SX80,YX80..5F |
90101-10369 |
from US $1.31 |
||
|
31301J
|
31301J
94120-41000 Nut(For Clutch Pedal Stopper)[08.1988 - 10.1992] GX81,LX80,SX80,YX80..5F |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
31301J
|
31301J
90170-A0002 Nut[08.1988 - 10.1992] GX81,LX80,SX80,YX80..5F |
90170-A0002 |
US $2.33 |
||
|
31301P
|
31301P
90389-05010
Bush(For Clutch Pedal Turnover)
[08.1988 - 10.1992] GX81,LX80..5F..(TD,TWT) |
90389-05010 |
— | ||
|
31301Q
|
31301Q
90386-05007
Bush(For Clutch Pedal Spring)
[08.1988 - 10.1992] GX81,LX80..5F..(TD,TWT) |
90386-05007 |
— | ||
|
31301R
|
31301R
90501-20097
Spring(For Clutch Pedal)
[08.1988 - 10.1992] GX81,LX80..5F..(TD,TWT) |
90501-20097 |
— | ||
|
31321
|
31321
31321-14020 Pad, Clutch Pedal[08.1988 - 10.1992] GX81,LX80,SX80,YX80..5F |
31321-14020 |
from US $3.37 |
||
| replacement | |||||
|
31321
|
31321
31321YE010
PAD PEDAL
[08.1988 - 10.1992] GX81,LX80,SX80,YX80..5F |
31321YE010 |
— | ||
|
31324
|
31324
90101-10039 Shaft, Clutch Pedal[08.1988 - 10.1992] GX81,LX80,SX80,YX80..5F |
90101-10039 |
US $2.87 |
||
|
31324A
|
31324A
90387-10003 Collar, Clutch Pedal Shaft[08.1988 - 10.1992] GX81,LX80,SX80,YX80..5F |
90387-10003 |
from US $3.94 |
||
|
31453A
|
31453A
90240-08006 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[08.1988 - 10.1992] GX81,LX80..5F..(TD,TWT) 長さ＝２３．５ |
90240-08006 |
from US $2.87 |
||
|
31453B
|
31453B
90386-08002 Bush(For Clutch Pedal Over Center Spring Pin)[08.1988 - 10.1992] GX81,LX80,SX80,YX80..5F |
90386-08002 |
from US $3.22 |
||
|
55107A
|
55107A
55107-22180 Support Sub-Assy, Clutch Pedal[08.1988 - 10.1992] LX80..5F..TD |
55107-22180 |
US $30.43 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.82 |
||
|
9165660828
|
9165660828
91656-60828 New Genuine Part |
91656-60828 |
US $2.18 |
||
| replacement | |||||
|
9165660828
|
9165660828
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $0.76 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.80 |
||
