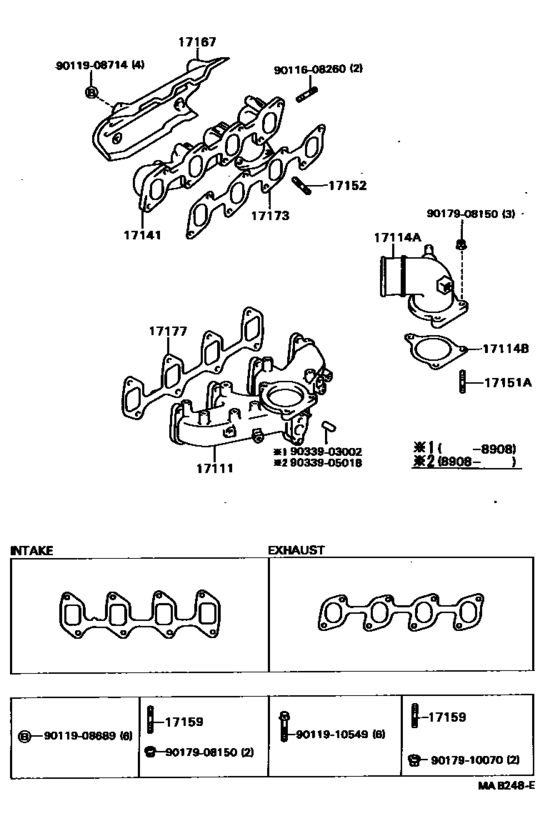

Manifold ([08.1988 - ] (8808- )2L) Diagram Toyota CHASER
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- LX80
- grade
- XL
- body
- HT
- ENGINE
- 2L
- TRANSMISSION
- MTM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-54090 Manifold, Intake[08.1988 - 08.1989] 2L#..LX80 |
17101-54090 |
US $311.58 |
||
| replacements | |||||
|
17111
|
17111
17101-54092
Manifold, Intake
[08.1988 - 08.1989] 2L#..LX80 |
17101-54092 |
— | ||
|
17111
|
17111
96132-51100 Clip (For Hose)[08.1988 - 08.1989] 2L#..LX80 |
96132-51100 |
from US $1.42 |
||
|
17111
|
17111
90339-05018 CAP[08.1988 - 08.1989] 2L#..LX80 |
90339-05018 |
US $2.87 |
||
|
17111
|
17111
90445-11017 Hose(For Egr Vacuum Modulator)[08.1988 - 08.1989] 2L#..LX80 |
90445-11017 |
US $3.49 |
||
|
17111
|
17111
90917-11033
Filter, Gas, No.1
[08.1988 - 08.1989] 2L#..LX80 |
90917-11033 |
— | ||
|
17111
|
17111
17101-54091 Manifold, Intake[08.1989 - 04.1990] 2L#..LX80 |
17101-54091 |
US $315.95 |
||
| replacement | |||||
|
17111
|
17111
17101-54092
Manifold, Intake
[08.1989 - 04.1990] 2L#..LX80 |
17101-54092 |
— | ||
|
17111
|
17111
17101-54092
Manifold, Intake
[04.1990 - 10.1992] 2L#..LX80 |
17101-54092 |
— | ||
|
17114A
|
17114A
17114-54050
Flange, Intake
[08.1988 - 10.1992] 2L..LX80 |
17114-54050 |
— | ||
|
17114B
|
17114B
17116-54020
Gasket, Intake Flange
[08.1988 - 04.1989] 2L#..LX80 |
17116-54020 |
— | ||
| replacement | |||||
|
17114B
|
17114B
17116-54030 Gasket, Intake Flange[08.1988 - 04.1989] 2L#..LX80 |
17116-54030 |
from US $4.04 |
||
|
17114B
|
17114B
17116-54021
Gasket, Intake Flange
[04.1989 - 10.1992] 2L#..LX80 |
17116-54021 |
— | ||
| replacement | |||||
|
17114B
|
17114B
17116-54030 Gasket, Intake Flange[04.1989 - 10.1992] 2L#..LX80 |
17116-54030 |
from US $4.04 |
||
|
17141
|
17141
17141-54080 Manifold, Exhaust[08.1988 - 10.1992] 2L..LX80 |
17141-54080 |
US $264.99 |
||
|
17151A
|
17151A
90116-08293 Bolt, Stud(For Manifold To Venturi)[08.1988 - 10.1992] 2L..LX80 |
90116-08293 |
US $1.75 |
||
|
17152
|
17152
90116-10088 Bolt, Stud(For Manifold To Exhaust Pipe)[08.1988 - 10.1992] 2L#..LX80 |
90116-10088 |
from US $1.01 |
||
|
17159
|
17159
90116-08220 Bolt, Stud(For Intake Manifold To Cylinder Head)[08.1988 - 04.1992] 2L#..LX80 INTAKE SIDE |
90116-08220 |
US $3.40 |
||
|
17159
|
17159
90116-10141 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[08.1988 - 10.1992] 2L..LX80 EXHAUST SIDE |
90116-10141 |
US $4.12 |
||
|
17159
|
17159
92132-60820 Bolt, Stud(For Intake Manifold To Cylinder Head)[04.1992 - 10.1992] 2L#..LX80 INTAKE SIDE |
92132-60820 |
US $0.79 |
||
|
17167
|
17167
17167-54070 Insulator, Exhaust Manifold Heat, No.1[08.1988 - 10.1992] 2L..LX80 |
17167-54070 |
US $126.67 |
||
|
17173
|
17173
17173-54030 Gasket, Exhaust Manifold To Head[08.1988 - 10.1992] 2L..LX80 |
17173-54030 |
from US $13.81 |
||
| replacement | |||||
|
17173
|
17173
17173-05010
Gasket, Exhaust Manifold To Head
[08.1988 - 10.1992] 2L..LX80 |
17173-05010 |
— | ||
|
17177
|
17177
17177-54020
Gasket, Intake Manifold To Head, No.1
[08.1988 - 10.1992] 2L#..LX80 |
17177-54020 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-54021 Gasket, Intake Manifold To Head, No.1[08.1988 - 10.1992] 2L#..LX80 |
17177-54021 |
from US $6.94 |
||
|
9011608260
|
9011608260
90116-08260 Bolt, Stud(For Turbine Housing) |
90116-08260 |
US $1.79 |
||
|
9011908689
|
9011908689
90119-08689
Bolt(For Clutch Release Cylinder Setting)
|
90119-08689 |
— | ||
| replacement | |||||
|
9011908689
|
9011908689
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9011908714
|
9011908714
90119-08714
New Genuine Part
|
90119-08714 |
— | ||
| replacement | |||||
|
9011908714
|
9011908714
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9011910549
|
9011910549
90119-10549 New Genuine Part |
90119-10549 |
US $2.48 |
||
| replacement | |||||
|
9011910549
|
9011910549
90119-10367 BOLT |
90119-10367 |
from US $1.40 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.35 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $44.70 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
from US $3.23 |
||
|
9033905018
|
9033905018
90339-05018 CAP |
90339-05018 |
US $2.87 |
||
