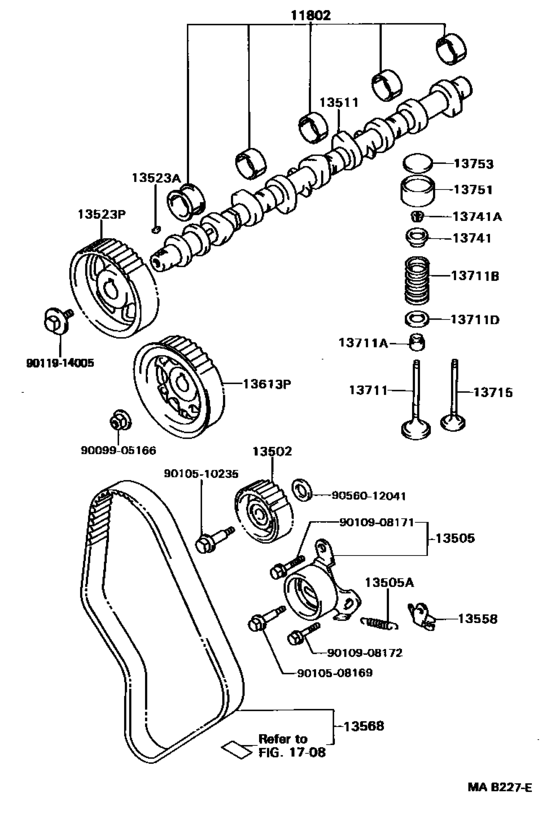

Camshaft & Valve ([08.1988 - ] (8808- )2L#) Diagram Toyota CHASER
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- LX80
- grade
- XG
- body
- HT
- ENGINE
- 2LT
- TRANSMISSION
- ATM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 4FC
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11802
|
11802
11802-54020
Bearing Set, Camshaft
[08.1988 - 10.1992] 2L#..LX80 ＳＴＤ |
11802-54020 |
— | ||
| replacement | |||||
|
11802
|
11802
11802-54021 Bearing Set, Camshaft (STD)[08.1988 - 10.1992] 2L#..LX80 ＳＴＤ |
11802-54021 |
from US $28.98 |
||
|
11802
|
11802
11803-54020
Bearing Set, Camshaft (0.125)
[08.1988 - 10.1992] 2L#..LX80 Ｕ／Ｓ ０．１２５ |
11803-54020 |
— | ||
| replacement | |||||
|
11802
|
11802
11803-54021 Bearing Set, Camshaft (0.125)[08.1988 - 10.1992] 2L#..LX80 Ｕ／Ｓ ０．１２５ |
11803-54021 |
US $120.85 |
||
|
11802
|
11802
11804-54020
Bearing Set, Camshaft (0.25)
[08.1988 - 10.1992] 2L#..LX80 Ｕ／Ｓ ０．２５ |
11804-54020 |
— | ||
| replacement | |||||
|
11802
|
11802
11804-54021 Bearing Set, Camshaft (0.25)[08.1988 - 10.1992] 2L#..LX80 Ｕ／Ｓ ０．２５ |
11804-54021 |
US $120.85 |
||
|
13502
|
13502
13503-54030 Idler Sub-Assy, Timing Belt, No.2[08.1988 - 11.1989] 2L#..LX80 |
13503-54030 |
from US $55.61 |
||
|
13505
|
13505
13505-54020
Idler Sub-Assy, Timing Belt, No.1
[08.1988 - 11.1991] 2L#..LX80 |
13505-54020 |
— | ||
| replacement | |||||
|
13505
|
13505
13505-54021 Idler Sub-Assy, Timing Belt, No.1[08.1988 - 11.1991] 2L#..LX80 |
13505-54021 |
from US $63.67 |
||
|
13505
|
13505
13505-54021 Idler Sub-Assy, Timing Belt, No.1[11.1991 -] 2L#..LX80 |
13505-54021 |
from US $63.67 |
||
|
13505A
|
13505A
90506-18060 Spring, Tension(For Idler)[08.1988 - 10.1992] 2L#..LX80 |
90506-18060 |
from US $1.91 |
||
|
13511
|
13511
13501-54060 Camshaft[08.1988 - 10.1992] 2LT..LX80 |
13501-54060 |
US $586.77 |
||
|
13523A
|
13523A
90280-05004 Key, Woodruff(For Timing Gear)[08.1988 - 10.1992] 2L#..LX80 |
90280-05004 |
US $4.12 |
||
|
13523P
|
13523P
13523-54040 Pulley, Camshaft Timing[08.1988 - 10.1992] 2L#..LX80 |
13523-54040 |
from US $52.01 |
||
|
13558
|
13558
13558-54020 Bracket, Spring(For Idler)[08.1988 - 10.1992] 2L#..LX80 |
13558-54020 |
from US $2.71 |
||
|
13568
|
13568
13568-54070
Belt, Timing
[08.1988 - 05.1992] 2L#..LX80 |
13568-54070 |
— | ||
| replacement | |||||
|
13568
|
13568
13568-59175 Belt, Timing[08.1988 - 05.1992] 2L#..LX80 |
13568-59175 |
from US $70.06 |
||
|
13568
|
13568
13568-59065
Belt, Timing
[05.1992 - 10.1992] 2L#..LX80 |
13568-59065 |
— | ||
| replacement | |||||
|
13568
|
13568
13568-59175 Belt, Timing[05.1992 - 10.1992] 2L#..LX80 |
13568-59175 |
from US $70.06 |
||
|
13613P
|
13613P
13603-54030 Pulley, Injection Pump Drive[08.1988 - 10.1992] 2L#..LX80 |
13603-54030 |
from US $45.01 |
||
|
13711
|
13711
13711-54020 Valve, Intake[08.1988 - 10.1992] 2L#..LX80 |
13711-54020 |
from US $13.96 |
||
|
13711A
|
13711A
90913-02053
Seal Or Ring, O(For Valve Stem Oil)
[08.1988 - 10.1992] 2L#..LX80 |
90913-02053 |
— | ||
| replacement | |||||
|
13711A
|
13711A
90913-02110 Seal Or Ring, O(For Valve Stem Oil)[08.1988 - 10.1992] 2L#..LX80 |
90913-02110 |
from US $4.84 |
||
|
13711B
|
13711B
90504-49001 Spring, Compression(For Inner)[08.1988 - 10.1992] 2L#..LX80 |
90504-49001 |
from US $5.13 |
||
|
13711D
|
13711D
90201-23003 Washer, Plate(For Valve Spring Seat)[08.1988 - 10.1992] 2L#..LX80 |
90201-23003 |
from US $0.99 |
||
|
13715
|
13715
13715-54040 Valve, Exhaust[08.1988 - 03.1990] 2L#..LX80 |
13715-54040 |
from US $16.97 |
||
|
13741
|
13741
13741-54020 Retainer, Valve Spring[08.1988 - 10.1992] 2L#..LX80 |
13741-54020 |
from US $1.50 |
||
|
13741A
|
13741A
90913-03014 Lock, Valve Spring Retainer[08.1988 - 10.1992] 2L#..LX80; 3YP..YX80 |
90913-03014 |
from US $1.38 |
||
|
13751
|
13751
13751-54010 Lifter, Valve[08.1988 - 10.1992] 2L#..LX80 |
13751-54010 |
from US $15.46 |
||
|
13753
|
13753
13753-54010 Shim, Valve Adjusting[08.1988 - 10.1992] 2L#..LX80 厚さ＝２．５０，ＭＡＲＫ＝Ｔ０１ |
13753-54010 |
from US $4.99 |
||
|
13753
|
13753
13753-54060 Shim, Valve Adjusting[08.1988 - 10.1992] 2L#..LX80 厚さ＝２．６０，ＭＡＲＫ＝Ｔ０６ |
13753-54060 |
from US $6.99 |
||
|
13753
|
13753
13753-54110 Shim, Valve Adjusting[08.1988 - 10.1992] 2L#..LX80 厚さ＝２．７０，ＭＡＲＫ＝Ｔ１１ |
13753-54110 |
from US $6.99 |
||
|
13753
|
13753
13753-54160 Shim, Valve Adjusting[08.1988 - 10.1992] 2L#..LX80 厚さ＝２．８０，ＭＡＲＫ＝Ｔ１６ |
13753-54160 |
from US $6.99 |
||
|
13753
|
13753
13753-54210 Shim, Valve Adjusting[08.1988 - 10.1992] 2L#..LX80 厚さ＝２．９０，ＭＡＲＫ＝Ｔ２１ |
13753-54210 |
from US $6.99 |
||
|
13753
|
13753
13753-54260 Shim, Valve Adjusting[08.1988 - 10.1992] 2L#..LX80 厚さ＝３．００，ＭＡＲＫ＝Ｔ２６ |
13753-54260 |
from US $6.99 |
||
|
13753
|
13753
13753-54310 Shim, Valve Adjusting[08.1988 - 10.1992] 2L#..LX80 厚さ＝３．１０，ＭＡＲＫ＝Ｔ３１ |
13753-54310 |
from US $6.99 |
||
|
13753
|
13753
13753-54360 Shim, Valve Adjusting[08.1988 - 10.1992] 2L#..LX80 厚さ＝３．２０，ＭＡＲＫ＝Ｔ３６ |
13753-54360 |
from US $6.99 |
||
|
13753
|
13753
13753-54410 Shim, Valve Adjusting[08.1988 - 10.1992] 2L#..LX80 厚さ＝３．３０，ＭＡＲＫ＝Ｔ４１ |
13753-54410 |
from US $6.99 |
||
|
13753
|
13753
13753-54420 Shim, Valve Adjusting[08.1988 - 10.1992] 2L#..LX80 厚さ＝２．５５，ＭＡＲＫ＝Ｔ４２ |
13753-54420 |
from US $6.99 |
||
|
13753
|
13753
13753-54430 Shim, Valve Adjusting[08.1988 - 10.1992] 2L#..LX80 厚さ＝２．６５，ＭＡＲＫ＝Ｔ４３ |
13753-54430 |
from US $6.99 |
||
|
13753
|
13753
13753-54440 Shim, Valve Adjusting[08.1988 - 10.1992] 2L#..LX80 厚さ＝２．７５，ＭＡＲＫ＝Ｔ４４ |
13753-54440 |
from US $6.99 |
||
|
13753
|
13753
13753-54450 Shim, Valve Adjusting[08.1988 - 10.1992] 2L#..LX80 厚さ＝２．８５，ＭＡＲＫ＝Ｔ４５ |
13753-54450 |
from US $6.99 |
||
|
13753
|
13753
13753-54460 Shim, Valve Adjusting[08.1988 - 10.1992] 2L#..LX80 厚さ＝２．９５，ＭＡＲＫ＝Ｔ４６ |
13753-54460 |
from US $6.99 |
||
|
13753
|
13753
13753-54470 Shim, Valve Adjusting[08.1988 - 10.1992] 2L#..LX80 厚さ＝３．０５，ＭＡＲＫ＝Ｔ４７ |
13753-54470 |
from US $6.99 |
||
|
13753
|
13753
13753-54480 Shim, Valve Adjusting[08.1988 - 10.1992] 2L#..LX80 厚さ＝３．１５，ＭＡＲＫ＝Ｔ４８ |
13753-54480 |
from US $6.99 |
||
|
13753
|
13753
13753-54490 Shim, Valve Adjusting[08.1988 - 10.1992] 2L#..LX80 厚さ＝３．２５，ＭＡＲＫ＝Ｔ４９ |
13753-54490 |
from US $6.99 |
||
|
9009905166
|
9009905166
90099-05166 Nut, Timer Round |
90099-05166 |
US $2.10 |
||
|
9010508169
|
9010508169
90105-08169 BOLT |
90105-08169 |
from US $1.72 |
||
|
9010510235
|
9010510235
90105-10235 BOLT |
90105-10235 |
from US $2.36 |
||
|
9010908171
|
9010908171
90109-08171
BOLT
|
90109-08171 |
— | ||
|
9010908172
|
9010908172
90109-08172 BOLT |
90109-08172 |
US $1.97 |
||
|
9011914005
|
9011914005
90119-14005 Washer, Plate(For Crankshaft Pulley Set) |
90119-14005 |
US $6.27 |
||
|
9056012041
|
9056012041
90560-12041 SPACER |
90560-12041 |
from US $2.33 |
||
