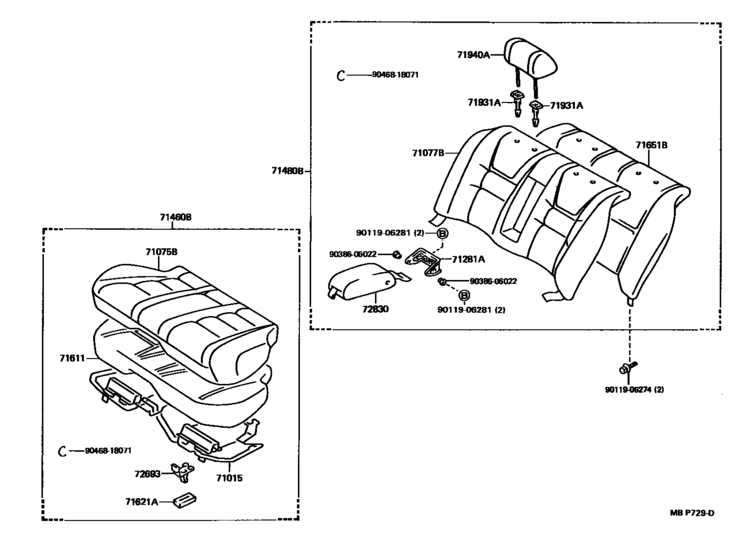

Rear Seat & Seat Track ([08.1988 - ] (8808- )CI,DSL,HTWC,LPG,TD) Diagram Toyota CHASER
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- LX80
- grade
- XL
- body
- HT
- ENGINE
- 2LT
- TRANSMISSION
- ATM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 4FC
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71015
|
71015
71015-22140 Frame Sub-Assy, Rear Seat Cushion[08.1988 - 08.1990] GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
71015-22140 |
US $77.17 |
||
|
71015
|
71015
71015-22150 Frame Sub-Assy, Rear Seat Cushion[08.1990 - 10.1992] GX81,LX80,SX80..(AVT,SXL,XG,XL)..(DSL,HTWC,TD) |
71015-22150 |
US $104.83 |
||
|
71075B
|
71075B
71075-91670-03 Cover, Rear Seat Cushion (For Bench Type)[08.1990 - 10.1992] LX80,SX80..XL MEDIUM GRAY,TRIM1# |
71075-91670-03 |
US $540.18 |
||
|
71075B
|
71075B
71075-91670-04 Cover, Rear Seat Cushion (For Bench Type)[08.1988 - 08.1990] LX80,SX80..XL DARK BLUE,TRIM8# |
71075-91670-04 |
US $540.18 |
||
|
71075B
|
71075B
71075-91670-06 Cover, Rear Seat Cushion (For Bench Type)[08.1988 - 10.1992] LX80,SX80..XL SABLE,TRIM4# |
71075-91670-06 |
US $540.18 |
||
|
71077B
|
71077B
71077-91A09-03 Cover, Rear Seat Back (For Bench Type)[08.1990 - 10.1992] LX80,SX80..XL MEDIUM GRAY,TRIM1# |
71077-91A09-03 |
US $567.84 |
||
|
71077B
|
71077B
71077-91A09-04 Cover, Rear Seat Back (For Bench Type)[08.1988 - 08.1990] LX80,SX80..XL DARK BLUE,TRIM8# |
71077-91A09-04 |
US $567.84 |
||
|
71077B
|
71077B
71077-91A09-06 Cover, Rear Seat Back (For Bench Type)[08.1988 - 10.1992] LX80,SX80..XL SABLE,TRIM4# |
71077-91A09-06 |
US $567.84 |
||
|
71460B
|
71460B
71460-23180-03
Cushion Assy, Rear Seat (For Bench Type)
[08.1990 - 10.1992] LX80,SX80..XL ***,MEDIUM GRAY,TRIM1# |
71460-23180-03 |
— | ||
|
71460B
|
71460B
71460-23180-06
Cushion Assy, Rear Seat (For Bench Type)
[08.1990 - 10.1992] LX80,SX80..XL ***,SABLE,TRIM4# |
71460-23180-06 |
— | ||
|
71460B
|
71460B
71560-91613-04
Cushion Assy, Rear Seat (For Bench Type)
[08.1988 - 08.1990] LX80,SX80..XL ***,DARK BLUE,TRIM8# |
71560-91613-04 |
— | ||
|
71460B
|
71460B
71560-91613-06
Cushion Assy, Rear Seat (For Bench Type)
[08.1988 - 08.1990] LX80,SX80..XL ***,SABLE,TRIM4# |
71560-91613-06 |
— | ||
|
71480B
|
71480B
71480-91A38-03
Back Assy, Rear Seat (For Bench Type)
[08.1990 - 10.1992] LX80,SX80..XL ***,MEDIUM GRAY,TRIM1# |
71480-91A38-03 |
— | ||
|
71480B
|
71480B
71480-91A38-04
Back Assy, Rear Seat (For Bench Type)
[08.1988 - 08.1990] LX80,SX80..XL ***,DARK BLUE,TRIM8# |
71480-91A38-04 |
— | ||
|
71480B
|
71480B
71480-91A38-06
Back Assy, Rear Seat (For Bench Type)
[08.1988 - 10.1992] LX80,SX80..XL ***,SABLE,TRIM4# |
71480-91A38-06 |
— | ||
|
71611
|
71611
71611-22330 Pad, Rear Seat Cushion[08.1988 - 08.1990] GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
71611-22330 |
US $317.41 |
||
|
71611
|
71611
71611-22410 Pad, Rear Seat Cushion[08.1990 - 10.1992] GX81,LX80,SX80..SXL,XG,XL |
71611-22410 |
US $439.71 |
||
|
71621A
|
71621A
71621-22070 Pad, Rear Seat Cushion Silencer, A[08.1988 - 08.1990] GX81..AVT..HTWC;LX80,MX83,SX80,YX80..AVTG,KYO,XL |
71621-22070 |
US $4.95 |
||
|
71651B
|
71651B
71507-91616 Pad, Rear Seat Back(For Bench Type)[08.1988 - 10.1992] LX80,SX80,YX80..KYO,XL |
71507-91616 |
US $349.44 |
||
|
72693
|
72693
72693-24010
Hook, Rear Seat Cushion Lock
[08.1988 - 10.1992] GX81,JZX81,LX80,MX83,SX80,YX80 |
72693-24010 |
— | ||
|
9011906274
|
9011906274
90119-06274
New Genuine Part
|
90119-06274 |
— | ||
| replacement | |||||
|
9011906274
|
9011906274
90119-06355 BOLT |
90119-06355 |
from US $0.99 |
||
|
9011906281
|
9011906281
90119-06281 New Genuine Part |
90119-06281 |
US $5.53 |
||
| replacement | |||||
|
9011906281
|
9011906281
90119-06278 BOLT |
90119-06278 |
from US $0.92 |
||
|
9038606022
|
9038606022
90386-06022
Bush(For Rear Seat Center Armrest)
|
90386-06022 |
— | ||
|
9046818071
|
9046818071
90468-18071
Clip (For Front Seat Cushion Cover)
|
90468-18071 |
— | ||
| replacement | |||||
|
9046818071
|
9046818071
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.86 |
||
