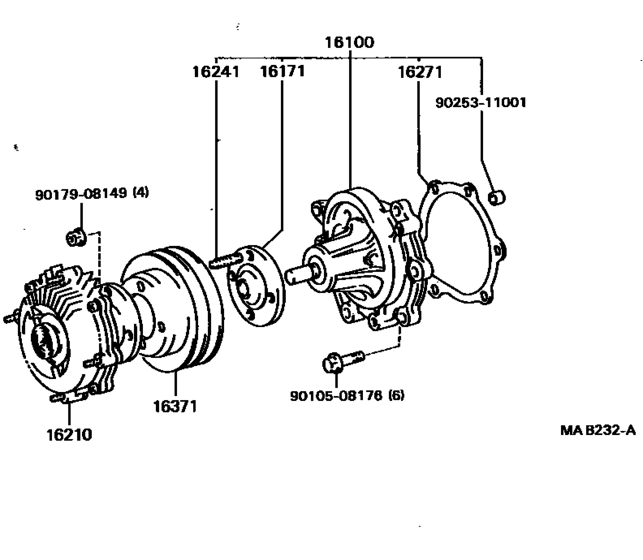

Water Pump ([08.1988 - ] (8808- )2L#) Diagram Toyota CHASER
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- LX80
- grade
- XL
- body
- HT
- ENGINE
- 2LT
- TRANSMISSION
- ATM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 4FC
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-59155
Pump Assy, Engine Water
[08.1988 - 10.1992] 2L#..LX80 |
16100-59155 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-59257 Pump Assy, Engine Water[08.1988 - 10.1992] 2L#..LX80 |
16100-59257 |
from US $100.24 |
||
|
16171
|
16171
16171-41170 Seat, Water Pump Pulley[08.1988 - 10.1992] 2L#..LX80 |
16171-41170 |
US $13.80 |
||
|
16210
|
16210
16210-54130 Coupling Assy, Fluid[08.1988 - 10.1992] 2L#..LX80 |
16210-54130 |
from US $239.57 |
||
|
16241
|
16241
16198-70010 Bolt, Stud(For Water Pump Pulley Seat)[08.1988 - 10.1988] 2L#..LX80 |
16198-70010 |
US $6.41 |
||
|
16241
|
16241
92122-40816 Bolt, Stud(For Oil Strainer)[10.1988 - 10.1992] 2L#..LX80 |
92122-40816 |
US $1.40 |
||
|
16271
|
16271
16271-54020
Gasket, Water Pump
[08.1988 - 10.1992] 2L#..LX80 |
16271-54020 |
— | ||
| replacement | |||||
|
16271
|
16271
16271-54030 Gasket, Water Pump[08.1988 - 10.1992] 2L#..LX80 |
16271-54030 |
US $3.72 |
||
|
16371
|
16371
16371-54030 Pulley, Fan[08.1988 - 10.1992] 2L#..LX80 |
16371-54030 |
US $35.38 |
||
|
9010508176
|
9010508176
90105-08176 BOLT |
90105-08176 |
US $1.93 |
||
|
9017908149
|
9017908149
90179-08149 New Genuine Part |
90179-08149 |
US $2.04 |
||
|
9025311001
|
9025311001
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting) |
90253-11001 |
US $1.51 |
||
