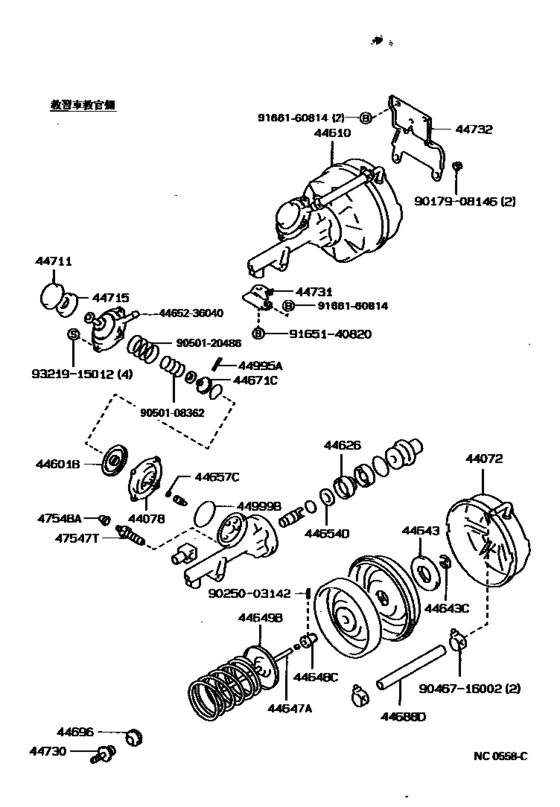

Brake Booster & Vacuum Tube ([08.1988 - ] (8808- )KYO) Diagram Toyota CHASER
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- LX80
- grade
- KYO
- body
- HT
- ENGINE
- 2L
- TRANSMISSION
- MTM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44072
|
44072
44072-22610 Body Sub-Assy, Separator Booster, No.2[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
44072-22610 |
US $61.44 |
||
|
44078
|
44078
44078-22610 Body Sub-Assy, Control Valve[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
44078-22610 |
US $12.38 |
||
|
44601B
|
44601B
44601-37010
Diaphragm Plate Sub-Assy, Booster, Rear
[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
44601-37010 |
— | ||
|
44610
|
44610
44610-22610 Booster Assy, Brake[08.1988 - 10.1992] LX80,SX80,YX80..KYO *42 |
44610-22610 |
US $947.86 |
||
| replacement | |||||
|
44610
|
44610
44610-22611 Booster Assy, Brake[08.1988 - 10.1992] LX80,SX80,YX80..KYO *42 |
44610-22611 |
US $599.87 |
||
|
44610
|
44610
44610-22710
Booster Assy, Brake
[08.1988 - 10.1992] LX80..KYO ＊４１ |
44610-22710 |
— | ||
|
44626
|
44626
44626-30010
Retainer, Booster Rod Cup
[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
44626-30010 |
— | ||
|
44643
|
44643
44643-36040
Retainer, Diaphragm
[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
44643-36040 |
— | ||
|
44643C
|
44643C
96150-01400 Ring, Snap(For Diaphragm Retainer)[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
96150-01400 |
US $1.31 |
||
|
44647A
|
44647A
44647-30010
Rod, Booster Piston
[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
44647-30010 |
— | ||
|
44648C
|
44648C
44648-36040
End, Piston Rod
[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
44648-36040 |
— | ||
|
44649B
|
44649B
44649-36040
Retainer, Booster Spring
[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
44649-36040 |
— | ||
|
44654D
|
44654D
44654-22560 Spacer, Piston Rod[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
44654-22560 |
US $5.39 |
||
|
44657C
|
44657C
90560-08294
Spacer(For Booster Control Valve Piston)
[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
90560-08294 |
— | ||
|
44671C
|
44671C
44671-36040
Seat, Vacuum Valve
[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
44671-36040 |
— | ||
|
44688D
|
44688D
44688-22610 Hose, Booster Vacuum[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
44688-22610 |
US $14.56 |
||
|
44696
|
44696
90480-24439 Grommet, Check Valve[08.1988 - 10.1992] JZX81;GX81,LX80,MX83,SX80,YX80..AVT,AVTG,KYO |
90480-24439 |
from US $2.57 |
||
|
44711
|
44711
44711-30010 Body, Air Cleaner(For Booster)[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
44711-30010 |
US $16.45 |
||
|
44715
|
44715
44715-20020 Element, Air Cleaner(For Booster)[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
44715-20020 |
US $3.20 |
||
|
44730
|
44730
44730-20080 Valve Assy, Vacuum Check(For Brake)[08.1988 - 05.1989] LX80,SX80,YX80..KYO |
44730-20080 |
US $17.82 |
||
|
44730
|
44730
44730-22130 Valve Assy, Vacuum Check(For Brake)[05.1989 - 08.1990] LX80,SX80,YX80..KYO ＊４１ |
44730-22130 |
US $20.24 |
||
|
44731
|
44731
44731-22080 Bracket, Brake Booster, Front[08.1988 - 10.1992] LX80,SX80,YX80..KYO |
44731-22080 |
US $3.20 |
||
|
44732
|
44732
44732-22040 Bracket, Brake Booster, Rear[08.1988 - 10.1992] LX80,SX80,YX80..KYO |
44732-22040 |
US $84.45 |
||
|
44995A
|
44995A
44995-36040
Pin, Valve Joint
[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
44995-36040 |
— | ||
|
44999B
|
44999B
44999-36040
Ring, O(For Control Valve)
[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
44999-36040 |
— | ||
|
47547T
|
47547T
47547-26010 Plug, Bleeder (For Deceleration Sensing Proportionin)[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
47547-26010 |
US $6.63 |
||
|
47548A
|
47548A
31478-30010 Bleeder Plug Cap[08.1988 - 08.1990] LX80,SX80,YX80..KYO *42 |
31478-30010 |
from US $1.52 |
||
|
47548A
|
47548A
47548-20010 Cap, Bleeder Plug(For Release Cylinder)[08.1988 - 08.1990] LX80,SX80,YX80..KYO ＊４１ |
47548-20010 |
US $2.33 |
||
|
4465236040
|
4465236040
44652-36040 Cover, Booster Control Valve |
44652-36040 |
US $88.82 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9025003142
|
9025003142
90250-03142
Pin, Booster Rod End
|
90250-03142 |
— | ||
|
9046716002
|
9046716002
90467-16002
Clip(Vaccum Transmitting Hose No.1)
|
90467-16002 |
— | ||
| replacement | |||||
|
9046716002
|
9046716002
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.32 |
||
|
9050108362
|
9050108362
90501-08362 Spring, Compression(For Vacuum Valve) |
90501-08362 |
US $2.33 |
||
|
9050120486
|
9050120486
90501-20486 New Genuine Part |
90501-20486 |
US $3.64 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9166160814
|
9166160814
91661-60814 New Genuine Part |
91661-60814 |
US $1.02 |
||
|
9321915012
|
9321915012
93219-15012 New Genuine Part |
93219-15012 |
US $3.05 |
||
