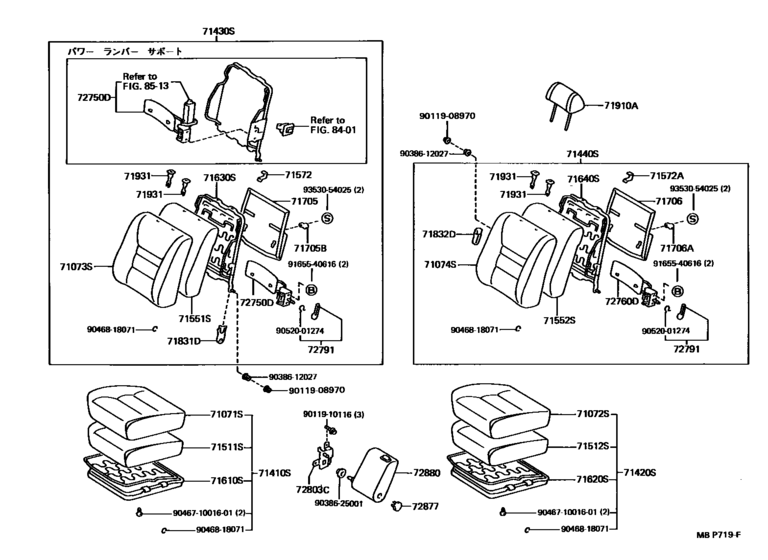

Front Seat & Seat Track ([08.1988 - ] (8808- )CI,DSL,HTWC,LPG,TD) Diagram Toyota CHASER
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- LX80
- grade
- KYO
- body
- HT
- ENGINE
- 2L
- TRANSMISSION
- MTM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71071S
|
71071S
71071-2A320-03 Cover, Front Seat Cushion, Rh(For Separate Type)[08.1990 - 10.1992] LX80,SX80,YX80..KYO MEDIUM GRAY,TRIM1# |
71071-2A320-03 |
US $235.87 |
||
|
71071S
|
71071S
71071-2A320-04 Cover, Front Seat Cushion, Rh(For Separate Type)[08.1988 - 08.1990] LX80,SX80,YX80..KYO DARK BLUE,TRIM8# |
71071-2A320-04 |
US $235.87 |
||
|
71071S
|
71071S
71071-2A330-03 Cover, Front Seat Cushion, Rh(For Separate Type)[08.1990 - 10.1992] LX80,SX80,YX80..KYO ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
71071-2A330-03 |
US $337.79 |
||
|
71071S
|
71071S
71071-2A330-04 Cover, Front Seat Cushion, Rh(For Separate Type)[08.1988 - 08.1990] LX80,SX80,YX80..KYO ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),DARK BLUE,TRIM8# |
71071-2A330-04 |
US $337.79 |
||
|
71072S
|
71072S
71072-22780-03 Cover, Front Seat Cushion, Lh(For Separate Type)[08.1990 - 10.1992] LX80,SX80,YX80..KYO MEDIUM GRAY,TRIM1# |
71072-22780-03 |
US $235.87 |
||
|
71072S
|
71072S
71072-22780-04 Cover, Front Seat Cushion, Lh(For Separate Type)[08.1988 - 08.1990] LX80,SX80,YX80..KYO DARK BLUE,TRIM8# |
71072-22780-04 |
US $235.87 |
||
|
71072S
|
71072S
71072-22800-03 Cover, Front Seat Cushion, Lh(For Separate Type)[08.1990 - 10.1992] LX80,SX80,YX80..KYO ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
71072-22800-03 |
US $337.79 |
||
|
71072S
|
71072S
71072-22800-04 Cover, Front Seat Cushion, Lh(For Separate Type)[08.1988 - 08.1990] LX80,SX80,YX80..KYO ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),DARK BLUE,TRIM8# |
71072-22800-04 |
US $337.79 |
||
|
71073S
|
71073S
71073-2A640-04 Cover, Front Seat Back, Rh(For Separate Type)[08.1988 - 08.1990] LX80,SX80,YX80..KYO DARK BLUE,TRIM8# |
71073-2A640-04 |
US $355.26 |
||
|
71073S
|
71073S
71073-2A641-03 Cover, Front Seat Back, Rh(For Separate Type)[08.1990 - 10.1992] LX80,SX80,YX80..KYO MEDIUM GRAY,TRIM1# |
71073-2A641-03 |
US $349.44 |
||
|
71073S
|
71073S
71073-2A660-04 Cover, Front Seat Back, Rh(For Separate Type)[08.1988 - 08.1990] LX80,SX80,YX80..KYO ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),DARK BLUE,TRIM8# |
71073-2A660-04 |
US $496.50 |
||
|
71073S
|
71073S
71073-2A661-03 Cover, Front Seat Back, Rh(For Separate Type)[08.1990 - 10.1992] LX80,SX80,YX80..KYO ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
71073-2A661-03 |
US $492.13 |
||
|
71074S
|
71074S
71073-2A640-04 Cover, Front Seat Back, Rh(For Separate Type)[08.1988 - 08.1990] LX80,SX80,YX80..KYO DARK BLUE,TRIM8# |
71073-2A640-04 |
US $355.26 |
||
|
71074S
|
71074S
71073-2A660-04 Cover, Front Seat Back, Rh(For Separate Type)[08.1988 - 08.1990] LX80,SX80,YX80..KYO ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),DARK BLUE,TRIM8# |
71073-2A660-04 |
US $496.50 |
||
|
71074S
|
71074S
71074-2A131-03 Cover, Front Seat Back, Lh(For Separate Type)[08.1990 - 10.1992] LX80,SX80,YX80..KYO MEDIUM GRAY,TRIM1# |
71074-2A131-03 |
US $349.44 |
||
|
71074S
|
71074S
71074-2A161-03 Cover, Front Seat Back, Lh(For Separate Type)[08.1990 - 10.1992] LX80,SX80,YX80..KYO ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
71074-2A161-03 |
US $492.13 |
||
|
71410S
|
71410S
71410-2A490-03
Cushion Assy, Front Seat, Rh(For Separate Type)
[08.1990 - 10.1992] LX80,SX80,YX80..KYO ***,MEDIUM GRAY,TRIM1# |
71410-2A490-03 |
— | ||
|
71410S
|
71410S
71410-2A490-04
Cushion Assy, Front Seat, Rh(For Separate Type)
[08.1988 - 08.1990] LX80,SX80,YX80..KYO ***,DARK BLUE,TRIM8# |
71410-2A490-04 |
— | ||
|
71410S
|
71410S
71410-2A500-03
Cushion Assy, Front Seat, Rh(For Separate Type)
[08.1990 - 10.1992] LX80,SX80,YX80..KYO ***,ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
71410-2A500-03 |
— | ||
|
71410S
|
71410S
71410-2A500-04
Cushion Assy, Front Seat, Rh(For Separate Type)
[08.1988 - 08.1990] LX80,SX80,YX80..KYO ***,ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),DARK BLUE,TRIM8# |
71410-2A500-04 |
— | ||
|
71420S
|
71420S
71420-2A050-03
Cushion Assy, Front Seat, Lh (For Separate Type)
[08.1990 - 10.1992] LX80,SX80,YX80..KYO ***,MEDIUM GRAY,TRIM1# |
71420-2A050-03 |
— | ||
|
71420S
|
71420S
71420-2A050-04
Cushion Assy, Front Seat, Lh (For Separate Type)
[08.1988 - 08.1990] LX80,SX80,YX80..KYO ***,DARK BLUE,TRIM8# |
71420-2A050-04 |
— | ||
|
71420S
|
71420S
71420-2A090-03
Cushion Assy, Front Seat, Lh (For Separate Type)
[08.1990 - 10.1992] LX80,SX80,YX80..KYO ***,ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
71420-2A090-03 |
— | ||
|
71420S
|
71420S
71420-2A090-04
Cushion Assy, Front Seat, Lh (For Separate Type)
[08.1988 - 08.1990] LX80,SX80,YX80..KYO ***,ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),DARK BLUE,TRIM8# |
71420-2A090-04 |
— | ||
|
71430S
|
71430S
71430-2A830-04
Back Assy, Front Seat, Rh(For Separate Type)
[08.1988 - 08.1990] LX80,SX80,YX80..KYO ***,DARK BLUE,TRIM8# |
71430-2A830-04 |
— | ||
|
71430S
|
71430S
71430-2A831-03
Back Assy, Front Seat, Rh(For Separate Type)
[08.1990 - 10.1992] LX80,SX80,YX80..KYO ***,MEDIUM GRAY,TRIM1# |
71430-2A831-03 |
— | ||
|
71430S
|
71430S
71430-2C010-04
Back Assy, Front Seat, Rh(For Separate Type)
[08.1988 - 08.1990] LX80,SX80,YX80..KYO ***,ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),DARK BLUE,TRIM8# |
71430-2C010-04 |
— | ||
|
71430S
|
71430S
71430-2C011-03
Back Assy, Front Seat, Rh(For Separate Type)
[08.1990 - 10.1992] LX80,SX80,YX80..KYO ***,ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
71430-2C011-03 |
— | ||
|
71440S
|
71440S
71440-2A810-04
Back Assy, Front Seat, Lh(For Separate Type)
[08.1988 - 08.1990] LX80,SX80,YX80..KYO ***,DARK BLUE,TRIM8# |
71440-2A810-04 |
— | ||
|
71440S
|
71440S
71440-2A811-03
Back Assy, Front Seat, Lh(For Separate Type)
[08.1990 - 10.1992] LX80,SX80,YX80..KYO ***,MEDIUM GRAY,TRIM1# |
71440-2A811-03 |
— | ||
|
71440S
|
71440S
71440-2A820-04
Back Assy, Front Seat, Lh(For Separate Type)
[08.1988 - 08.1990] LX80,SX80,YX80..KYO ***,ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),DARK BLUE,TRIM8# |
71440-2A820-04 |
— | ||
|
71440S
|
71440S
71440-2A821-03
Back Assy, Front Seat, Lh(For Separate Type)
[08.1990 - 10.1992] LX80,SX80,YX80..KYO ***,ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
71440-2A821-03 |
— | ||
|
71511S
|
71511S
71511-22400 Pad, Front Seat Cushion, Rh(For Separate Type)[08.1988 - 10.1992] GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
71511-22400 |
US $243.15 |
||
|
71512S
|
71512S
71511-22410 Pad, Front Seat Cushion, Lh (For Separate Type)[08.1988 - 10.1992] GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
71511-22410 |
US $243.15 |
||
|
71551S
|
71551S
71551-22360 Pad, Front Seat Back, Rh(For Separate Type)[08.1988 - 10.1992] GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
71551-22360 |
US $243.15 |
||
|
71552S
|
71552S
71551-22360 Pad, Front Seat Back, Rh(For Separate Type)[08.1988 - 10.1992] GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
71551-22360 |
US $243.15 |
||
|
71572
|
71572
71572-30040 Pad, Front Seat Back Silencer, B[08.1988 - 08.1990] GX81,LX80,MX83,SX80,YX80 |
71572-30040 |
US $2.18 |
||
|
71572A
|
71572A
71572-30040 Pad, Front Seat Back Silencer, B[08.1988 - 10.1992] GX81,JZX81,LX80,MX83,SX80,YX80 |
71572-30040 |
US $2.18 |
||
|
71610S
|
71610S
71610-22340 Spring Assy, Front Seat Cushion, Rh(For Separate Type)[08.1988 - 10.1992] GX81,JZX81,LX80,SX80,YX80..AVT,GT,KYO |
71610-22340 |
US $467.38 |
||
|
71620S
|
71620S
71620-22130 Spring Assy, Front Seat Cushion, Lh(For Separate Type)[08.1988 - 10.1992] GX81,JZX81,LX80,SX80,YX80 |
71620-22130 |
US $467.38 |
||
|
71630S
|
71630S
71630-22440 Spring Assy, Front Seat Back, Rh(For Separate Type)[08.1988 - 08.1990] LX80,SX80,YX80..KYO,XL |
71630-22440 |
US $428.06 |
||
| replacement | |||||
|
71630S
|
71630S
71630-22441 Spring Assy, Front Seat Back, Rh(For Separate Type)[08.1988 - 08.1990] LX80,SX80,YX80..KYO,XL |
71630-22441 |
US $368.37 |
||
|
71630S
|
71630S
71630-22441 Spring Assy, Front Seat Back, Rh(For Separate Type)[08.1990 - 10.1992] LX80,SX80,YX80..KYO,XL |
71630-22441 |
US $368.37 |
||
|
71640S
|
71640S
71640-22350 Spring Assy, Front Seat Back, Lh(For Separate Type)[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
71640-22350 |
US $428.06 |
||
| replacement | |||||
|
71640S
|
71640S
71640-22351 Spring Assy, Front Seat Back, Lh(For Separate Type)[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
71640-22351 |
US $368.37 |
||
|
71640S
|
71640S
71640-22351 Spring Assy, Front Seat Back, Lh(For Separate Type)[08.1990 - 10.1992] LX80,SX80,YX80..KYO |
71640-22351 |
US $368.37 |
||
|
71831D
|
71831D
71831-22040-03 Cover, Front Seat Hinge, Rh[08.1990 - 10.1992] GX81,JZX81,LX80,SX80,YX80..AVT,KYO,SXL,XG,XL MEDIUM GRAY,TRIM1# |
71831-22040-03 |
US $9.61 |
||
|
71831D
|
71831D
71831-22040-04 Cover, Front Seat Hinge, Rh[08.1988 - 08.1990] GX81,LX80,SX80,YX80..AVT,KYO,SXL,XG,XL DARK BLUE,TRIM8# |
71831-22040-04 |
US $9.46 |
||
|
71832D
|
71832D
71831-22040-03 Cover, Front Seat Hinge, Rh[08.1990 - 10.1992] GX81,JZX81,LX80,SX80,YX80..DSL,HTWC,LPG,TD,TWC MEDIUM GRAY,TRIM1# |
71831-22040-03 |
US $9.61 |
||
|
71832D
|
71832D
71831-22040-04 Cover, Front Seat Hinge, Rh[08.1988 - 08.1990] GX81,LX80,SX80,YX80..AVT,AVTG,KYO,SXL,XG,XL DARK BLUE,TRIM8# |
71831-22040-04 |
US $9.46 |
||
|
71910A
|
71910A
71910-22540-13 Headrest Assy, Front Seat[08.1990 - 10.1992] LX80,SX80,YX80..KYO MEDIUM GRAY,TRIM1# |
71910-22540-13 |
US $187.82 |
||
|
71910A
|
71910A
71910-22540-14 Headrest Assy, Front Seat[08.1988 - 08.1990] LX80,SX80,YX80..KYO DARK BLUE,TRIM8# |
71910-22540-14 |
US $189.28 |
||
|
71931
|
71931
71930-22040-03
Support, Front Seat Headrest
[08.1990 - 10.1992] GX81,JZX81,LX80,MX83,SX80,YX80..DSL,HTWC,LPG,TD,TWC ロック付,MEDIUM GRAY,TRIM1# |
71930-22040-03 |
— | ||
| replacements | |||||
|
71931
|
71931
71930-22040-B0
Support, Front Seat Headrest
[08.1990 - 10.1992] GX81,JZX81,LX80,MX83,SX80,YX80..DSL,HTWC,LPG,TD,TWC ロック付,MEDIUM GRAY,TRIM1# |
71930-22040-B0 |
— | ||
|
71931
|
71931
71930-22040-B2
Support, Front Seat Headrest
[08.1990 - 10.1992] GX81,JZX81,LX80,MX83,SX80,YX80..DSL,HTWC,LPG,TD,TWC ロック付,MEDIUM GRAY,TRIM1# |
71930-22040-B2 |
— | ||
|
71931
|
71931
71930-22040-04 Support, Front Seat Headrest[08.1988 - 08.1990] GX81,LX80,MX83,SX80,YX80..AVT,AVTG,KYO,SXL,XG,XL ロック付,DARK BLUE,TRIM8# |
71930-22040-04 |
US $16.89 |
||
| replacement | |||||
|
71931
|
71931
71930-22040-J0 Support, Front Seat HeadrestFRONT SEAT HEADREST [08.1988 - 08.1990] GX81,LX80,MX83,SX80,YX80..AVT,AVTG,KYO,SXL,XG,XL ロック付,DARK BLUE,TRIM8# |
71930-22040-J0 |
US $16.89 |
||
|
71931
|
71931
71931-22010-03 Support, Front Seat Headrest[08.1990 - 10.1992] GX81,JZX81,LX80,MX83,SX80,YX80..DSL,HTWC,LPG,TD,TWC ロック無,MEDIUM GRAY,TRIM1# |
71931-22010-03 |
US $13.40 |
||
| replacement | |||||
|
71931
|
71931
71931-22010-B1 Support, Front Seat Headrest[08.1990 - 10.1992] GX81,JZX81,LX80,MX83,SX80,YX80..DSL,HTWC,LPG,TD,TWC ロック無,MEDIUM GRAY,TRIM1# |
71931-22010-B1 |
US $13.69 |
||
|
71931
|
71931
71931-22010-04 Support, Front Seat Headrest[08.1988 - 08.1990] GX81,LX80,MX83,SX80,YX80..AVT,AVTG,KYO,SXL,XG,XL ロック無,DARK BLUE,TRIM8# |
71931-22010-04 |
US $13.54 |
||
| replacement | |||||
|
71931
|
71931
71931-22010-J0 Support, Front Seat HeadrestFRONT SEAT HEADREST [08.1988 - 08.1990] GX81,LX80,MX83,SX80,YX80..AVT,AVTG,KYO,SXL,XG,XL ロック無,DARK BLUE,TRIM8# |
71931-22010-J0 |
US $13.54 |
||
|
72760D
|
72760D
72760-22040 Adjuster Assy, Lumbar Support, Lh[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
72760-22040 |
US $125.22 |
||
| replacement | |||||
|
72760D
|
72760D
72760-22041 Adjuster Assy, Lumbar Support, Lh[08.1988 - 08.1990] LX80,SX80,YX80..KYO |
72760-22041 |
US $122.30 |
||
|
72760D
|
72760D
72760-22041 Adjuster Assy, Lumbar Support, Lh[08.1990 - 10.1992] LX80,SX80,YX80..KYO |
72760-22041 |
US $122.30 |
||
|
72791
|
72791
72791-20030-13 Lever, Lumbar Support[08.1990 - 10.1992] LX80,SX80,YX80..KYO MEDIUM GRAY,TRIM1# |
72791-20030-13 |
US $15.58 |
||
| replacement | |||||
|
72791
|
72791
72791-20030-B2
Lever, Lumbar Support
[08.1990 - 10.1992] LX80,SX80,YX80..KYO MEDIUM GRAY,TRIM1# |
72791-20030-B2 |
— | ||
|
72791
|
72791
72791-20030-24 Lever, Lumbar Support[08.1988 - 08.1990] GX81,LX80,SX80,YX80..AVT,KYO DARK BLUE,TRIM8# |
72791-20030-24 |
US $15.58 |
||
| replacement | |||||
|
72791
|
72791
72791-20030-B2
Lever, Lumbar Support
[08.1988 - 08.1990] GX81,LX80,SX80,YX80..AVT,KYO DARK BLUE,TRIM8# |
72791-20030-B2 |
— | ||
|
9011908970
|
9011908970
90119-08970 New Genuine Part |
90119-08970 |
US $1.16 |
||
|
9011910116
|
9011910116
90119-10116
New Genuine Part
|
90119-10116 |
— | ||
| replacement | |||||
|
9011910116
|
9011910116
90119-10229 BOLT |
90119-10229 |
US $3.67 |
||
|
9038612027
|
9038612027
90386-12027 Bush (For Front Seat Hinge Pin) |
90386-12027 |
from US $4.89 |
||
|
9038625001
|
9038625001
90386-25001 New Genuine Part |
90386-25001 |
US $2.48 |
||
|
9046818071
|
9046818071
90468-18071
Clip (For Front Seat Cushion Cover)
|
90468-18071 |
— | ||
| replacement | |||||
|
9046818071
|
9046818071
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.86 |
||
|
9052001274
|
9052001274
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle) |
90520-01274 |
from US $0.94 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9353054025
|
9353054025
93530-54025 New Genuine Part |
93530-54025 |
US $0.69 |
||
|
904671001601
|
904671001601
90467-10016-01 Clip (For Roll Over Garnish) |
90467-10016-01 |
US $3.20 |
||
