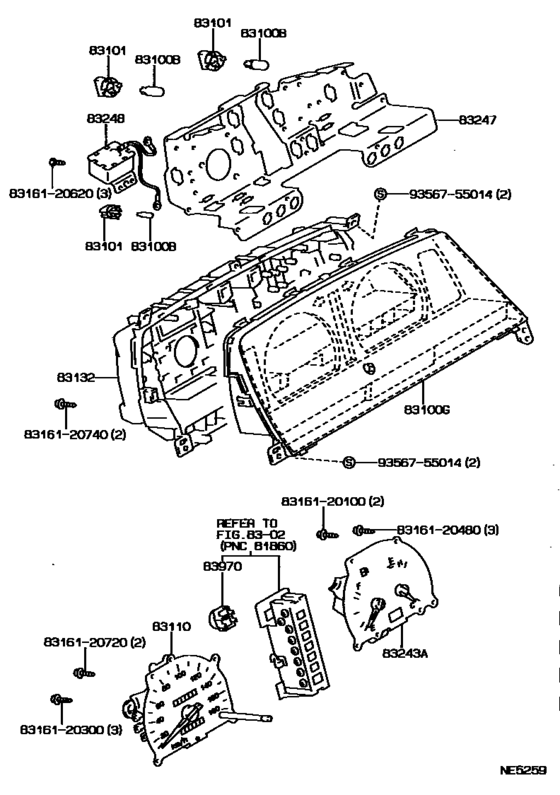

Meter ([08.1988 - ] (8808- )KYO) Diagram Toyota CHASER
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- LX80
- grade
- KYO
- body
- HT
- ENGINE
- 2L
- TRANSMISSION
- MTM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1988 - 10.1992] LX80..KYO..TD １２Ｖ １．２Ｗ ソケット無し,SOCKET:83101-14040; LX80..4FC..XL;LX80..5F..(KYO,XL);GX81,SX80..(AVT,SXL,XG)..(CI,HTWC) １２Ｖ １．２Ｗ ソケット無し,SOCKET:83101-14040 |
90981-11018 |
from US $2.09 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1988 - 08.1990] GX81,LX80,SX80 １２Ｖ ３．４Ｗ,SOCKET:83101-20040 |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1988 - 08.1990] GX81,LX80,SX80 １２Ｖ ３．４Ｗ,SOCKET:83101-20040 |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83134-2A560 Glass, Combination Meter[08.1988 - 10.1992] LX80..XG,XL; LX80..KYO ｱﾘ(ﾀｺﾒ-ﾀ) |
83134-2A560 |
US $74.26 |
||
|
83100G
|
83100G
83134-2A600 Glass, Combination Meter[08.1988 - 10.1992] LX80..KYO |
83134-2A600 |
US $74.26 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1988 - 10.1992] LX80..KYO..TD BULB:12V 1.2W; LX80..4FC..XL;LX80..5F..(KYO,XL);GX81,SX80..(AVT,SXL,XG)..(CI,HTWC) BULB:12V 1.2W |
83101-14040 |
US $2.44 |
||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[08.1988 - 08.1990] GX81,LX80,SX80 BULB:12V 3.4W |
83101-20040 |
from US $1.56 |
||
|
83110
|
83110
83110-2A580 Speedometer Assy[08.1988 - 12.1989] LX80..KYO..DSL ｱﾘ(ﾀｺﾒ-ﾀ) |
83110-2A580 |
US $422.24 |
||
| replacement | |||||
|
83110
|
83110
83110-2A581 Speedometer Assy[08.1988 - 12.1989] LX80..KYO..DSL ｱﾘ(ﾀｺﾒ-ﾀ) |
83110-2A581 |
US $422.24 |
||
|
83110
|
83110
83110-2A581 Speedometer Assy[12.1989 - 08.1990] LX80..KYO..DSL ｱﾘ(ﾀｺﾒ-ﾀ) |
83110-2A581 |
US $422.24 |
||
|
83110
|
83110
83110-2A582 Speedometer Assy[08.1990 - 10.1992] LX80..KYO..DSL ｱﾘ(ﾀｺﾒ-ﾀ) |
83110-2A582 |
US $467.38 |
||
|
83110
|
83110
83110-2A750 Speedometer Assy[08.1988 - 12.1989] LX80..KYO..DSL |
83110-2A750 |
US $422.24 |
||
| replacement | |||||
|
83110
|
83110
83110-2A751 Speedometer Assy[08.1988 - 12.1989] LX80..KYO..DSL |
83110-2A751 |
US $422.24 |
||
|
83110
|
83110
83110-2A751 Speedometer Assy[12.1989 - 08.1990] LX80..KYO..DSL |
83110-2A751 |
US $422.24 |
||
|
83110
|
83110
83110-2A752 Speedometer Assy[08.1990 - 10.1992] LX80..KYO..DSL |
83110-2A752 |
US $432.43 |
||
|
83110
|
83110
83110-2A810
Speedometer Assy
[08.1988 - 10.1992] LX80,SX80,YX80..KYO ﾎｼﾞﾖ ｽﾋﾟ-ﾄﾞﾒ-ﾀ |
83110-2A810 |
— | ||
|
83132
|
83132
83132-2A420 Case, Combination Meter[08.1988 - 08.1990] LX80..XG,XL; LX80..KYO ｱﾘ(ﾀｺﾒ-ﾀ) |
83132-2A420 |
US $90.27 |
||
|
83132
|
83132
83132-2A520 Case, Combination Meter[08.1988 - 08.1990] LX80..KYO |
83132-2A520 |
US $90.27 |
||
|
83132
|
83132
83132-2A660 Case, Combination Meter[08.1990 - 10.1992] LX80..(XG,XL)..TD; LX80..KYO ｱﾘ(ﾀｺﾒ-ﾀ) |
83132-2A660 |
US $88.82 |
||
|
83132
|
83132
83132-2A760 Case, Combination Meter[08.1990 - 10.1992] LX80..KYO |
83132-2A760 |
US $88.82 |
||
|
83243A
|
83243A
83243-2A120 Gauge Sub-Assy, Fuel Receiver[08.1988 - 08.1990] GX81,LX80,SX80..AVT,AVTG,GT,SXL,XG,XL; LX80,SX80..KYO ｱﾘ(ﾀｺﾒ-ﾀ) |
83243-2A120 |
US $58.82 |
||
|
83243A
|
83243A
83243-2A160 Gauge Sub-Assy, Fuel Receiver[08.1988 - 08.1990] LX80,SX80..KYO..(CI,DSL) |
83243-2A160 |
US $123.76 |
||
|
83243A
|
83243A
83243-2A220 Gauge Sub-Assy, Fuel Receiver[08.1990 - 10.1992] GX81,JZX81,LX80,SX80..AVT,AVTG,GT,SXL,XG,XL; LX80,SX80..KYO ｱﾘ(ﾀｺﾒ-ﾀ) |
83243-2A220 |
US $119.39 |
||
|
83243A
|
83243A
83243-2A260 Gauge Sub-Assy, Fuel Receiver[08.1990 - 10.1992] LX80,SX80..KYO..(DSL,HTWC) |
83243-2A260 |
US $119.39 |
||
|
83247
|
83247
83247-2A340 Plate, Meter Circuit[08.1988 - 08.1990] LX80..XL; LX80..KYO ｱﾘ(ﾀｺﾒ-ﾀ) |
83247-2A340 |
US $104.83 |
||
|
83247
|
83247
83247-2A440 Plate, Meter Circuit[08.1988 - 08.1990] LX80..KYO..DSL |
83247-2A440 |
US $104.83 |
||
|
83247
|
83247
83247-2A640 Plate, Meter Circuit[08.1990 - 10.1992] LX80..XL; LX80..KYO ｱﾘ(ﾀｺﾒ-ﾀ) |
83247-2A640 |
US $101.92 |
||
|
83247
|
83247
83247-2A760 Plate, Meter Circuit[08.1990 - 10.1992] LX80..KYO..DSL |
83247-2A760 |
US $101.92 |
||
|
83248
|
83248
86640-22040 Chime, Speed Warning[08.1988 - 08.1990] GX81,LX80,SX80,YX80 |
86640-22040 |
US $34.36 |
||
|
8316120100
|
8316120100
83161-20100 Case, Combination Meter Mirror, No.1 |
83161-20100 |
US $1.69 |
||
|
8316120300
|
8316120300
83161-20300 Case, Combination Meter Mirror, No.1 |
83161-20300 |
US $1.75 |
||
|
8316120480
|
8316120480
83161-20480 Case, Combination Meter Mirror, No.1 |
83161-20480 |
US $1.46 |
||
|
8316120620
|
8316120620
83161-20620 Case, Combination Meter Mirror, No.1 |
83161-20620 |
US $1.75 |
||
|
8316120720
|
8316120720
83161-20720 Case, Combination Meter Mirror, No.1 |
83161-20720 |
US $1.46 |
||
|
8316120740
|
8316120740
83161-20740 Case, Combination Meter Mirror, No.1 |
83161-20740 |
US $1.75 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
