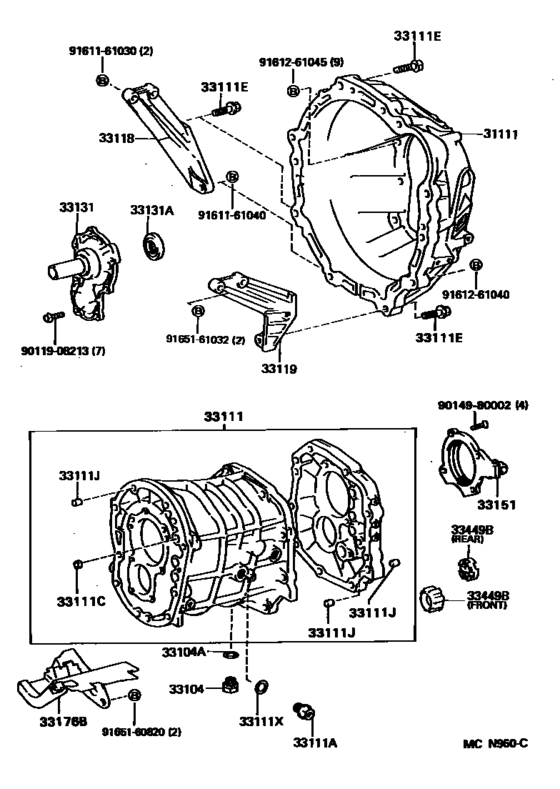

Clutch Housing & Transmission Case (Mtm) ([10.1992 - ] W55,W56 (9210- )LX90..MTM) Diagram Toyota CHASER
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- LX90
- grade
- RAF
- ENGINE
- 2LTE
- TRANSMISSION
- MTM
- From
- 10.1992
- To
- 09.1996
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-22114 Housing, Clutch[10.1992 - 09.1996] LX90..MTM |
31111-22114 |
US $266.45 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[08.1994 - 09.1996] GX90,JZX90,LX90,SX90..MTM |
90341-18006 |
from US $3.23 |
||
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[10.1992 - 08.1994] GX90,LX90,SX90..MTM |
90341-18057 |
from US $6.27 |
||
|
33104A
|
33104A
90430-18008 Gasket[10.1992 - 09.1996] GX90,JZX90,LX90,SX90..MTM |
90430-18008 |
US $1.97 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[10.1992 - 09.1996] GX90,JZX90,LX90,SX90..MTM |
90430-T0021 |
US $1.01 |
||
|
33111
|
33111
33101-30070 Case, Manual Transmission[10.1992 - 03.1995] GX90,LX90,SX90..MTM |
33101-30070 |
US $624.62 |
||
|
33111
|
33111
33101-30071 Case, Manual Transmission[03.1995 - 09.1996] GX90,LX90,SX90..MTM |
33101-30071 |
US $394.58 |
||
|
33111A
|
33111A
90341-18002 Plug, No.1[10.1992 - 08.1994] GX90,LX90,SX90..MTM |
90341-18002 |
from US $3.59 |
||
|
33111A
|
33111A
90341-18006 Plug (No magnet)[08.1994 - 09.1996] GX90,LX90,SX90..MTM |
90341-18006 |
from US $3.23 |
||
|
33111C
|
33111C
90331-14004 Plug, Manual Transmission Case[10.1992 - 05.1994] GX90,LX90,SX90..MTM 外径＝１４ |
90331-14004 |
US $4.68 |
||
|
33111C
|
33111C
96411-41800 Plug, Tight, No.1[10.1992 - 09.1996] GX90,LX90,SX90..MTM 外径＝１８ |
96411-41800 |
from US $1.66 |
||
|
33111E
|
33111E
91619-61250 Bolt(For Transmission Case & Engine Setting)[10.1992 - 09.1996] LX90..MTM |
91619-61250 |
from US $1.95 |
||
|
33111J
|
33111J
90250-12002 Pin, Straight(For Manual Transmission Case)[10.1992 - 09.1996] GX90,LX90,SX90..MTM 長さ＝１６，外径＝１２ |
90250-12002 |
from US $1.27 |
||
|
33111X
|
33111X
90430-18008 Gasket[10.1992 - 09.1996] GX90,LX90,SX90..MTM |
90430-18008 |
US $1.97 |
||
| replacement | |||||
|
33111X
|
33111X
90430-T0021 Gasket(For Manual Transmission Filler Plug)[10.1992 - 09.1996] GX90,LX90,SX90..MTM |
90430-T0021 |
US $1.01 |
||
|
33118
|
33118
33118-25020 Plate, Stiffener, Rh(Mtm)[10.1992 - 09.1996] LX90..MTM |
33118-25020 |
US $22.01 |
||
|
33119
|
33119
33119-25020 Plate, Stiffener, Lh(Mtm)[10.1992 - 09.1996] LX90..MTM |
33119-25020 |
US $31.62 |
||
|
33131
|
33131
33131-30080 Retainer, Bearing, Front(Mtm)[10.1992 - 09.1996] GX90,LX90,SX90..MTM |
33131-30080 |
US $61.85 |
||
|
33131A
|
33131A
90311-30014 Seal, Oil(For Transmission Front Bearing Retainer)[10.1992 - 09.1996] GX90,LX90,SX90..MTM |
90311-30014 |
from US $5.38 |
||
|
33151
|
33151
33107-30020
Retainer, Output Shaft Rear Bearing(Mtm)
[10.1992 - 09.1996] GX90,LX90,SX90..MTM |
33107-30020 |
— | ||
|
33176B
|
33176B
33176-30020
Separator, Transmission Oil(Mtm)
[10.1992 - 09.1996] GX90,LX90,SX90..MTM |
33176-30020 |
— | ||
|
33449B
|
33449B
33449-30010 Magnet, Transmission[10.1992 - 09.1996] GX90,LX90,SX90..MTM REAR |
33449-30010 |
US $4.80 |
||
|
33449B
|
33449B
33449-30020 Magnet, Transmission[10.1992 - 09.1996] GX90,LX90,SX90..MTM FRONT |
33449-30020 |
US $3.20 |
||
|
9011908213
|
9011908213
90119-08213 Bolt, W/washer(For Transmission Case Cover) |
90119-08213 |
US $3.23 |
||
|
9014980002
|
9014980002
90149-80002 BOLT |
90149-80002 |
US $0.51 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161261040
|
9161261040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.15 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
|
9165161032
|
9165161032
91651-61032 BOLT |
91651-61032 |
US $2.06 |
||
