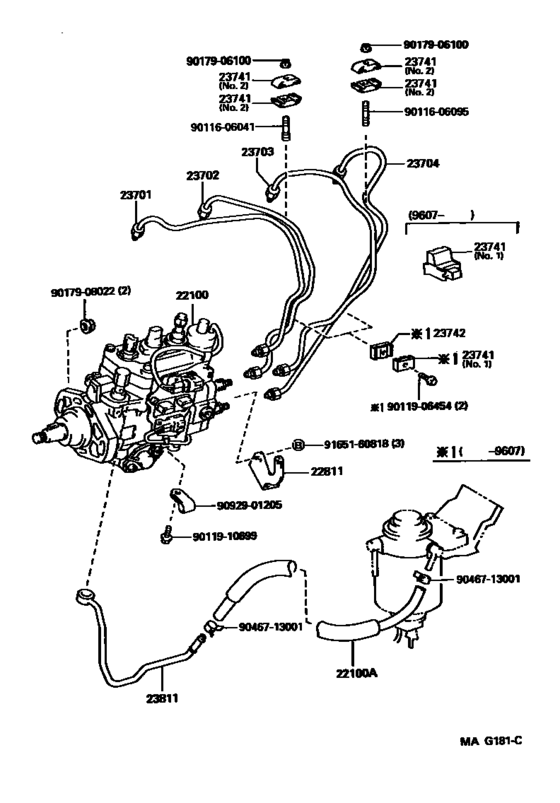

Injection Pump Assembly ([10.1992 - ] (9210- )2LTE) Diagram Toyota CHASER
- Year
- 1992 - 1994
- Sales region
- Japan
- Frame
- LX90
- grade
- XL
- ENGINE
- 2LTE
- TRANSMISSION
- MTM
- From
- 10.1992
- To
- 09.1994
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-5B302 Pump Assy, Injection Or Supply[10.1992 - 09.1994] 2LTE..LX90 |
22100-5B302 |
US $4,600.96 |
||
| replacement | |||||
|
22100
|
22100
22100-5B303
Pump Assy, Injection Or Supply
[10.1992 - 09.1994] 2LTE..LX90 |
22100-5B303 |
— | ||
|
22100A
|
22100A
90447-14068
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[10.1992 - 09.1996] 2LTE..LX90 |
90447-14068 |
— | ||
|
22811
|
22811
22811-54050 Stay, Injection Pump, No.1[10.1992 - 09.1996] 2LTE..LX90 |
22811-54050 |
US $7.13 |
||
|
23701
|
23701
23701-54120
Pipe Sub-Assy, Injection, No.1
[10.1992 - 12.1993] 2LTE..LX90 |
23701-54120 |
— | ||
| replacement | |||||
|
23701
|
23701
23701-54130
Pipe Sub-Assy, Injection, No.1
[10.1992 - 12.1993] 2LTE..LX90 |
23701-54130 |
— | ||
|
23701
|
23701
23701-54130
Pipe Sub-Assy, Injection, No.1
[12.1993 - 09.1996] 2LTE..LX90 |
23701-54130 |
— | ||
|
23702
|
23702
23702-54130
Pipe Sub-Assy, Injection, No.2
[10.1992 - 12.1993] 2LTE..LX90 |
23702-54130 |
— | ||
| replacement | |||||
|
23702
|
23702
23702-54160
Pipe Sub-Assy, Injection, No.2
[10.1992 - 12.1993] 2LTE..LX90 |
23702-54160 |
— | ||
|
23702
|
23702
23702-54160
Pipe Sub-Assy, Injection, No.2
[12.1993 - 09.1996] 2LTE..LX90 |
23702-54160 |
— | ||
|
23703
|
23703
23703-54100 Pipe Sub-Assy, Injection, No.3[10.1992 - 09.1996] 2LTE..LX90 |
23703-54100 |
from US $28.73 |
||
| replacement | |||||
|
23703
|
23703
23703-05011
Pipe Sub-Assy, Injection, No.3
[10.1992 - 09.1996] 2LTE..LX90 |
23703-05011 |
— | ||
|
23704
|
23704
23704-54100 Pipe Sub-Assy, Injection, No.4[10.1992 - 09.1996] 2LTE..LX90 |
23704-54100 |
from US $28.73 |
||
| replacement | |||||
|
23704
|
23704
23704-05010
Pipe Sub-Assy, Injection, No.4
[10.1992 - 09.1996] 2LTE..LX90 |
23704-05010 |
— | ||
|
23741
|
23741
23741-54010 Clamp, Injection Pipe, No.1[10.1992 - 07.1996] 2LTE..LX90 ＮＯ．１ |
23741-54010 |
US $22.34 |
||
|
23741
|
23741
23741-56010 Clamp, Injection Pipe, No.1[10.1992 - 09.1996] 2LTE..LX90 ＮＯ．２ |
23741-56010 |
from US $6.20 |
||
|
23742
|
23742
23742-54010 Clamp, Injection Pipe, No.2[10.1992 - 07.1996] 2LTE..LX90 |
23742-54010 |
US $22.34 |
||
|
23811
|
23811
23811-54151 Pipe, Fuel(For Fuel Filter To Injection Pump)[10.1992 - 09.1996] 2LTE..LX90 |
23811-54151 |
US $35.29 |
||
| replacement | |||||
|
23811
|
23811
2381105020
Pipe Fuel No.1
[10.1992 - 09.1996] 2LTE..LX90 |
2381105020 |
— | ||
|
9011606041
|
9011606041
90116-06041
Bolt, Stud(For Intake Manifold To Glow Plug Connector No.1)
|
90116-06041 |
— | ||
| replacement | |||||
|
9011606041
|
9011606041
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.61 |
||
|
9011606095
|
9011606095
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.61 |
||
|
9011906454
|
9011906454
90119-06454 Bolt |
90119-06454 |
US $1.65 |
||
|
9011910699
|
9011910699
90119-10699
BOLT WWASHER
|
90119-10699 |
— | ||
|
9017906100
|
9017906100
90179-06100
New Genuine Part
|
90179-06100 |
— | ||
| replacement | |||||
|
9017906100
|
9017906100
90179-06204 NUT |
90179-06204 |
US $2.15 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.52 |
||
|
9046713001
|
9046713001
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13001 |
— | ||
| replacement | |||||
|
9046713001
|
9046713001
96135-51300 Clamp, Hose |
96135-51300 |
from US $2.13 |
||
|
9092901205
|
9092901205
90929-01205 CLAMP |
90929-01205 |
US $6.81 |
||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.11 |
||
