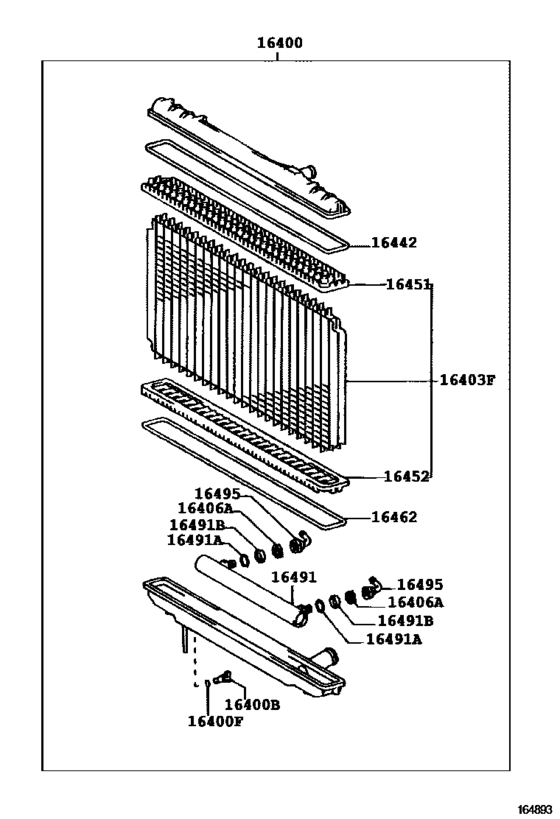

Radiator & Water Outlet ([10.1992 - ] (9210- )2LTE) Diagram Toyota CHASER
- Year
- 1992 - 1994
- Sales region
- Japan
- Frame
- LX90
- grade
- XL
- ENGINE
- 2LTE
- TRANSMISSION
- MTM
- From
- 10.1992
- To
- 09.1994
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16400
|
16400
16400-5B090 Radiator Assy[10.1992 - 09.1996] 2LTE..LX90..MTM |
16400-5B090 |
US $628.99 |
||
| replacement | |||||
|
16400
|
16400
16400-5B440 Radiator Assy[10.1992 - 09.1996] 2LTE..LX90..MTM |
16400-5B440 |
US $723.63 |
||
|
16400B
|
16400B
23322-54010 Plug,air(For Oil Cooler Drain Cock)[10.1992 - 09.1996] 1GFE..GX90; 2LTE..LX90; 4SFE..SX90; 1JZ#,2JZGE..JZX9# |
23322-54010 |
from US $4.86 |
||
|
16400F
|
16400F
96711-19007 Packing(For Radiator Drain Cock)[10.1992 - 09.1996] 1GFE..GX90; 2LTE..LX90; 4SFE..SX90; 1JZ#,2JZGE..JZX9# |
96711-19007 |
from US $2.24 |
||
|
16403F
|
16403F
16403-5B090 Core Sub-Assy, Radiator[10.1992 - 09.1996] 2LTE..LX90..MTM |
16403-5B090 |
US $422.24 |
||
| replacement | |||||
|
16403F
|
16403F
16403-5B440 Core Sub-Assy, Radiator[10.1992 - 09.1996] 2LTE..LX90..MTM |
16403-5B440 |
US $422.24 |
||
|
16442
|
16442
16462-46040 Ring, O(For Radiator Upper Tank)[10.1992 - 09.1996] 2LTE..LX90 |
16462-46040 |
US $46.31 |
||
|
16451
|
16451
16452-46040 Plate, Radiator Core, Upper[10.1992 - 09.1996] 2LTE..LX90 |
16452-46040 |
US $41.93 |
||
|
16452
|
16452
16452-46040 Plate, Radiator Core, Upper[10.1992 - 09.1996] 2LTE..LX90 |
16452-46040 |
US $41.93 |
||
|
16462
|
16462
16462-46040 Ring, O(For Radiator Upper Tank)[10.1992 - 09.1996] 1JZGE,2JZGE..JZX9#; 2LTE..LX90 |
16462-46040 |
US $46.31 |
||
