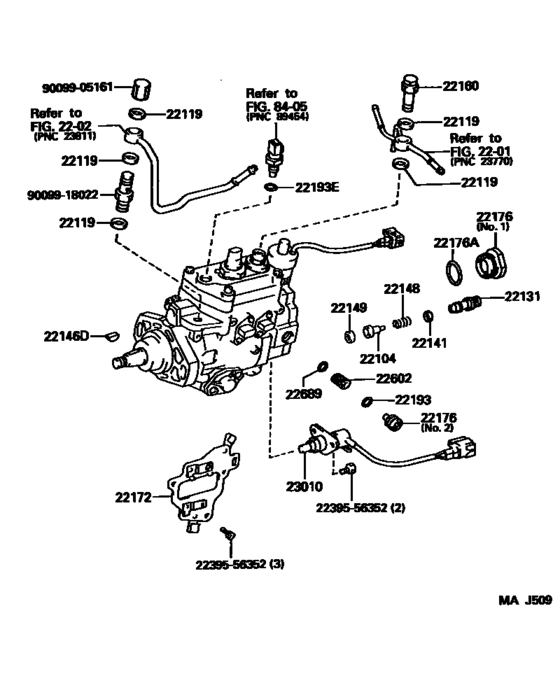

Injection Pump Body ([09.1995 - ] (9509- )2LTE) Diagram Toyota CHASER
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- LX90
- grade
- XL
- ENGINE
- 2LTE
- TRANSMISSION
- ATM
- From
- 10.1992
- To
- 09.1996
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22104
|
22104
22104-5B250
Valve Sub-Assy, Injection Pump Delivery
[10.1992 - 09.1995] 2LTE..LX90 |
22104-5B250 |
— | ||
|
22104
|
22104
22104-5B440 Valve Sub-Assy, Injection Pump Delivery[09.1995 - 09.1996] 2LTE..LX90 |
22104-5B440 |
US $25.68 |
||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[10.1992 - 09.1996] 2LTE..LX90 |
90201-12109 |
from US $1.33 |
||
|
22131
|
22131
22131-5B250
Holder, Delivery Valve
[10.1992 - 09.1996] 2LTE..LX90 |
22131-5B250 |
— | ||
|
22141
|
22141
22141-54010
Seat, Delivery Valve Spring
[10.1992 - 09.1996] 2LTE..LX90 |
22141-54010 |
— | ||
|
22146D
|
22146D
90099-13017 Key(For Drive Gear)[10.1992 - 09.1996] 2LTE..LX90 |
90099-13017 |
US $9.03 |
||
|
22148
|
22148
22148-5B250 Spring, Delivery Valve[10.1992 - 09.1996] 2LTE..LX90 |
22148-5B250 |
US $0.84 |
||
|
22149
|
22149
22149-56351 Gasket, Delivery Valve[10.1992 - 09.1996] 2LTE..LX90 |
22149-56351 |
US $0.70 |
||
|
22160
|
22160
22160-54271 Screw Sub-Assy, Overflow[10.1992 - 09.1996] 2LTE..LX90 |
22160-54271 |
US $14.68 |
||
|
22172
|
22172
22172-5B300
Clip, Connector Support, Solenoid
[10.1992 - 09.1995] 2LTE..LX90 |
22172-5B300 |
— | ||
|
22172
|
22172
22172-67030
Clip, Connector Support, Solenoid
[09.1995 - 09.1996] 2LTE..LX90 |
22172-67030 |
— | ||
|
22176
|
22176
22176-54640
Plug, Distributive Head
[10.1992 - 09.1996] 2LTE..LX90 ＮＯ．１ |
22176-54640 |
— | ||
|
22176
|
22176
22176-5B302
Plug, Distributive Head
[10.1992 - 09.1996] 2LTE..LX90 ＮＯ．２ |
22176-5B302 |
— | ||
|
22176A
|
22176A
90099-14052
Ring, O(For Distributive Head Plug)
[10.1992 - 09.1994] 2LTE..LX90 |
90099-14052 |
— | ||
| replacement | |||||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[10.1992 - 09.1994] 2LTE..LX90 |
22193-54772 |
from US $2.97 |
||
|
22193
|
22193
22193-5B302
Ring, O(For Lever Connecting Pin)
[10.1992 - 09.1996] 2LTE..LX90 |
22193-5B302 |
— | ||
|
22193E
|
22193E
22193-67030
Ring, O(For Lever Connecting Pin)
[09.1995 - 09.1996] 2LTE..LX90 |
22193-67030 |
— | ||
|
22602
|
22602
22602-56350 Filter Sub-Assy, Fuel Injection Pump[09.1995 - 09.1996] 2LTE..LX90 |
22602-56350 |
from US $10.31 |
||
|
22689
|
22689
22689-56350 Washer(For Swivel Nipple)[09.1995 - 09.1996] 2LTE..LX90 |
22689-56350 |
from US $0.70 |
||
|
23010
|
23010
23010-54030
Valve Assy, Timing Control
[10.1992 - 09.1995] 2LTE..LX90 |
23010-54030 |
— | ||
|
23010
|
23010
23010-54040 Valve Assy, Timing Control[09.1995 - 09.1996] 2LTE..LX90 |
23010-54040 |
US $404.77 |
||
| replacement | |||||
|
23010
|
23010
23010-67030 Valve Assy, Timing Control[09.1995 - 09.1996] 2LTE..LX90 |
23010-67030 |
from US $259.31 |
||
|
2239556352
|
2239556352
22395-56352
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56352 |
— | ||
|
9009905161
|
9009905161
90099-05161 Nut, Timer Round |
90099-05161 |
from US $1.25 |
||
|
9009918022
|
9009918022
90099-18022
SCREW
|
90099-18022 |
— | ||
