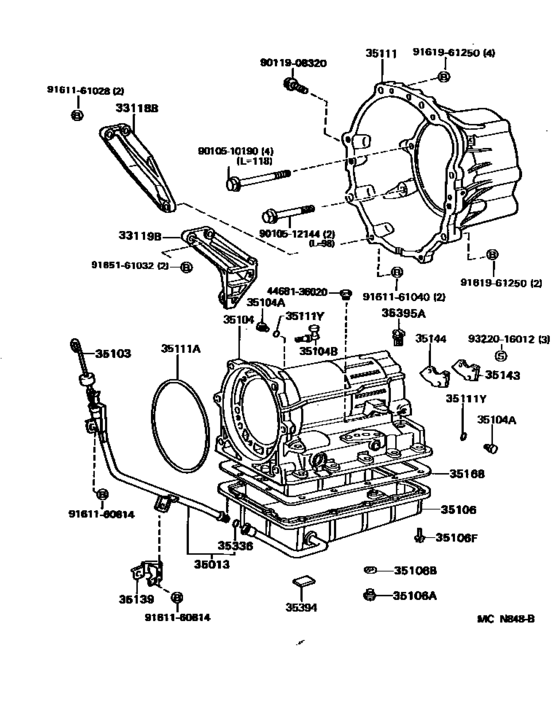

Transmission Case & Oil Pan (Atm) ([10.1992 - 09.1994] A43D (9210-9409)LX90..ATM) Diagram Toyota CHASER
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- LX90
- grade
- XL
- ENGINE
- 2LTE
- TRANSMISSION
- ATM
- From
- 10.1992
- To
- 09.1996
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33118B
|
33118B
33118-25020 Plate, Stiffener, Rh(Mtm)[10.1992 - 09.1996] LX90..ATM |
33118-25020 |
US $22.01 |
||
|
33119B
|
33119B
33119-25020 Plate, Stiffener, Lh(Mtm)[10.1992 - 09.1996] LX90..ATM |
33119-25020 |
US $31.62 |
||
|
35013
|
35013
35013-22390 Tube Sub-Assy, Transmission Oil Filler[10.1992 - 09.1994] LX90..ATM |
35013-22390 |
US $44.41 |
||
|
35013
|
35013
35013-22490 Tube Sub-Assy, Transmission Oil Filler[09.1994 - 09.1995] LX90..ATM |
35013-22490 |
US $43.83 |
||
| replacement | |||||
|
35013
|
35013
35013-22390 Tube Sub-Assy, Transmission Oil Filler[09.1994 - 09.1995] LX90..ATM |
35013-22390 |
US $44.41 |
||
|
35103
|
35103
35103-22250 Gage Sub-Assy, Transmission Oil Level[10.1992 - 09.1994] LX90..ATM |
35103-22250 |
US $18.93 |
||
|
35103
|
35103
35103-22350 Gage Sub-Assy, Transmission Oil Level[09.1994 - 09.1995] LX90..ATM |
35103-22350 |
US $18.64 |
||
| replacement | |||||
|
35103
|
35103
35103-22250 Gage Sub-Assy, Transmission Oil Level[09.1994 - 09.1995] LX90..ATM |
35103-22250 |
US $18.93 |
||
|
35104
|
35104
35104-26021 Case Sub-Assy, Automatic Transmission[10.1992 - 09.1996] LX90,SX90..ATM |
35104-26021 |
US $981.34 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[10.1992 - 09.1996] JZX93 RH(REAR) OR LH; GX90,JZX90,91,LX90,SX90..ATM |
90341-08001 |
from US $1.52 |
||
|
35104B
|
35104B
90930-03108 Plug, Breather, No.1 (Atm)[10.1992 - 09.1996] GX90,JZX90,91,LX90,SX90..ATM |
90930-03108 |
US $19.70 |
||
|
35106
|
35106
35106-30041
Pan Sub-Assy, Automatic Transmission Oil
[10.1992 - 09.1996] LX90..ATM |
35106-30041 |
— | ||
|
35106A
|
35106A
90341-10006
Plug (For Transfer Oil Pan)
[10.1992 - 09.1996] GX90,JZX90,91,LX90,SX90..ATM |
90341-10006 |
— | ||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[10.1992 - 09.1996] GX90,JZX90,91,LX90,SX90..ATM |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[10.1992 - 09.1996] GX90,JZX90,91,LX90,SX90..ATM |
35178-30010 |
US $3.40 |
||
|
35106F
|
35106F
90119-06117
Bolt (For Automatic Transmission Oil Pan)
[10.1992 - 09.1996] GX90,LX90,SX90..ATM |
90119-06117 |
— | ||
| replacement | |||||
|
35106F
|
35106F
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[10.1992 - 09.1996] GX90,LX90,SX90..ATM |
90119-06173 |
from US $0.76 |
||
|
35111
|
35111
35111-22060
Housing, Automatic Transmission
[10.1992 - 09.1995] LX90..ATM |
35111-22060 |
— | ||
| replacement | |||||
|
35111
|
35111
35111-26030 Housing, Automatic Transmission[10.1992 - 09.1995] LX90..ATM |
35111-26030 |
US $818.27 |
||
|
35111
|
35111
35111-26030 Housing, Automatic Transmission[09.1995 - 09.1996] LX90..ATM |
35111-26030 |
US $818.27 |
||
|
35111A
|
35111A
90301-99054 Ring, O (For Automatic Transmission Housing)[10.1992 - 09.1996] GX90,LX90,SX90..ATM |
90301-99054 |
US $13.63 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[10.1992 - 09.1996] GX90,JZX9#,LX90,SX90..ATM |
90301-06196 |
from US $2.24 |
||
|
35139
|
35139
35109-22050 Bracket, Oil Filler Tube[10.1992 - 09.1996] LX90..ATM |
35109-22050 |
US $12.52 |
||
|
35143
|
35143
35143-22010 Cover, Transmission Case, Rear[10.1992 - 09.1996] GX90,LX90,SX90..ATM |
35143-22010 |
US $6.26 |
||
|
35144
|
35144
35144-28010 Gasket, Transmission Case Rear Cover[10.1992 - 09.1996] GX90,LX90,SX90..ATM |
35144-28010 |
US $2.62 |
||
|
35168
|
35168
35168-22011 Gasket, Automatic Transmission Oil Pan[10.1992 - 09.1996] GX90,LX90,SX90..ATM |
35168-22011 |
from US $9.79 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[10.1992 - 09.1996] GX90,JZX9#,LX90,SX90..ATM |
90301-09173 |
from US $2.03 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[10.1992 - 09.1996] LX90,SX90..ATM |
35394-30011 |
from US $5.62 |
||
|
35395A
|
35395A
35395-40010 Strainer, Governor Oil[10.1992 - 09.1996] LX90,SX90..ATM |
35395-40010 |
US $12.58 |
||
|
4468136020
|
4468136020
44681-36020 Plug, Automatic Transmission Case |
44681-36020 |
US $2.91 |
||
|
9010510190
|
9010510190
90105-10190 New Genuine Part |
90105-10190 |
US $3.20 |
||
|
9010512144
|
9010512144
90105-12144 New Genuine Part |
90105-12144 |
US $3.20 |
||
|
9011908320
|
9011908320
90119-08320 Screw Or Bolt(for Valve Rocker Shaft Lock) |
90119-08320 |
US $1.89 |
||
| replacement | |||||
|
9011908320
|
9011908320
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $3.05 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.95 |
||
|
9165161032
|
9165161032
91651-61032 BOLT |
91651-61032 |
US $2.06 |
||
|
9322016012
|
9322016012
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
