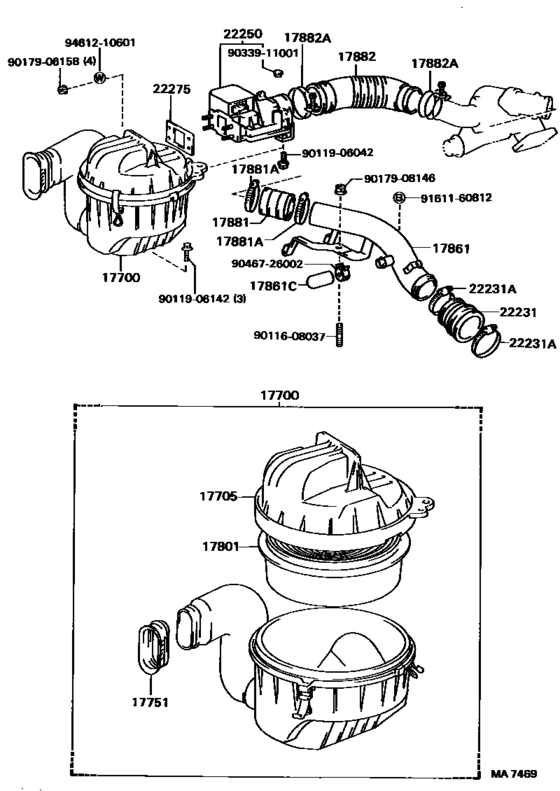

Air Cleaner ([08.1984 - 10.1985] (8408-8510)MTEU) Diagram Toyota CHASER
- Year
- 1984 - 1985
- Sales region
- Japan
- Frame
- MX71
- grade
- AVT
- body
- HT
- ENGINE
- MTEU
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 10.1985
- Gear Shift Type
- 4FC
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-70040 Cleaner Assy, Air[08.1984 - 10.1985] MTEU..MX71 |
17700-70040 |
US $336.34 |
||
|
17705
|
17705
17705-70040
Cap Sub-Assy, Air Cleaner
[08.1984 - 10.1985] MTEU..MX71 |
17705-70040 |
— | ||
|
17751
|
17751
17751-70010
Inlet, Air Cleaner, No.1
[08.1984 - 08.1986] MTEU..MX71; 1GEU,1GG#..GX71 |
17751-70010 |
— | ||
|
17801
|
17801
17801-70020 Element Sub-Assy, Air Cleaner Filter[08.1984 - 08.1988] MTEU..MX71; 1GEU,1GG#..GX71 |
17801-70020 |
from US $43.17 |
||
|
17861
|
17861
17805-41040 Connector, Intake Air[08.1984 - 10.1985] MTEU..MX71 |
17805-41040 |
US $157.25 |
||
|
17861C
|
17861C
90339-19002 Cap(For Intake Air Connector)[08.1984 - 10.1985] MTEU..MX71 |
90339-19002 |
from US $10.19 |
||
|
17881
|
17881
17881-41070 Hose, Air Cleaner, No.1[08.1984 - 10.1985] MTEU..MX71 |
17881-41070 |
US $24.75 |
||
|
17881A
|
17881A
90460-75001 Clamp Or Clip(For Air Hose, No.1)[08.1984 - 10.1985] MTEU..MX71 |
90460-75001 |
US $8.32 |
||
|
17882
|
17882
17882-41150 Hose, Air Cleaner, No.2[08.1984 - 10.1985] MTEU..MX71 |
17882-41150 |
US $66.54 |
||
|
17882A
|
17882A
96111-10710 Clamp(For Air Cleaner Inlet Duct)[08.1984 - 10.1985] MTEU..MX71 PIPE SIDE |
96111-10710 |
from US $2.56 |
||
|
17882A
|
17882A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[08.1984 - 10.1985] MTEU..MX71 AIR CLEANER SIDE |
96111-10800 |
from US $2.56 |
||
|
22231
|
22231
22231-41030
Hose, Throttle Body
[08.1984 - 10.1985] MTEU..MX71 |
22231-41030 |
— | ||
|
22231A
|
22231A
90460-75001 Clamp Or Clip(For Air Hose, No.1)[08.1984 - 10.1985] MTEU..MX71 CONNECTOR SIDE |
90460-75001 |
US $8.32 |
||
|
22231A
|
22231A
90460-80001
Clamp, Hose
[08.1984 - 10.1985] MTEU..MX71 THROTTLE BODY SIDE |
90460-80001 |
— | ||
| replacement | |||||
|
22231A
|
22231A
90460-80006 Clamp, Hose[08.1984 - 10.1985] MTEU..MX71 THROTTLE BODY SIDE |
90460-80006 |
from US $9.07 |
||
|
22250
|
22250
22250-41120
Meter Assy, Intake Air Flow
[08.1984 - 10.1985] MTEU..MX71 |
22250-41120 |
— | ||
|
22275
|
22275
22275-41010 Gasket, Air Flow Meter[08.1984 - 10.1985] MTEU..MX71 |
22275-41010 |
US $10.88 |
||
|
9011608037
|
9011608037
90116-08037 Bolt, Stud (For Automatic Transmission Oil Pan Setting) |
90116-08037 |
US $2.62 |
||
|
9011906042
|
9011906042
90119-06042
New Genuine Part
|
90119-06042 |
— | ||
| replacement | |||||
|
9011906042
|
9011906042
90119-06341 BOLT |
90119-06341 |
US $1.92 |
||
|
9011906142
|
9011906142
90119-06142 Bolt A/C |
90119-06142 |
US $1.92 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9033911001
|
9033911001
90339-11001
New Genuine Part
|
90339-11001 |
— | ||
|
9046726002
|
9046726002
90467-26002
Clip(For Ventilation Hose)
|
90467-26002 |
— | ||
| replacement | |||||
|
9046726002
|
9046726002
96134-52600 Clip Or Clamp(For Ventilation Hose) |
96134-52600 |
from US $3.14 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9461210601
|
9461210601
94612-10601 New Genuine Part |
94612-10601 |
US $0.87 |
||
