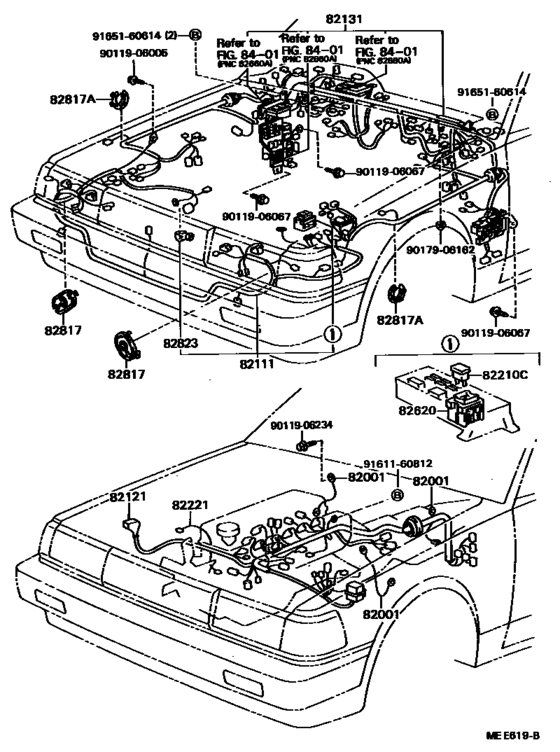

Wiring & Clamp ([08.1984 - 10.1985] (8408-8510)MX71) Diagram Toyota CHASER
- Year
- 1984 - 1985
- Sales region
- Japan
- Frame
- MX71
- grade
- AVT
- body
- HT
- ENGINE
- MTEU
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 10.1985
- Gear Shift Type
- 4FC
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07119 Cable, Bond, No.1[08.1984 - 08.1986] GX71,MX71,SX70,YX70 CLUTCH-MEMBER |
90980-07119 |
US $9.03 |
||
|
82001
|
82001
90980-07200 Cable, Bond, No.1[08.1984 - 05.1988] GX71,MX71,SX70,YX7#..CBR,LPG,TBO,TWC ENGINE-COWL |
90980-07200 |
US $7.72 |
||
|
82001
|
82001
90980-07252 Cable, Bond, No.1[08.1984 - 08.1986] GX71,MX71,SX70,YX70 MISSION-MEMBER |
90980-07252 |
US $9.03 |
||
|
82111
|
82111
82111-22460
Wire, Engine Room Main
[08.1984 - 10.1985] MX71 |
82111-22460 |
— | ||
|
82121
|
82121
82121-22270
Wire, Engine
[08.1984 - 10.1985] MX71 |
82121-22270 |
— | ||
|
82131
|
82131
82131-22530
Wire, Cowl
[08.1984 - 09.1985] GX71,MX71..TBO,TWC W/*DS |
82131-22530 |
— | ||
|
82131
|
82131
82131-22531
Wire, Cowl
[09.1985 - 08.1986] GX71,MX71..TBO,TWC W/*DS |
82131-22531 |
— | ||
|
82131
|
82131
82131-22700
Wire, Cowl
[08.1984 - 09.1985] GX71,MX71..TBO,TWC |
82131-22700 |
— | ||
|
82131
|
82131
82131-22701
Wire, Cowl
[09.1985 - 08.1986] GX71,MX71..TBO,TWC W/*AS |
82131-22701 |
— | ||
|
82131
|
82131
82131-22740
Wire, Cowl
[08.1984 - 09.1985] GX71,MX71..TBO,TWC W/*AS,W/*AD,*HC OR *SMD |
82131-22740 |
— | ||
|
82131
|
82131
82131-22741
Wire, Cowl
[09.1985 - 08.1986] GX71,MX71..TBO,TWC W/*AS,W/*AD,*HC OR *SMD |
82131-22741 |
— | ||
|
82210C
|
82210C
90982-08188 Fusible Link[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# ３０Ａ，メス端子,30A,AM2 |
90982-08188 |
from US $4.70 |
||
|
82210C
|
82210C
90982-08189 Fusible Link[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# ４０Ａ，メス端子,40A |
90982-08189 |
US $7.04 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[08.1984 - 08.1986] GX71,LX70,MX71,SX70,YX70 ８０Ａ，オス端子,80A |
90982-08203 |
from US $7.36 |
||
|
82221
|
82221
82221-30030 Wire, Oil Pressure Switch[08.1984 - 08.1988] LX70,MX71 |
82221-30030 |
US $13.40 |
||
|
82620
|
82620
82602-22150 Block Assy, Fusible Link[08.1984 - 08.1986] GX71,LX70,MX71,SX70,YX70..CBR,DSL,LPG,TBO,TD,TWC,TWT |
82602-22150 |
US $26.94 |
||
|
82817
|
82817
82817-22420 Protector, Wiring Harness, No.1[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# |
82817-22420 |
US $2.77 |
||
|
82817A
|
82817A
82817-32010
Protector, Wiring Harness, No.1
[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# |
82817-32010 |
— | ||
|
82823
|
82823
82823-32020 Cap, Terminal, No.1[08.1984 - 08.1988] LX70,MX71 ALTERNATOR(B)TERMINAL |
82823-32020 |
US $4.66 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.76 |
||
|
9011906234
|
9011906234
90119-06234 New Genuine Part |
90119-06234 |
US $1.75 |
||
|
9017906162
|
9017906162
90179-06162
New Genuine Part
|
90179-06162 |
— | ||
| replacement | |||||
|
9017906162
|
9017906162
90179-06308 NUT |
90179-06308 |
US $1.28 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
