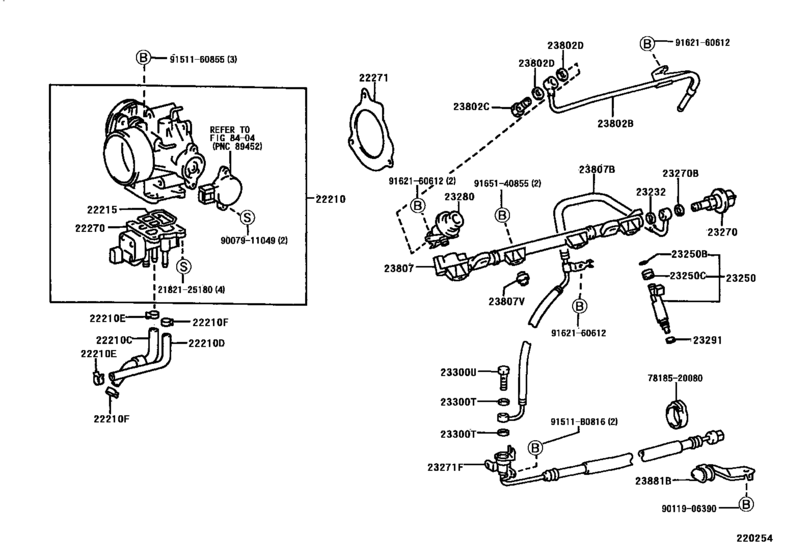

Fuel Injection System ([04.1997 - ] (9704- )4SFE) Diagram Toyota CHASER
- Year
- 1997 - 1998
- Sales region
- Japan
- Frame
- SX100
- grade
- RAF
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 04.1997
- To
- 08.1998
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-7A640 Body Assy, Throttle[04.1997 -] 4SFE..SX100 |
22210-7A640 |
US $1,218.67 |
||
|
22210C
|
22210C
16283-74030 Hose, Water By-Pass, No.1[04.1997 -] 4SFE..SX100 |
16283-74030 |
US $7.72 |
||
|
22210D
|
22210D
16282-74060 Hose, Water By-Pass, No.1[04.1997 -] 4SFE..SX100 |
16282-74060 |
US $11.21 |
||
|
22210E
|
22210E
90467-13050
Clamp Or Clip, Hose(For Water By-Pass Hose)
[04.1997 -] 4SFE..SX100 |
90467-13050 |
— | ||
| replacement | |||||
|
22210E
|
22210E
96135-51300 Clamp, Hose[04.1997 -] 4SFE..SX100 |
96135-51300 |
from US $1.92 |
||
|
22210F
|
22210F
90467-13050
Clamp Or Clip, Hose(For Water By-Pass Hose)
[04.1997 -] 4SFE..SX100 |
90467-13050 |
— | ||
| replacement | |||||
|
22210F
|
22210F
96135-51300 Clamp, Hose[04.1997 -] 4SFE..SX100 |
96135-51300 |
from US $1.92 |
||
|
22215
|
22215
22215-74400 Gasket, Throttle Body Cover[04.1997 -] 4SFE..SX100 |
22215-74400 |
US $7.04 |
||
|
22270
|
22270
22270-74270 Valve Assy, Idle Speed Control(For Thlottle Body)[04.1997 -] 4SFE..SX100 |
22270-74270 |
US $585.31 |
||
|
22271
|
22271
22271-74070 Gasket, Throttle Body[04.1997 -] 4SFE..SX100 |
22271-74070 |
from US $4.72 |
||
|
23232
|
23232
23279-74010 Gasket(For Fuel Pump Hose)[04.1997 -] 4SFE..SX100 |
23279-74010 |
from US $1.19 |
||
|
23250
|
23250
23209-74170 Injector Assy, Fuel[04.1997 -] 4SFE..SX100 |
23209-74170 |
US $263.83 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[04.1997 - 12.1998] 4SFE..SX100 |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[04.1997 -] 4SFE..SX100 |
90480-13005 |
from US $2.50 |
||
|
23270
|
23270
23207-46010
Damper Assy, Fuel Pressure Pulsation
[04.1997 -] 4SFE..SX100 |
23207-46010 |
— | ||
| replacement | |||||
|
23270
|
23270
23207-20011 Damper Assy, Fuel Pressure Pulsation[04.1997 -] 4SFE..SX100 |
23207-20011 |
from US $60.14 |
||
|
23270B
|
23270B
23279-74010 Gasket(For Fuel Pump Hose)[04.1997 -] 4SFE..SX100 |
23279-74010 |
from US $1.19 |
||
|
23271F
|
23271F
23271-74420 Hose, Fuel[04.1997 -] 4SFE..SX100 |
23271-74420 |
US $147.06 |
||
|
23280
|
23280
23280-74180 Regulator Assy, Fuel Pressure[04.1997 -] 4SFE..SX100 |
23280-74180 |
US $129.58 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[04.1997 -] 4SFE..SX100 |
23291-41010 |
from US $2.77 |
||
|
23300T
|
23300T
90430-12026 Gasket[04.1997 -] 4SFE..SX100 |
90430-12026 |
from US $0.88 |
||
|
23300U
|
23300U
90401-12029 Bolt, Union(For Fuel Pipe Or Hose Set)[04.1997 -] 4SFE..SX100 |
90401-12029 |
from US $8.04 |
||
|
23802B
|
23802B
23802-74080 Pipe Sub-Assy, Fuel, No.2[04.1997 -] 4SFE..SX100 |
23802-74080 |
US $51.25 |
||
|
23802C
|
23802C
90401-08004 Bolt Union(For Oil Jet)[04.1997 -] 4SFE..SX100 |
90401-08004 |
US $3.14 |
||
|
23802D
|
23802D
90430-08014 Gasket(For Oil Filter Outlet Pipe)[04.1997 -] 4SFE..SX100 |
90430-08014 |
from US $0.86 |
||
|
23807
|
23807
23814-74110 Pipe Sub-Assy, Fuel Delivery[04.1997 -] 4SFE..SX100 |
23814-74110 |
US $104.83 |
||
| replacement | |||||
|
23807
|
23807
23814-74071 Pipe Sub-Assy, Fuel Delivery[04.1997 -] 4SFE..SX100 |
23814-74071 |
US $131.04 |
||
|
23807B
|
23807B
23271-74600 Hose, Fuel Delivery Pipe[04.1997 -] 4SFE..SX100 |
23271-74600 |
US $161.62 |
||
|
23807V
|
23807V
90561-08053 Spacer, No.1(For Delivery Pipe)[04.1997 -] 4SFE..SX100 |
90561-08053 |
from US $1.40 |
||
|
23881B
|
23881B
23881-74010 Bracket, Fuel Hose[04.1997 -] 4SFE..SX100 |
23881-74010 |
US $8.88 |
||
|
91511B0816
|
91511B0816
91511-B0816 BOLT |
91511-B0816 |
US $0.92 |
||
| replacement | |||||
|
91511B0816
|
91511B0816
90080-10159 New Genuine Part |
90080-10159 |
US $3.21 |
||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $3.52 |
||
|
7818520080
|
7818520080
78185-20080 Clamp, Accelerator Control Cable, No.2 |
78185-20080 |
US $2.27 |
||
|
9007911049
|
9007911049
90079-11049 SCREW WWASHER |
90079-11049 |
US $1.31 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9151160855
|
9151160855
91511-60855 New Genuine Part |
91511-60855 |
US $2.33 |
||
| replacement | |||||
|
9151160855
|
9151160855
91511-B0855 BOLT FLANGE |
91511-B0855 |
US $2.72 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9165140855
|
9165140855
91651-40855 New Genuine Part |
91651-40855 |
US $1.05 |
||
