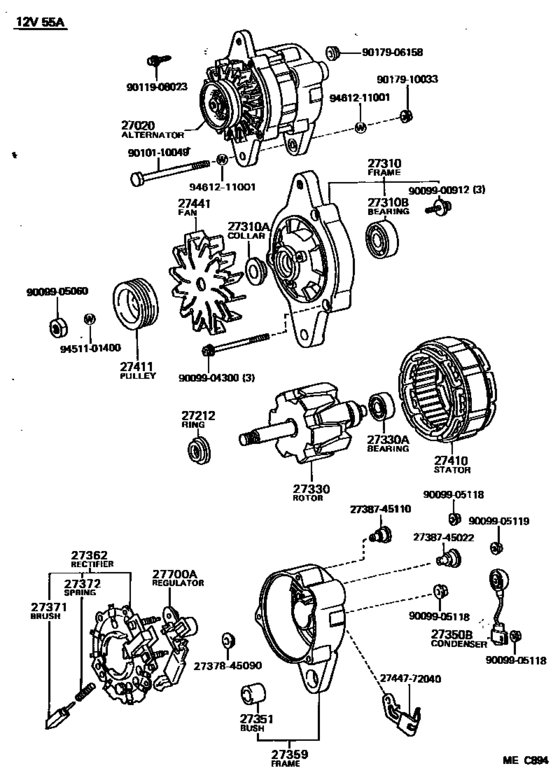

Alternator ([02.1983 - ] (8302- )2YPU) Diagram Toyota CHASER
- Year
- 1983 - 1984
- Sales region
- Japan
- Frame
- SX60
- grade
- STD
- body
- SED
- ENGINE
- 2YPU
- TRANSMISSION
- MTM
- From
- 02.1983
- To
- 07.1984
- Gear Shift Type
- 5F
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-72020 Alternator Assy[02.1983 - 07.1984] 2YPU..SX60 １２Ｖ ５５Ａ,*30,12V 55A |
27060-72020 |
US $1,281.28 |
||
|
27212
|
27212
27412-45070
Ring, Space(For Alternator Rotor)
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 55A |
27412-45070 |
— | ||
|
27310
|
27310
27310-45110
Frame Assy, Drive End, Alternator
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 55A |
27310-45110 |
— | ||
|
27310A
|
27310A
27412-31040
Collar Or Nut(For Alternator Drive End Frame)
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 55A |
27412-31040 |
— | ||
|
27310B
|
27310B
90099-10125 Bearing(For Alternator Drive End Frame)[02.1983 - 07.1984] 2YPU..SX60 *30,12V 55A |
90099-10125 |
US $9.61 |
||
|
27330
|
27330
27330-43040
Rotor Assy, Alternator
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 55A |
27330-43040 |
— | ||
|
27330A
|
27330A
90099-10116
Bearing(For Alternator Rotor)
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 55A |
90099-10116 |
— | ||
|
27350B
|
27350B
90099-52065 Condenser, Alternator[02.1983 - 07.1984] 2YPU..SX60 *30,12V 55A |
90099-52065 |
US $3.45 |
||
| replacement | |||||
|
27350B
|
27350B
90099-52034
Condenser, Alternator
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 55A |
90099-52034 |
— | ||
|
27351
|
27351
27351-38051
Bush(For Alternator Rectifier End Frame)
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 55A |
27351-38051 |
— | ||
|
27359
|
27359
27359-72040
Frame, Alternator Rectifier End
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 55A |
27359-72040 |
— | ||
|
27362
|
27362
27362-72040
Rectifier Assy, W/brush
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 55A |
27362-72040 |
— | ||
|
27371
|
27371
27371-44071
Brush, Alternator
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 55A |
27371-44071 |
— | ||
|
27372
|
27372
90099-17114 Spring, Alternator Brush[02.1983 - 07.1984] 2YPU..SX60 *30,12V 55A |
90099-17114 |
US $1.75 |
||
| replacement | |||||
|
27372
|
27372
27372-31011
Spring, Alternator Brush
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 55A |
27372-31011 |
— | ||
|
27410
|
27410
27410-72040
Stator Assy, Alternator
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 55A |
27410-72040 |
— | ||
|
27411
|
27411
27411-72040
Pulley, Alternator
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 55A |
27411-72040 |
— | ||
|
27441
|
27441
27441-34111
Fan, Alternator
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 55A |
27441-34111 |
— | ||
|
27700A
|
27700A
27700-63030
Regulator Assy, Generator
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 55A |
27700-63030 |
— | ||
|
2737845090
|
2737845090
27378-45090
Insulator, Alternator, No.1
|
27378-45090 |
— | ||
|
2738745022
|
2738745022
27387-45022
Insulator, Terminal
|
27387-45022 |
— | ||
|
2738745110
|
2738745110
27387-45110
Insulator, Terminal
|
27387-45110 |
— | ||
|
2744772040
|
2744772040
27447-72040
Clip, Alternator Cord
|
27447-72040 |
— | ||
|
9009900912
|
9009900912
90099-00912
New Genuine Part
|
90099-00912 |
— | ||
|
9009904300
|
9009904300
90099-04300
New Genuine Part
|
90099-04300 |
— | ||
|
9009905060
|
9009905060
90099-05060
Collar Or Nut(For Alternator Drive End Frame)
|
90099-05060 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9010110049
|
9010110049
90101-10049
Bolt, Hexagon(For Air Pump Bracket Setting)
|
90101-10049 |
— | ||
| replacement | |||||
|
9010110049
|
9010110049
90105-10221 Bolt, Hexagon(For Air Pump Bracket Setting) |
90105-10221 |
from US $3.33 |
||
|
9011908023
|
9011908023
90119-08023 BOLT |
90119-08023 |
US $2.48 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017910033
|
9017910033
90179-10033 Nut (For Front Wiper Arm Setting) |
90179-10033 |
US $1.14 |
||
|
9451101400
|
9451101400
94511-01400
WASHER
|
94511-01400 |
— | ||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
