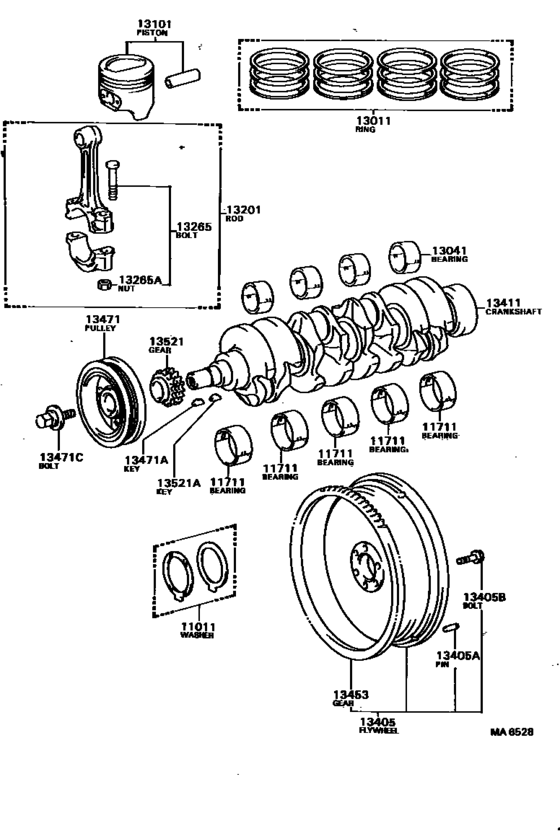

Crankshaft & Piston ([02.1983 - ] (8302- )2YPU) Diagram Toyota CHASER
- Year
- 1983 - 1984
- Sales region
- Japan
- Frame
- SX60
- grade
- STD
- body
- SED
- ENGINE
- 2YPU
- TRANSMISSION
- MTM
- From
- 02.1983
- To
- 07.1984
- Gear Shift Type
- 5F
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-25010 Washer Set, Crankshaft Thrust[09.1980 - 07.1984] 1SU,2YPU..SX60 ＳＴＤ,STD; 13TU..TX60 ＳＴＤ,STD |
11011-25010 |
from US $20.67 |
||
|
11711
|
11711
11701-71020-01 Bearing, Crankshaft[02.1983 - 07.1984] 2YPU..SX60 *30,MARK"1",MARK 1 |
11701-71020-01 |
US $45.43 |
||
|
11711
|
11711
11701-71020-02 Bearing, Crankshaft[02.1983 - 07.1984] 2YPU..SX60 *30,MARK"2",MARK 2 |
11701-71020-02 |
US $45.43 |
||
|
11711
|
11711
11701-71020-03 Bearing, Crankshaft[02.1983 - 07.1984] 2YPU..SX60 *30,MARK"3",MARK 3 |
11701-71020-03 |
US $45.43 |
||
|
13011
|
13011
13011-72020 Ring Set, Piston[02.1983 - 07.1984] 2YPU..SX60 *30,STD |
13011-72020 |
US $215.49 |
||
| replacement | |||||
|
13011
|
13011
13011-71060 Ring Set, Piston[02.1983 - 07.1984] 2YPU..SX60 *30,STD |
13011-71060 |
US $216.94 |
||
|
13011
|
13011
13013-72020 Ring Set, Piston[02.1983 - 07.1984] 2YPU..SX60 *30,0/S 0.50 |
13013-72020 |
US $218.40 |
||
| replacement | |||||
|
13011
|
13011
13013-71060 Ring Set, Piston[02.1983 - 07.1984] 2YPU..SX60 *30,0/S 0.50 |
13013-71060 |
US $216.94 |
||
|
13011
|
13011
13014-72020 Ring Set, Piston[02.1983 - 07.1984] 2YPU..SX60 *30,O/S 0.75 |
13014-72020 |
US $219.86 |
||
| replacement | |||||
|
13011
|
13011
13014-71060 Ring Set, Piston[02.1983 - 07.1984] 2YPU..SX60 *30,O/S 0.75 |
13014-71060 |
US $216.94 |
||
|
13011
|
13011
13015-72020 Ring Set, Piston[02.1983 - 07.1984] 2YPU..SX60 *30,O/S 1.00 |
13015-72020 |
US $219.86 |
||
| replacement | |||||
|
13011
|
13011
13015-71060 Case Sub-Assy, Timing Gear[02.1983 - 07.1984] 2YPU..SX60 *30,O/S 1.00 |
13015-71060 |
US $216.94 |
||
|
13041
|
13041
13041-71021-06
Bearing, Connecting Rod
[02.1983 - 07.1984] 2YPU..SX60 *30,MARK"6",MARK 6 |
13041-71021-06 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-06 Bearing, Connecting Rod[02.1983 - 07.1984] 2YPU..SX60 *30,MARK"6",MARK 6 |
13041-73010-06 |
from US $18.54 |
||
|
13041
|
13041
13041-71021-07
Bearing, Connecting Rod
[02.1983 - 07.1984] 2YPU..SX60 *30,MARK"7",MARK 7 |
13041-71021-07 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-07 Bearing, Connecting Rod[02.1983 - 07.1984] 2YPU..SX60 *30,MARK"7",MARK 7 |
13041-73010-07 |
US $34.42 |
||
|
13041
|
13041
13041-71021-08 Bearing, Connecting Rod[02.1983 - 07.1984] 2YPU..SX60 *30,MARK"8",MARK 8 |
13041-71021-08 |
US $28.83 |
||
| replacement | |||||
|
13041
|
13041
13041-73010-08 Bearing, Connecting Rod[02.1983 - 07.1984] 2YPU..SX60 *30,MARK"8",MARK 8 |
13041-73010-08 |
US $35.38 |
||
|
13101
|
13101
13101-72010 Piston Sub-Assy, W/pin[02.1983 - 07.1984] 2YPU..SX60 ＳＴＤ,*30,STD |
13101-72010 |
US $90.27 |
||
| replacement | |||||
|
13101
|
13101
13101-72010-02 Piston Sub-Assy, W/pin[02.1983 - 07.1984] 2YPU..SX60 ＳＴＤ,*30,STD |
13101-72010-02 |
US $88.82 |
||
|
13101
|
13101
13103-72010 Piston Sub-Assy, W/pin[02.1983 - 07.1984] 2YPU..SX60 Ｏ／Ｓ ０．５０,*30,O/S 0.50 |
13103-72010 |
US $94.64 |
||
|
13101
|
13101
13104-72010 Piston Sub-Assy, W/pin[02.1983 - 07.1984] 2YPU..SX60 Ｏ／Ｓ ０．７５,*30,O/S 0.75 |
13104-72010 |
US $94.64 |
||
|
13101
|
13101
13105-72010 Piston Sub-Assy, W/pin[02.1983 - 07.1984] 2YPU..SX60 Ｏ／Ｓ １．００,*30,O/S 1.00 |
13105-72010 |
US $94.64 |
||
|
13201
|
13201
13201-71011
Rod Sub-Assy, Connecting
[02.1983 - 07.1984] 2YPU..SX60 *30 |
13201-71011 |
— | ||
|
13265
|
13265
13265-29025 Bolt, Connecting Rod[02.1983 - 07.1984] 2YPU..SX60 *30 |
13265-29025 |
from US $9.67 |
||
|
13265A
|
13265A
90170-09195 Nut, Hexagon(For Connecting Rod Bolt)[02.1983 - 07.1984] 2YPU..SX60 *30 |
90170-09195 |
US $3.20 |
||
|
13405
|
13405
13405-79065 Flywheel Sub-Assy[02.1983 - 07.1984] 2YPU..SX60 *30 |
13405-79065 |
US $222.77 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[09.1980 - 07.1984] L..LX60..5F 長さ＝２３，外径＝８; 13TU..TX60..4F 長さ＝２３，外径＝８; 21RU,18RGEU..RX6#..MTM 長さ＝２３，外径＝８; 1SU,2YPU..SX60..5F 長さ＝２３，外径＝８; 1G#..GX6#..MTM 長さ＝２３，外径＝８ |
90250-08054 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[09.1980 - 07.1984] 2YPU..SX60 *10-1.25PX26-18; 13TU..TX60..4F *10-1.25PX26-18; 1G#..GX6#..MTM *10-1.25PX26-18 |
90105-10042 |
US $1.76 |
||
|
13411
|
13411
13411-72010
Crankshaft
[02.1983 - 07.1984] 2YPU..SX60 *30 |
13411-72010 |
— | ||
| replacement | |||||
|
13411
|
13411
13411-72900 Crankshaft[02.1983 - 07.1984] 2YPU..SX60 *30 |
13411-72900 |
from US $839.79 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[09.1980 - 07.1984] 13TU..TX60..4F; 21RU,18RGEU..RX6#..MTM; 1SU,2YPU..SX60..5F; 1G#..GX6#..MTM |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13408-71010 Pulley, Crankshaft[02.1983 - 07.1984] 2YPU..SX60 *30 |
13408-71010 |
US $206.17 |
||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[02.1983 - 07.1984] 2YPU..SX60 *30 |
90280-05010 |
from US $1.83 |
||
|
13471C
|
13471C
90105-14013 Bolt(For Crankshaft Pulley Set)[02.1983 - 07.1984] 2YPU..SX60 *30 |
90105-14013 |
US $17.04 |
||
| replacement | |||||
|
13471C
|
13471C
90105-14069 Bolt(For Crankshaft Pulley Set)[02.1983 - 07.1984] 2YPU..SX60 *30 |
90105-14069 |
US $14 |
||
|
13521
|
13521
13521-33010 Gear Or Sprocket, Crankshaft Timing[02.1983 - 07.1984] 2YPU..SX60 *30 |
13521-33010 |
US $45.95 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[09.1980 - 07.1984] MTEU..MX61; 21RU,18RGEU..RX6#; 2YPU..SX60; 13TU..TX60 |
90280-05010 |
from US $1.83 |
||
