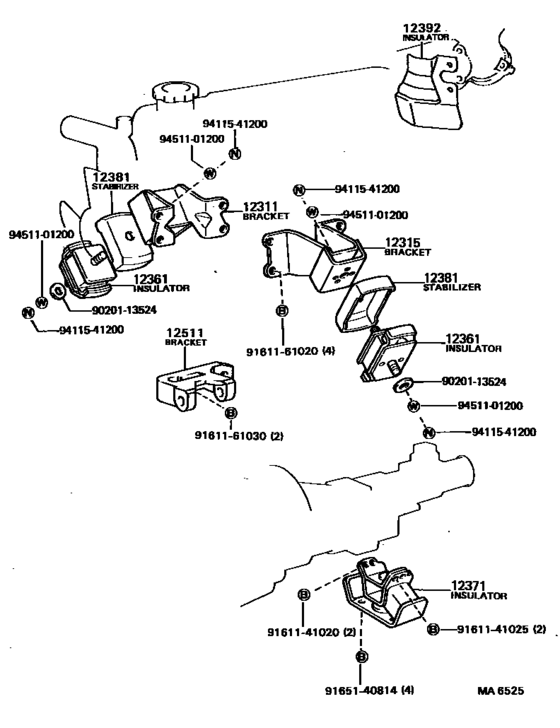

Mounting ([02.1983 - ] (8302- )2YPU) Diagram Toyota CHASER
- Year
- 1983 - 1984
- Sales region
- Japan
- Frame
- SX60
- grade
- STD
- body
- SED
- ENGINE
- 2YPU
- TRANSMISSION
- MTM
- From
- 02.1983
- To
- 07.1984
- Gear Shift Type
- 5F
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-72010
Bracket, Engine Mounting, Front No.1 Rh
[02.1983 - 07.1984] 2YPU..SX60 *30 |
12311-72010 |
— | ||
|
12315
|
12315
12315-72010
Bracket, Engine Mounting, Front No.1 Lh
[02.1983 - 07.1984] 2YPU..SX60 *30 |
12315-72010 |
— | ||
|
12361
|
12361
12361-18010
Insulator, Engine Mounting, Front
[02.1983 - 07.1984] 2YPU..SX60 *30,MARUYASU.TOKAIGOMU |
12361-18010 |
— | ||
|
12361
|
12361
12361-18020 Insulator, Engine Mounting, Front[02.1983 - 07.1984] 2YPU..SX60 *30,TOYOGOMU |
12361-18020 |
US $71.05 |
||
|
12371
|
12371
12371-34030 Insulator, Engine Mounting, Rear No.1[09.1980 - 07.1984] 1SU,2YPU..SX60; 13TU..TX60; L..LX60..5F; 21RU,18RGEU..RX6#..MTM |
12371-34030 |
from US $61.59 |
||
|
12381
|
12381
12381-18010 Stabilizer, Engine Mounting[02.1983 - 07.1984] 2YPU..SX60 *30,MARUYASU.TOKAIGOMU |
12381-18010 |
US $21.26 |
||
|
12381
|
12381
12381-18020
Stabilizer, Engine Mounting
[02.1983 - 07.1984] 2YPU..SX60 *30,TOYOGOMU |
12381-18020 |
— | ||
|
12392
|
12392
12391-72010 Insulator, Engine Mounting Heat, Front Lh[02.1983 - 07.1984] 2YPU..SX60 *30 |
12391-72010 |
US $27.43 |
||
|
12511
|
12511
12511-71010 Bracket, Alternator, No.1[02.1983 - 07.1984] 2YPU..SX60 *30 |
12511-71010 |
US $45.86 |
||
|
9020113524
|
9020113524
90201-13524 New Genuine Part |
90201-13524 |
US $3.06 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161141025
|
9161141025
91611-41025
Bolt(for Transaxle & Engine Setting)
|
91611-41025 |
— | ||
| replacement | |||||
|
9161141025
|
9161141025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.72 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.42 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $1.03 |
||
|
9451101200
|
9451101200
94511-01200 WASHER |
94511-01200 |
from US $0.60 |
||
