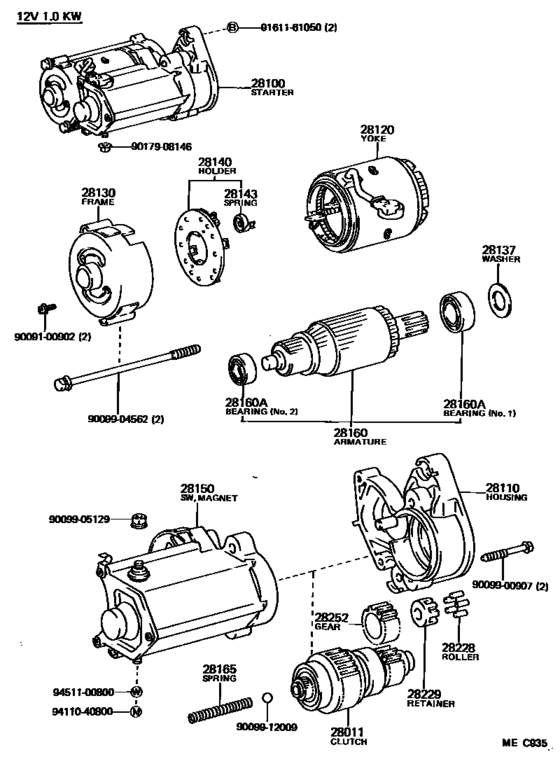

Starter ([02.1983 - ] (8302- )2YPU) Diagram Toyota CHASER
- Year
- 1983 - 1984
- Sales region
- Japan
- Frame
- SX60
- grade
- STD
- body
- SED
- ENGINE
- 2YPU
- TRANSMISSION
- MTM
- From
- 02.1983
- To
- 07.1984
- Gear Shift Type
- 5F
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 1.0KW |
28011-26042 |
— | ||
|
28100
|
28100
28100-72010 Starter Assy[02.1983 - 07.1984] 2YPU..SX60 １２Ｖ １．０ＫＷ,*30 12V 1.0KW |
28100-72010 |
US $1,327.87 |
||
|
28110
|
28110
28110-72010 Housing Assy, Starter Drive[02.1983 - 07.1984] 2YPU..SX60 *30,12V 1.0KW |
28110-72010 |
US $61.44 |
||
|
28120
|
28120
28120-26070
Yoke Assy, Starter
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 1.0KW |
28120-26070 |
— | ||
| replacement | |||||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 1.0KW |
28120-26071 |
— | ||
|
28130
|
28130
28130-72010 Frame Assy, Starter Commutator End[02.1983 - 07.1984] 2YPU..SX60 *30 12V 1.0KW |
28130-72010 |
US $22.28 |
||
|
28137
|
28137
90099-02323
Washer, Felt, Starter
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 1.0KW |
90099-02323 |
— | ||
|
28140
|
28140
28140-26070 Holder Assy, Starter Brush[02.1983 - 07.1984] 2YPU..SX60 *30,12V 1.0KW |
28140-26070 |
US $16.77 |
||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 1.0KW |
90099-17112 |
— | ||
|
28150
|
28150
28150-34080 Switch Assy, Magnet Starter[02.1983 - 07.1984] 2YPU..SX60 *30,12V 1.0KW |
28150-34080 |
US $372.74 |
||
|
28160
|
28160
28160-26070 Armature Assy, Starter[02.1983 - 07.1984] 2YPU..SX60 *30,12V 1.0KW |
28160-26070 |
US $324.69 |
||
| replacement | |||||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 1.0KW |
28160-26071 |
— | ||
|
28160A
|
28160A
28253-45020
Bearing, Starter Armature
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 1.0KW,NO.2 |
28253-45020 |
— | ||
|
28160A
|
28160A
90099-10113
Bearing, Starter Armature
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 1.0KW,NO.1 |
90099-10113 |
— | ||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 1.0KW |
28165-26040 |
— | ||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 1.0KW |
28228-26040 |
— | ||
|
28229
|
28229
28229-26040
Retainer, Starter Idle Gear
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 1.0KW |
28229-26040 |
— | ||
|
28252
|
28252
28254-45020
Pinion, Starter Drive
[02.1983 - 07.1984] 2YPU..SX60 *30,12V 1.0KW |
28254-45020 |
— | ||
|
9009100902
|
9009100902
90091-00902
New Genuine Part
|
90091-00902 |
— | ||
|
9009900907
|
9009900907
90099-00907
New Genuine Part
|
90099-00907 |
— | ||
|
9009904562
|
9009904562
90099-04562
BOLT
|
90099-04562 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9161161050
|
9161161050
91611-61050
Bolt(For Transaxle & Engine Setting)
|
91611-61050 |
— | ||
| replacement | |||||
|
9161161050
|
9161161050
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.33 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.90 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
