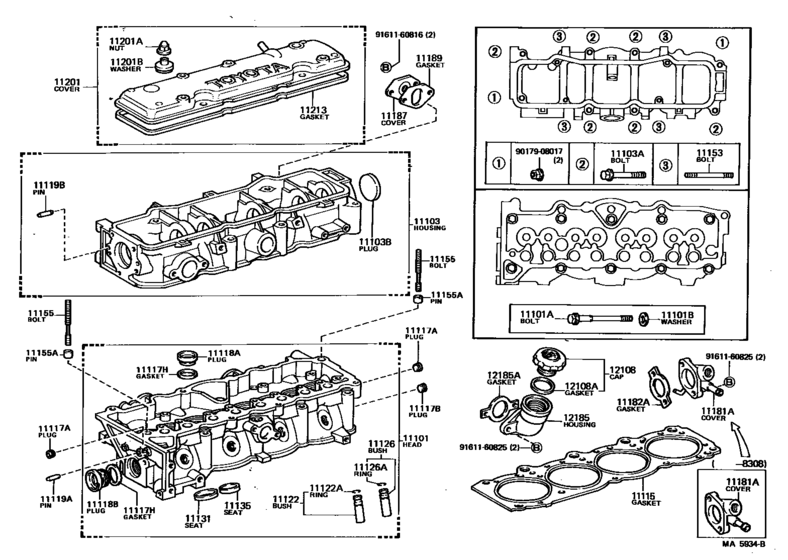

Cylinder Head ([09.1982 - ] (8209- )1SU) Diagram Toyota CHASER
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- SX60
- grade
- XG
- body
- SED
- ENGINE
- 1SU
- TRANSMISSION
- ATM
- From
- 08.1982
- To
- 07.1984
- Gear Shift Type
- 4FC
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-69025
Head Sub-Assy, Cylinder
[08.1982 - 09.1982] 1SU..SX60 |
11101-69025 |
— | ||
| replacements | |||||
|
11101
|
11101
11101-69026 Head Sub-Assy, Cylinder[08.1982 - 09.1982] 1SU..SX60 |
11101-69026 |
US $1,239.06 |
||
|
11101
|
11101
13741-63010 Retainer, Valve Spring[08.1982 - 09.1982] 1SU..SX60 |
13741-63010 |
US $8.80 |
||
|
11101
|
11101
90201-21002 Washer, Plate(For Valve Spring Seat)[08.1982 - 09.1982] 1SU..SX60 |
90201-21002 |
US $2.56 |
||
|
11101
|
11101
11101-69026 Head Sub-Assy, Cylinder[09.1982 - 01.1984] 1SU..SX60 |
11101-69026 |
US $1,239.06 |
||
|
11101
|
11101
11101-69027 Head Sub-Assy, Cylinder[01.1984 - 07.1984] 1SU..SX60 |
11101-69027 |
US $1,128.40 |
||
|
11101A
|
11101A
90109-10048 Bolt(For Cylinder Head Set)[08.1982 - 07.1984] 1SU..SX60 |
90109-10048 |
US $3.32 |
||
|
11101B
|
11101B
90201-10344 Washer, Plate(For Cylinder Head Set)[11.1983 - 07.1984] 1SU..SX60 |
90201-10344 |
from US $1.03 |
||
|
11103
|
11103
11103-69016 Housing Sub-Assy, Camshaft[08.1982 - 01.1984] 1SU..SX60 |
11103-69016 |
US $538.72 |
||
| replacement | |||||
|
11103
|
11103
11103-63901 Housing Sub-Assy, Camshaft[08.1982 - 01.1984] 1SU..SX60 |
11103-63901 |
US $483.39 |
||
|
11103
|
11103
11103-69025 Housing Sub-Assy, Camshaft[01.1984 - 07.1984] 1SU..SX60 |
11103-69025 |
US $486.30 |
||
| replacement | |||||
|
11103
|
11103
11103-63900 Housing Sub-Assy, Camshaft[01.1984 - 07.1984] 1SU..SX60 |
11103-63900 |
US $490.67 |
||
|
11103A
|
11103A
91511-40865 Bolt(For Camshaft Housing Set)[08.1982 - 07.1984] 1SU..SX60 |
91511-40865 |
US $2.18 |
||
| replacement | |||||
|
11103A
|
11103A
91511-60865 Bolt(For Camshaft Housing Set)[08.1982 - 07.1984] 1SU..SX60 |
91511-60865 |
US $2.80 |
||
|
11103B
|
11103B
96411-45000 Plug, Tight, No.1(For Cam Housing)[08.1982 - 07.1984] 1SU..SX60 OD=50 |
96411-45000 |
from US $4.13 |
||
|
11115
|
11115
11115-63010 Gasket, Cylinder Head[08.1982 - 07.1984] 1SU..SX60 |
11115-63010 |
US $84.45 |
||
| replacement | |||||
|
11115
|
11115
11115-63011
Gasket, Cylinder Head
[08.1982 - 07.1984] 1SU..SX60 |
11115-63011 |
— | ||
|
11117A
|
11117A
90344-52013
Plug, W/head Taper Screw, No.1
[08.1982 - 07.1984] 1SU..SX60 |
90344-52013 |
— | ||
| replacement | |||||
|
11117A
|
11117A
90344-52003 Plug, W/head Taper Screw, No.1[08.1982 - 07.1984] 1SU..SX60 |
90344-52003 |
US $1.40 |
||
|
11117B
|
11117B
90344-53011 Plug, W/head Taper Screw, No.1[08.1982 - 07.1984] 1SU..SX60 |
90344-53011 |
from US $3.84 |
||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[09.1980 - 07.1984] 1GEU..GX6# PNC 11118A; 1SU..SX60 PNC 11118A |
90430-20004 |
from US $1.01 |
||
|
11117H
|
11117H
90430-24246 Gasket(For Cylinder Head Screw Plug)[08.1982 - 07.1984] 1SU..SX60 PNC 11118B |
90430-24246 |
from US $1.09 |
||
|
11118A
|
11118A
90341-20002 Plug, W/head Taper Screw, No.1[09.1980 - 07.1984] 1GEU..GX6#; 1SU..SX60 |
90341-20002 |
from US $2.88 |
||
|
11118B
|
11118B
90341-24090 Plug, W/head Taper Screw, No.1[08.1982 - 07.1984] 1SU..SX60 |
90341-24090 |
US $4.89 |
||
|
11119A
|
11119A
90250-06003 Pin, Straight[08.1982 - 07.1984] 1SU..SX60 長さ＝１４，外径＝６ |
90250-06003 |
from US $1.15 |
||
|
11119B
|
11119B
90250-06003 Pin, Straight[08.1982 - 07.1984] 1SU..SX60 長さ＝１４，外径＝６ |
90250-06003 |
from US $1.15 |
||
|
11122
|
11122
11122-63020 Bush, Intake Valve Guide[08.1982 - 07.1984] 1SU..SX60 ＳＴＤ,STD |
11122-63020 |
US $11.50 |
||
|
11122
|
11122
11123-63020 Bush, Intake Valve Guide[08.1982 - 07.1984] 1SU..SX60 Ｏ／Ｓ ０．０５,O1S 0.05 |
11123-63020 |
US $11.50 |
||
|
11122A
|
11122A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[09.1980 - 07.1984] MTEU..MX61; 21RU..RX60; 1SU,2YPU..SX60; 13TU..TX60 |
90520-12049 |
from US $2.72 |
||
|
11126
|
11126
11126-63020 Bush, Exhaust Valve Guide[08.1982 - 07.1984] 1SU..SX60 ＳＴＤ,STD |
11126-63020 |
US $11.50 |
||
|
11126
|
11126
11127-63020 Bush, Exhaust Valve Guide[08.1982 - 07.1984] 1SU..SX60 Ｏ／Ｓ ０．０５,O1S 0.05 |
11127-63020 |
US $11.50 |
||
|
11126A
|
11126A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[09.1980 - 07.1984] MTEU..MX61; 21RU..RX60; 1SU,2YPU..SX60; 13TU..TX60 |
90520-12049 |
from US $2.72 |
||
|
11131
|
11131
11131-63010 Seat, Intake Valve[08.1982 - 07.1984] 1SU..SX60 ＳＴＤ,STD |
11131-63010 |
US $18.20 |
||
|
11131
|
11131
11132-63010 Seat, Intake Valve[08.1982 - 07.1984] 1SU..SX60 Ｏ／Ｓ ０．０３,O1S 0.03 |
11132-63010 |
US $18.20 |
||
|
11135
|
11135
11135-63010 Seat, Exhaust Valve[08.1982 - 07.1984] 1SU..SX60 ＳＴＤ,STD |
11135-63010 |
US $31.60 |
||
|
11135
|
11135
11136-63010 Seat, Exhaust Valve[08.1982 - 07.1984] 1SU..SX60 Ｏ／Ｓ ０．０３,O1S 0.03 |
11136-63010 |
US $34.36 |
||
|
11153
|
11153
92122-40650 Bolt, Stud(For Camshaft Housing To Cylinder Head Cover)[08.1982 - 07.1984] 1SU..SX60 |
92122-40650 |
US $2.33 |
||
|
11155
|
11155
90116-08150 Bolt, Stud(For Head To Camshaft Housing)[08.1982 - 07.1984] 1SU..SX60 L=105,S=12&20 |
90116-08150 |
US $3.20 |
||
|
11155A
|
11155A
90253-13017 Pin, Ring W/head[09.1980 - 07.1984] 1GEU..GX6#; 1SU..SX60 |
90253-13017 |
from US $1.40 |
||
|
11181A
|
11181A
11108-63030 Cover, Cylinder Head, Rear[08.1983 - 07.1984] 1SU..SX60 |
11108-63030 |
US $48.78 |
||
|
11181A
|
11181A
11181-63010 Cover, Cylinder Head, Rear[08.1982 - 08.1983] 1SU..SX60 |
11181-63010 |
US $72.22 |
||
|
11182A
|
11182A
16341-63010
Gasket, Cylinder Head Rear Cover
[08.1982 - 07.1984] 1SU..SX60 |
16341-63010 |
— | ||
| replacement | |||||
|
11182A
|
11182A
16341-74020 Gasket, Water Outlet[08.1982 - 07.1984] 1SU..SX60 |
16341-74020 |
from US $3.37 |
||
|
11187
|
11187
11187-63010 Cover, Camshaft Housing, Rear[08.1982 - 07.1984] 1SU..SX60 |
11187-63010 |
US $22.13 |
||
|
11189
|
11189
11117-63010 Gasket, Camshaft Housing Rear Cover[08.1982 - 07.1984] 1SU..SX60 |
11117-63010 |
US $6.84 |
||
| replacement | |||||
|
11189
|
11189
11117-63011 Gasket, Camshaft Housing Rear Cover[08.1982 - 07.1984] 1SU..SX60 |
11117-63011 |
US $6.84 |
||
|
11201
|
11201
11201-69065 Cover Sub-Assy, Cylinder Head[08.1982 - 07.1984] 1SU..SX60 |
11201-69065 |
US $208.21 |
||
|
11201A
|
11201A
90176-06008 Nut, Cap(For Cylinder Head Cover)[09.1980 - 07.1984] 1SU..SX60 |
90176-06008 |
US $5.60 |
||
|
11201B
|
11201B
90210-08020 Washer, Seal(For Cylinder Head Cover)[09.1980 - 07.1984] 1SU..SX60 |
90210-08020 |
from US $2.38 |
||
|
11213
|
11213
11213-63010
Gasket, Cylinder Head Cover
[08.1982 - 07.1984] 1SU..SX60 |
11213-63010 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-63011 Gasket, Cylinder Head Cover[08.1982 - 07.1984] 1SU..SX60 |
11213-63011 |
US $16.25 |
||
|
12108
|
12108
12180-13010 Cap Sub-Assy, Oil Filler[09.1980 - 06.1983] 1GEU..GX6#; L,2LTE..LX6#; MTEU..MX61; 21RU..RX60; 1SU..SX60; 13TU..TX60 |
12180-13010 |
from US $16.11 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[09.1980 - 07.1984] 1G#..GX6#; L,2LTE..LX6#; MTEU..MX61; 21RU..RX60; 1SU..SX60; 13TU..TX60 |
90430-37140 |
from US $1.25 |
||
|
12185
|
12185
12185-63010 Housing, Oil Filler Cap[08.1982 - 07.1984] 1SU..SX60 |
12185-63010 |
US $61.01 |
||
|
12185A
|
12185A
16341-63010
Gasket, Cylinder Head Rear Cover
[08.1982 - 07.1984] 1SU..SX60 |
16341-63010 |
— | ||
| replacement | |||||
|
12185A
|
12185A
16341-74020 Gasket, Water Outlet[08.1982 - 07.1984] 1SU..SX60 |
16341-74020 |
from US $3.37 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.80 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
