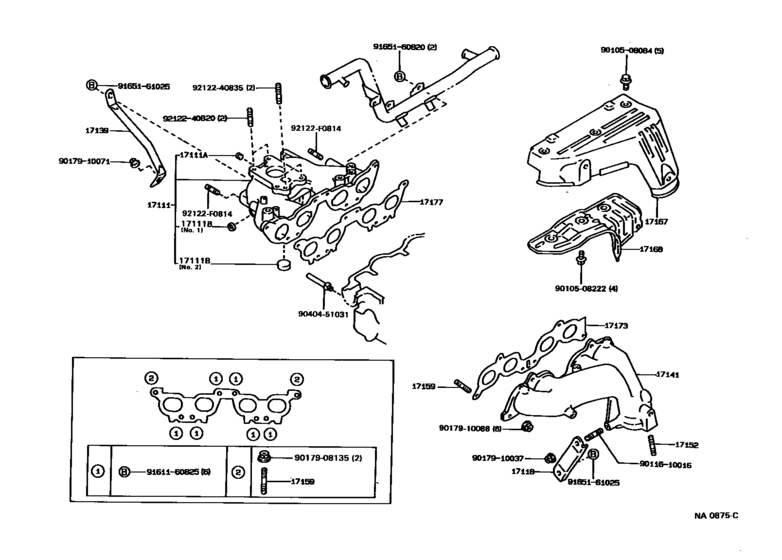

Manifold ([08.1988 - 08.1990] (8808-9008)4SFI) Diagram Toyota CHASER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- SX80
- grade
- XG
- body
- HT
- ENGINE
- 4SFI
- TRANSMISSION
- ATM
- From
- 08.1988
- To
- 08.1990
- Gear Shift Type
- 4FC
- Fuel Induction
- CI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-74130 Manifold, Intake[08.1988 - 08.1990] 4SFI..SX80 |
17101-74130 |
US $382.93 |
||
|
17111A
|
17111A
90344-52003 Plug, W/head Taper Screw, No.1[08.1988 - 08.1990] 4SFI..SX80 |
90344-52003 |
US $1.40 |
||
|
17111B
|
17111B
96411-41800 Plug, Tight, No.1[08.1988 - 08.1990] 4SFI..SX80 ＮＯ．１ |
96411-41800 |
from US $1.72 |
||
|
17111B
|
17111B
96411-43000 Plug, Tight, No.1[08.1988 - 08.1990] 4SFI..SX80 ＮＯ．２ |
96411-43000 |
from US $3.74 |
||
|
17118
|
17118
17118-74120 Stay, Manifold[08.1988 - 11.1991] 4SFI..SX80; 4SFE..SX80 ＮＯ．１ |
17118-74120 |
US $24.46 |
||
|
17139
|
17139
17139-74040 Stay, Manifold, No.2[08.1988 - 08.1990] 4SFI..SX80 |
17139-74040 |
US $33.49 |
||
|
17141
|
17141
17141-74100 Manifold, Exhaust[08.1988 - 09.1989] 4SFI..SX80 |
17141-74100 |
US $340.70 |
||
| replacements | |||||
|
17141
|
17141
17141-74101 Manifold, Exhaust[08.1988 - 09.1989] 4SFI..SX80 |
17141-74101 |
US $340.70 |
||
|
17141
|
17141
90105-08222 BOLT WASHER BASED[08.1988 - 09.1989] 4SFI..SX80 |
90105-08222 |
US $2.56 |
||
|
17141
|
17141
17141-74101 Manifold, Exhaust[09.1989 - 10.1992] 4SF#..SX80 |
17141-74101 |
US $340.70 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[08.1988 - 03.1989] 4SFI..SX80; 3YP..YX80; 1GG#..GX81 |
90116-10058 |
from US $2.44 |
||
|
17159
|
17159
90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[08.1988 - 10.1992] 4SF#..SX80 EXHAUST SIDE |
90116-10063 |
US $3.68 |
||
|
17159
|
17159
92122-60822 Stud[08.1988 - 10.1992] 4SF#..SX80 INTAKE SIDE |
92122-60822 |
US $1.31 |
||
|
17167
|
17167
17167-74120 Insulator, Exhaust Manifold Heat, No.1[08.1988 - 03.1992] 4SF#..SX80 |
17167-74120 |
US $107.74 |
||
| replacement | |||||
|
17167
|
17167
17167-74121 Insulator, Exhaust Manifold Heat, No.1[08.1988 - 03.1992] 4SF#..SX80 |
17167-74121 |
US $107.74 |
||
|
17168
|
17168
17168-74050 Insulator, Exhaust Manifold Heat, No.2[08.1988 - 10.1992] 4SF#..SX80 |
17168-74050 |
US $42.37 |
||
|
17173
|
17173
17173-74040 Gasket, Exhaust Manifold To Head[07.1989 - 10.1992] 4SF#..SX80 |
17173-74040 |
from US $24.16 |
||
|
17173
|
17173
17173-88360 Gasket, Exhaust Manifold To Head[08.1988 - 07.1989] 4SFI..SX80 |
17173-88360 |
US $43.83 |
||
| replacement | |||||
|
17173
|
17173
17173-88362 Gasket, Exhaust Manifold To Head[08.1988 - 07.1989] 4SFI..SX80 |
17173-88362 |
US $21.11 |
||
|
17177
|
17177
17177-74040 Gasket, Intake Manifold To Head, No.1[08.1988 - 07.1989] 4SFI..SX80 |
17177-74040 |
US $13.40 |
||
| replacement | |||||
|
17177
|
17177
17177-74070 Gasket, Intake Manifold To Head, No.1[08.1988 - 07.1989] 4SFI..SX80 |
17177-74070 |
from US $9.89 |
||
|
17177
|
17177
17177-74041 Gasket, Intake Manifold To Head, No.1[07.1989 - 06.1990] 4SFI..SX80 |
17177-74041 |
US $13.69 |
||
| replacement | |||||
|
17177
|
17177
17177-74070 Gasket, Intake Manifold To Head, No.1[07.1989 - 06.1990] 4SFI..SX80 |
17177-74070 |
from US $9.89 |
||
|
17177
|
17177
17177-74070 Gasket, Intake Manifold To Head, No.1[06.1990 - 10.1992] 4SF#..SX80 |
17177-74070 |
from US $9.89 |
||
|
92122F0814
|
92122F0814
92122-F0814 New Genuine Part |
92122-F0814 |
US $2.48 |
||
|
9010508084
|
9010508084
90105-08084 Bolt |
90105-08084 |
US $2.56 |
||
|
9010508222
|
9010508222
90105-08222 BOLT WASHER BASED |
90105-08222 |
US $2.56 |
||
|
9011610016
|
9011610016
90116-10016 Bolt, Stud(For Manifold To Exhaust Pipe) |
90116-10016 |
US $4.80 |
||
|
9017908135
|
9017908135
90179-08135
New Genuine Part
|
90179-08135 |
— | ||
| replacement | |||||
|
9017908135
|
9017908135
90179-08153 NUT |
90179-08153 |
from US $0.92 |
||
|
9017910037
|
9017910037
90179-10037 NUT |
90179-10037 |
from US $2.42 |
||
| replacement | |||||
|
9017910037
|
9017910037
90179-10128 NUT |
90179-10128 |
from US $1.54 |
||
|
9017910071
|
9017910071
90179-10071 NUT |
90179-10071 |
US $1.31 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $1.13 |
||
|
9040451031
|
9040451031
90404-51031 Union, Vacuum Hose(For Manifold Side) |
90404-51031 |
US $8.21 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.93 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.58 |
||
|
9212240820
|
9212240820
92122-40820 Bolt, Stud(For Manifold To Carburetor) |
92122-40820 |
US $2.33 |
||
|
9212240835
|
9212240835
92122-40835 Bolt, Stud(For Manifold To Carburetor) |
92122-40835 |
US $1.31 |
||
