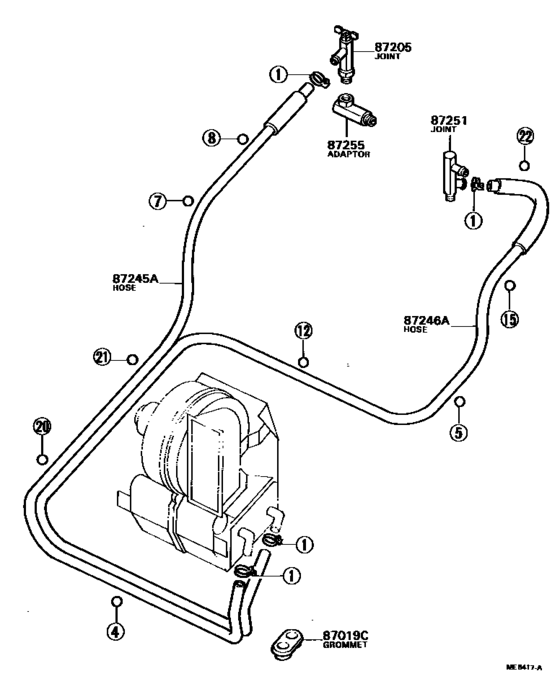

Heating & Air Conditioning - Water Piping ([11.1979 - ] (7911- )BB10..LHD) Diagram Toyota COASTER
- Year
- 1979 - 1982
- Sales region
- Europe
- Frame
- BB10
- grade
- DLX
- Roof
- SRF
- ENGINE
- 2B
- DESTINATION
- GEN
- Model
- COASTER
- From
- 11.1979
- To
- 04.1982
- Gear Shift Type
- 5F
- Seating Capacity
- 22S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87019C
|
87019C
90480-01059
Grommet, Heater Hose
[08.1977 - 04.1982] BB10,RB1# FR HEATER |
90480-01059 |
— | ||
|
87019C
|
87019C
90480-20005
Grommet, Heater Hose
[08.1977 - 08.1980] BB10,RB1# OD=24,RR HEATER |
90480-20005 |
— | ||
|
87019C
|
87019C
90480-69217
Grommet, Heater Hose
[08.1977 - 11.1979] BB10,RB1# OD=60,RR,NO.1 HEATER |
90480-69217 |
— | ||
|
87205
|
87205
87240-36041
Joint Or Union, Front Heater Hose Through Or Inlet Valve
[05.1978 - 04.1982] BB10,RB10 RR |
87240-36041 |
— | ||
|
87205
|
87205
87240-36051
Joint Or Union, Front Heater Hose Through Or Inlet Valve
[08.1979 - 04.1982] BB10,RB11,13 FR |
87240-36051 |
— | ||
|
87245A
|
87245A
87209-36170
Hose, Heater Water, Inlet A
[08.1977 - 11.1979] BB10..LHD |
87209-36170 |
— | ||
| replacement | |||||
|
87245A
|
87245A
87209-36171
Hose, Heater Water, Inlet A
[08.1977 - 11.1979] BB10..LHD |
87209-36171 |
— | ||
|
87245A
|
87245A
87209-36171
Hose, Heater Water, Inlet A
[11.1979 - 08.1980] BB10..LHD |
87209-36171 |
— | ||
|
87245A
|
87245A
87209-36172
Hose, Heater Water, Inlet A
[08.1980 - 04.1982] BB10..LHD |
87209-36172 |
— | ||
|
87246A
|
87246A
87209-36140
Hose, Heater Water, Outlet A
[08.1977 - 11.1979] BB10..LHD |
87209-36140 |
— | ||
| replacement | |||||
|
87246A
|
87246A
87209-36141
Hose, Heater Water, Outlet A
[08.1977 - 11.1979] BB10..LHD |
87209-36141 |
— | ||
|
87246A
|
87246A
87209-36141
Hose, Heater Water, Outlet A
[11.1979 - 04.1982] BB10..LHD |
87209-36141 |
— | ||
|
87251
|
87251
87252-36080
Joint Or Union, Water Hose Through
[08.1977 - 04.1982] BB10,RB10 |
87252-36080 |
— | ||
|
87255
|
87255
87251-36071
Adapter, Water Hose Joint
[08.1979 - 08.1980] BB10 |
87251-36071 |
— | ||
|
87255
|
87255
87251-36072
Adapter, Water Hose Joint
[08.1980 - 04.1982] BB10 |
87251-36072 |
— | ||
