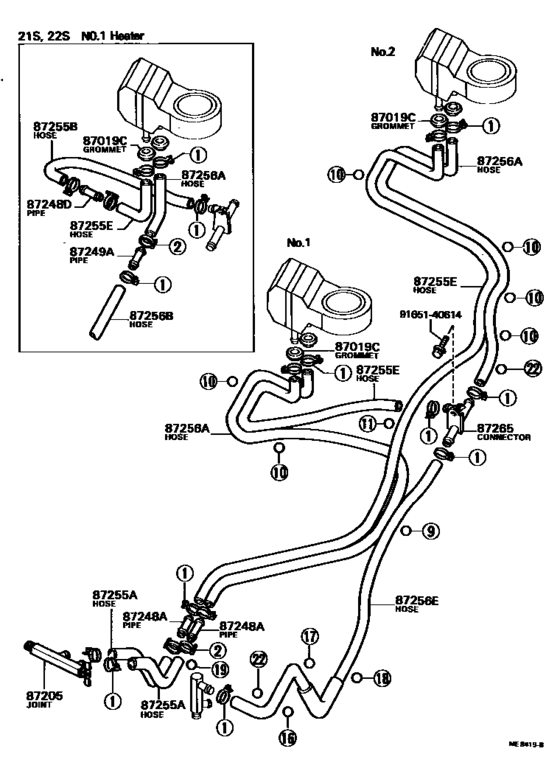

Heating & Air Conditioning - Water Piping ([11.1979 - ] (7911- )BB10..LHD) Diagram Toyota COASTER
- Year
- 1979 - 1982
- Sales region
- Europe
- Frame
- BB10
- grade
- DLX
- Roof
- SRF
- ENGINE
- 2B
- DESTINATION
- GEN
- Model
- COASTER
- From
- 11.1979
- To
- 04.1982
- Gear Shift Type
- 5F
- Seating Capacity
- 22S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87019C
|
87019C
90480-01059
Grommet, Heater Hose
[08.1977 - 04.1982] BB10,RB1# FR HEATER |
90480-01059 |
— | ||
|
87019C
|
87019C
90480-20005
Grommet, Heater Hose
[08.1977 - 08.1980] BB10,RB1# OD=24,RR HEATER |
90480-20005 |
— | ||
|
87019C
|
87019C
90480-69217
Grommet, Heater Hose
[08.1977 - 11.1979] BB10,RB1# OD=60,RR,NO.1 HEATER |
90480-69217 |
— | ||
|
87205
|
87205
87240-36041
Joint Or Union, Front Heater Hose Through Or Inlet Valve
[05.1978 - 04.1982] BB10,RB10 RR |
87240-36041 |
— | ||
|
87205
|
87205
87240-36051
Joint Or Union, Front Heater Hose Through Or Inlet Valve
[08.1979 - 04.1982] BB10,RB11,13 FR |
87240-36051 |
— | ||
|
87248A
|
87248A
87249-14030
Pipe, Heater Water Inlet, A
[08.1977 - 04.1982] BB10 |
87249-14030 |
— | ||
|
87248D
|
87248D
87249-14030
Pipe, Heater Water Inlet, A
[08.1977 - 11.1979] BB10..(21S,22S)..GEN |
87249-14030 |
— | ||
|
87249A
|
87249A
87249-14030
Pipe, Heater Water Inlet, A
[08.1977 - 11.1979] RB1#..LHD..(21S,22S); BB10..(21S,22S)..GEN |
87249-14030 |
— | ||
|
87255A
|
87255A
87245-36060
Hose, Rear Heater Water Inlet, A(From Engine)
[08.1977 - 04.1982] BB10 |
87245-36060 |
— | ||
|
87255B
|
87255B
99552-30600
Hose, Rear Heater Water Outlet, B
[12.1977 - 11.1979] BB10,RB11..LHD..(21S,22S) L=600,RR,NO.1 HEATER |
99552-30600 |
— | ||
| replacement | |||||
|
87255B
|
87255B
99556-31000 Hose, Heater Water, Inlet B[12.1977 - 11.1979] BB10,RB11..LHD..(21S,22S) L=600,RR,NO.1 HEATER |
99556-31000 |
from US $22.19 |
||
|
87255B
|
87255B
99552-30700
Hose, Heater Water, Inlet A
[11.1979 - 04.1982] BB10..LHD..(21S,22S) *H,L=700,RR NO.1 HEATER |
99552-30700 |
— | ||
| replacement | |||||
|
87255B
|
87255B
99556-31000 Hose, Heater Water, Inlet B[11.1979 - 04.1982] BB10..LHD..(21S,22S) *H,L=700,RR NO.1 HEATER |
99556-31000 |
from US $22.19 |
||
|
87255E
|
87255E
87245-36110 Hose, Rear Heater Water Inlet, E(To Heater Unit)REAR HEATER WATER INLET, E(TO HEATER UNIT) [08.1977 - 11.1979] BB10,RB1#..LHD..(21S,22S) RR,NO.1 HEATER |
87245-36110 |
US $10.05 |
||
| replacement | |||||
|
87255E
|
87255E
87245-30331
Hose, Rear Heater Water Inlet, E(To Heater Unit)
[08.1977 - 11.1979] BB10,RB1#..LHD..(21S,22S) RR,NO.1 HEATER |
87245-30331 |
— | ||
|
87255E
|
87255E
99552-33000
Hose, Rear Heater Water Inlet, E(To Heater Unit)
[12.1977 - 11.1979] BB10,RB10..GEN L=3000,RR,NO.2 HEATER |
99552-33000 |
— | ||
| replacement | |||||
|
87255E
|
87255E
99556-33000 Hose, Rear Heater Water Outlet, B[12.1977 - 11.1979] BB10,RB10..GEN L=3000,RR,NO.2 HEATER |
99556-33000 |
US $78.62 |
||
|
87255E
|
87255E
99552-33400 Hose, Rear Heater Water Inlet, B[12.1979 - 04.1982] BB10..LHD *H,L=2500,RR NO.2 HEATER; RB1#..RHD..GEN *H,L=2500,RR NO.2 HEATER; RB1#..LHD..(21S,22S) *H,L=2500,RR NO.2 HEATER; BB10..RHD..(21S,22S)..GEN *H,L=2500,RR NO.2 HEATER |
99552-33400 |
US $77.17 |
||
| replacement | |||||
|
87255E
|
87255E
99556-36000 Hose, Rear Heater Water Inlet, B[12.1979 - 04.1982] BB10..LHD *H,L=2500,RR NO.2 HEATER; RB1#..RHD..GEN *H,L=2500,RR NO.2 HEATER; RB1#..LHD..(21S,22S) *H,L=2500,RR NO.2 HEATER; BB10..RHD..(21S,22S)..GEN *H,L=2500,RR NO.2 HEATER |
99556-36000 |
US $157.25 |
||
|
87256A
|
87256A
87245-36110 Hose, Rear Heater Water Inlet, E(To Heater Unit)REAR HEATER WATER INLET, E(TO HEATER UNIT) [08.1977 - 04.1982] BB10..21S..5H;BB10..(21S,22S,23S)..5F;BB10..(22S,23S)..5H..(DLX,STD) RR,NO.1 HEATER |
87245-36110 |
US $10.05 |
||
| replacement | |||||
|
87256A
|
87256A
87245-30331
Hose, Rear Heater Water Inlet, E(To Heater Unit)
[08.1977 - 04.1982] BB10..21S..5H;BB10..(21S,22S,23S)..5F;BB10..(22S,23S)..5H..(DLX,STD) RR,NO.1 HEATER |
87245-30331 |
— | ||
|
87256A
|
87256A
99552-32100
Hose, Rear Heater Water Outlet, B
[12.1977 - 11.1979] BB10,RB1#..LHD L=2100,RR,NO.2 HEATER |
99552-32100 |
— | ||
| replacement | |||||
|
87256A
|
87256A
99556-33000 Hose, Rear Heater Water Outlet, B[12.1977 - 11.1979] BB10,RB1#..LHD L=2100,RR,NO.2 HEATER |
99556-33000 |
US $78.62 |
||
|
87256A
|
87256A
99552-32200
Hose, Rear Heater Water Outlet, A (From Heater Unit)
[11.1979 - 12.1979] BB10..LHD L=2200,RR,NO.2 HEATER; RB11..LHD..(21S,22S) L=2200,RR,NO.2 HEATER; RB11..RHD..GEN L=2200,RR,NO.2 HEATER; BB10..RHD..(21S,22S)..GEN L=2200,RR,NO.2 HEATER |
99552-32200 |
— | ||
| replacement | |||||
|
87256A
|
87256A
99556-33000 Hose, Rear Heater Water Outlet, B[11.1979 - 12.1979] BB10..LHD L=2200,RR,NO.2 HEATER; RB11..LHD..(21S,22S) L=2200,RR,NO.2 HEATER; RB11..RHD..GEN L=2200,RR,NO.2 HEATER; BB10..RHD..(21S,22S)..GEN L=2200,RR,NO.2 HEATER |
99556-33000 |
US $78.62 |
||
|
87256A
|
87256A
99552-33400 Hose, Rear Heater Water Inlet, B[12.1979 - 04.1982] BB10..LHD *H,L=2500,RR NO.2 HEATER; RB1#..RHD..GEN *H,L=2500,RR NO.2 HEATER; RB1#..LHD..(21S,22S) *H,L=2500,RR NO.2 HEATER; BB10..RHD..(21S,22S)..GEN *H,L=2500,RR NO.2 HEATER |
99552-33400 |
US $77.17 |
||
| replacement | |||||
|
87256A
|
87256A
99556-36000 Hose, Rear Heater Water Inlet, B[12.1979 - 04.1982] BB10..LHD *H,L=2500,RR NO.2 HEATER; RB1#..RHD..GEN *H,L=2500,RR NO.2 HEATER; RB1#..LHD..(21S,22S) *H,L=2500,RR NO.2 HEATER; BB10..RHD..(21S,22S)..GEN *H,L=2500,RR NO.2 HEATER |
99556-36000 |
US $157.25 |
||
|
87256B
|
87256B
99552-30250
Hose, Heater Water, Inlet E
[08.1977 - 11.1979] BB10..LHD..(21S,22S) L=250,RR,NO.1 HEATER |
99552-30250 |
— | ||
| replacement | |||||
|
87256B
|
87256B
99556-30300 Hose, Heater Water, Inlet A[08.1977 - 11.1979] BB10..LHD..(21S,22S) L=250,RR,NO.1 HEATER |
99556-30300 |
from US $10.24 |
||
|
87256B
|
87256B
99552-30300
Hose, Heater Water, Inlet
[12.1979 - 04.1982] BB10,RB1#..LHD..(21S,22S) *H,L=250,RR NO.1 HEATER |
99552-30300 |
— | ||
| replacement | |||||
|
87256B
|
87256B
99556-30300 Hose, Heater Water, Inlet A[12.1979 - 04.1982] BB10,RB1#..LHD..(21S,22S) *H,L=250,RR NO.1 HEATER |
99556-30300 |
from US $10.24 |
||
|
87256E
|
87256E
87209-36200
Hose, Rear Heater Water Outlet, E (To Engine)
[11.1979 - 04.1982] BB10..GEN,IRQ |
87209-36200 |
— | ||
|
87256E
|
87256E
99552-31700
Hose, Rear Heater Water Inlet, E(To Heater Unit)
[08.1977 - 11.1979] BB10..GEN L=1700 |
99552-31700 |
— | ||
|
87265
|
87265
87251-36100
Connector, Heater Water Hose
[08.1977 - 11.1979] BB10,RB1#..LHD 3 WAY,NO.2 |
87251-36100 |
— | ||
| replacement | |||||
|
87265
|
87265
87251-36101
Connector, Heater Water Hose
[08.1977 - 11.1979] BB10,RB1#..LHD 3 WAY,NO.2 |
87251-36101 |
— | ||
|
87265
|
87265
87251-36101
Connector, Heater Water Hose
[11.1979 - 04.1982] BB10,RB1#..LHD 3 WAY,NO.2 |
87251-36101 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
