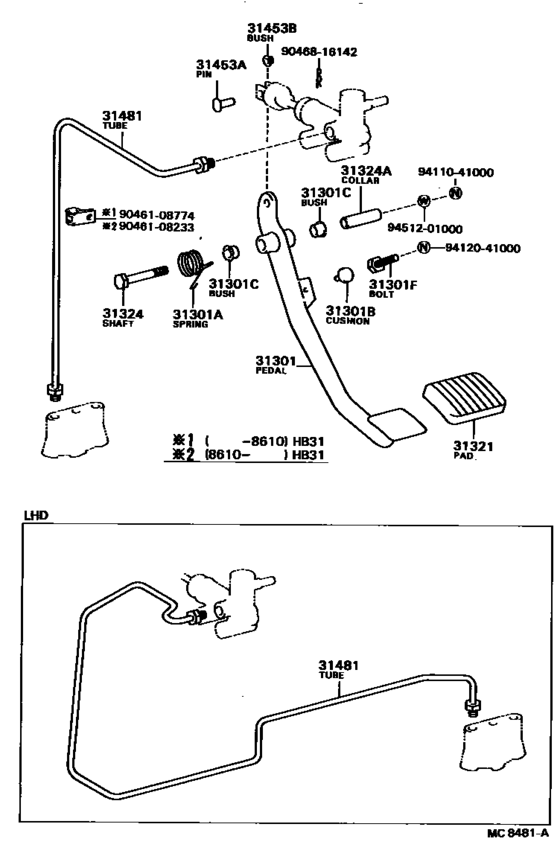

Clutch Pedal & Flexible Hose ([05.1982 - ] (8205- )) Diagram Toyota COASTER
- Year
- 1982 - 1986
- Sales region
- Europe
- Frame
- BB20
- grade
- DLX
- Roof
- SRF
- ENGINE
- 3B
- DESTINATION
- GEN
- COOLER
- WOC
- Model
- COASTER
- From
- 05.1982
- To
- 10.1986
- Gear Shift Type
- 5F
- Seating Capacity
- 22S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31301-36090
Pedal Sub-Assy, Clutch
[05.1982 - 09.1983] BB20,30,RB20 |
31301-36090 |
— | ||
| replacement | |||||
|
31301
|
31301
31301-36091
Pedal Sub-Assy, Clutch
[05.1982 - 09.1983] BB20,30,RB20 |
31301-36091 |
— | ||
|
31301
|
31301
31301-36091
Pedal Sub-Assy, Clutch
[09.1983 - 01.1993] BB2#,3#,FB30,HB30,HZB30,RB20..5F |
31301-36091 |
— | ||
|
31301A
|
31301A
90508-35013 Spring(For Clutch Pedal)[05.1982 - 01.1993] BB2#,3#,FB30,HB30,HZB30,RB20..5F |
90508-35013 |
US $15.72 |
||
|
31301B
|
31301B
90541-06008 Cushion, No.1(For Clutch Pedal)[05.1982 - 05.1990] BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F |
90541-06008 |
from US $1.60 |
||
|
31301C
|
31301C
90386-13007 Bush(For Clutch Pedal)[05.1982 - 01.1993] BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F |
90386-13007 |
from US $2.56 |
||
|
31301F
|
31301F
90101-10085 Bolt(For Clutch Pedal Stopper)[05.1982 - 01.1993] BB2#,3#,FB30,HB30,HZB30,RB20..5F |
90101-10085 |
US $1.14 |
||
|
31321
|
31321
31321-36010 Pad, Clutch Pedal[05.1982 - 01.1993] BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F |
31321-36010 |
from US $5.03 |
||
|
31324
|
31324
91121-51070 Shaft, Clutch Pedal[05.1982 - 01.1993] BB2#,3#,FB30,HB30,HZB30,RB20..5F |
91121-51070 |
US $3.36 |
||
| replacement | |||||
|
31324
|
31324
90084-10023 Shaft, Brake Pedal[05.1982 - 01.1993] BB2#,3#,FB30,HB30,HZB30,RB20..5F |
90084-10023 |
US $5.22 |
||
|
31324A
|
31324A
90387-10004 Collar, Clutch Pedal Shaft[05.1982 - 01.1993] BB2#,3#,FB30,HB30,HZB30,RB20..5F |
90387-10004 |
from US $3.36 |
||
|
31453A
|
31453A
90240-08006 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[05.1982 - 01.1993] BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F L=23.5 |
90240-08006 |
from US $2.56 |
||
|
31453B
|
31453B
90386-08002 Bush(For Clutch Pedal Over Center Spring Pin)[05.1982 - 01.1993] BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F |
90386-08002 |
from US $3.84 |
||
|
31481
|
31481
31481-36190
Tube, Clutch Master Cylinder To Flexible Hose
[05.1982 - 01.1993] BB20,21,3#,FB30,HB30,RB20..LHD |
31481-36190 |
— | ||
|
9046108233
|
9046108233
90461-08233
New Genuine Part
|
90461-08233 |
— | ||
|
9046108774
|
9046108774
90461-08774 Clamp, Brake Tube, No.18 |
90461-08774 |
US $3.84 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.88 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
