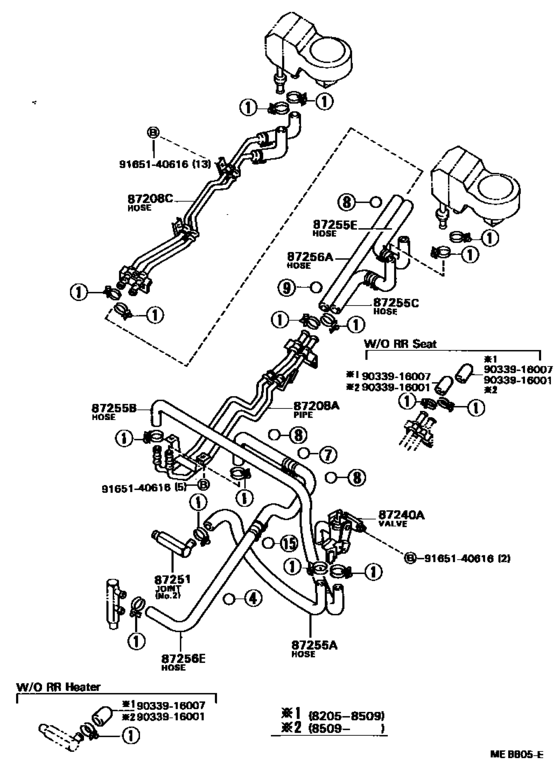

Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21..LHD) Diagram Toyota COASTER
- Year
- 1982 - 1986
- Sales region
- Europe
- Frame
- BB20
- grade
- DLX
- Roof
- SRF
- ENGINE
- 3B
- DESTINATION
- GEN
- COOLER
- WOC
- Model
- COASTER
- From
- 05.1982
- To
- 10.1986
- Gear Shift Type
- 5F
- Seating Capacity
- 22S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87208A
|
87208A
87208-90B06
Pipe Sub-Assy, Heater Water, A
[05.1982 - 01.1993] BB20,21,FB30,HB30,HDB30,HZB30,RB20..LHD HB30,FB30,HDB30,HZB30:NO.1 |
87208-90B06 |
— | ||
|
87208C
|
87208C
87209-90B16 Pipe Sub-Assy, Heater Water, CHEATER WATER, C [05.1982 - 01.1993] BB20,21,RB20..LHD..(17S,22S) |
87209-90B16 |
US $158.70 |
||
|
87240A
|
87240A
87240-90B03 Valve Assy, Rear Heater WaterREAR HEATER WATER [05.1982 - 01.1993] BB20,21,FB30,HB30,HDB30,HZB30,RB20..LHD |
87240-90B03 |
US $43.68 |
||
|
87251
|
87251
87251-30200 Union(For Water By-Pass Hose)[05.1982 - 01.1993] BB2# NO.1 |
87251-30200 |
from US $5.24 |
||
|
87251
|
87251
87251-60010
Joint Or Union, Front Heater Hose Through Or Inlet Valve
[05.1982 - 01.1993] BB2# NO.2 |
87251-60010 |
— | ||
|
87251
|
87251
87251-90B00 Joint Or Union, Water Hose Through[05.1982 - 01.1993] BB2# NO.3 |
87251-90B00 |
US $41.64 |
||
|
87255A
|
87255A
87245-90B15 Hose, Rear Heater Water Inlet, A(From Engine)REAR HEATER WATER INLET, A(FROM ENGINE) [05.1982 - 01.1993] BB20,21..LHD |
87245-90B15 |
US $16.02 |
||
|
87255B
|
87255B
87209-90B22 Hose, Rear Heater Water Inlet, A(From Engine)[05.1982 - 01.1993] BB20,21,RB20..LHD |
87209-90B22 |
US $29.27 |
||
| replacement | |||||
|
87255B
|
87255B
87209-90B10 Hose, Rear Heater Water Inlet, CREAR HEATER WATER INLET, A(FROM ENGINE) [05.1982 - 01.1993] BB20,21,RB20..LHD |
87209-90B10 |
US $38.44 |
||
|
87255C
|
87255C
87209-90B17 Hose, Rear Heater Water Inlet, CREAR HEATER WATER INLET, C [05.1982 - 01.1993] BB20,21,RB20..16S,17S,22S |
87209-90B17 |
US $32.76 |
||
| replacement | |||||
|
87255C
|
87255C
87209-90B10 Hose, Rear Heater Water Inlet, CREAR HEATER WATER INLET, A(FROM ENGINE) [05.1982 - 01.1993] BB20,21,RB20..16S,17S,22S |
87209-90B10 |
US $38.44 |
||
|
87255E
|
87255E
87245-90B17 Hose, Rear Heater Water Inlet, E(To Heater Unit)REAR HEATER WATER INLET, E(TO HEATER UNIT) [05.1982 - 01.1993] BB20,21,RB20..LHD..(17S,22S) |
87245-90B17 |
US $18.93 |
||
|
87256A
|
87256A
99552-31000
Hose, Heater Water, Inlet A
[05.1982 - 08.1984] BB20,RB20 *H,L=730 |
99552-31000 |
— | ||
| replacement | |||||
|
87256A
|
87256A
99556-31000 Hose, Heater Water, Inlet B[05.1982 - 08.1984] BB20,RB20 *H,L=730 |
99556-31000 |
from US $22.19 |
||
|
87256A
|
87256A
99556-30980 Hose, Heater Water, Inlet A[08.1984 - 01.1993] BB21,RB20;BB20..16S,20S,22S,26S *H,L=730 |
99556-30980 |
US $26.06 |
||
| replacement | |||||
|
87256A
|
87256A
99556-31000 Hose, Heater Water, Inlet B[08.1984 - 01.1993] BB21,RB20;BB20..16S,20S,22S,26S *H,L=730 |
99556-31000 |
from US $22.19 |
||
|
87256E
|
87256E
87209-90B21 Hose, Rear Heater Water Outlet, E (To Engine)[05.1982 - 01.1993] BB21;BB20..16S,20S,22S,26S |
87209-90B21 |
US $67.56 |
||
|
9033916001
|
9033916001
90339-16001 Plug, Heater Water |
90339-16001 |
from US $2.88 |
||
|
9033916007
|
9033916007
90339-16007
Plug
|
90339-16007 |
— | ||
| replacement | |||||
|
9033916007
|
9033916007
90339-16001 Plug, Heater Water |
90339-16001 |
from US $2.88 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
