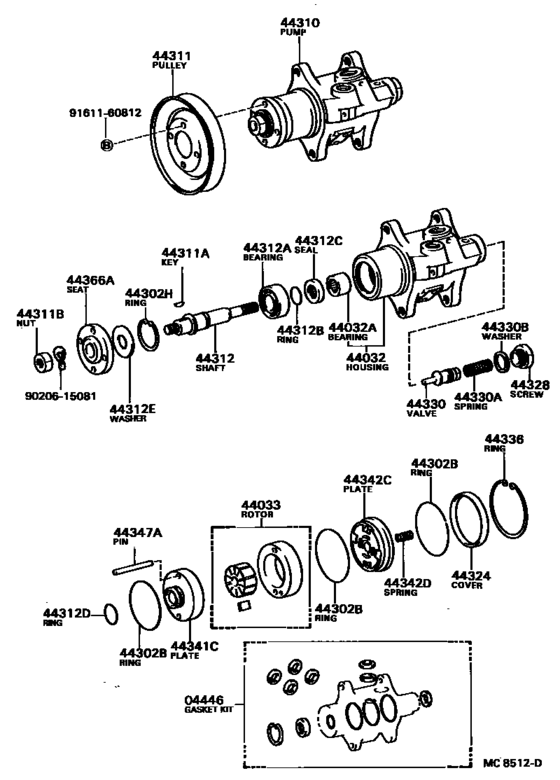

Vane Pump & Reservoir (Power Steering) ([05.1982 - 08.1984] (8205-8408)ARL,GEN) Diagram Toyota COASTER
- Year
- 1982 - 1986
- Sales region
- Europe
- Frame
- BB20
- grade
- DLX
- Roof
- SRF
- ENGINE
- 3B
- DESTINATION
- GEN
- COOLER
- WOC
- Model
- COASTER
- From
- 05.1982
- To
- 10.1986
- Gear Shift Type
- 5F
- Seating Capacity
- 22S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-36010 Gasket Kit, Power Steering Pump[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN |
04446-36010 |
US $35.24 |
||
|
04446
|
04446
04446-36030
Gasket Kit, Power Steering Pump
[08.1984 - 08.1988] BB2#,30,FB30,HB3#,RB20..ARL,GEN,ME |
04446-36030 |
— | ||
| replacement | |||||
|
04446
|
04446
04446-36070
Gasket Kit, Power Steering Pump
[08.1984 - 08.1988] BB2#,30,FB30,HB3#,RB20..ARL,GEN,ME |
04446-36070 |
— | ||
|
44032
|
44032
44032-36021
Housing Sub-Assy, Pump W/name Plate
[05.1982 - 08.1984] BB20,30..ARL,GEN |
44032-36021 |
— | ||
|
44032A
|
44032A
90029-36300 Bearing, Needle Roller(For Vane Pump Shaft)[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN |
90029-36300 |
US $20.53 |
||
|
44033
|
44033
44033-36021 Rotor Sub-Assy, W/cam & Vane[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN |
44033-36021 |
US $115.02 |
||
| replacement | |||||
|
44033
|
44033
44033-36060 Rotor Sub-Assy, W/cam & Vane[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN |
44033-36060 |
US $128.76 |
||
|
44033
|
44033
44033-89102 Rotor Sub-Assy, W/cam & Vane[08.1984 - 09.1987] BB2#,30,FB30,HB3#,RB20..ARL,GEN,ME |
44033-89102 |
US $770.22 |
||
| replacement | |||||
|
44033
|
44033
44033-36060 Rotor Sub-Assy, W/cam & Vane[08.1984 - 09.1987] BB2#,30,FB30,HB3#,RB20..ARL,GEN,ME |
44033-36060 |
US $128.76 |
||
|
44302B
|
44302B
90029-20001 Ring, O, No.1(For Vane Pump Housing)[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN ID=68 |
90029-20001 |
US $7.28 |
||
|
44302B
|
44302B
90029-20002 Ring, O, No.1(For Vane Pump Housing)[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN ID=66 |
90029-20002 |
US $7.28 |
||
|
44302B
|
44302B
90029-20003 Ring, O, No.1(For Vane Pump Housing)[05.1982 - 01.1993] BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME ID=64 |
90029-20003 |
from US $2.71 |
||
|
44302H
|
44302H
90029-52001 Ring, Snap, No.1(For Vane Pump Housing)[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN |
90029-52001 |
US $7.28 |
||
|
44302H
|
44302H
96151-04000 Ring, Snap(For Hydraulic Motor Vane Pump Drive Shaft)[08.1984 - 01.1993] BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
96151-04000 |
US $2.08 |
||
|
44310
|
44310
44320-36021 Pump Assy, Vane[05.1982 - 05.1983] BB20..ARL,GEN |
44320-36021 |
US $1,110.93 |
||
| replacement | |||||
|
44310
|
44310
44320-36022 Pump Assy, Vane[05.1982 - 05.1983] BB20..ARL,GEN |
44320-36022 |
US $1,106.56 |
||
|
44310
|
44310
44320-36022 Pump Assy, Vane[05.1983 - 08.1984] BB20,30..ARL,GEN |
44320-36022 |
US $1,106.56 |
||
|
44310
|
44310
44320-36080 Pump Assy, Vane[08.1984 - 08.1988] BB2#,30..ARL,GEN,ME |
44320-36080 |
US $1,110.93 |
||
|
44311
|
44311
44311-36020 Pulley, Vane Pump[05.1982 - 08.1984] BB20,30..ARL,GEN |
44311-36020 |
US $87.36 |
||
|
44311A
|
44311A
90029-18001 Key, Woodruff(For Hydraulic Motor Vane Pump Drive Shaft)[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN |
90029-18001 |
from US $2.07 |
||
|
44311A
|
44311A
90029-18002 Kye, Woodruff(For Injection Shaft)[08.1984 - 08.1988] BB2#,30..ARL,GEN,ME |
90029-18002 |
US $4.54 |
||
|
44311B
|
44311B
90029-07001 Nut(For Vane Pump Pulley)[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN |
90029-07001 |
US $4.80 |
||
|
44311B
|
44311B
90179-14009 Nut(For Vane Pump Pulley)[08.1984 - 01.1993] BB20,21,22,30..ARL,GEN,ME |
90179-14009 |
from US $2.16 |
||
|
44312
|
44312
44312-36021
Shaft, Vane Pump
[05.1982 - 08.1984] BB20,30..ARL,GEN |
44312-36021 |
— | ||
|
44312
|
44312
44312-89101 Shaft, Vane Pump[08.1984 - 08.1988] BB2#,30..ARL,GEN,ME |
44312-89101 |
US $38.26 |
||
|
44312A
|
44312A
90029-36001
Bearing(For Vane Pump Shaft)
[05.1982 - 08.1984] BB20,30..ARL,GEN |
90029-36001 |
— | ||
|
44312A
|
44312A
90029-36003 Bearing(For Vane Pump Shaft)[08.1984 - 01.1993] BB2#,3#,HDB30,HZB30..ARL,EUR,GEN,ME |
90029-36003 |
US $22.65 |
||
|
44312B
|
44312B
90029-52400 Ring, Snap, No.1(For Vane Pump Shaft)[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN |
90029-52400 |
US $4.08 |
||
|
44312B
|
44312B
90029-52402 Ring, Shaft Spring(For Hyd Motor Vane Pump Drive Shaft)[08.1984 - 01.1993] BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
90029-52402 |
US $3.04 |
||
|
44312C
|
44312C
90029-21001 Seal, Oil(For Vane Pump Shaft)[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN |
90029-21001 |
US $9.03 |
||
|
44312D
|
44312D
90029-20004 Ring, O(For Vane Pump Shaft)[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN ID=20.8 |
90029-20004 |
US $7.43 |
||
|
44312E
|
44312E
90029-11800
Washer(For Vane Pump Shaft)
[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN |
90029-11800 |
— | ||
|
44324
|
44324
44324-36021
Cover, Pump
[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN |
44324-36021 |
— | ||
|
44328
|
44328
44328-36021
Screw, Lock(For Vane Pump)
[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN |
44328-36021 |
— | ||
|
44330
|
44330
44330-36021 Valve Assy, Flow Control[05.1982 - 08.1988] BB2#,30,RB20..ARL,GEN,ME TWO GROOVE,TWO GROOVE |
44330-36021 |
US $91.73 |
||
|
44330
|
44330
44330-36030 Valve Assy, Flow Control[05.1982 - 08.1988] BB2#,30,RB20..ARL,GEN,ME ONE GROOVE,ONE GROOVE |
44330-36030 |
US $57.95 |
||
|
44330
|
44330
44330-36040 Valve Assy, Flow Control[05.1982 - 08.1988] BB2#,30,RB20..ARL,GEN,ME NO GROOVE,NO GROOVE |
44330-36040 |
US $113.57 |
||
|
44330A
|
44330A
90029-60002 Spring, Compression(For Flow Control Valve)[05.1982 - 01.1993] BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
90029-60002 |
US $4.89 |
||
|
44330B
|
44330B
90029-10001 Washer, Plate(For Flow Control Valve)[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN |
90029-10001 |
US $7.28 |
||
|
44336
|
44336
44336-36021
Ring, Hook Spring
[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN |
44336-36021 |
— | ||
|
44341C
|
44341C
44341-36021 Plate, Thrust, Vane Pump[05.1982 - 05.1983] BB20,RB20..ARL,GEN |
44341-36021 |
US $208.21 |
||
| replacement | |||||
|
44341C
|
44341C
44341-36H00
Plate, Thrust, Vane Pump
[05.1982 - 05.1983] BB20,RB20..ARL,GEN |
44341-36H00 |
— | ||
|
44341C
|
44341C
44341-36030
Plate, Thrust, Vane Pump
[05.1983 - 08.1984] BB20,30,RB20..ARL,GEN |
44341-36030 |
— | ||
|
44342C
|
44342C
44342-36021 Plate, Pressure[05.1982 - 05.1983] BB20,RB20..ARL,GEN |
44342-36021 |
US $202.38 |
||
| replacement | |||||
|
44342C
|
44342C
44342-36H00
Plate, Pressure
[05.1982 - 05.1983] BB20,RB20..ARL,GEN |
44342-36H00 |
— | ||
|
44342C
|
44342C
44342-36030
Plate, Pressure
[05.1983 - 08.1984] BB20,30,RB20..ARL,GEN |
44342-36030 |
— | ||
|
44342C
|
44342C
44342-89102 Plate, Vane Pump Side, Rear[08.1984 - 01.1993] BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
44342-89102 |
US $96.10 |
||
|
44342D
|
44342D
90029-60001 Spring, Compression(For Pressure Plate)[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN |
90029-60001 |
US $3.06 |
||
|
44342D
|
44342D
90029-60003 Spring, Compression(For Vane Pump Side Plate Rear)[08.1984 - 01.1993] BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
90029-60003 |
US $4.69 |
||
|
44347A
|
44347A
44347-36021
Pin, Vane Pump
[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN |
44347-36021 |
— | ||
|
44366A
|
44366A
44366-36021 Seat, Pump Pulley[05.1982 - 08.1984] BB20,30,RB20..ARL,GEN |
44366-36021 |
US $42.52 |
||
|
9020615081
|
9020615081
90206-15081 Washer Wave(For Hydraulic Motor Vane Pump Pulley Seat) |
90206-15081 |
US $1.49 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
