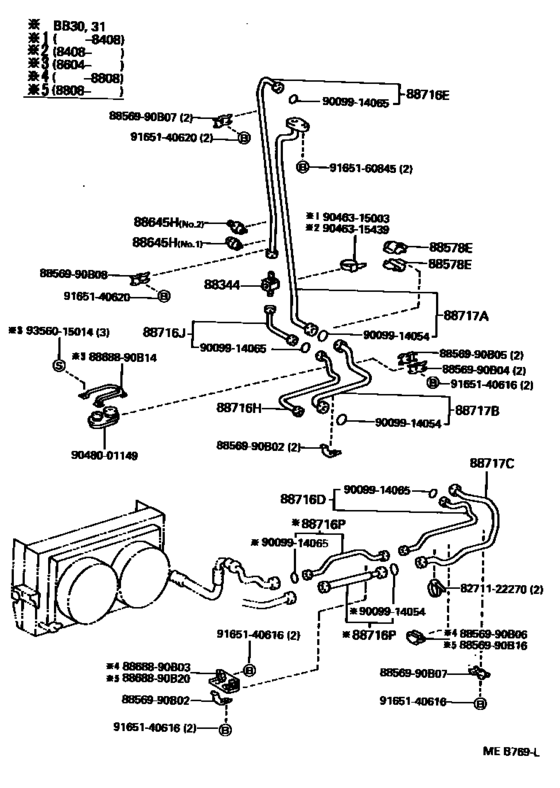

Heating & Air Conditioning - Cooler Piping ([05.1982 - ] (8205- )BB2#,30,31) Diagram Toyota COASTER
- Year
- 1983 - 1993
- Sales region
- Japan
- Frame
- BB21
- grade
- DLX
- Roof
- SRF
- ENGINE
- 3B
- COOLER
- WOC
- Model
- COASTER
- From
- 02.1983
- To
- 01.1993
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8856990B02
|
8856990B02
88569-90B02
Clamp (for Cooler Relay)
|
88569-90B02 |
— | ||
|
8856990B04
|
8856990B04
88569-90B04
Clamp (for Cooler Relay)
|
88569-90B04 |
— | ||
|
8856990B05
|
8856990B05
88569-90B05
Clamp (for Cooler Relay)
|
88569-90B05 |
— | ||
|
8856990B06
|
8856990B06
88569-90B06
Clamp (for Cooler Relay)
|
88569-90B06 |
— | ||
|
8856990B07
|
8856990B07
88569-90B07
Clamp (for Cooler Relay)
|
88569-90B07 |
— | ||
|
8856990B08
|
8856990B08
88569-90B08
Clamp (for Cooler Relay)
|
88569-90B08 |
— | ||
|
8856990B16
|
8856990B16
88569-90B16
Clamp (for Cooler Relay)
|
88569-90B16 |
— | ||
|
8868890B03
|
8868890B03
88688-90B03
Bracket, Heater Water Hose
|
88688-90B03 |
— | ||
|
8868890B14
|
8868890B14
88688-90B14
Bracket, Cooler Diaphragm
|
88688-90B14 |
— | ||
|
8868890B20
|
8868890B20
88688-90B20
Bracket, Cooler Diaphragm
|
88688-90B20 |
— | ||
|
8271122270
|
8271122270
82711-22270 Clamp(For Transfer Vacuum Tube) |
82711-22270 |
US $4.37 |
||
|
9009914054
|
9009914054
90099-14054
RING
|
90099-14054 |
— | ||
|
9009914065
|
9009914065
90099-14065
RING
|
90099-14065 |
— | ||
|
9046315003
|
9046315003
90463-15003 New Genuine Part |
90463-15003 |
US $2.56 |
||
|
9046315439
|
9046315439
90463-15439 New Genuine Part |
90463-15439 |
US $2.62 |
||
|
9048001149
|
9048001149
90480-01149
New Genuine Part
|
90480-01149 |
— | ||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165160845
|
9165160845
91651-60845
Bolt(For Rocker Support Set)
|
91651-60845 |
— | ||
| replacement | |||||
|
9165160845
|
9165160845
91651-B0845 Bolt, Flange (For Idler) |
91651-B0845 |
US $1.60 |
||
|
9356015014
|
9356015014
93560-15014 SCREW |
93560-15014 |
US $1.12 |
||
