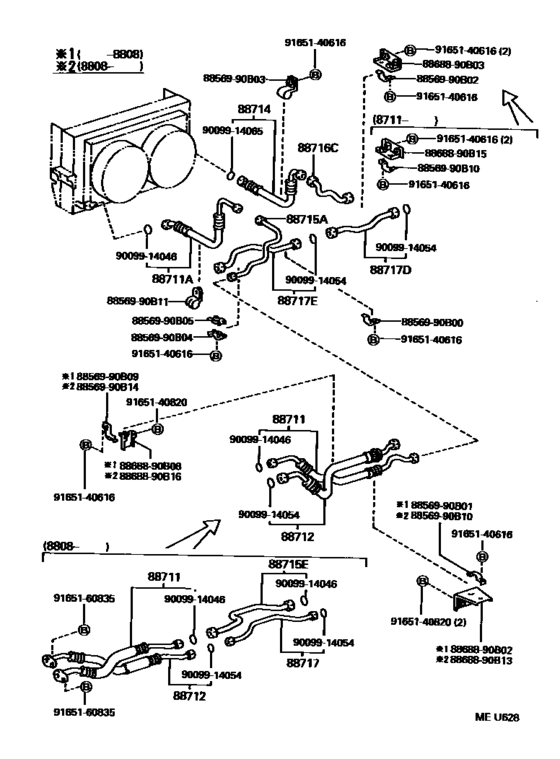

Heating & Air Conditioning - Cooler Piping ([05.1982 - ] (8205- )BB2#,30,31) Diagram Toyota COASTER
- Year
- 1983 - 1993
- Sales region
- Japan
- Frame
- BB21
- grade
- DLX
- Roof
- SRF
- ENGINE
- 3B
- COOLER
- WOC
- Model
- COASTER
- From
- 02.1983
- To
- 01.1993
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8856990B00
|
8856990B00
88569-90B00
Clamp (for Cooler Relay)
|
88569-90B00 |
— | ||
|
8856990B01
|
8856990B01
88569-90B01
Clamp (for Cooler Relay)
|
88569-90B01 |
— | ||
|
8856990B02
|
8856990B02
88569-90B02
Clamp (for Cooler Relay)
|
88569-90B02 |
— | ||
|
8856990B03
|
8856990B03
88569-90B03
Clamp (for Cooler Relay)
|
88569-90B03 |
— | ||
|
8856990B04
|
8856990B04
88569-90B04
Clamp (for Cooler Relay)
|
88569-90B04 |
— | ||
|
8856990B05
|
8856990B05
88569-90B05
Clamp (for Cooler Relay)
|
88569-90B05 |
— | ||
|
8856990B09
|
8856990B09
88569-90B09
Clamp (for Cooler Relay)
|
88569-90B09 |
— | ||
|
8856990B10
|
8856990B10
88569-90B10
Clamp (for Cooler Relay)
|
88569-90B10 |
— | ||
|
8856990B11
|
8856990B11
88569-90B11
Clamp (for Cooler Relay)
|
88569-90B11 |
— | ||
|
8856990B14
|
8856990B14
88569-90B14
Clamp (for Cooler Relay)
|
88569-90B14 |
— | ||
|
8868890B02
|
8868890B02
88688-90B02
Bracket, Cooler Diaphragm
|
88688-90B02 |
— | ||
|
8868890B03
|
8868890B03
88688-90B03
Bracket, Heater Water Hose
|
88688-90B03 |
— | ||
|
8868890B08
|
8868890B08
88688-90B08
Bracket, Cooler Diaphragm
|
88688-90B08 |
— | ||
|
8868890B13
|
8868890B13
88688-90B13
Bracket, Cooler Diaphragm
|
88688-90B13 |
— | ||
|
8868890B15
|
8868890B15
88688-90B15
Bracket, Cooler Diaphragm
|
88688-90B15 |
— | ||
|
8868890B16
|
8868890B16
88688-90B16
Bracket, Cooler Diaphragm
|
88688-90B16 |
— | ||
|
9009914046
|
9009914046
90099-14046 Ring, O(For Cooler Refrigerant Discharge Hose) |
90099-14046 |
US $0.55 |
||
|
9009914054
|
9009914054
90099-14054
RING
|
90099-14054 |
— | ||
|
9009914065
|
9009914065
90099-14065
RING
|
90099-14065 |
— | ||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.44 |
||
