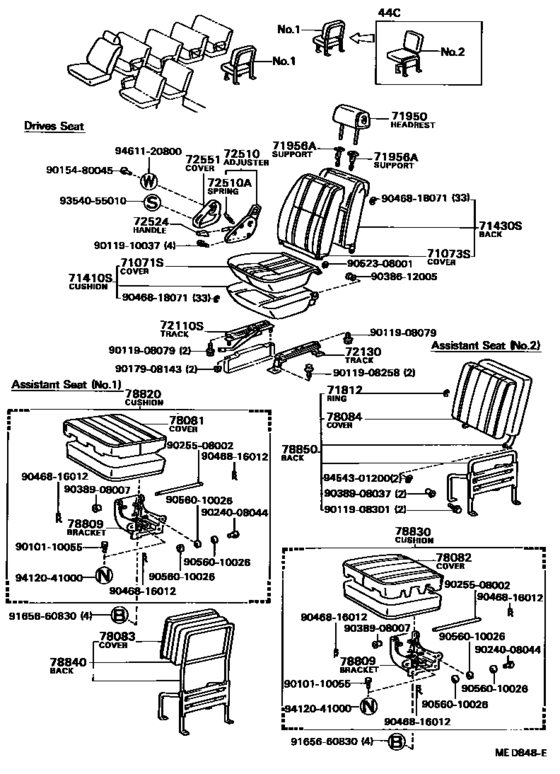

Seat & Seat Track ([05.1982 - 04.1985] (8205-8504)39C,44C) Diagram Toyota COASTER
- Year
- 1983 - 1993
- Sales region
- Japan
- Frame
- BB21
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- COOLER
- WOC
- Model
- COASTER
- From
- 02.1983
- To
- 01.1993
- Gear Shift Type
- 5F
- Seating Capacity
- 39C
- Vehicle Model
- Coaster
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71071S
|
71071S
71071-90B08 Cover, Front Seat Cushion, Rh(For Separate Type)[05.1982 - 11.1987] BB20,21,30,31,RB20..39C,44C PF |
71071-90B08 |
US $145.60 |
||
| replacement | |||||
|
71071S
|
71071S
71071-90B24-02 Cover, Front Seat Cushion, Rh(For Separate Type)[05.1982 - 11.1987] BB20,21,30,31,RB20..39C,44C PF |
71071-90B24-02 |
US $190.74 |
||
|
71071S
|
71071S
71071-90B24-02 Cover, Front Seat Cushion, Rh(For Separate Type)[11.1987 - 01.1993] BB21,31,RB20..39C,44C FR,RED,RED |
71071-90B24-02 |
US $190.74 |
||
|
71073S
|
71073S
71073-90B08 Cover, Front Seat Back, Rh(For Separate Type)[05.1982 - 11.1987] BB20,21,30,31,RB20..39C,44C PF |
71073-90B08 |
US $170.35 |
||
| replacement | |||||
|
71073S
|
71073S
71073-90B37-02 Cover, Front Seat Back, Rh(For Separate Type)[05.1982 - 11.1987] BB20,21,30,31,RB20..39C,44C PF |
71073-90B37-02 |
US $270.82 |
||
|
71073S
|
71073S
71073-90B37-02 Cover, Front Seat Back, Rh(For Separate Type)[11.1987 - 01.1993] BB21,31,RB20..39C,44C PF,RED,RED |
71073-90B37-02 |
US $270.82 |
||
|
71410S
|
71410S
71410-90B08
Cushion Assy, Front Seat, Rh(For Separate Type)
[05.1982 - 11.1987] BB20,21,30,31,RB20..39C,44C PF |
71410-90B08 |
— | ||
|
71410S
|
71410S
71410-90B24-02
Cushion Assy, Front Seat, Rh(For Separate Type)
[11.1987 - 01.1993] BB21,31,RB20..39C,44C PF,RED,RED |
71410-90B24-02 |
— | ||
|
71430S
|
71430S
71430-90B08
Back Assy, Front Seat, Rh(For Separate Type)
[05.1982 - 11.1987] BB20,21,30,31,RB20..39C,44C PF |
71430-90B08 |
— | ||
|
71430S
|
71430S
71430-90B29-02
Back Assy, Front Seat, Rh(For Separate Type)
[11.1987 - 01.1993] BB21,31,RB20..39C,44C PF,RED,RED |
71430-90B29-02 |
— | ||
|
71812
|
71812
71812-30010
Ring(For Seat Belt Cover)
[05.1982 - 01.1993] BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,26S,29S,39C |
71812-30010 |
— | ||
| replacements | |||||
|
71812
|
71812
90468-16019 Clip (For Rear Seat Back)[05.1982 - 01.1993] BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,26S,29S,39C |
90468-16019 |
from US $0.78 |
||
|
71812
|
71812
90468-18008 Clip (For Rear Seat Back)[05.1982 - 01.1993] BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,26S,29S,39C |
90468-18008 |
from US $0.80 |
||
|
71950
|
71950
71910-90B03
Headrest Assy, Front Seat
[05.1982 - 08.1988] BB20,21,30,31,RB20..39C,44C |
71910-90B03 |
— | ||
|
71950
|
71950
71910-90B03-02
Headrest Assy, Front Seat
[08.1988 - 01.1993] BB21,31,RB20..39C,44C RED |
71910-90B03-02 |
— | ||
|
71956A
|
71956A
71930-90B00
Support, Front Seat Headrest
[05.1982 - 10.1986] BB2#,3#,HB3#,RB2# W/LOCK |
71930-90B00 |
— | ||
| replacement | |||||
|
71956A
|
71956A
71990-30020-01
Support, Front Seat Headrest
[05.1982 - 10.1986] BB2#,3#,HB3#,RB2# W/LOCK |
71990-30020-01 |
— | ||
|
71956A
|
71956A
71931-90B00
Support, Front Seat Headrest
[05.1982 - 10.1986] BB2#,3#,HB3#,RB2# W/O LOCK |
71931-90B00 |
— | ||
| replacement | |||||
|
71956A
|
71956A
71956-30020-01
Support, Front Seat Headrest
[05.1982 - 10.1986] BB2#,3#,HB3#,RB2# W/O LOCK |
71956-30020-01 |
— | ||
|
71956A
|
71956A
71956-30020-02
Support, Front Seat Headrest
[10.1986 - 08.1988] BB2#,3#,HB3#,RB2# ロック無,W/O LOCK,DARK WINE,DARK WINE |
71956-30020-02 |
— | ||
| replacement | |||||
|
71956A
|
71956A
71956-30020-01
Support, Front Seat Headrest
[10.1986 - 08.1988] BB2#,3#,HB3#,RB2# ロック無,W/O LOCK,DARK WINE,DARK WINE |
71956-30020-01 |
— | ||
|
71956A
|
71956A
71956-30020-10
Support, Rear Seat Headrest
[08.1988 - 01.1993] BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 ロック無,W/O LOCK,SABLE,SABLE |
71956-30020-10 |
— | ||
|
71956A
|
71956A
71990-30020-02
Support, Front Seat Headrest
[10.1986 - 08.1988] BB2#,3#,HB3#,RB2# ロック付,W/LOCK,DARK WINE,DARK WINE |
71990-30020-02 |
— | ||
| replacement | |||||
|
71956A
|
71956A
71990-30020-01
Support, Front Seat Headrest
[10.1986 - 08.1988] BB2#,3#,HB3#,RB2# ロック付,W/LOCK,DARK WINE,DARK WINE |
71990-30020-01 |
— | ||
|
71956A
|
71956A
71990-30020-10 Support, Rear Seat Headrest[08.1988 - 01.1993] BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 ロック付,W/LOCK,SABLE,SABLE |
71990-30020-10 |
US $12.52 |
||
| replacement | |||||
|
71956A
|
71956A
71990-30020-01
Support, Front Seat Headrest
[08.1988 - 01.1993] BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 ロック付,W/LOCK,SABLE,SABLE |
71990-30020-01 |
— | ||
|
72110S
|
72110S
72110-90B00 Track Assy, Rh Seat, Outer (For Separate Seat)[05.1982 - 01.1993] BB2#,3#,HB3#,RB2# |
72110-90B00 |
US $132.50 |
||
|
72130
|
72130
72130-90B00 Track Assy, Rh Seat, Inner[05.1982 - 01.1993] BB2#,3#,HB3#,RB2# |
72130-90B00 |
US $218.40 |
||
|
72510
|
72510
72510-90B01 Adjuster Assy, Reclining Seat Back, Rh[05.1982 - 01.1993] BB20,21,30,31,RB20..39C,44C |
72510-90B01 |
US $292.66 |
||
|
72510A
|
72510A
90506-18015
Spring, Tension (For Front Seat Adjuster Outer)
[05.1982 - 01.1993] BB2#,3#,HB3#,RB2# |
90506-18015 |
— | ||
|
72524
|
72524
72525-14010-02
Handle, Reclining Adjuster Release
[10.1986 - 08.1988] BB2#,3#,HB3#,RB2# DARK WINE,DARK WINE |
72525-14010-02 |
— | ||
| replacement | |||||
|
72524
|
72524
72525-14010-01
Handle, Reclining Adjuster Release
[10.1986 - 08.1988] BB2#,3#,HB3#,RB2# DARK WINE,DARK WINE |
72525-14010-01 |
— | ||
|
72524
|
72524
72525-14010-20 Handle, Reclining Adjuster Release[08.1988 - 01.1993] BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 SABLE,SABLE |
72525-14010-20 |
US $12.38 |
||
| replacement | |||||
|
72524
|
72524
72525-14010-01
Handle, Reclining Adjuster Release
[08.1988 - 01.1993] BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 SABLE,SABLE |
72525-14010-01 |
— | ||
|
72524
|
72524
72525-90B00 Handle, Reclining Adjuster Release[05.1982 - 10.1986] BB2#,3#,HB3#,RB2# |
72525-90B00 |
US $12.38 |
||
| replacement | |||||
|
72524
|
72524
72525-14010-01
Handle, Reclining Adjuster Release
[05.1982 - 10.1986] BB2#,3#,HB3#,RB2# |
72525-14010-01 |
— | ||
|
72551
|
72551
72551-90A00-02
Cover, Reclining Hinge, No.1
[10.1986 - 08.1988] BB2#,3#,HB3#,RB2# DARK WINE,DARK WINE |
72551-90A00-02 |
— | ||
| replacement | |||||
|
72551
|
72551
72551-90A00-03
Cover, Reclining Hinge Outer, Rh
[10.1986 - 08.1988] BB2#,3#,HB3#,RB2# DARK WINE,DARK WINE |
72551-90A00-03 |
— | ||
|
72551
|
72551
72551-90A00-36
Cover, Reclining Hinge, No.1
[08.1988 - 01.1993] BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 SABLE,SABLE |
72551-90A00-36 |
— | ||
| replacement | |||||
|
72551
|
72551
72551-90A00-B0 Cover, Reclining Hinge Outer, Rh[08.1988 - 01.1993] BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 SABLE,SABLE |
72551-90A00-B0 |
US $29.99 |
||
|
72551
|
72551
72551-90B00 Cover, Reclining Hinge, No.1[05.1982 - 10.1986] BB2#,3#,HB30,36,RB2# |
72551-90B00 |
US $30.14 |
||
| replacement | |||||
|
72551
|
72551
72551-90A00-03
Cover, Reclining Hinge Outer, Rh
[05.1982 - 10.1986] BB2#,3#,HB30,36,RB2# |
72551-90A00-03 |
— | ||
|
78081
|
78081
78081-90B00 Cover Sub-Assy, Assistant Seat Cushion, No.1[05.1982 - 11.1987] BB20,21,RB20..39C PF |
78081-90B00 |
US $80.08 |
||
| replacement | |||||
|
78081
|
78081
78081-90B04-02 Cover Sub-Assy, Assistant Seat Cushion, No.1[05.1982 - 11.1987] BB20,21,RB20..39C PF |
78081-90B04-02 |
US $136.86 |
||
|
78081
|
78081
78081-90B04-02 Cover Sub-Assy, Assistant Seat Cushion, No.1[11.1987 - 01.1993] BB21,RB20..39C PF,RED,RED |
78081-90B04-02 |
US $136.86 |
||
|
78083
|
78083
78083-90B00
Cover Sub-Assy, Assistant Seat Back, No.1
[05.1982 - 11.1987] BB20,21,RB20..39C PF |
78083-90B00 |
— | ||
|
78083
|
78083
78083-90B05-02 Cover Sub-Assy, Assistant Seat Back, No.1[11.1987 - 01.1993] BB21,RB20..39C PF,RED,RED |
78083-90B05-02 |
US $75.71 |
||
|
78809
|
78809
78809-90B00 Bracket Sub-Assy, Assistant Seat[05.1982 - 01.1993] BB20,21,30,31,RB20..39C,44C |
78809-90B00 |
US $234.42 |
||
| replacement | |||||
|
78809
|
78809
78705-36011-B0 Bracket Sub-Assy, Sub Seat Cushion[05.1982 - 01.1993] BB20,21,30,31,RB20..39C,44C |
78705-36011-B0 |
US $102.96 |
||
|
78820
|
78820
78820-90B00
Cushion Assy, Assistant Seat, No.1
[05.1982 - 11.1987] BB20,21,RB20..39C PF |
78820-90B00 |
— | ||
|
78820
|
78820
78820-90B04-02
Cushion Assy, Assistant Seat, No.1
[11.1987 - 01.1993] BB21,RB20..39C PF,RED,RED |
78820-90B04-02 |
— | ||
|
78840
|
78840
78840-90B00
Back Assy, Assistant Seat, No.1
[05.1982 - 11.1987] BB20,21,RB20..39C PF |
78840-90B00 |
— | ||
|
78840
|
78840
78840-90B04-02
Back Assy, Assistant Seat, No.1
[11.1987 - 01.1993] BB21,RB20..39C PF,RED,RED |
78840-90B04-02 |
— | ||
|
9010110055
|
9010110055
90101-10055 Bolt(For Clutch Pedal Stopper) |
90101-10055 |
US $1.38 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
|
9011908258
|
9011908258
90119-08258 New Genuine Part |
90119-08258 |
US $1.09 |
||
|
9011908301
|
9011908301
90119-08301 BOLT |
90119-08301 |
US $2.08 |
||
|
9011910037
|
9011910037
90119-10037
BOLT
|
90119-10037 |
— | ||
|
9015480045
|
9015480045
90154-80045
New Genuine Part
|
90154-80045 |
— | ||
|
9017908143
|
9017908143
90179-08143 NUT |
90179-08143 |
US $1.76 |
||
|
9024008044
|
9024008044
90240-08044 PIN |
90240-08044 |
US $2.20 |
||
|
9025508002
|
9025508002
90255-08002 New Genuine Part |
90255-08002 |
US $5.82 |
||
|
9038612005
|
9038612005
90386-12005 Bush (For Front Seat Hinge Pin) |
90386-12005 |
from US $0.96 |
||
|
9038908007
|
9038908007
90389-08007 New Genuine Part |
90389-08007 |
US $3.20 |
||
|
9038908037
|
9038908037
90389-08037
BUSH
|
90389-08037 |
— | ||
| replacement | |||||
|
9038908037
|
9038908037
90387-08052 BUSH |
90387-08052 |
US $2.56 |
||
|
9046816012
|
9046816012
90468-16012 Pin, Sub Seat Cushion Pin |
90468-16012 |
from US $0.94 |
||
|
9046818071
|
9046818071
90468-18071
Clip (For Front Seat Cushion Cover)
|
90468-18071 |
— | ||
| replacement | |||||
|
9046818071
|
9046818071
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.78 |
||
|
9052308001
|
9052308001
90523-08001 E Ring (For Tilt Motor Shaft, Lower) |
90523-08001 |
from US $1.40 |
||
|
9056010026
|
9056010026
90560-10026 SPACER |
90560-10026 |
US $2.24 |
||
|
9165660830
|
9165660830
91656-60830 Bolt (For Transfer Power Take-Off Cover) |
91656-60830 |
US $2.33 |
||
| replacement | |||||
|
9165660830
|
9165660830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
from US $1.44 |
||
|
9354055010
|
9354055010
93540-55010 SCREW |
93540-55010 |
US $1.12 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9454301200
|
9454301200
94543-01200 WASHER |
94543-01200 |
US $2.08 |
||
|
9461120800
|
9461120800
94611-20800
New Genuine Part
|
94611-20800 |
— | ||
