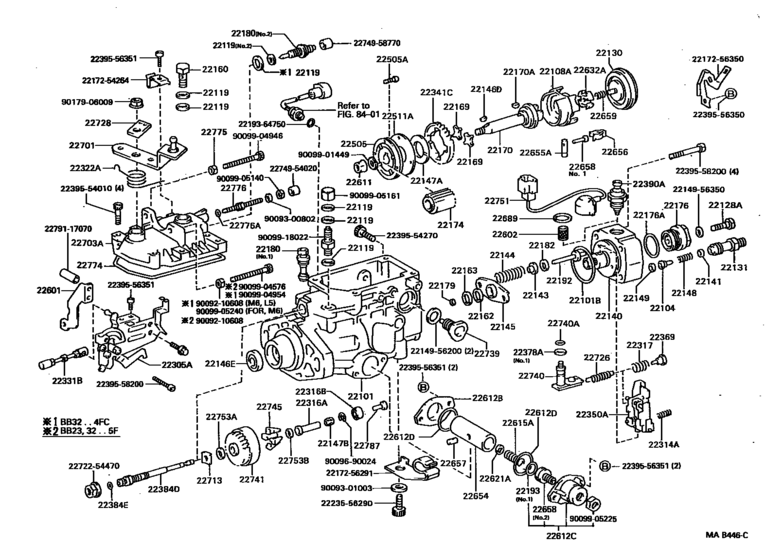

Injection Pump Body ([08.1988 - ] (8808- )14B) Diagram Toyota COASTER
- Year
- 1990 - 1993
- Sales region
- General
- Frame
- BB32
- grade
- STD
- Roof
- HRF
- ENGINE
- 14B
- DESTINATION
- GEN
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1990
- To
- 01.1993
- Gear Shift Type
- 4FC
- Seating Capacity
- 30S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22101
|
22101
22101-64250 Housing Sub-Assy, Injection Pump[08.1988 - 01.1993] 14B..BB32..4FC |
22101-64250 |
US $167.73 |
||
|
22101B
|
22101B
90099-14053 Ring, O(For Injection Pump Housing)[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
90099-14053 |
from US $3.84 |
||
|
22104
|
22104
22104-56350 Valve Sub-Assy, Injection Pump Delivery[08.1988 - 02.1990] 14B..BB23,32 |
22104-56350 |
US $26.50 |
||
|
22108A
|
22108A
22108-96300
Ring Sub-Assy, Roller
[01.1990 - 01.1993] 14B..BB32..4FC |
22108-96300 |
— | ||
|
22119
|
22119
22119-58770
Washer, Air Bleeder Nipple
[08.1988 - 01.1993] 14B..BB23,32 NO.2,T=3.7 |
22119-58770 |
— | ||
|
22119
|
22119
22119-6A210 Washer, Air Bleeder Nipple[08.1988 - 01.1993] 14B..BB23,32 NO.2,T=3.1 |
22119-6A210 |
US $1.50 |
||
|
22119
|
22119
90099-01533
Washer, Air Bleeder Nipple
[08.1988 - 01.1993] 14B..BB23,32 NO.2,T=1 |
90099-01533 |
— | ||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[08.1988 - 01.1993] 3B..BB21; 14B..BB23,32 |
90201-12109 |
from US $1.38 |
||
|
22128A
|
22128A
22128-56330
Bolt, Distributive Head
[08.1988 - 01.1993] 14B..BB23,32 |
22128-56330 |
— | ||
|
22130
|
22130
22130-56350
Camplate Sub-Assy, Face
[08.1988 - 01.1993] 14B..BB23,32 |
22130-56350 |
— | ||
|
22131
|
22131
22131-54010
Holder, Delivery Valve
[08.1988 - 01.1993] 14B..BB23,32 |
22131-54010 |
— | ||
|
22140
|
22140
22140-56350
Head Sub-Assy, Distributive Pump
[08.1988 - 01.1993] 14B..BB23,32 |
22140-56350 |
— | ||
|
22141
|
22141
22565-56350
Seat, Delivery Valve Spring
[08.1988 - 01.1993] 14B..BB23,32 |
22565-56350 |
— | ||
|
22143
|
22143
22143-56350
Seat, Spring Upper
[08.1988 - 01.1993] 1HDT..HDB30; 14B..BB23,32 |
22143-56350 |
— | ||
|
22144
|
22144
22144-56350
Spring, Pump Plunger
[08.1988 - 01.1993] 14B..BB23,32 |
22144-56350 |
— | ||
|
22145
|
22145
22145-56350
Seat, Spring, Lower
[08.1988 - 01.1993] 1HDT..HDB30; 14B..BB23,32 |
22145-56350 |
— | ||
|
22146D
|
22146D
90099-13018 Key(For Drive Gear)[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
90099-13018 |
US $6.88 |
||
|
22146E
|
22146E
22544-64740 Seal, Oil, Injection Pump Camshaft[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22544-64740 |
US $4.39 |
||
|
22147A
|
22147A
22161-54010 Washer, Drive Shaft[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22161-54010 |
US $6.99 |
||
|
22147B
|
22147B
22147-54290
Ring, Governor Sleeve
[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22147-54290 |
— | ||
|
22148
|
22148
22148-56350
Spring, Delivery Valve
[08.1988 - 01.1993] 14B..BB23,32 |
22148-56350 |
— | ||
|
22149
|
22149
22149-56351 Gasket, Delivery Valve[08.1988 - 01.1993] 1HDT..HDB30; 14B..BB23,32 |
22149-56351 |
US $0.70 |
||
|
22160
|
22160
22160-56350
Screw Sub-Assy, Overflow
[08.1988 - 01.1993] 1HDT..HDB30; 14B..BB23,32 |
22160-56350 |
— | ||
|
22162
|
22162
22162-54010 Plate, Plunger Upper[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22162-54010 |
US $3.52 |
||
|
22163
|
22163
22163-54010 Plate, Plunger Lower[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22163-54010 |
US $3.84 |
||
|
22169
|
22169
22169-54180 Joint, Rubber[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22169-54180 |
US $17.06 |
||
|
22170
|
22170
22170-56350
Shaft Sub-Assy, Drive
[08.1988 - 01.1993] 14B..BB23,32 |
22170-56350 |
— | ||
|
22170A
|
22170A
90099-13017
Key(For Drive Gear)
[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
90099-13017 |
— | ||
|
22174
|
22174
22174-58270
Shaft, Spline
[08.1988 - 01.1993] 14B..BB23,32 |
22174-58270 |
— | ||
|
22176
|
22176
22176-54020 Plug, Distributive Head[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22176-54020 |
from US $10.48 |
||
|
22176A
|
22176A
90099-14052
Ring, O(For Distributive Head Plug)
[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
90099-14052 |
— | ||
| replacement | |||||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22193-54772 |
from US $2.97 |
||
|
22179
|
22179
22179-54010
Shim, Plunger Adjusting
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=1.9,T=1.9 |
22179-54010 |
— | ||
|
22179
|
22179
22179-54011
Shim, Plunger Adjusting
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=2.0,T=2.0 |
22179-54011 |
— | ||
|
22179
|
22179
22179-54012
Shim, Plunger Adjusting
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=2.1,T=2.1 |
22179-54012 |
— | ||
|
22179
|
22179
22179-54013
Shim, Plunger Adjusting
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=2.2,T=2.2 |
22179-54013 |
— | ||
|
22179
|
22179
22179-54014
Shim, Plunger Adjusting
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=2.3,T=2.3 |
22179-54014 |
— | ||
|
22179
|
22179
22179-54015
Shim, Plunger Adjusting
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=2.4,T=2.4 |
22179-54015 |
— | ||
|
22179
|
22179
22179-54016
Shim, Plunger Adjusting
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=2.5,T=2.5 |
22179-54016 |
— | ||
|
22179
|
22179
22179-54017
Shim, Plunger Adjusting
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=2.6,T=2.6 |
22179-54017 |
— | ||
|
22179
|
22179
22179-54018
Shim, Plunger Adjusting
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=2.7,T=2.7 |
22179-54018 |
— | ||
|
22179
|
22179
22179-54019
Shim, Plunger Adjusting
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=2.8,T=2.8 |
22179-54019 |
— | ||
|
22179
|
22179
22179-54020
Shim, Plunger Adjusting
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=2.9,T=2.9 |
22179-54020 |
— | ||
|
22180
|
22180
22180-56351
Valve Sub-Assy, Regulator
[08.1988 - 01.1993] 1HDT..HDB30 NO.1; 14B..BB23,32 NO.1 |
22180-56351 |
— | ||
|
22180
|
22180
22180-58770
Valve Sub-Assy, Regulator
[01.1990 - 01.1993] 14B..BB32..4FC NO.2 |
22180-58770 |
— | ||
|
22182
|
22182
22182-54010
Plate, Tappet Adjusting Shim
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=0.5,T=0.5; 1H#..HDB30,HZB30 T=0.5,T=0.5 |
22182-54010 |
— | ||
|
22182
|
22182
22183-54010
Plate, Tappet Adjusting Shim
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=0.8,T=0.8; 1H#..HDB30,HZB30 T=0.8,T=0.8 |
22183-54010 |
— | ||
|
22182
|
22182
22184-54010
Plate, Tappet Adjusting Shim
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=1.0,T=1.0; 1H#..HDB30,HZB30 T=1.0,T=1.0 |
22184-54010 |
— | ||
|
22182
|
22182
22185-54010
Plate, Tappet Adjusting Shim
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=1.2,T=1.2; 1H#..HDB30,HZB30 T=1.2,T=1.2 |
22185-54010 |
— | ||
|
22182
|
22182
22186-54010
Plate, Tappet Adjusting Shim
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=1.5,T=1.5; 1H#..HDB30,HZB30 T=1.5,T=1.5 |
22186-54010 |
— | ||
|
22182
|
22182
22187-54010
Plate, Tappet Adjusting Shim
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=1.8,T=1.8; 1H#..HDB30,HZB30 T=1.8,T=1.8 |
22187-54010 |
— | ||
|
22182
|
22182
22188-54010 Plate, Tappet Adjusting Shim[08.1988 - 01.1993] 14B,3B..BB2#,32 T=2.0,T=2.0; 1H#..HDB30,HZB30 T=2.0,T=2.0 |
22188-54010 |
US $4.45 |
||
|
22192
|
22192
22192-56350
Guide Sub-Assy, Plunger Spring
[08.1988 - 01.1993] 1HDT..HDB30; 14B..BB23,32 |
22192-56350 |
— | ||
|
22193
|
22193
22193-64750 Ring, O(For Lever Connecting Pin)[08.1988 - 01.1993] 14B..BB23,32 NO.1 |
22193-64750 |
from US $0.84 |
||
|
22305A
|
22305A
22305-58490
Idle-Up Sub-Assy
[01.1990 - 01.1993] 14B..BB32..4FC |
22305-58490 |
— | ||
|
22314A
|
22314A
22314-54010
Spring, Lever Support
[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22314-54010 |
— | ||
|
22316A
|
22316A
22316-55030
Sleeve, Governor
[08.1988 - 01.1993] 14B..BB23,32 MARK 45 |
22316-55030 |
— | ||
|
22316B
|
22316B
90099-10148
Bearing, Ball(For Governor Sleeve)
[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
90099-10148 |
— | ||
|
22317
|
22317
22317-56350
Spring, Governor Domper
[08.1988 - 01.1993] 14B..BB23,32 K=0.1,L=8.2 |
22317-56350 |
— | ||
|
22322A
|
22322A
22322-54020
Spring, Return
[08.1988 - 01.1993] 14B..BB23,32 |
22322-54020 |
— | ||
|
22331B
|
22331B
22331-58490 Rod Sub-Assy[01.1990 - 01.1993] 14B..BB32..4FC |
22331-58490 |
from US $20.09 |
||
|
22341C
|
22341C
22341-54010 Gear, Governor Drive[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22341-54010 |
US $22.68 |
||
|
22350A
|
22350A
22350-58470
Governor Assy, Torque Control
[08.1988 - 01.1993] 14B..BB32 |
22350-58470 |
— | ||
|
22369
|
22369
22369-54010
Seat, Governor Spring
[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22369-54010 |
— | ||
|
22378A
|
22378A
22378-64010 Washer, Governor Thrust[08.1988 - 01.1993] 14B,3B..BB2#,32 NO.1 |
22378-64010 |
from US $0.42 |
||
|
22384D
|
22384D
22384-54010
Shaft, Governor
[08.1988 - 01.1993] 14B,3B..BB2#,32 |
22384-54010 |
— | ||
|
22384E
|
22384E
90099-14049
Ring, O(For Governor Main Shaft)
[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
90099-14049 |
— | ||
|
22390A
|
22390A
22390-6A510
Solenoid Assy, Fuel Cut
[01.1990 - 01.1993] 14B..BB32..4FC; 3B..BB21..WOC..(GEN,ME); 1HZ..HZB30..WOC..GEN |
22390-6A510 |
— | ||
| replacement | |||||
|
22390A
|
22390A
22390-6A511 Solenoid Assy, Fuel Cut[01.1990 - 01.1993] 14B..BB32..4FC; 3B..BB21..WOC..(GEN,ME); 1HZ..HZB30..WOC..GEN |
22390-6A511 |
from US $108.33 |
||
|
22505
|
22505
22505-54010 Pump Sub-Assy, Fuel Feed[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22505-54010 |
from US $104.83 |
||
|
22505A
|
22505A
90099-00723
Screw(For Fuel Feed Pump)
[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
90099-00723 |
— | ||
|
22511A
|
22511A
22511-58650 Cover, Feed Pump[08.1988 - 01.1993] 14B,3B..BB2#,32 |
22511-58650 |
US $7.12 |
||
|
22601
|
22601
22601-58490
Bracket Sub-Assy, Idle Up
[01.1990 - 01.1993] 14B..BB32..4FC |
22601-58490 |
— | ||
|
22602
|
22602
22602-56350 Filter Sub-Assy, Fuel Injection Pump[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22602-56350 |
from US $10.31 |
||
|
22611
|
22611
22611-58200
Nut, Timer Round
[08.1988 - 01.1993] 3B..BB21; 14B..BB23,32 |
22611-58200 |
— | ||
|
22612B
|
22612B
22612-56350
Cover, Timer
[08.1988 - 01.1993] 1HDT..HDB30; 14B..BB23,32 |
22612-56350 |
— | ||
|
22612C
|
22612C
22790-56351
Cover, Timer
[08.1988 - 01.1993] 14B..BB23,32 |
22790-56351 |
— | ||
|
22612D
|
22612D
90099-14105
Ring, O(For Timer Cover)
[08.1988 - 01.1993] 14B..BB23,32 |
90099-14105 |
— | ||
| replacement | |||||
|
22612D
|
22612D
22193-17840 Ring, O(For Timer Cover)[08.1988 - 01.1993] 14B..BB23,32 |
22193-17840 |
from US $2.93 |
||
|
22615A
|
22615A
22615-56350
Spring, Timer Outer
[08.1988 - 01.1993] 14B..BB32 COEFFICIENT OF S=1.0 |
22615-56350 |
— | ||
| replacement | |||||
|
22615A
|
22615A
22615-56440
Spring, Timer Outer
[08.1988 - 01.1993] 14B..BB32 COEFFICIENT OF S=1.0 |
22615-56440 |
— | ||
|
22615A
|
22615A
22615-56351
Spring, Timer Outer
[08.1988 - 01.1993] 14B..BB32 COEFFICIENT OF S=1.1,L=65.3 |
22615-56351 |
— | ||
| replacement | |||||
|
22615A
|
22615A
22615-56441
Spring, Timer Outer
[08.1988 - 01.1993] 14B..BB32 COEFFICIENT OF S=1.1,L=65.3 |
22615-56441 |
— | ||
|
22615A
|
22615A
22615-56352
Spring, Timer Outer
[08.1988 - 01.1993] 14B..BB32 COEFFICIENT OF S=1.2,L=63.6 |
22615-56352 |
— | ||
| replacement | |||||
|
22615A
|
22615A
22615-56442
Spring, Timer Outer
[08.1988 - 01.1993] 14B..BB32 COEFFICIENT OF S=1.2,L=63.6 |
22615-56442 |
— | ||
|
22621A
|
22621A
22625-54277
Washer, Timer Adjusting
[08.1988 - 01.1993] 14B..BB23,32 T=1.0 |
22625-54277 |
— | ||
|
22632A
|
22632A
22632-56350
Coupling, Injection Pump
[08.1988 - 01.1993] 1HDT..HDB30; 14B..BB23,32 |
22632-56350 |
— | ||
|
22654
|
22654
22654-56330
Piston, Timer
[01.1990 - 01.1993] 14B..BB32..4FC |
22654-56330 |
— | ||
|
22655A
|
22655A
22655-54010 Pin, Timer Slide[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22655-54010 |
US $35.96 |
||
|
22656
|
22656
22656-54010
Clip, Timer
[08.1988 - 01.1993] 14B,3B..BB2#,32; 1HZ..HZB30 |
22656-54010 |
— | ||
| replacement | |||||
|
22656
|
22656
22656-17840
Clip, Timer
[08.1988 - 01.1993] 14B,3B..BB2#,32; 1HZ..HZB30 |
22656-17840 |
— | ||
|
22657
|
22657
22657-54010 Clip, Timer[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22657-54010 |
US $28.86 |
||
|
22658
|
22658
22658-54010
Stopper, Timer
[08.1988 - 01.1993] 14B,3B..BB2#,32 NO.1; 1H#..HDB30,HZB30 NO.1 |
22658-54010 |
— | ||
| replacement | |||||
|
22658
|
22658
22658-17840
Stopper, Timer
[08.1988 - 01.1993] 14B,3B..BB2#,32 NO.1; 1H#..HDB30,HZB30 NO.1 |
22658-17840 |
— | ||
|
22658
|
22658
22658-54450
Stopper, Timer
[08.1988 - 01.1993] 14B,3B..BB2#,32 NO.2; 1HDT..HDB30 NO.2 |
22658-54450 |
— | ||
|
22659
|
22659
22659-58650 Spring, Coupling[08.1988 - 01.1993] 1HDT..HDB30; 14B..BB23,32 |
22659-58650 |
US $1.60 |
||
|
22689
|
22689
22689-56350 Washer(For Swivel Nipple)[08.1988 - 01.1993] 14B..BB23,32 |
22689-56350 |
from US $0.70 |
||
|
22701
|
22701
22701-58490
Lever Sub-Assy, Adjusting
[01.1990 - 01.1993] 14B..BB32..4FC MARK"289" |
22701-58490 |
— | ||
|
22701
|
22701
22701-58491
Lever Sub-Assy, Adjusting
[01.1990 - 01.1993] 14B..BB32..4FC MARK"290"; 1HZ..HZB30..ME MARK"290" |
22701-58491 |
— | ||
|
22703A
|
22703A
22703-6A210
Cover Sub-Assy, Governor
[08.1988 - 01.1993] 14B..BB23,32 |
22703-6A210 |
— | ||
|
22713
|
22713
22713-54010 Washer, Governor Gear Adjusting[08.1988 - 01.1993] 14B,3B..BB2#,32 T=1.05,T=1.05; 1H#..HDB30,HZB30 T=1.05,T=1.05 |
22713-54010 |
US $6.84 |
||
|
22713
|
22713
22714-54010
Washer, Governor Gear Adjusting
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=1.25,T=1.25; 1H#..HDB30,HZB30 T=1.25,T=1.25 |
22714-54010 |
— | ||
|
22713
|
22713
22715-54010
Washer, Governor Gear Adjusting
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=1.45,T=1.45; 1H#..HDB30,HZB30 T=1.45,T=1.45 |
22715-54010 |
— | ||
|
22713
|
22713
22716-54010
Washer, Governor Gear Adjusting
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=1.65,T=1.65; 1H#..HDB30,HZB30 T=1.65,T=1.65 |
22716-54010 |
— | ||
|
22713
|
22713
22717-54010
Washer, Governor Gear Adjusting
[08.1988 - 01.1993] 14B,3B..BB2#,32 T=1.85,T=1.85; 1H#..HDB30,HZB30 T=1.85,T=1.85 |
22717-54010 |
— | ||
|
22726
|
22726
22726-58470
Spring, Speed Control
[08.1988 - 01.1993] 14B..BB23,32 |
22726-58470 |
— | ||
|
22728
|
22728
22728-54010
Guide, Return Spring
[08.1988 - 01.1993] 1H#..HDB30,HZB30; 14B..BB23,32 |
22728-54010 |
— | ||
|
22739
|
22739
22739-54020 Bolt, Governor Link Support[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22739-54020 |
US $12.11 |
||
|
22740
|
22740
22740-21910 Shaft Sub-Assy, Governor Adjusting[01.1990 - 01.1993] 14B..BB32..4FC |
22740-21910 |
US $23.71 |
||
|
22740A
|
22740A
22193-54770 Ring, O(For Governor Adjusting Shaft)[11.1991 - 01.1993] 14B,3B..BB2#,32; 1HZ..HZB30 |
22193-54770 |
from US $2.15 |
||
|
22740A
|
22740A
90099-14048
Bearing, Ball(For Governor Sleeve)
[08.1988 - 11.1991] 1H#..HDB30,HZB30; 14B,3B..BB2#,32 |
90099-14048 |
— | ||
| replacement | |||||
|
22740A
|
22740A
22193-54770 Ring, O(For Governor Adjusting Shaft)[08.1988 - 11.1991] 1H#..HDB30,HZB30; 14B,3B..BB2#,32 |
22193-54770 |
from US $2.15 |
||
|
22741
|
22741
22741-54020 Holder Sub-Assy, Flyweight[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22741-54020 |
US $79.46 |
||
|
22745
|
22745
22745-56350
Flyweight, Distributive Pump
[08.1988 - 01.1993] 1HDT..HDB30; 14B..BB23,32 |
22745-56350 |
— | ||
|
22751
|
22751
22751-54311 Wire Sub-Assy, Fuel Cut Solenoid[01.1990 - 01.1993] 14B..BB32..4FC; 3B..BB21..WOC..(GEN,ME) |
22751-54311 |
US $7.86 |
||
|
22753A
|
22753A
22753-54010
Washer, Flyweight, No.1
[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22753-54010 |
— | ||
|
22753B
|
22753B
22753-54020 Washer, Flyweight, No.2[08.1988 - 01.1993] 1H#..HDB30,HZB30; 14B..BB23,32 |
22753-54020 |
US $1.68 |
||
|
22774
|
22774
22774-54010
Gasket, Governor Cover
[08.1988 - 11.1991] 1H#..HDB30,HZB30; 14B,3B..BB2#,32 |
22774-54010 |
— | ||
| replacement | |||||
|
22774
|
22774
22774-54270 Gasket, Governor Cover[08.1988 - 11.1991] 1H#..HDB30,HZB30; 14B,3B..BB2#,32 |
22774-54270 |
from US $3.14 |
||
|
22774
|
22774
22774-54270 Gasket, Governor Cover[11.1991 - 01.1993] 14B,3B..BB2#,32; 1HZ..HZB30 |
22774-54270 |
from US $3.14 |
||
|
22775
|
22775
22775-77121
Nut, Rock
[08.1988 - 01.1993] 14B,3B..BB2#,32 |
22775-77121 |
— | ||
|
22776
|
22776
22776-55030
Screw, Smoke Set Adjusting
[08.1988 - 01.1993] 1HDT..HDB30; 14B..BB23,32 |
22776-55030 |
— | ||
|
22776A
|
22776A
90099-14047
Ring, O(For Smoke Set Screw)
[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
90099-14047 |
— | ||
| replacement | |||||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[08.1988 - 01.1993] 14B,3B..BB2#,32; 1H#..HDB30,HZB30 |
22193-54771 |
US $1.37 |
||
|
22787
|
22787
22787-54026 Plug, Governor Sleeve[08.1988 - 01.1993] 3B..BB21 L=3.3,L=3.3; 14B..BB23,32 L=3.3,L=3.3 |
22787-54026 |
US $9.38 |
||
|
22787
|
22787
22787-54027 Plug, Governor Sleeve[08.1988 - 01.1993] 1H#..HDB30,HZB30 L=3.4,L=3.4; 3B..BB21 L=3.4,L=3.4; 14B..BB23,32 L=3.4,L=3.4 |
22787-54027 |
US $19.27 |
||
|
22787
|
22787
22787-54028
Plug, Governor Sleeve
[08.1988 - 01.1993] 14B..BB23,32 L=3.5,L=3.5 |
22787-54028 |
— | ||
|
22787
|
22787
22787-54029
Plug, Governor Sleeve
[08.1988 - 01.1993] 1H#..HDB30,HZB30 L=3.6,L=3.6; 14B..BB23,32 L=3.6,L=3.6 |
22787-54029 |
— | ||
|
22787
|
22787
22787-54030
Plug, Governor Sleeve
[08.1988 - 01.1993] 14B..BB23,32 L=3.7,L=3.7 |
22787-54030 |
— | ||
|
22787
|
22787
22787-54031
Plug, Governor Sleeve
[08.1988 - 01.1993] 1H#..HDB30,HZB30 L=3.8,L=3.8; 14B..BB23,32 L=3.8,L=3.8 |
22787-54031 |
— | ||
|
22787
|
22787
22787-54032
Plug, Governor Sleeve
[08.1988 - 01.1993] 14B..BB23,32 L=3.9,L=3.9 |
22787-54032 |
— | ||
|
22787
|
22787
22787-54033
Plug, Governor Sleeve
[08.1988 - 01.1993] 1H#..HDB30,HZB30 L=4.0,L=4.0; 14B..BB23,32 L=4.0,L=4.0 |
22787-54033 |
— | ||
|
22787
|
22787
22787-54034
Plug, Governor Sleeve
[08.1988 - 01.1993] 14B..BB23,32 L=4.3,L=4.3 |
22787-54034 |
— | ||
|
22787
|
22787
22787-54035
Plug, Governor Sleeve
[08.1988 - 01.1993] 14B..BB23,32 L=4.5,L=4.5 |
22787-54035 |
— | ||
|
22787
|
22787
22787-54036
Plug, Governor Sleeve
[08.1988 - 01.1993] 14B..BB23,32 L=4.7,L=4.7 |
22787-54036 |
— | ||
|
22787
|
22787
22787-64640
Plug, Governor Sleeve
[08.1988 - 01.1993] 1H#..HDB30,HZB30 L=4.1,L=4.1; 14B..BB23,32 L=4.1,L=4.1 |
22787-64640 |
— | ||
|
22787
|
22787
22787-64641
Plug, Governor Sleeve
[08.1988 - 01.1993] 1H#..HDB30,HZB30 L=3.0,L=3.0; 14B..BB23,32 L=3.0,L=3.0 |
22787-64641 |
— | ||
|
22787
|
22787
22787-64642
Plug, Governor Sleeve
[08.1988 - 01.1993] 14B..BB23,32 L=3.1,L=3.1 |
22787-64642 |
— | ||
|
22787
|
22787
22787-64643
Plug, Governor Sleeve
[08.1988 - 01.1993] 1H#..HDB30,HZB30 L=3.2,L=3.2; 14B..BB23,32 L=3.2,L=3.2 |
22787-64643 |
— | ||
|
22787
|
22787
22787-64680
Plug, Governor Sleeve
[08.1988 - 01.1993] 1H#..HDB30,HZB30 L=4.2,L=4.2; 14B..BB23,32 L=4.2,L=4.2 |
22787-64680 |
— | ||
|
2214956200
|
2214956200
22149-56200 Gasket, Delivery Valve |
22149-56200 |
US $1.40 |
||
|
2214956350
|
2214956350
22149-56350
Gasket, Delivery Valve
|
22149-56350 |
— | ||
|
2217254264
|
2217254264
22172-54264
Clip, Connector Support, Solenoid
|
22172-54264 |
— | ||
|
2217256291
|
2217256291
22172-56291
Clip, Connector Support, Solenoid
|
22172-56291 |
— | ||
|
2217256350
|
2217256350
22172-56350
Clip, Connector Support, Solenoid
|
22172-56350 |
— | ||
|
2219364750
|
2219364750
22193-64750 Ring, O(For Lever Connecting Pin) |
22193-64750 |
from US $0.84 |
||
|
2223556290
|
2223556290
22235-56290
Inlet, Auxiliary Air
|
22235-56290 |
— | ||
|
2239554010
|
2239554010
22395-54010
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-54010 |
— | ||
|
2239554270
|
2239554270
22395-54270
Bolt, Suction Control Valve
|
22395-54270 |
— | ||
|
2239556350
|
2239556350
22395-56350
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56350 |
— | ||
|
2239556351
|
2239556351
22395-56351
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56351 |
— | ||
|
2239558200
|
2239558200
22395-58200
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-58200 |
— | ||
|
2272254470
|
2272254470
22722-54470 Nut, Governor Shaft Rock |
22722-54470 |
US $11.10 |
||
|
2274954020
|
2274954020
22749-54020
Collar, Smoke Set Adjusting
|
22749-54020 |
— | ||
|
2274958770
|
2274958770
22749-58770
Collar, Smoke Set Adjusting
|
22749-58770 |
— | ||
|
2279117070
|
2279117070
22791-17070
Bushing(for Throttle Position Sensor Lever Shaft)
|
22791-17070 |
— | ||
|
9009210608
|
9009210608
90092-10608
New Genuine Part
|
90092-10608 |
— | ||
|
9009300802
|
9009300802
90093-00802
Washer, Plate(For Connecting Pin)
|
90093-00802 |
— | ||
|
9009301003
|
9009301003
90093-01003
New Genuine Part
|
90093-01003 |
— | ||
|
9009690024
|
9009690024
90096-90024
Ring, O(For Stopper Lever)
|
90096-90024 |
— | ||
|
9009901449
|
9009901449
90099-01449
Washer, Spring
|
90099-01449 |
— | ||
|
9009904576
|
9009904576
90099-04576
BOLT
|
90099-04576 |
— | ||
|
9009904946
|
9009904946
90099-04946
Ring, O(For Bellows Cover)
|
90099-04946 |
— | ||
|
9009904954
|
9009904954
90099-04954
BOLT
|
90099-04954 |
— | ||
|
9009905140
|
9009905140
90099-05140
New Genuine Part
|
90099-05140 |
— | ||
|
9009905161
|
9009905161
90099-05161 Nut, Timer Round |
90099-05161 |
from US $1.25 |
||
|
9009905225
|
9009905225
90099-05225
NUT
|
90099-05225 |
— | ||
|
9009905240
|
9009905240
90099-05240
New Genuine Part
|
90099-05240 |
— | ||
|
9009918022
|
9009918022
90099-18022
SCREW
|
90099-18022 |
— | ||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.90 |
||
