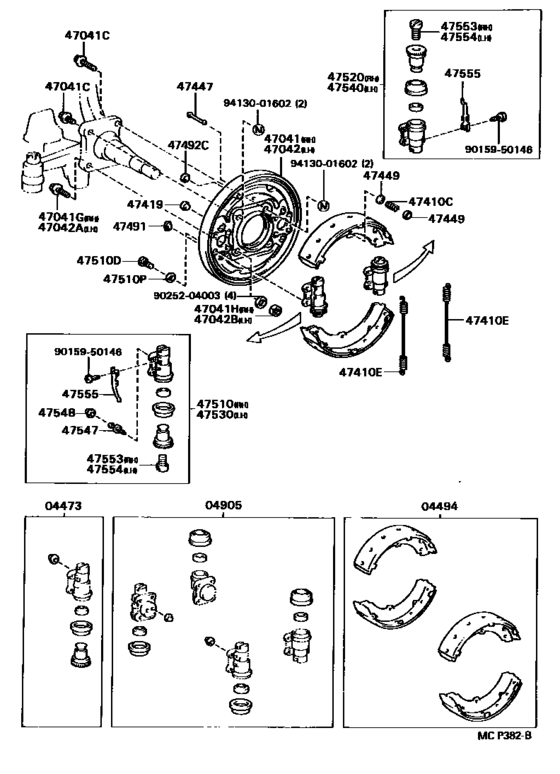

Front Drum Brake Wheel Cylinder & Backing Plate ([01.1993 - 07.1999] (9301-9907)BB4#..WOC) Diagram Toyota COASTER
- Year
- 1993 - 1999
- Sales region
- Japan
- Frame
- BB40
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 07.1999
- Gear Shift Type
- 5F
- Seating Capacity
- 39S
- Vehicle Model
- Coaster
- Fuel Induction
- DSL2
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04473
|
04473
04473-36030 Cylinder Kit, Front Wheel[01.1993 - 07.1999] BB4#..WOC 右側 |
04473-36030 |
US $13.28 |
||
|
04473
|
04473
04473-36040 Cylinder Kit, Front Wheel[01.1993 - 07.1999] BB4#..WOC 左側 |
04473-36040 |
from US $4.27 |
||
|
04494
|
04494
04494-36180 Shoe Kit, Front Brake[01.1993 - 07.1999] BB4#..WOC |
04494-36180 |
from US $152.98 |
||
|
04905
|
04905
04905-36110
Cup Kit, Front Wheel Cylinder
[01.1993 - 06.1995] BB4#..WOC |
04905-36110 |
— | ||
| replacement | |||||
|
04905
|
04905
04905-36140 Cup Kit, Front Wheel Cylinder[01.1993 - 06.1995] BB4#..WOC |
04905-36140 |
from US $9.26 |
||
|
04905
|
04905
04905-36140 Cup Kit, Front Wheel Cylinder[06.1995 - 07.1999] BB40..WOC |
04905-36140 |
from US $9.26 |
||
|
47041
|
47041
47041-36180 Plate Sub-Assy, Brake Backing, Front Rh[01.1993 - 07.1999] BB4#..WOC |
47041-36180 |
US $112.11 |
||
|
47041C
|
47041C
90105-16044 Bolt(For Backing Plate To Steering Knuckle Arm Setting)[01.1993 - 07.1999] BB4#..WOC ＊１６−１．５ＰＸ６０−２６．５ |
90105-16044 |
US $5.92 |
||
|
47041C
|
47041C
90105-16045 Bolt(For Backing Plate To Steering Knuckle Arm Setting)[01.1993 - 07.1999] BB4#..WOC ＊１６−１．５ＰＸ３５．５−２６．５ |
90105-16045 |
US $3.84 |
||
|
47041G
|
47041G
90102-16001 Bolt(For Backing Plate To Steering Knuckle Arm Setting)[01.1993 - 07.1999] BB4#..WOC *16-1.5PX65-25 |
90102-16001 |
US $5.68 |
||
|
47041G
|
47041G
90102-16002 Bolt(For Backing Plate To Steering Knuckle Arm Setting)[01.1993 - 07.1999] BB4#..WOC *16-1.5PX74-27 |
90102-16002 |
US $5.97 |
||
|
47041H
|
47041H
94145-71600 Nut(For Backing Plate To Steering Knuckle Arm Setting)[01.1993 - 07.1999] BB4#..WOC |
94145-71600 |
US $4.66 |
||
|
47042
|
47042
47042-36180 Plate Sub-Assy, Brake Backing, Front Lh[01.1993 - 07.1999] BB4#..WOC |
47042-36180 |
US $112.11 |
||
|
47042A
|
47042A
90102-16001 Bolt(For Backing Plate To Steering Knuckle Arm Setting)[01.1993 - 07.1999] BB4#..WOC *16-1.5PX65-25 |
90102-16001 |
US $5.68 |
||
|
47042A
|
47042A
90102-16002 Bolt(For Backing Plate To Steering Knuckle Arm Setting)[01.1993 - 07.1999] BB4#..WOC *16-1.5PX74-27 |
90102-16002 |
US $5.97 |
||
|
47042B
|
47042B
94145-71600 Nut(For Backing Plate To Steering Knuckle Arm Setting)[01.1993 - 07.1999] BB4#..WOC |
94145-71600 |
US $4.66 |
||
|
47410C
|
47410C
90501-20012 Spring(For Front Brake Shoe Hold Down)[01.1993 - 07.1999] BB4#..WOC |
90501-20012 |
from US $1.92 |
||
|
47410E
|
47410E
90507-29006 Spring, Tension(For Front Brake Shoe Return)[01.1993 - 07.1999] BB4#..WOC |
90507-29006 |
US $5.44 |
||
|
47419
|
47419
47419-35011 Plug, Hole(For Front Brake)[01.1993 - 07.1999] BB4#..WOC |
47419-35011 |
from US $0.94 |
||
|
47447
|
47447
47447-36030 Pin, Shoe Hold Down Spring(For Front Brake)[01.1993 - 07.1999] BB4#..WOC |
47447-36030 |
from US $2.62 |
||
|
47449
|
47449
47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)[01.1993 - 07.1999] BB4#..WOC |
47449-30020 |
from US $1.35 |
||
|
47491
|
47491
47491-36010
Plug, Hole(For Front Brake)
[01.1993 - 07.1999] BB4#..WOC |
47491-36010 |
— | ||
| replacement | |||||
|
47491
|
47491
47491-36020 Plug, Hole(For Rear Brake)[01.1993 - 07.1999] BB4#..WOC |
47491-36020 |
US $2.72 |
||
|
47492C
|
47492C
47492-28010 Plug, Shoe Inspection(For Rear Brake)[01.1993 - 07.1999] BB4#..WOC |
47492-28010 |
from US $1.72 |
||
| replacement | |||||
|
47492C
|
47492C
47492-06010
Plug, Shoe Inspection(For Rear Brake)
[01.1993 - 07.1999] BB4#..WOC |
47492-06010 |
— | ||
|
47510
|
47510
47510-36170 Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)[01.1993 - 07.1999] BB4#..WOC |
47510-36170 |
US $55.39 |
||
|
47510D
|
47510D
90101-10127 Bolt(For Front Wheel Cylinder)[01.1993 - 07.1999] BB4#..WOC |
90101-10127 |
US $1.44 |
||
|
47510P
|
47510P
90201-10287 Washer(For Front Wheel Cylinder)[01.1993 - 07.1999] BB4#..WOC |
90201-10287 |
US $2.72 |
||
|
47520
|
47520
47520-36180 Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)[01.1993 - 07.1999] BB4#..WOC |
47520-36180 |
US $50.32 |
||
|
47530
|
47530
47530-36170 Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)[01.1993 - 07.1999] BB4#..WOC |
47530-36170 |
US $55.39 |
||
|
47540
|
47540
47540-36180 Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)[01.1993 - 07.1999] BB4#..WOC |
47540-36180 |
US $55.39 |
||
|
47547
|
47547
47547-12010 Plug, Bleeder(For Release Cylinder)[01.1993 - 05.1999] BB4#..WOC |
47547-12010 |
from US $2.46 |
||
|
47547
|
47547
47547-27020 Plug, Bleeder(For Front Drum Brake)[05.1999 - 07.1999] BB40..WOC |
47547-27020 |
US $2.88 |
||
|
47548
|
47548
31478-30010 Bleeder Plug Cap[01.1993 - 07.1999] BB4#..WOC |
31478-30010 |
from US $1.66 |
||
|
47553
|
47553
47553-36060 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)[01.1993 - 07.1999] BB4#..WOC |
47553-36060 |
US $8.44 |
||
|
47554
|
47554
47554-36060 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)[01.1993 - 07.1999] BB4#..WOC |
47554-36060 |
US $8.44 |
||
|
47555
|
47555
47555-36040 Spring, Adjuster Lock(For Front Brake)[01.1993 - 07.1999] BB4#..WOC |
47555-36040 |
US $6.26 |
||
|
9015950146
|
9015950146
90159-50146 SCREW |
90159-50146 |
US $0.51 |
||
|
9025204003
|
9025204003
90252-04003 PIN |
90252-04003 |
from US $0.16 |
||
|
9413001602
|
9413001602
94130-01602 Nut(For Dust Cover To Steering Knuckle Arm Setting) |
94130-01602 |
from US $1.05 |
||
