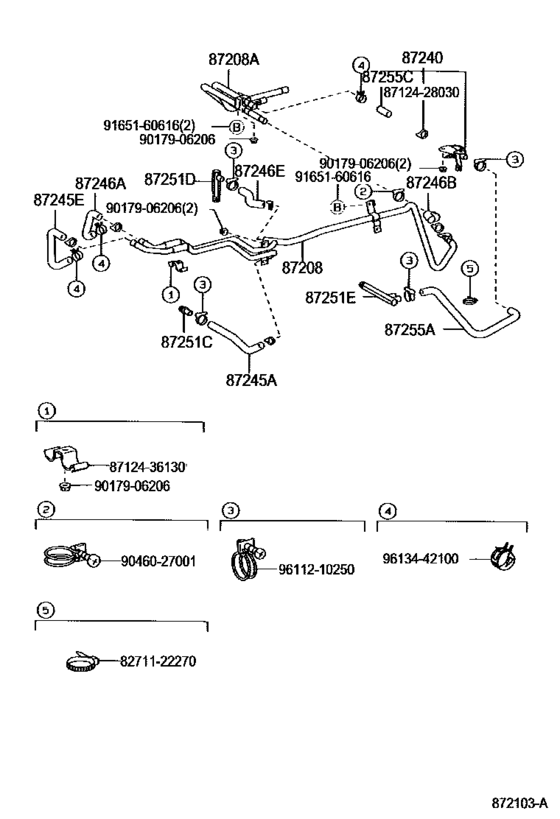

Heating & Air Conditioning - Water Piping ([01.1993 - 07.1999] ﾌﾛﾝﾄ (9301-9907)BB4#) Diagram Toyota COASTER
- Year
- 1993 - 1999
- Sales region
- Japan
- Frame
- BB40
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 07.1999
- Gear Shift Type
- 5F
- Seating Capacity
- 39S
- Vehicle Model
- Coaster
- Fuel Induction
- DSL2
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87208
|
87208
87208-36390
Pipe Sub-Assy, Heater Water
[01.1993 - 05.1997] BB4# ｱﾘ(ﾘﾔﾋ-ﾀ) |
87208-36390 |
— | ||
|
87208
|
87208
87208-36391
Pipe Sub-Assy, Heater Water
[05.1997 - 07.1999] BB4# |
87208-36391 |
— | ||
|
87208
|
87208
87208-36410
Pipe Sub-Assy, Heater Water
[01.1993 - 05.1997] BB4# ｶﾝﾚｲﾁ ｼﾖｳ |
87208-36410 |
— | ||
|
87208
|
87208
87208-36411
Pipe Sub-Assy, Heater Water
[05.1997 - 07.1999] BB4# ｶﾝﾚｲﾁ ｼﾖｳ |
87208-36411 |
— | ||
|
87208A
|
87208A
87208-36190
Pipe Sub-Assy, Heater Water, A
[01.1993 - 05.1997] BB40; BB46 ｶﾝﾚｲﾁ ｼﾖｳ & ﾌﾛﾝﾄ ﾏﾆﾕｱﾙ ﾋ-ﾀ |
87208-36190 |
— | ||
|
87208A
|
87208A
87208-36730
Pipe Sub-Assy, Heater Water, A
[05.1997 - 07.1999] BB40; BB46 ｶﾝﾚｲﾁ ｼﾖｳ & ﾌﾛﾝﾄ ﾏﾆﾕｱﾙ ﾋ-ﾀ |
87208-36730 |
— | ||
|
87240
|
87240
87240-36030 Valve Assy, Heater Water[01.1993 - 05.1997] BB40,HZB40,50..DX,LX,STD; BB46,HZB56 ﾊﾞﾝ ﾀｲﾌﾟ OR ﾄｳｻｲ ﾀｲﾌﾟ |
87240-36030 |
US $43.53 |
||
|
87240
|
87240
87240-36130 Valve Assy, Heater Water[05.1997 - 07.1999] HDB51..IV5;BB40,HZB40,50..DX,LX,STD; BB46,HZB56 ﾊﾞﾝ ﾀｲﾌﾟ OR ﾄｳｻｲ ﾀｲﾌﾟ |
87240-36130 |
US $50.23 |
||
|
87245A
|
87245A
87245-36570 Hose, Heater Water, Inlet A[01.1993 - 05.1997] BB4# ｶﾝﾚｲﾁ ｼﾖｳ |
87245-36570 |
US $29.85 |
||
|
87245A
|
87245A
87245-36571 Hose, Heater Water, Inlet A[05.1997 - 07.1999] BB4# ｶﾝﾚｲﾁ ｼﾖｳ |
87245-36571 |
US $26.64 |
||
|
87245A
|
87245A
87245-3B430 Hose, Heater Water, Inlet A[01.1993 - 05.1997] BB4# ｱﾘ(ﾘﾔﾋ-ﾀ) |
87245-3B430 |
US $17.33 |
||
|
87245A
|
87245A
87245-3B431 Hose, Heater Water, Inlet A[05.1997 - 07.1999] BB4# |
87245-3B431 |
US $22.42 |
||
|
87245E
|
87245E
87245-3B390
Hose, Heater Water, Inlet E
[01.1993 - 05.1997] BB4#,HDB5#,HZB4#,5# |
87245-3B390 |
— | ||
|
87245E
|
87245E
87245-3B391 Hose, Heater Water, Inlet E[05.1997 - 07.1999] HDB51..4FC;BB4#,HDB50,HZB4#,5# |
87245-3B391 |
US $18.93 |
||
|
87246A
|
87246A
87245-3B400
Hose, Heater Water, Outlet A
[01.1993 - 05.1997] BB4#,HDB5#,HZB4#,5# |
87245-3B400 |
— | ||
|
87246A
|
87246A
87245-3B401 Hose, Heater Water, Outlet A[05.1997 - 07.1999] HDB51..4FC;BB4#,HDB50,HZB4#,5# |
87245-3B401 |
US $15.58 |
||
|
87246B
|
87246B
87245-3B410 Hose, Heater Water, Inlet A[01.1993 - 05.1997] BB4#,HDB5#,HZB4#,5# |
87245-3B410 |
US $10.63 |
||
|
87246B
|
87246B
87245-3C440 Hose, Heater Water, Outlet B[05.1997 - 07.1999] HDB51..4FC;BB4#,HDB50,HZB4#,5# |
87245-3C440 |
US $9.32 |
||
|
87246E
|
87246E
87245-3B440 Hose, Heater Water, Outlet E[01.1993 - 05.1997] BB40; BB46 ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
87245-3B440 |
US $12.38 |
||
|
87246E
|
87246E
87245-3B441 Hose, Heater Water, Outlet E[05.1997 - 07.1999] BB4# |
87245-3B441 |
US $16.02 |
||
|
87251C
|
87251C
87251-30200 Union(For Water By-Pass Hose)[01.1993 - 07.1999] BB4#,5# |
87251-30200 |
from US $5.24 |
||
|
87251C
|
87251C
87251-60010
Joint Or Union, Front Heater Hose Through Or Inlet Valve
[01.1993 - 05.1995] BB40 ｶﾝﾚｲﾁ ｼﾖｳ & FR ﾏﾆﾕｱﾙ ﾋ-ﾀ |
87251-60010 |
— | ||
|
87251D
|
87251D
87251-60010
Joint Or Union, Front Heater Hose Through Or Inlet Valve
[01.1993 - 05.1997] BB4# |
87251-60010 |
— | ||
|
87251D
|
87251D
87251-95403
Joint Or Union, Water Hose Through
[05.1997 - 07.1999] BB40; BB46 ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ﾋ-ﾀ & ﾊﾟﾜ- ﾋ-ﾀ OR ﾘﾔ ﾋ-ﾀ---ﾊﾞﾝﾀｲﾌﾟ OR ﾘﾔ ﾋ-ﾀ---ﾄｳｻｲ ﾀｲﾌﾟ |
87251-95403 |
— | ||
|
87251E
|
87251E
87251-90B00 Joint Or Union, Water Hose Through[01.1993 - 04.1994] BB4# |
87251-90B00 |
US $41.64 |
||
|
87251E
|
87251E
87251-95400 Joint Or Union, Front Heater Hose Through Or Inlet Valve[04.1994 - 07.1999] BB4#,5# |
87251-95400 |
US $12.23 |
||
|
87255A
|
87255A
87245-36180 Hose, Rear Heater Water Inlet, A(From Engine)[01.1993 - 05.1997] BB4# |
87245-36180 |
US $32.18 |
||
|
87255A
|
87255A
87245-36181 Hose, Rear Heater Water Inlet, A(From Engine)[05.1997 - 07.1999] BB4# |
87245-36181 |
US $19.51 |
||
|
87255C
|
87255C
87245-3C730 Hose, Rear Heater Water Inlet, C[05.1997 - 07.1999] HZB40..LX;BB4#,HDB5#,HZB41,5#..CBU,IV5 ｶﾝﾚｲﾁ ｼﾖｳ & ﾊﾞﾝ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ OR ｶﾝﾚｲﾁ ｼﾖｳ & ﾄｳｻｲ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ |
87245-3C730 |
US $4.37 |
||
|
87255C
|
87255C
99556-30100 Hose, Water Inlet[01.1993 - 05.1997] BB40,HDB5#,HZB4#,50 ＊Ｈ，Ｌ＝５５; BB46,HZB56 ＊Ｈ，Ｌ＝５５,ｶﾝﾚｲﾁ ｼﾖｳ & ﾊﾞﾝ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ OR ｶﾝﾚｲﾁ ｼﾖｳ & ﾄｳｻｲ ﾀｲﾌﾟ & ﾊﾟﾜ- ﾋ-ﾀ |
99556-30100 |
from US $3.20 |
||
|
8271122270
|
8271122270
82711-22270 Clamp(For Transfer Vacuum Tube) |
82711-22270 |
US $4.37 |
||
|
8712428030
|
8712428030
87124-28030 Clamp, Heater |
87124-28030 |
from US $2.45 |
||
|
8712436130
|
8712436130
87124-36130
Clamp, Heater
|
87124-36130 |
— | ||
|
9017906206
|
9017906206
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9046027001
|
9046027001
90460-27001
Clamp Or Clip, Hose(for Water By-pass Hose)
|
90460-27001 |
— | ||
| replacement | |||||
|
9046027001
|
9046027001
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $4.49 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.75 |
||
|
9613442100
|
9613442100
96134-42100 Clip(For Water By-Pass Hose Assy) |
96134-42100 |
from US $1.06 |
||
