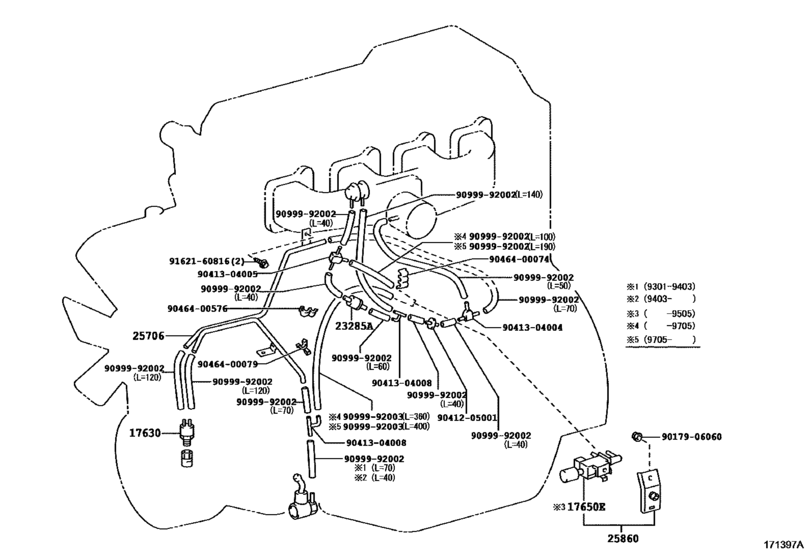

Vacuum Piping ([01.1993 - 07.1999] (9301-9907)3B) Diagram Toyota COASTER
- Year
- 1993 - 1999
- Sales region
- Japan
- Frame
- BB40
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 07.1999
- Gear Shift Type
- 5F
- Seating Capacity
- 39S
- Vehicle Model
- Coaster
- Fuel Induction
- DSL2
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17630
|
17630
17630-15010 Valve Assy, Air Control[01.1993 - 07.1999] 15BF,3B..BB4#,5#; 1HZ..HZB41..15S..5F;1HD#,1HZ..HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S |
17630-15010 |
US $134.53 |
||
|
17650E
|
17650E
90910-12136
Valve Assy, Vacuum Switching
[01.1993 - 05.1995] 3B..BB4#; 1H#..HDB5#,HZB4#,5# |
90910-12136 |
— | ||
| replacement | |||||
|
17650E
|
17650E
90910-12213
Valve, Vacuum Switching
[01.1993 - 05.1995] 3B..BB4#; 1H#..HDB5#,HZB4#,5# |
90910-12213 |
— | ||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[01.1993 - 07.1999] 3B..BB4#; 1HZ..HZB41..15S..5F;1HD#,1HZ..HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S |
90917-10049 |
US $12.96 |
||
|
25706
|
25706
25706-58050 Pipe Sub-Assy, Vacuum Transmitting, No.1[01.1993 - 07.1999] 3B..BB4# |
25706-58050 |
US $21.11 |
||
|
25860
|
25860
25860-17030 Valve Assy, Vacuum Switching, No.1[01.1993 - 05.1995] 3B..BB4#; 1HDT..HDB5#..5F ＮＯ．２; 1HZ..HZB4#,5#;1HDT..HDB5#..4FC |
25860-17030 |
US $106.29 |
||
|
25860
|
25860
25860-17060 Valve Assy, Vacuum Switching, No.1[05.1995 - 07.1999] 3B..BB4#; 1H#..HDB5#,HZB4#,5# |
25860-17060 |
US $51.69 |
||
|
9017906060
|
9017906060
90179-06060 Nut, Wing(For Air Cleaner) |
90179-06060 |
US $2.08 |
||
|
9041205001
|
9041205001
90412-05001 Way, 2 |
90412-05001 |
US $2.77 |
||
|
9041304004
|
9041304004
90413-04004 Way, 3(For Canister) |
90413-04004 |
US $2.62 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
US $3.04 |
||
|
9041304008
|
9041304008
90413-04008 Way, 3(For Transfer Breather Hose) |
90413-04008 |
from US $6.46 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $1.92 |
||
|
9046400079
|
9046400079
90464-00079 Clamp, Vacuum Tube |
90464-00079 |
US $5.59 |
||
|
9046400576
|
9046400576
90464-00576 Clamp, No.1 (For Transfer Vacuum) |
90464-00576 |
US $1.14 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.88 |
||
