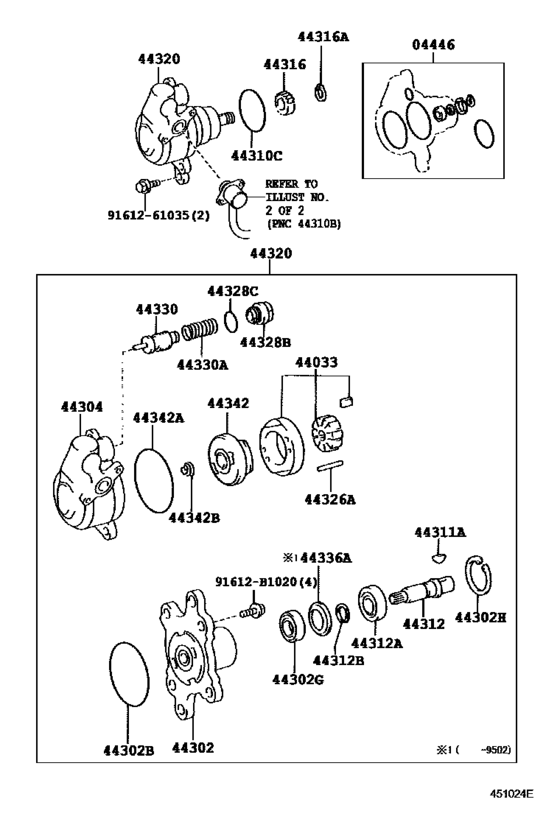

Vane Pump & Reservoir (Power Steering) ([01.1993 - 07.1999] (9301-9907)BB4#,5# ; (0203- )BZB40,50) Diagram Toyota COASTER
- Year
- 1993 - 1999
- Sales region
- Japan
- Frame
- BB40
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 07.1999
- Gear Shift Type
- 5F
- Seating Capacity
- 39S
- Vehicle Model
- Coaster
- Fuel Induction
- DSL2
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-36081 Gasket Kit, Power Steering Pump[01.1993 - 07.1999] BB4# |
04446-36081 |
US $28.88 |
||
|
44033
|
44033
44033-36030 Rotor Sub-Assy, W/cam & Vane[01.1993 - 02.1995] BB4# |
44033-36030 |
US $115.02 |
||
| replacement | |||||
|
44033
|
44033
44033-36060 Rotor Sub-Assy, W/cam & Vane[01.1993 - 02.1995] BB4# |
44033-36060 |
from US $128.76 |
||
|
44033
|
44033
44033-36060 Rotor Sub-Assy, W/cam & Vane[02.1995 - 07.1999] BB4#,58 |
44033-36060 |
from US $128.76 |
||
|
44302
|
44302
44302-36160 Housing Sub-Assy, Vane Pump, Front[01.1993 - 02.1995] BB4# |
44302-36160 |
US $465.92 |
||
| replacement | |||||
|
44302
|
44302
44302-36210 Housing Sub-Assy, Vane Pump, Front[01.1993 - 02.1995] BB4# |
44302-36210 |
US $167.44 |
||
|
44302
|
44302
44302-36210 Housing Sub-Assy, Vane Pump, Front[02.1995 - 07.1999] BB4#,5# |
44302-36210 |
US $167.44 |
||
|
44302B
|
44302B
90029-20003 Ring, O, No.1(For Vane Pump Housing)[01.1993 - 07.1999] BB4# |
90029-20003 |
from US $2.71 |
||
|
44302G
|
44302G
90029-21018 Seal, Oil, No.2(For Vane Pump Housing)[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5# |
90029-21018 |
from US $2.69 |
||
|
44302H
|
44302H
96151-04000 Ring, Snap(For Hydraulic Motor Vane Pump Drive Shaft)[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5# |
96151-04000 |
US $2.08 |
||
|
44304
|
44304
44304-36160 Housing Sub-Assy, Vane Pump, Rear[01.1993 - 07.1999] BB4# |
44304-36160 |
US $492.13 |
||
|
44310C
|
44310C
90301-60002 Ring, O(For Vane Pump)[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5# |
90301-60002 |
from US $7.22 |
||
|
44311A
|
44311A
90029-18001 Key, Woodruff(For Hydraulic Motor Vane Pump Drive Shaft)[01.1993 - 07.1999] BB4#,5# |
90029-18001 |
from US $2.07 |
||
|
44312
|
44312
44312-36110 Shaft, Vane Pump[01.1993 - 07.1999] BB4#,5# |
44312-36110 |
US $37.22 |
||
|
44312A
|
44312A
90029-36003 Bearing(For Vane Pump Shaft)[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5# |
90029-36003 |
from US $22.65 |
||
|
44312B
|
44312B
90029-52402 Ring, Shaft Spring(For Hyd Motor Vane Pump Drive Shaft)[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5# |
90029-52402 |
US $3.04 |
||
|
44316
|
44316
44316-36020 Gear, Vane Pump[01.1993 - 07.1999] BB4#,5# |
44316-36020 |
US $63.04 |
||
|
44316A
|
44316A
96150-01700 Ring[01.1993 - 07.1999] BB4#,5# |
96150-01700 |
US $1.60 |
||
|
44320
|
44320
44320-36170 Pump Assy, Vane[01.1993 - 07.1999] BB4#,58 |
44320-36170 |
US $1,100.74 |
||
|
44326A
|
44326A
44347-89101 Pin, Straight(For Vane Pump Cam Ring)[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5# 長さ＝２９．１ |
44347-89101 |
US $7.13 |
||
|
44328B
|
44328B
44328-89101 End, Vane Pump Housing[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5# |
44328-89101 |
US $18.35 |
||
| replacement | |||||
|
44328B
|
44328B
S4432-61180 End, Vane Pump Housing[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5# |
S4432-61180 |
US $15.72 |
||
|
44328C
|
44328C
96711-19020 Ring, O(For Power Steering Actuator)[01.1993 - 07.1999] BB4# |
96711-19020 |
US $4.80 |
||
|
44330
|
44330
44330-36110 Valve Assy, Flow Control[01.1993 - 07.1999] BB4#,58 二本溝 |
44330-36110 |
US $71.49 |
||
|
44330
|
44330
44330-36120 Valve Assy, Flow Control[01.1993 - 07.1999] BB4#,58 一本溝 |
44330-36120 |
US $71.49 |
||
|
44330
|
44330
44330-36130 Valve Assy, Flow Control[01.1993 - 07.1999] BB4#,58 溝無し |
44330-36130 |
US $71.49 |
||
|
44330A
|
44330A
90029-60002 Spring, Compression(For Flow Control Valve)[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5# |
90029-60002 |
US $4.89 |
||
|
44336A
|
44336A
44336-89101 Retainer, Vane Pump Oil Seal[01.1993 - 02.1995] BB4# |
44336-89101 |
US $8.30 |
||
|
44342
|
44342
44342-89102 Plate, Vane Pump Side, Rear[01.1993 - 07.1999] BB4#,58 |
44342-89102 |
US $96.10 |
||
|
44342A
|
44342A
96711-24060 Ring, O(For Power Steering Control Valve)[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5# |
96711-24060 |
from US $2.87 |
||
|
44342B
|
44342B
90029-60003 Spring, Compression(For Vane Pump Side Plate Rear)[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5# |
90029-60003 |
US $4.69 |
||
|
91612B1020
|
91612B1020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
