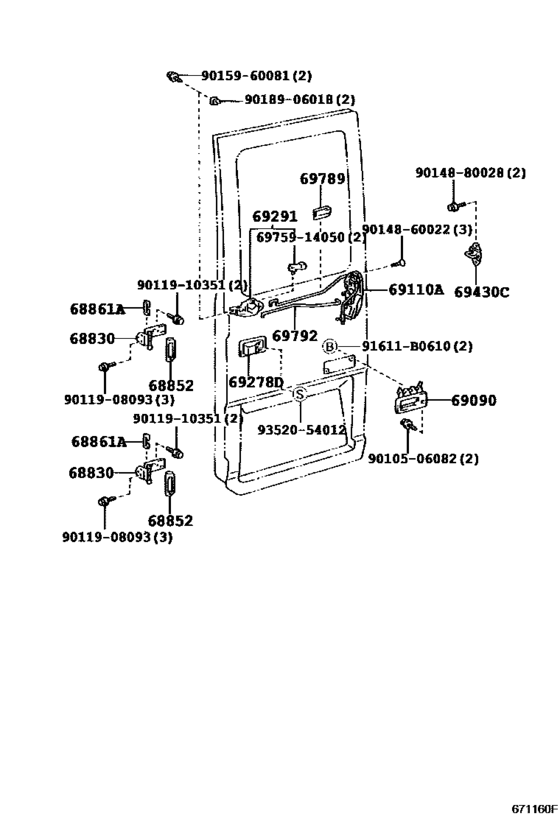

Back Door Lock & Hinge ([05.1997 - 01.2015] SINGLE SWING BACK DOOR (9705-1501)ARL ; (9705-1501)XZB50..GEN..4FC ; (1 501- )ARL) Diagram Toyota COASTER
- Year
- 1993 - 1999
- Sales region
- Europe
- Frame
- BB40
- grade
- STD
- Roof
- HRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- COOLER
- WC
- Model
- COASTER
- From
- 01.1993
- To
- 07.1999
- Gear Shift Type
- 5F
- Seating Capacity
- 19S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68830
|
68830
68801-36010 Hinge Assy, Back Door, Rh[01.1993 - 07.1999] HZB50..SCO;BB58,HZB50..19S,22S;BB4#,50..17S,19S,20S UPPER; BB42,HZB50..RHD..STD..GEN..5F W(*SSBD) OR W(*DSBD),UPPER |
68801-36010 |
US $72.51 |
||
|
68830
|
68830
68803-36010 Hinge Assy, Back Door, Rh[01.1993 - 07.1999] HZB50..SCO;BB58,HZB50..19S,22S;BB4#,50..17S,19S,20S LOWER; BB42,HZB50..RHD..STD..GEN..5F W(*SSBD) OR W(*DSBD),LOWER |
68803-36010 |
US $69.96 |
||
|
68852
|
68852
68851-90K00 Cover, Back Door Hinge, Upper[01.1993 - 07.1999] HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) UPPER |
68851-90K00 |
US $8.16 |
||
|
68852
|
68852
68852-36010 Cover, Back Door Hinge[01.1993 - 07.1999] HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) LOWER |
68852-36010 |
US $7.20 |
||
|
68861A
|
68861A
68861-36010 Pad, Back Door Hinge[01.1993 - 07.1999] HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) |
68861-36010 |
US $2.88 |
||
|
69090
|
69090
69090-36010 Handle Assy, Back Door, Outside[05.1997 - 08.1998] BB40,42,5#,HZB50,RZB40,50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F |
69090-36010 |
US $102.21 |
||
|
69110A
|
69110A
69110-36010 Lock Assy, Back Door W/motorBACK DOOR W/MOTOR [05.1997 - 07.1999] BB40,HZB50..ARL |
69110-36010 |
US $157.39 |
||
|
69278D
|
69278D
69278-60010-A0 Bezel, Front Door Inside Handle, Lh[05.1997 - 08.1998] BB40,42,5#,HZB50,RZB40,50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F IVORY,TRIM4# |
69278-60010-A0 |
US $11.21 |
||
| replacement | |||||
|
69278D
|
69278D
69278-60010-A1 Bezel, Front Door Inside Handle, Lh[05.1997 - 08.1998] BB40,42,5#,HZB50,RZB40,50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F IVORY,TRIM4# |
69278-60010-A1 |
US $6.54 |
||
|
69291
|
69291
69206-60040-A0 Handle Sub-Assy, Front Door Inside, Lh[05.1997 - 08.1998] BB40,42,5#,HZB50,RZB40,50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F IVORY,TRIM4# |
69206-60040-A0 |
US $40.91 |
||
|
69430C
|
69430C
69430-36010 Striker Assy, Back Door LockBACK DOOR LOCK [05.1997 - 07.1999] BB40,HZB50..ARL |
69430-36010 |
US $14.41 |
||
|
69430C
|
69430C
69430-90B03 Striker Assy, Back Door Lock[01.1993 - 05.1997] HZB50..SCO;BB4#..ARL,SCO;HZB50..19S,22S; BB42,HZB50..RHD..STD..GEN..5F W(*SSBD) |
69430-90B03 |
US $24.46 |
||
|
69789
|
69789
69789-36010 Silencer, Back Door Lock Control Link[05.1997 - 08.1998] BB40,42,5#,HZB50,RZB40,50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F |
69789-36010 |
US $3.19 |
||
|
69792
|
69792
69792-36010 Link, Back Door Lock Locking[05.1997 - 08.1998] BB40,42,5#,HZB50,RZB40,50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F |
69792-36010 |
US $6.12 |
||
|
91611B0610
|
91611B0610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
6975914050
|
6975914050
69759-14050 Snap(For Rear Door Inside Handle) |
69759-14050 |
from US $2.24 |
||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.44 |
||
|
9011910351
|
9011910351
90119-10351 BOLT |
90119-10351 |
US $5.76 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014880028
|
9014880028
90148-80028 SCREW, HEX LOBULAR |
90148-80028 |
from US $0.74 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.12 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9352054012
|
9352054012
93520-54012 Screw |
93520-54012 |
from US $1.02 |
||
