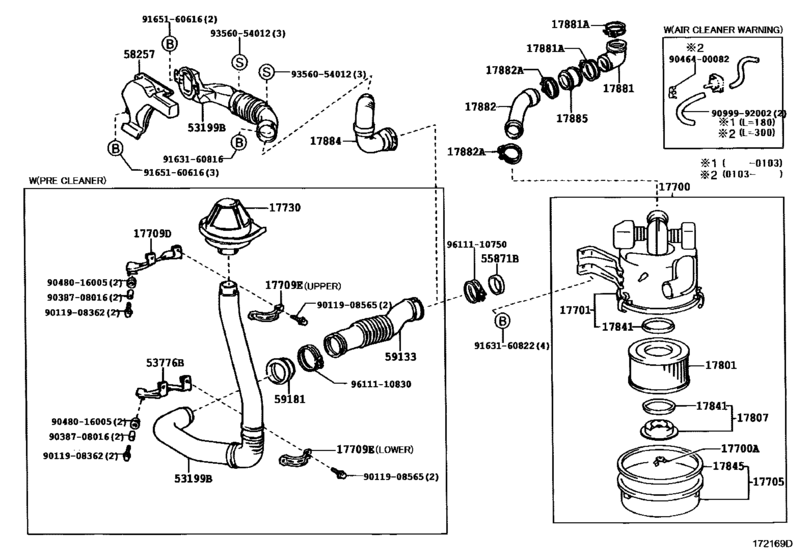

Air Cleaner ([07.1999 - 08.2009] (9907-0908)14B) Diagram Toyota COASTER
- Year
- 1993 - 2001
- Sales region
- General
- Frame
- BB42
- grade
- STD
- Roof
- SRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 08.2001
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-58390 Cleaner Assy, AirAIR [01.1993 - 07.1999] 14B,3B..BB40,42 |
17700-58390 |
US $294.11 |
||
| replacement | |||||
|
17700
|
17700
17700-58690 Cleaner Assy, AirAIR [01.1993 - 07.1999] 14B,3B..BB40,42 |
17700-58690 |
US $349.44 |
||
|
17700
|
17700
17700-58690 Cleaner Assy, AirAIR [07.1999 - 08.2001] 14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
17700-58690 |
US $349.44 |
||
|
17700A
|
17700A
90175-08008 Nut, Wing(For Air Cleaner)[01.1993 - 07.1999] 1HZ#..HZB50; 14B,15BFT,3B..BB4#,5# |
90175-08008 |
from US $2.71 |
||
|
17701
|
17701
17701-44263
Case Sub-Assy, Air Cleaner
[01.1993 - 07.1999] 14B,3B..BB40,42 |
17701-44263 |
— | ||
|
17701
|
17701
17701-58360
Case Sub-Assy, Air Cleaner
[07.1999 - 08.2001] 14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
17701-58360 |
— | ||
|
17705
|
17705
17705-58350
Cap Sub-Assy, Air Cleaner
[07.1999 - 12.2000] 14B..BB42 |
17705-58350 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-58360 Cap Sub-Assy, Air CleanerAIR CLEANER [07.1999 - 12.2000] 14B..BB42 |
17705-58360 |
US $85.20 |
||
|
17705
|
17705
17705-58360 Cap Sub-Assy, Air CleanerAIR CLEANER [12.2000 - 08.2001] 14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
17705-58360 |
US $85.20 |
||
|
17709D
|
17709D
53772-36020 Bracket, Air Cleaner Inlet, No.1AIR CLEANER INLET, NO.1 [01.1993 - 09.1994] 14B..BB42..GCC,GEN |
53772-36020 |
US $24.75 |
||
| replacement | |||||
|
17709D
|
17709D
53772-36021 Bracket, Air Cleaner Inlet, No.1AIR CLEANER INLET, NO.1 [01.1993 - 09.1994] 14B..BB42..GCC,GEN |
53772-36021 |
from US $24.75 |
||
|
17709D
|
17709D
53772-36021 Bracket, Air Cleaner Inlet, No.1AIR CLEANER INLET, NO.1 [09.1994 - 05.1995] 14B..BB42..GCC,GEN |
53772-36021 |
from US $24.75 |
||
|
17709D
|
17709D
53772-36040 Bracket, Air Cleaner Inlet, No.1AIR CLEANER INLET, NO.1 [05.1995 - 07.1999] 14B..BB42..GCC,GEN |
53772-36040 |
US $19.66 |
||
|
17709E
|
17709E
53773-60020 Bracket, Air Cleaner Inlet, No.2AIR CLEANER INLET, NO.2 [05.1995 - 07.1999] 3RZF..RZB40,50 UPPER SIDE; 14B..BB42..GCC,GEN UPPER SIDE; 1HZ..HZB50..(20S,30S)..(GCC,GEN) UPPER SIDE |
53773-60020 |
from US $12.48 |
||
|
17709E
|
17709E
53773-90B00 Bracket, Air Cleaner Inlet, No.2AIR CLEANER INLET DUCT [05.1995 - 07.1999] 3RZF..RZB40,50 LOWER SIDE; 14B..BB42..GCC,GEN LOWER SIDE; 1HZ..HZB50..(20S,30S)..(GCC,GEN) LOWER SIDE |
53773-90B00 |
from US $8 |
||
|
17730
|
17730
17730-58020 Precleaner Assy, Air W/hoseAIR W/HOSE [01.1993 - 05.1995] 1HZ..HZB50..GCC,GEN; 14B..BB42..GCC,GEN |
17730-58020 |
US $155.79 |
||
|
17730
|
17730
17730-66010 Precleaner Assy, Air W/hose[05.1995 - 07.1999] 3RZF..RZB40,50; 14B..BB42..GCC,GEN; 1HZ..HZB50..(20S,30S)..(GCC,GEN) |
17730-66010 |
from US $79.64 |
||
|
17801
|
17801
17801-58010 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [01.1993 - 07.1999] 14B,3B..BB40,42 |
17801-58010 |
from US $64.21 |
||
|
17807
|
17807
17807-56011 Plate Sub-Assy, Air Cleaner Filter Set[01.1993 - 07.1999] 14B,3B..BB40,42 |
17807-56011 |
US $41.94 |
||
|
17807
|
17807
17807-56020
Plate Sub-Assy, Air Cleaner Filter Set
[07.1999 - 08.2001] 14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
17807-56020 |
— | ||
|
17841
|
17841
17841-44030 Gasket, Filter Element[01.1993 - 07.1999] 14B,3B..BB40,42 |
17841-44030 |
from US $4.54 |
||
|
17845
|
17845
17845-56020 Gasket, Air Cleaner Cap[01.1993 - 07.1999] 14B,3B..BB40,42 |
17845-56020 |
from US $7.34 |
||
|
17881
|
17881
17881-58210 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [01.1993 - 07.1999] 14B..BB42 |
17881-58210 |
US $31.45 |
||
|
17881A
|
17881A
96111-10780 Clamp, Hose(For Air Connector)[01.1993 - 02.1993] 14B,3B..BB4# AIR CLEANER SIDE |
96111-10780 |
from US $5.58 |
||
|
17881A
|
17881A
96111-10900 Clamp, Hose[01.1993 - 07.1999] 14B..BB42 ENGINE SIDE |
96111-10900 |
from US $2.57 |
||
|
17882
|
17882
17882-58130 Hose, Air Cleaner, No.2[01.1993 - 07.1999] 14B,3B..BB40,42 |
17882-58130 |
from US $52.85 |
||
|
17882A
|
17882A
96111-10750 Clamp, Hose(For Air Cleaner Duct)[01.1995 - 07.1999] 14B,3B..BB40,42 AIR CLEANER SIDE |
96111-10750 |
from US $3.04 |
||
|
17882A
|
17882A
96111-10780 Clamp, Hose(For Air Connector)[01.1995 - 07.1999] 14B,3B..BB40,42 PIPE SIDE |
96111-10780 |
from US $5.58 |
||
|
17884
|
17884
59132-36010 Hose, Air Cleaner, No.4[01.1993 - 07.1999] 14B,3B..BB40,42 |
59132-36010 |
US $32.03 |
||
|
17885
|
17885
17885-17010 Pipe, Air Cleaner[01.1993 - 07.1999] 14B,3B..BB40,42; 1HZ#..HZB50 |
17885-17010 |
from US $11.21 |
||
|
53199B
|
53199B
53207-36020 Duct Sub-Assy, Cool Air Intake[01.1993 - 07.1999] BB40,42 |
53207-36020 |
US $116.48 |
||
|
53199B
|
53199B
53207-36050 Duct Sub-Assy, Cool Air IntakeCOOL AIR INTAKE [01.1993 - 05.1995] BB42..GCC,GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
53207-36050 |
US $141.23 |
||
|
53199B
|
53199B
53207-36080 Duct Sub-Assy, Cool Air IntakeCOOL AIR INTAKE [05.1995 - 07.1999] BB42..GCC,GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
53207-36080 |
US $96.10 |
||
|
53776B
|
53776B
53776-36030 Bracket, Cool Air Intake Duct Mount, No.2COOL AIR INTAKE DUCT MOUNT, NO.2 [01.1993 - 09.1994] BB42..GCC,GEN |
53776-36030 |
US $20.68 |
||
| replacement | |||||
|
53776B
|
53776B
53776-36031 Bracket, Cool Air Intake Duct Mount, No.2COOL AIR INTAKE DUCT MOUNT, NO.2 [01.1993 - 09.1994] BB42..GCC,GEN |
53776-36031 |
US $14.27 |
||
|
53776B
|
53776B
53776-36031 Bracket, Cool Air Intake Duct Mount, No.2COOL AIR INTAKE DUCT MOUNT, NO.2 [09.1994 - 07.1999] BB42..GCC,GEN |
53776-36031 |
US $14.27 |
||
|
55871B
|
55871B
55871-36020 Seal, Air Duct[01.1993 - 07.1999] HZB50; BB4#,5# |
55871-36020 |
US $2.20 |
||
|
58257
|
58257
58257-36030 Plate, Air Cleaner House[01.1993 - 07.1999] BB40,42 |
58257-36030 |
US $62.32 |
||
|
59133
|
59133
59133-36020 Hose, Cool Air Intake, No.3COOL AIR INTAKE, NO.3 [01.1993 - 05.1995] BB42..GCC,GEN |
59133-36020 |
US $41.93 |
||
|
59133
|
59133
59133-36040 Hose, Cool Air Intake, No.3COOL AIR INTAKE, NO.3 [05.1995 - 07.1999] BB42..GCC,GEN |
59133-36040 |
US $29.27 |
||
|
59181
|
59181
59181-36010
Seal, Air Cleaner Inlet Duct, No.1
[05.1995 - 07.1999] RZB40,50; BB42..GCC,GEN; HZB50..(20S,30S)..(GCC,GEN) |
59181-36010 |
— | ||
|
59181
|
59181
90480-99006 Grommet, Air Cleaner Hose[01.1993 - 05.1995] HZB50..GCC,GEN; BB42..GCC,GEN |
90480-99006 |
US $30.87 |
||
|
9011908362
|
9011908362
90119-08362
BOLT
|
90119-08362 |
— | ||
|
9011908565
|
9011908565
90119-08565 BOLT |
90119-08565 |
from US $1.42 |
||
|
9038708016
|
9038708016
90387-08016 Collar(For Intake Air Connector) |
90387-08016 |
US $3.84 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9048016005
|
9048016005
90480-16005 Grommet(For Air Cleaner Bracket) |
90480-16005 |
US $9.92 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9163160816
|
9163160816
91631-60816 BOLT |
91631-60816 |
US $2.56 |
||
|
9163160822
|
9163160822
91631-60822 BOLT |
91631-60822 |
US $1.12 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.70 |
||
|
9611110750
|
9611110750
96111-10750 Clamp, Hose(For Air Cleaner Duct) |
96111-10750 |
from US $3.04 |
||
|
9611110830
|
9611110830
96111-10830 Clamp, Hose(For Air Connector) |
96111-10830 |
from US $2.88 |
||
