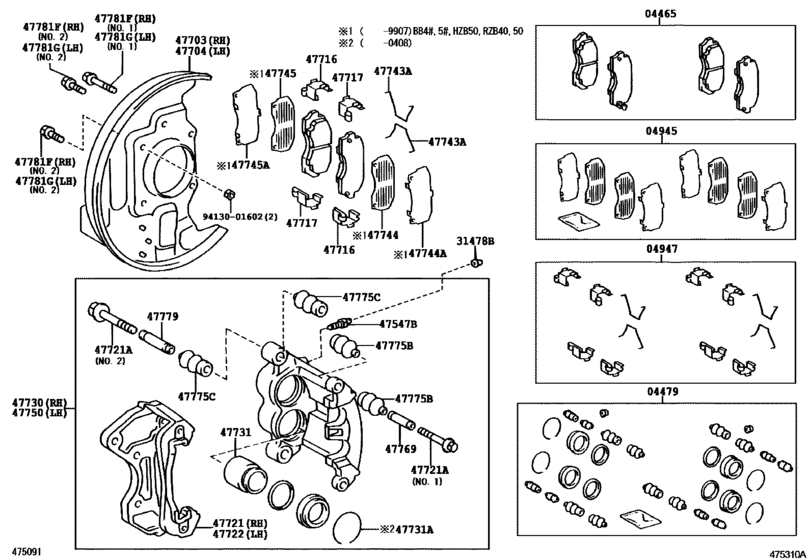

Front Disc Brake Caliper & Dust Cover ([05.1995 - ] (9505- )BB4#,58,59,BZB40,HZB50,RZB40,50,TRB40 ,50,XZB59 ; (1108- )17S) Diagram Toyota COASTER
- Year
- 1993 - 2001
- Sales region
- General
- Frame
- BB42
- grade
- STD
- Roof
- SRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 08.2001
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04465
|
04465
04465-36020 Pad Kit, Disc Brake, Front[01.1993 - 07.1999] BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU MARK AISIN PC519 |
04465-36020 |
from US $165.85 |
||
|
04479
|
04479
04479-36020 Cylinder Kit, Disc Brake, Front[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
04479-36020 |
from US $63.84 |
||
|
04945
|
04945
04945-36010 Shim Kit, Anti Squeal, Front[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
04945-36010 |
from US $20.06 |
||
|
04947
|
04947
04947-36020 Fitting Kit, Disc Brake, Front[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
04947-36020 |
US $42.10 |
||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
31478-30010 |
from US $1.66 |
||
|
47547B
|
47547B
47547-12010 Plug, Bleeder(For Release Cylinder)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
47547-12010 |
from US $2.46 |
||
|
47703
|
47703
47703-36040 Cover Sub-Assy, Disc Brake Dust, Front Rh[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
47703-36040 |
US $72.80 |
||
|
47703
|
47703
47703-36060 Cover Sub-Assy, Disc Brake Dust, Front Rh[07.1999 - 08.2001] BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42 ,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
47703-36060 |
US $80.08 |
||
|
47704
|
47704
47704-36040 Cover Sub-Assy, Disc Brake Dust, Front Lh[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
47704-36040 |
US $72.80 |
||
|
47704
|
47704
47704-36060 Cover Sub-Assy, Disc Brake Dust, Front Lh[07.1999 - 08.2001] BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42 ,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
47704-36060 |
US $80.08 |
||
|
47716
|
47716
47716-36020 Plate, Pad Support, No.1(For Front Disc Brake)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
47716-36020 |
US $4.16 |
||
|
47717
|
47717
47717-36020 Plate, Pad Support, No.2(For Front Disc Brake)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
47717-36020 |
US $4.16 |
||
|
47721
|
47721
47721-36030 Mounting, Front Disc Brake Cylinder, Rh[01.1993 - 07.1999] BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU |
47721-36030 |
US $78.70 |
||
|
47721A
|
47721A
90119-08992 Bolt(For Front Disc Brake Cylinder Slide)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 *8-1.25PX62-30,NO.1 |
90119-08992 |
US $2.08 |
||
|
47721A
|
47721A
90119-12256 Bolt(For Front Disc Brake Cylinder Slide)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 *12-1.25PX75-30,NO.2 |
90119-12256 |
US $3.84 |
||
|
47722
|
47722
47722-36030 Mounting, Front Disc Brake Cylinder, Lh[01.1993 - 07.1999] BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU |
47722-36030 |
US $78.70 |
||
|
47730
|
47730
47730-36030 Cylinder Assy, Front Disc Brake, Rh[01.1993 - 07.1999] BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU |
47730-36030 |
US $506.69 |
||
|
47731
|
47731
47731-36020 Piston, Front Disc Brake[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
47731-36020 |
from US $25.08 |
||
|
47731A
|
47731A
90522-61001 Ring, Set(For Front Disc Brake Piston)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
90522-61001 |
US $0.93 |
||
|
47743A
|
47743A
47743-36020 Spring, Anti-Squeal(For Front Disc Brake)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
47743-36020 |
from US $1.17 |
||
|
47744
|
47744
47742-36010 Shim, Anti-Squeal, No.1(For Front Disc Brake)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
47742-36010 |
US $2.18 |
||
|
47744A
|
47744A
47745-36010 Shim, Anti-Squeal, No.3(For Front Disc Brake)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
47745-36010 |
US $2.18 |
||
|
47745
|
47745
47742-36010 Shim, Anti-Squeal, No.1(For Front Disc Brake)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
47742-36010 |
US $2.18 |
||
|
47745A
|
47745A
47745-36010 Shim, Anti-Squeal, No.3(For Front Disc Brake)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
47745-36010 |
US $2.18 |
||
|
47750
|
47750
47750-36030 Cylinder Assy, Disc Brake, Lh[01.1993 - 07.1999] BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU |
47750-36030 |
from US $475.43 |
||
|
47769
|
47769
47769-36030 Bush, Cylinder Slide, No.1(For Front Disc Brake)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
47769-36030 |
US $5.28 |
||
|
47775B
|
47775B
47775-36040 Boot, Bush Dust, No.1[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
47775-36040 |
US $4.48 |
||
|
47775C
|
47775C
47775-36050 Boot, Bush Dust, No.1[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
47775-36050 |
US $7.36 |
||
|
47779
|
47779
47779-36010 Bush, Cylinder Slide, No.2(For Front Disc Brake)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 |
47779-36010 |
US $10.40 |
||
|
47781F
|
47781F
90105-16044 Bolt(For Backing Plate To Steering Knuckle Arm Setting)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 NO.1 |
90105-16044 |
US $5.92 |
||
|
47781F
|
47781F
90105-16045 Bolt(For Backing Plate To Steering Knuckle Arm Setting)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 NO.2 |
90105-16045 |
US $3.84 |
||
|
47781G
|
47781G
90105-16044 Bolt(For Backing Plate To Steering Knuckle Arm Setting)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 NO.1 |
90105-16044 |
US $5.92 |
||
|
47781G
|
47781G
90105-16045 Bolt(For Backing Plate To Steering Knuckle Arm Setting)[01.1993 - 07.1999] BB4#,5#,HZB50,RZB40,50 NO.2 |
90105-16045 |
US $3.84 |
||
|
9413001602
|
9413001602
94130-01602 Nut(For Dust Cover To Steering Knuckle Arm Setting) |
94130-01602 |
from US $1.07 |
