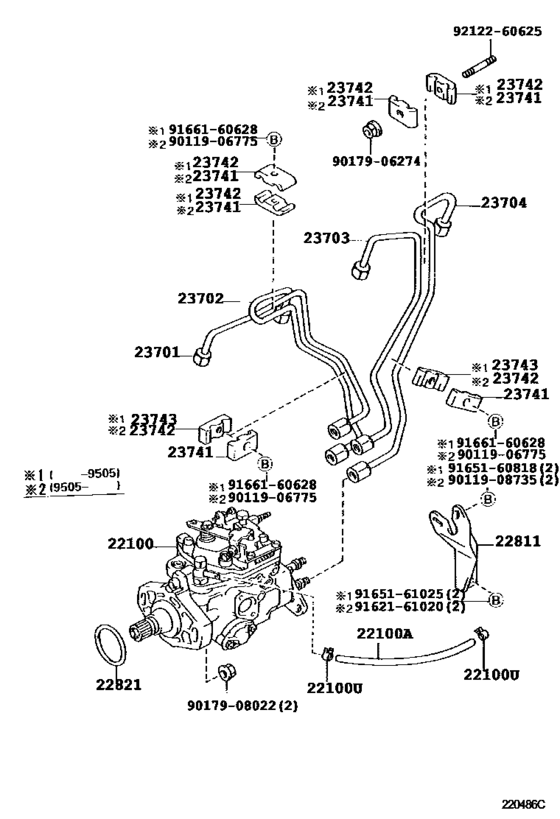

Injection Pump Assembly ([01.1993 - ] (9301- )14B) Diagram Toyota COASTER
- Year
- 1993 - 2001
- Sales region
- General
- Frame
- BB42
- grade
- STD
- Roof
- SRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 08.2001
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-58890 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [01.1993 - 05.1995] 14B..BB42..WOC |
22100-58890 |
US $3,741.92 |
||
|
22100
|
22100
22100-58891 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [05.1995 - 05.1997] 14B..BB42..WOC |
22100-58891 |
US $2,213.12 |
||
|
22100
|
22100
22100-5C020 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [01.1993 - 05.1995] 14B..BB42..WC..(GCC,GEN); 14B..BB42..WOC BATTERY(48D26R X2) |
22100-5C020 |
US $3,741.92 |
||
|
22100
|
22100
22100-5C021 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [05.1995 - 05.1997] 14B..BB42..WC..(GCC,GEN); 14B..BB42..WOC BATTERY(48D26R X2) |
22100-5C021 |
US $2,446.08 |
||
|
22100
|
22100
22100-5C470
Pump Assy, Injection Or Supply
[05.1997 - 07.1999] 14B..BB42..WOC..GCC |
22100-5C470 |
— | ||
|
22100
|
22100
22100-5C480
Pump Assy, Injection Or Supply
[05.1997 - 07.1999] 14B..BB42..WC..GCC; 14B..BB42..WOC..GCC BATTERY(48D26R X2) |
22100-5C480 |
— | ||
|
22100A
|
22100A
95332-10040 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[01.1993 - 07.1999] 14B,3B..BB40,42;15BFT..BB50..WOC..GEN *H,L=340 |
95332-10040 |
US $17.63 |
||
|
22100U
|
22100U
96132-41500 Clip(For Ventilation Tube)[01.1993 - 07.1999] 14B,15BFT,3B..BB4#,5# |
96132-41500 |
from US $1.44 |
||
|
22811
|
22811
22811-56050 Stay, Injection Pump, No.1[01.1993 - 05.1995] 14B,3B..BB4# |
22811-56050 |
US $18.78 |
||
|
22811
|
22811
22811-58030 Stay, Injection Pump, No.1[05.1995 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22811-58030 |
US $14.41 |
||
| replacement | |||||
|
22811
|
22811
22811-58031 Stay, Injection Pump, No.1INJECTION PUMP, NO.1 [05.1995 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
22811-58031 |
US $8.88 |
||
|
22821
|
22821
90301-49003 Gasket, Injection Pump[01.1993 - 07.1999] 15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
90301-49003 |
from US $2.36 |
||
|
23701
|
23701
23701-56080 Pipe Sub-Assy, Injection, No.1[01.1993 - 07.1999] 14B..BB42 |
23701-56080 |
from US $30.48 |
||
|
23702
|
23702
23702-56080 Pipe Sub-Assy, Injection, No.2[01.1993 - 07.1999] 14B..BB42 |
23702-56080 |
US $31.80 |
||
|
23703
|
23703
23703-56080 Pipe Sub-Assy, Injection, No.3[01.1993 - 07.1999] 14B..BB42 |
23703-56080 |
US $31.80 |
||
|
23704
|
23704
23704-56080 Pipe Sub-Assy, Injection, No.4[01.1993 - 07.1999] 14B..BB42 |
23704-56080 |
US $31.80 |
||
|
23741
|
23741
23741-54010 Clamp, Injection Pipe, No.1[01.1993 - 05.1995] 14B..BB42 |
23741-54010 |
US $20.22 |
||
|
23741
|
23741
23741-58010 Clamp, Injection Pipe, No.1[05.1995 - 07.1999] 14B,3B..BB40,42 |
23741-58010 |
from US $1.91 |
||
|
23742
|
23742
23741-56010 Clamp, Injection Pipe, No.1[01.1993 - 05.1995] 14B..BB42 |
23741-56010 |
from US $6.36 |
||
|
23742
|
23742
23742-58010 Clamp, Injection Pipe, No.2[05.1995 - 07.1999] 14B..BB42 |
23742-58010 |
US $3.67 |
||
|
23743
|
23743
23742-54010 Clamp, Injection Pipe, No.2[01.1993 - 05.1995] 14B..BB42 |
23742-54010 |
US $20.22 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.07 |
||
|
9011908735
|
9011908735
90119-08735 New Genuine Part |
90119-08735 |
US $1.75 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.58 |
||
|
9162161020
|
9162161020
91621-61020
Bolt(For Transaxle & Engine Setting)
|
91621-61020 |
— | ||
| replacement | |||||
|
9162161020
|
9162161020
91622-B1020 Bolt(For Transaxle & Engine Setting) |
91622-B1020 |
US $1.92 |
||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.35 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.58 |
||
|
9166160628
|
9166160628
91661-60628
New Genuine Part
|
91661-60628 |
— | ||
| replacement | |||||
|
9166160628
|
9166160628
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.07 |
||
|
9212260625
|
9212260625
92122-60625 New Genuine Part |
92122-60625 |
US $0.76 |
||
