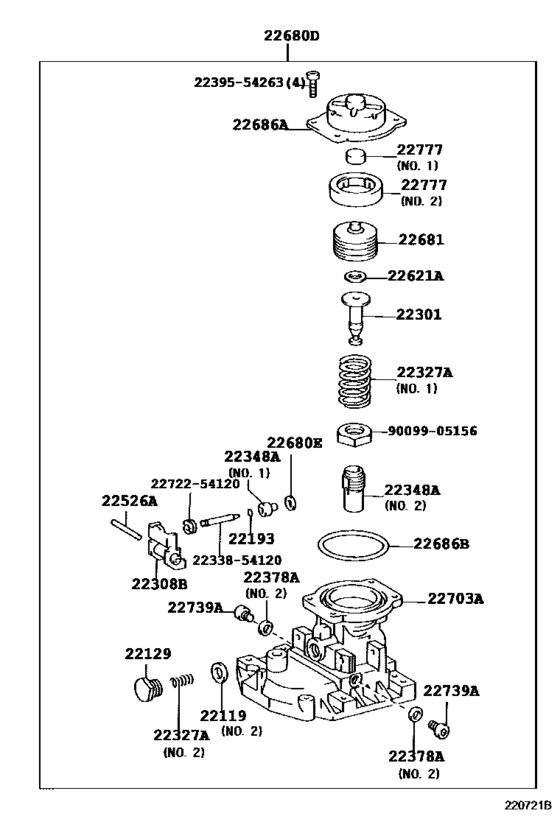

Injection Pump Body ([01.1993 - ] W/BELLOWS ASSY (9301- )14B) Diagram Toyota COASTER
- Year
- 1993 - 2001
- Sales region
- General
- Frame
- BB42
- grade
- STD
- Roof
- SRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 08.2001
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[05.1995 - 07.1999] 14B,3B..BB40,42 T=1.6 |
90201-12109 |
from US $1.38 |
||
|
22193
|
22193
22193-64750 Ring, O(For Lever Connecting Pin)[05.1997 - 07.1999] 14B,3B..BB40,42..ARL,GCC |
22193-64750 |
from US $0.84 |
||
|
22378A
|
22378A
22378-5C430 Washer, Governor Thrust[05.1997 - 07.1999] 14B..BB42..GCC NO.2 |
22378-5C430 |
US $0.72 |
||
|
22378A
|
22378A
22378-64010 Washer, Governor Thrust[01.1993 - 05.1997] 14B,3B..BB4#; 14B..BB42..GEN W(HIGH ALTITUDE COMPENSATOR),NO.1 |
22378-64010 |
US $0.42 |
||
|
22621A
|
22621A
22625-54277
Washer, Timer Adjusting
[01.1993 - 07.1999] 14B..BB42 T=1.0 |
22625-54277 |
— | ||
|
22703A
|
22703A
22703-6A210
Cover Sub-Assy, Governor
[01.1993 - 07.1999] 14B..BB42 |
22703-6A210 |
— | ||
|
2233854120
|
2233854120
22338-54120
Pin, Lever Connecting
|
22338-54120 |
— | ||
|
2239554263
|
2239554263
22395-54263 Bolt, Socket(for Injection Pump Governor Cover) |
22395-54263 |
US $1.48 |
||
|
2272254120
|
2272254120
22722-54120
Nut, Governor Shaft Rock
|
22722-54120 |
— | ||
|
9009905156
|
9009905156
90099-05156
New Genuine Part
|
90099-05156 |
— |
